Cooper Lighting HC-HE Specification Sheet

DESCRIPTION
The Fail-Safe VR 2000 12" Square Series combines strength-gaining
architecture with energy-saving technology. Architecturally angled facets
with radius corners actually increase the ability of the lens to deflect blows
and absorb impact. Extra thick injection molded polycarbonate lens
incorporates optical design that obscures the lamp image and spreads light
evenly. U.L. listed and C.S.A. certified for wet locations.
The durable, versatile 12" Square Semi-recessed HC/HW is perfect where
H.I.D. lamps are needed but minimum projection from wall/ceiling is desired
(wall mount only).

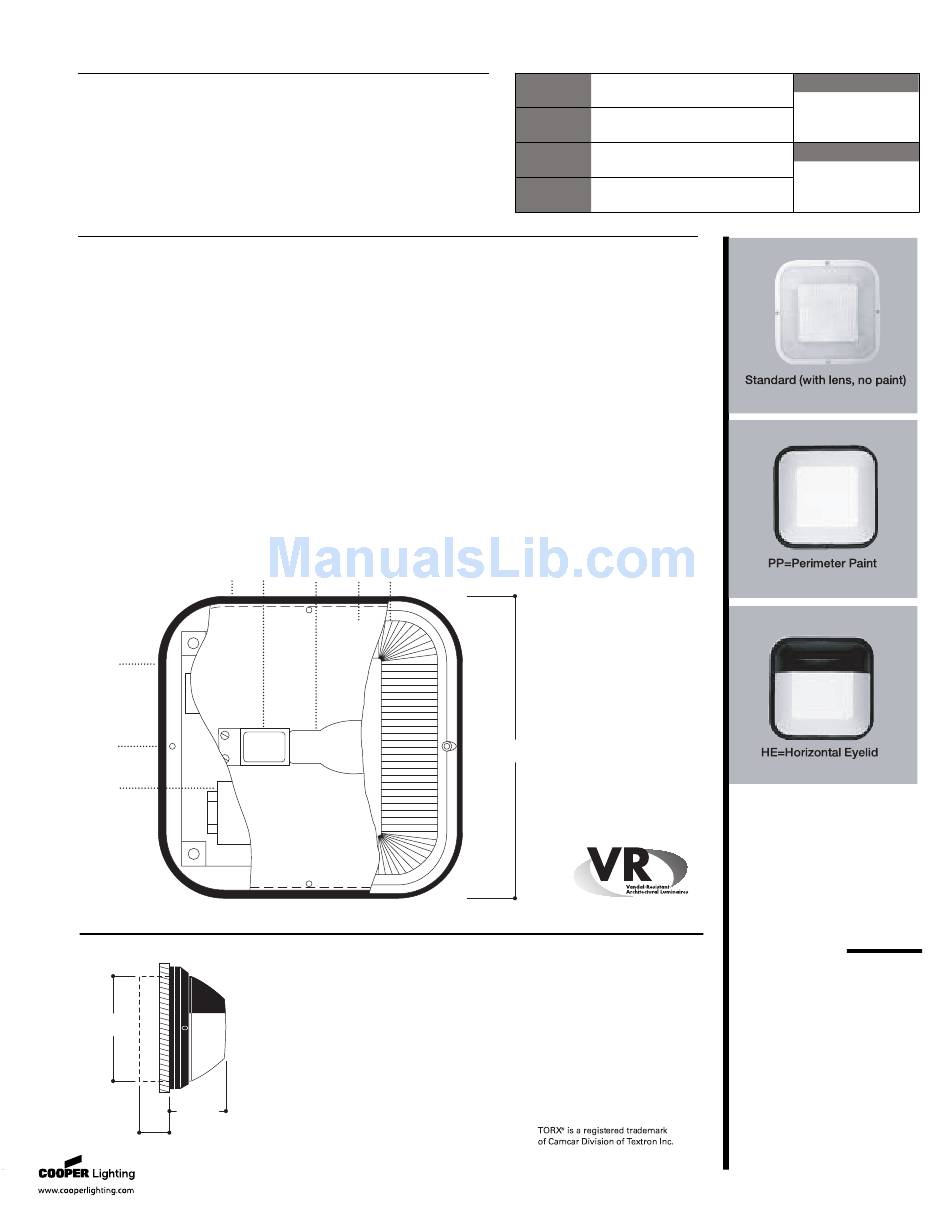

SPECIFICATION FEATURES
A ... Lens
One piece injection molded UV
stabilized polycarbonate, min.
0.130" thick. All light control prisms
& blondels are on the inside
surface of the lens, reducing dirt
build-up and making cleaning
easier.
B ... Fasteners
Four stainless steel TORX® screws
with center reject pin. Screw heads
are recessed into lens to maximize
tamper-resistance. Screws are
captive in the lens and sealed by
means of a neoprene O-ring.
F
G
B
H
SIDE DIMENSIONS
R e c e s s e d B o x
10 1/8" sq.
[257mm]
5 1/4"
[133mm]
3"
[76mm]
Specifications and Dimensions subject to change without notice.
C ... Reflector
16 ga. CRS with white high
reflectance polyester powder coat
finish.
D ... Socket
Porcelain medium base socket with
nickel-plated brass screw shell.
Shock absorbing socket bracket
protects lamp from impact.
E ... Lamp
HID lamp by others.
F ... Recessed Box
16 ga. CRS with white polyester
powder coat finish. Adjustable
mounting brackets accomodate for
wall material thickness.
D E C A
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Two back box configurations are
available depending on
installation; concrete pour
(non-combustible) and stud wall
(combustible). A quick-connect
plug wiring system allows for easy
installation. Back box can be
shipped separately for early
installation.
G ... Gasket
One piece die-cut closed cell
silicone mounting gaskets seal
entire lens and housing.
H ... Ballast
Copper wound HPF ballast are
standard. Consult ordering
information.
12" Sq.
[305mm]
FAIL-SAFE
®
Type
Date
HC-HE, HW-HE
HORIZONTAL
EYELID
50W - 100W
High Pressure Sodium
Metal Halide
POLYCARBONATE
12" SQUARE SEMI-
RECESSED LUMINAIRE
Clear Prismatic or White
Perimeter Paint or
Horizontal Eyelid
Vandal Resistant
Luminaire
E N E R G Y D A TA
For Energy Management related
technical data, refer to the ordering
information for input wattage.
