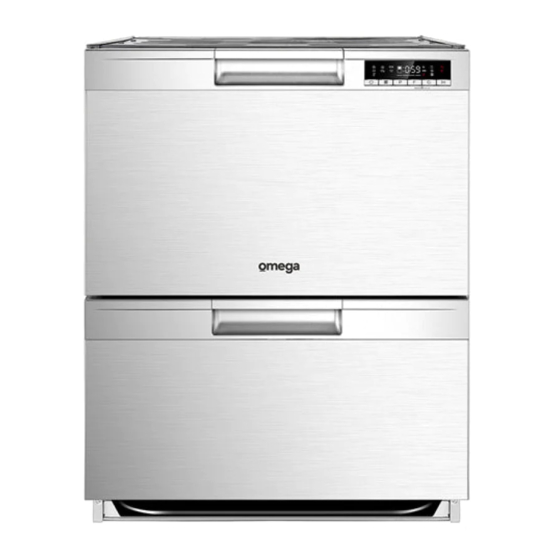

Omega ODD614X Instruction Manual

Double drawer dishwasher
Hide thumbs Also See for ODD614X:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Double Drawer Dishwasher
ODD614X

Advertisement

Table of Contents
loading

Related Manuals for Omega ODD614X

Summary of Contents for Omega ODD614X

  • Page 1 Instruction Manual Double Drawer Dishwasher ODD614X...
  • Page 2 Thank you for purchasing an Omega appliance Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a Omega caters to style-savvy customers who look for balance between stunning form and clever function.

  • Page 3: Table Of Contents

    Due to continual product development, Omega reserves the right to alter specifications and appearances without Due to continual product development, Omega reserves the right to alter specifications and appearances without Due to continual product development, Omega reserves the right to alter specifications and appearances without Contents notice.
  • Page 4 SAFETY INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE USE It is your responsibility to use caution when installing maintaining, and operating your dishwasher. We will not be liable for any damage resulting from improper use. This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage or serious bodily harm, even death.
  • Page 5 SAFETY INSTRUCTIONS - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. This appliance is not intended for use by persons (including children ) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction regarding the use of the appliance by a person responsible for their safety.
  • Page 6 SAFETY INSTRUCTIONS Warning: Knives and other utensils with sharp points must loaded in the basket with their points down or placed in a horizontal position. Do not use the dishwasher before it is fully installed as per the Installation Instructions. It will be unstable and be likely to tip forward.
  • Page 7 7 place settings for top drawer and 7 place settings for bottom drawer. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Maximum inlet water pressure: 1.0 MPa Minimum inlet water pressure: 0.04 MPa QUICK USER GUIDE Starting A Wash...
  • Page 8 Set up the dishwasher function Start wash or set Delay start Power the dishwasher on, then select Close the drawer and press “ ”. drawer, wash program and function. After The Wash The drying fan may continue to run for a set time after that the washing cycle is over or until the drawer is open.
  • Page 9 Product Disposal The packaging can be recycled. If the product is to be disposed of, do this responsibly at your local Council Waste Depot. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

  • Page 10: Product Description

    PRODUCT DESCRIPTION IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Product Overview Control panel Upper drawer Handle Lower drawer Drying fan Spray arm Cutlery basket Adjustable racks Cup rack Filter assembly Dispenser Detergent...

  • Page 11: Control Panel

    Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen will Power light up. Press the button to select either upper drawer or lower drawer Drawer selector loaded, the corresponding indicator will light up. Press this button to select the appropriate washing program, the Program selector selected program indicator will light up.
  • Page 12 To start the selected washing program or pause it when the dishwasher is operating. Start/Pause When the dishwasher is running, if you need to open the drawer, please press the “Start/Pause” button first and wait a few seconds, then open the door slowly. Display A A u u t t o o Auto sensing wash, lightly, or heavily soiled crockery,...
  • Page 13 Display D D e e l l a a y y T T i i m m e e If the delay time is set, the corresponding indicator will be lit. E E x x t t r r a a D D r r y y For better drying result.

  • Page 14: Installation

    INSTALLATION INSTRUCTION Product Dimensions Height (H1) 820 mm Height (H2) 85-135 mm (Height of kick plate) Width (W) 595 mm Depth (D1) 570 mm 1080 mm (Drawer open) Depth (D2)

  • Page 15: Before Installation

    Before Installation Parts supplied Ensure that the inner end of Mounting brackets (4) the tab is protruding by one material thickness Wire clamps (2) Hose clamp (1) (for drain hose coupling) (for sink waste connection) Moisture protection tape (1) Drain hose coupling (1) Drain hose support (1) Kick plate brackets (2) (For installing kick plate)
  • Page 16 Installing Your Dishwasher Prepare the cavity The cavity will need to conform to the dimensions in the diagram. The water supply and power point for the appliance cannot be in the dishwasher cavity. Ideally they should be in an adjacent cavity, easily accessed for isolating the product. An opening to allow the hoses and power cord to exit is required on either side of the cavity with the minimum dimensions shown.
  • Page 17 Installation method (A) Attach top mounting brackets Installation method (B) Attach side mounting brackets...
  • Page 18 Fit the dishwasher Position the dishwasher in the cavity so the the drawer fronts are inline with the adjacent cabinetry. Draw the hoses and power cord through the their opening as you slide the product in. This can be checked by using a spirit level on an open drawer. Moisture protection tape must be applied.
  • Page 19 Install the kick plate 1. Prepare a kick plate as shown. (The mounting hole position is measured by the machine at the factory state. If the height of the feet is adjusted, the position of the mounting hole should be changed according to the actual situation.) 48.5 Unit: mm 2.

  • Page 20: Electrical Requirements

    Electrical Requirements WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. The dishwasher requires a 220-240 Volt 50 Hz AC supply through a 10 amp rated power outlet.

  • Page 21: Connection Of The Drain Hose

    Connection Of The Drain Hose There are two recommended options for connecting the drain hose. Option A: Connecting to the sink waste This is the typical modern method. Check if your sink waste pipe has provision for this method. Beware if it has the drain hose spigot that has never been used, it will likely be blanked off inside the spigot.
  • Page 22 Option B: Connecting to a standpipe The standpipe must be a minimum diameter of 38 mm (1 1/2 inch) and requires a trap for odor control. Use the hose support clip to secure the hoses, ensure they do not enter the standpipe more than 120 mm.

  • Page 23: Basket Use Tips

    USING YOUR DISHWASHER Before using your dishwasher : 1. Remove the larger residue from the wash items 2. Load the basket 3. Load the detergent 4. Fill the rinse aid dispenser Basket Use Tips There are many ways to adjust the loading pattern of the basket. Removing the rear rack The rear rack can be removed to create a flat surface for such things as pots and pans.
  • Page 24 Folding down the pins The spacing between the pins can be increased by folding them down. This will help the loading of large bowls and deep pots and pans. Folding down the pins, the maximum size 290mm plates can be loaded.. The pins on the front rack can also be folded down to create a flat space.
  • Page 25 Adjustable the cup racks You can adjust these cup racks to different heights independently: Fold the cup racks if you need more space 2. Remove the cup holder and install it on a iron wire of different height to adjust the height of the cup holder.

  • Page 26: Preparing And Loading Dishes

    Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For delicate items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles...
  • Page 27 To avoid damage, glasses should not touch one another. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. NOTE: Very small items should not be washed in the dishwasher as they could easily fall through the basket.
  • Page 28 Loading the cutlery basket You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration. Below image demonstrates the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items above. WARNING Always load sharp utensils with the sharp end pointing down!

  • Page 29: Adding Detergent

    5 0 m m To shorten the drying time, the drawer can be opened approx. 50mm at the end of the wash cycle. This however is not compulsory. The wash load will dry completely given the drying time suggested in the table on page 21 Adding Detergent The chemicals in Dishwasher Detergent are necessary to remove, dissolve and help...
  • Page 30 Undo the plug by turning it Fill the dispenser slowly to avoid anticlockwise. spillage. Each dispenser will take 300ml from empty. NOTE: It is important to clean up any spills rinse aid, as it will cause excessive foaming in the wash cycle. Close the plug by rotating it clockwise.

  • Page 31: Operating The Appliance

    OPERATING THE APPLIANCE Wash Cycle Table Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Program Water temp Energy Water...

  • Page 32: Select A Drawer

    Program Water temp Energy Water Detergent Running Drying required usage usage Time Time (℃) grams or (Kwh) (min) (min) tablets Wash (50℃) Rinse 23 75g Rinse 0.45 1 piece Delicate Rinse (55℃) Drying NOTE: AS/NZS 2007.1: This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1.

  • Page 33: Changing The Program Once Started

    Changing The Program Once Started A wash program can only be changed if it has not been running long. You need to ensure that the wash water is still present and it has not drained out and began rinsing. Detergent will have to be re added if there is no wash water present. Here are the instructions to change the program: 1.

  • Page 34: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. WARNING Disconnect the dishwasher from the power supply (unplug or switch off at the circuit breaker) and allow all its parts to cool before any cleaning or maintenance.
  • Page 35 Lift up the handles and remove the Rotate the Cylinder filter counter- plate support clockwise. Lift the Cylinder filter upwards and out of under the basket. Pull forward the Fine filter. Tilt the Fine filter and remove it from under the basket. Rinse with running water.
  • Page 36 Spray arms If you are in a hard water area, it is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: With one hand raise the basket slightly, Slightly tilt the arm and remove it and with the other hand reach under...

  • Page 37: Caring For The Dishwasher

    Caring For The Dishwasher Frost precaution If you live in a region that is where the inside temperature can drop below zero, care needs to be taken to avoid possible damage if the water in the dishwasher freezes. 1. Turn off the mains power to the dishwasher. 2.

  • Page 38: Troubleshooting Tips

    TROUBLESHOOTING TIPS Before Calling For Service Before calling for service, check the following list for problems probable causes and what you can do. Problem Possible Causes What To Do Dishwasher won’t start No power. Check that the power cord is plugged in to a live powerpoint and it is turned on.
  • Page 39 Problem Possible Causes What To Do Wash items are not Unloading dishwasher The drying cycle must be complete fully dry too soon. before the dishwasher is unloaded. Check the Display for end time. Insufficient Rinse Aid. Check for Low Rinse Aid Level warning and re fill if necessary.

  • Page 40: Error Codes

    Error Codes If there is a malfunction, the dishwasher will display error codes to identify the symptom. Codes Meanings Possible Causes Extended Water Inlet Time. Water supply failure, closed faucet, or insufficient supply water pressure. Water temperature not Heating element malfunction. reaching target.

  • Page 41: Product Specification

    Product Specification Manufacturer Omega Type/Description ODD614X 7 place settings top drawer Standard place settings 7 place settings bottom drawer Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.367 kWh Water consumption of the standard cleaning cycle 6.6 liter...
  • Page 42 Do not place empty cookware onto the cooking zones when in use. Email: customercare@omegaappliances.com.au Email: customercare@omegaappliances.com.au Email: customercare@monacocorp.co.nz Email: customercare@monacocorp.co.nz If any cracking is noticed on the cooktop, turn the appliance off immediately and call your Omega Service Centre. — THIS WARRANTY IS VALID IN AUSTRALIA ONLY — 20 1...
  • Page 43 Email: customercare@omegaappliances.com.au Email: customercare@monacocorp.co.nz If any cracking is noticed on the cooktop, turn the appliance off immediately and call your Omega Service instruction concerning the use of the appliance by a person responsible for their safety. Children should be Centre.
