U-Line U-1224DWRINT-00B User Manual & Service Manual page 35

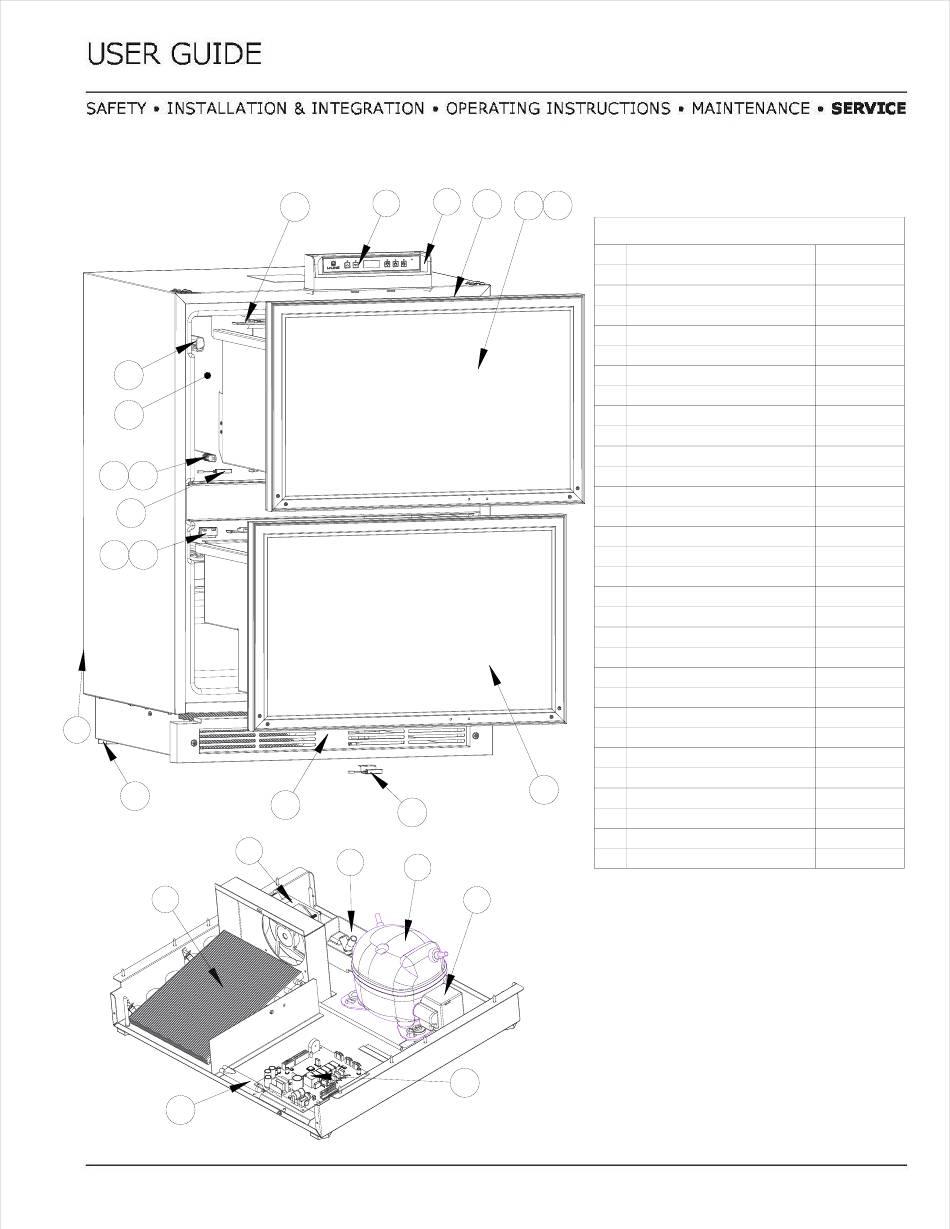

Parts
27
13
28 29
24
19 20
2
18
6
5
12
7
8
17
15
25
9
4
21
14
11 26
Item
1 Anti tip bracket w/screws
2 Back panel
3 Compressor electricals only
4 Compressor w/electricals
5 Condenser assembly
6 Condenser fan w/screws
7 Control housing
8 Display housing
9 Drain pan w/double sided tape
10 Drawer assembly, bottom
11 Drawer assembly, top
12 Drier
13 Evaporator assembly
14 Gasket, drawer
15 Grille w/screws
16 Heater, drawer trough
17 LED light strip and cover assy
18 Leg Levelers (4)
19 Magnet
20 Magnet w/bkt and screws (2)
21 Main board (no case or wires)
22 Packaging
23 Power cord
24 Reed switch
25 Reed switch
26 Slide and divide
10
27 Slide assy
28 Thermistor (1 pc)
29 Thermistor cover and pin
30 Wire Harness, control
3
35
U-1224DWRINT-00B
Description U-Line P/N
80-54221-00
80-54204-00
80-54149-00
80-54150-00
80-54264-00
80-54014-00
80-54265-00
80-54266-00
80-54217-00
80-54337-00
80-54338-00
80-54055-00
80-55411-00
80-54288-00
80-54267-00
80-54285-00
80-54000-00
80-54201-00
80-54100-00
80-54346-00
80-54008-00
80-54209-00
80-54286-00
80-54134-00
80-54284-00
80-54115-00
80-54287-00
80-54006-00
80-54023-00
80-54251-00
Parts 1
