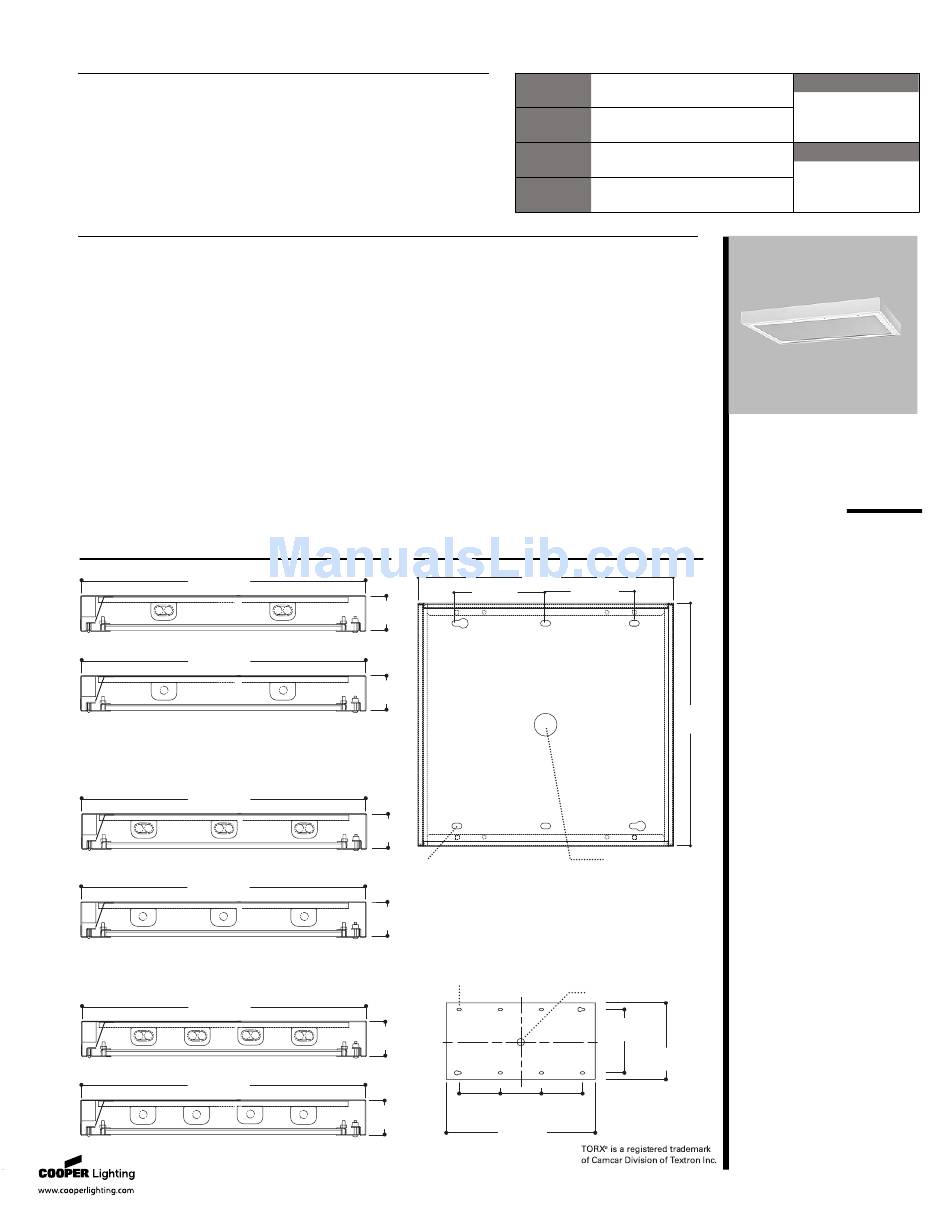

Cooper Lighting FAIL-SAFE FMS24LP Specification

DESCRIPTION
The Fail-Safe FMS Series combines maximum security construction features
with energy saving technology. This surface mounted luminaire utilizes a
one piece housing, security lensing and tamper resistant fasteners to
maximize impact resistance and prevent unauthorized fixture penetration.
An emergency battery pack is available as an option. U.L. listed and C.S.A.
certified for wet locations.
The FMS Series is ideal for confinement/security applications. Suitable for
use in inmate cells, psychiatric wards, secure corridors and general
population areas.
SPECIFICATION FEATURES
A ... Lens
Choice of prismatic acrylic,
prismatic polycarbonate or
prismatic tempered glass on
fixture side, clear polycarbonate or
clear tempered glass on
environmental side.
B ... Fasteners
Stainless steel tamper-resistant
TORX® screws are standard.
Allen-head screws with center
reject pin are optional.
C ... Housing
Die-formed 12 ga.-18 ga. CRS body
with continuous welded and
ground ends to form a one-piece,
seamless housing for maximum
impact
LAMP CONFIGURATIONS
24"
(610mm)
24"
(610mm)
24"
(610mm)
24"
(610mm)
24"
(610mm)
24"
(610mm)
Specifications and Dimensions subject to change without notice.
C ... Housing Cont.
resistance and prevention of
unauthorized fixture penetration.
Standard white high reflectance
polyester powder coat finish.
Gloss: 85%; Reflectance: 93%;
Hardness: 2H; Salt Spray: 500
Hours.
D ... Lamps
(By Others)
E ... Lens Retention
Lens secured by thru-studs and
vertically adjustable internal CRS
hold-downs.
MOUNTING DIMENSIONS
3"
(76mm)
3"
(76mm)
3"
(76mm)
(6) 9/16" x 1" [14 x 25mm]
Mtg. Holes
3"
(76mm)
(8) 9/16" x 1" [14 x 25mm]
Mtg. Holes
3"
(76mm)
13 3/8"
3"
[340mm]
(76mm)
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
F ... Hinge
Continuous, concealed piano hinge
(1/4" diameter knuckle) with
welded pin end to prevent
removal.
G ... Door
One-piece, CRS door frame with
die-formed edges and tightly
closed corners increases rigidity
(gauge to match housing).
H ... Ballast
Standard, Class P, CBM/ETL
ballast.
I ... Labels
U.L. listed, C.S.A. certified,
standard wet label.
25.19"
(640mm)
8.75"
8.97"
(228mm) (222mm)
2 1/4" [57mm]
Dia. Access Hole
2 1/4" [57mm]
Dia. Access Hole
20"
[508mm]
[610mm]
13 3/8" 13 3/8"
[340mm] [340mm]
49 3/16"
[1249mm]
FAIL-SAFE
FMS24LP
28W - 216W
MAXIMUM SECURITY
SURFACE LUMINAIRE
T5 LAMP TECHNOLOGY
T8 LAMP TECHNOLOGY
24"
(610mm)
E N E R G Y D A TA
Input Watts:
Electronic Ballasts & STD Lamps
(2) 40W Biaxial Fluorescents: 68W
(3) 40W Biaxial Fluorescents: 101W
Electronic Ballasts & STD Lamps
(2) 17W T8 Fluorescents: 34W
(3) 17W T8 Fluorescents: 47W
(4) 17W T8 Fluorescents: 61W
(2) 32W T8 Fluorescents: 58W
(3) 32W T8 Fluorescents: 85W
(4) 32W T8 Fluorescents: 112W
Electronic Ballasts & STD Lamps
(2) 14W T5 Fluorescents: 35W
(3) 14W T5 Fluorescents: 55W
(4) 14W T5 Fluorescents: 70W
(2) 28W T5 Fluorescents: 63W
(3) 28W T5 Fluorescents: 97W
(4) 28W T5 Fluorescents: 126W
For High Output Electronic Ballast Data
Consult Cooper Lighting Representative
24"
ADC041622
04/13/2007 5:12:05 PM
®
Type
Date
Fluorescent
LOW PROFILE
