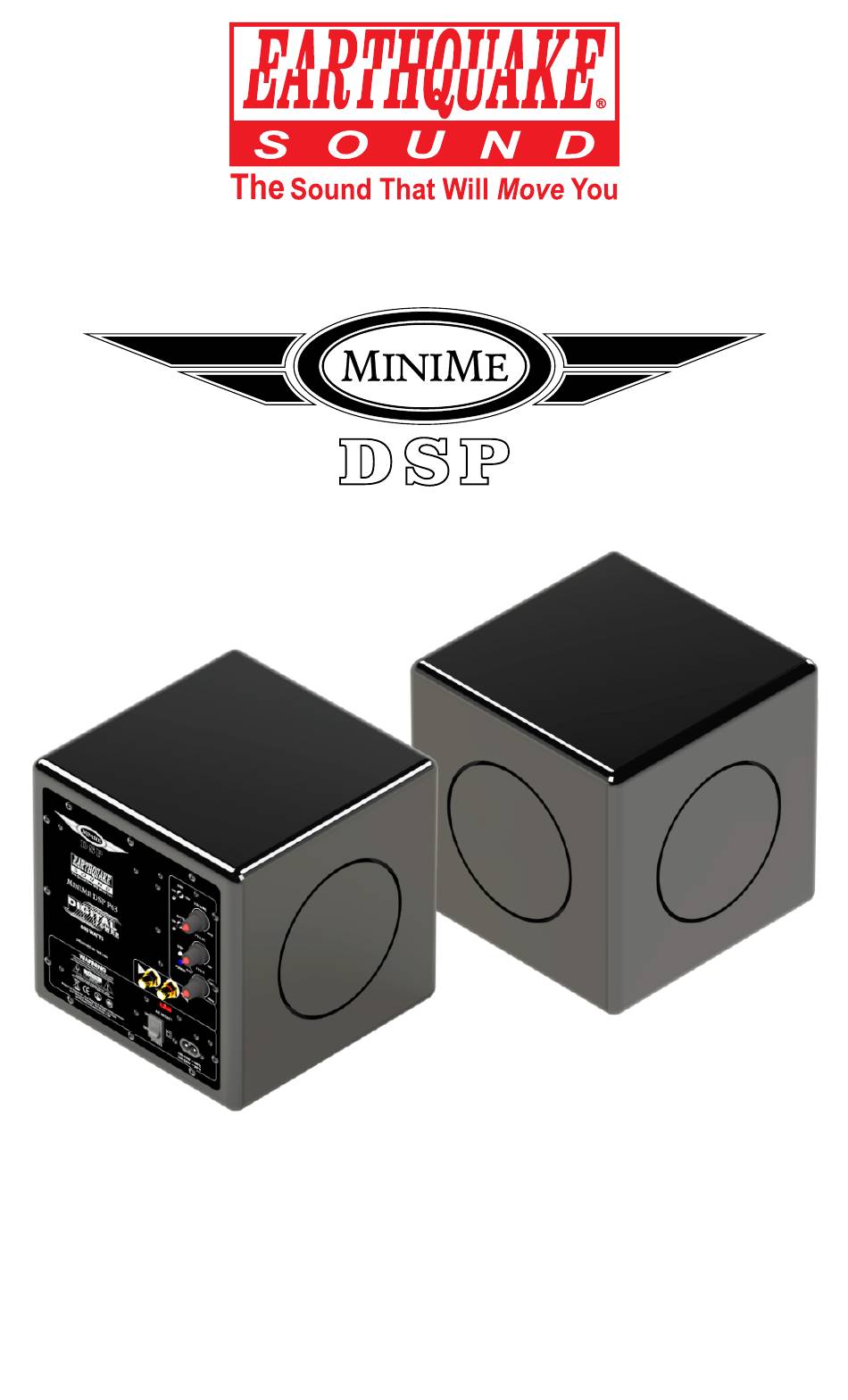

- Page 1 User Manual Earthquake Sound Corp. Phone: (510) 732-1000 www.earthquakesound.com www.earthquakesoundshop.com...
-
Page 2: Table Of Contents
Set your audio system to a comfortable loudness level. Earthquake Sound Corp. Does not assume liability for damages re- sulting from the direct use of Earthquake Sound audio product(s) and urges users to play volume at moderate levels. -
Page 3: Safety Instructions
10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments and accessories specified by the manufacturer. 12) Use only a compatible rack or cart for the final resting position. MiniMe DSP P63 Manual 3... - Page 4 SAFE AND PROPER HANDLING The MiniMe DSP P63 subwoofer can be moderately heavy for an average person to carry or maneuver. To prevent injuries and eliminate any possible damage to the subwoofer, we encourage you to seek help if needed when unpacking the unit. We further suggest the following.
-
Page 5: Unpacking Tips
• Do not drop the MiniMe DSP P63 or subject it to sudden shocks. This will damage the external finish and weaken the enclosure, creating air leaks. -
Page 6: Introduction
Congratulations and thank you for choosing the Earthquake MiniMe DSP P63 subwoofer as a key component of your home audio system. -
Page 7: What Makes A Minime Dsp P63
Built with TCT (Turbine Cooled Trans- ducer) technology, stitched tensile leads, anti-wobble cone construction, and rein- forced dust cap, the MiniMe DSP P63 driver effortlessly produces phenomenal bass with extremely low distortion while staying cool. Dual Passive Bass Radiators The MiniMe DSP P63 is equipped with two passive bass radiators. -
Page 8: Amplifier Plate Overview
For the state of the MiniMe DSP P63 ampli- 2.1 channel audio systems, Earthquake fier (whether the AUTO Sensing is... - Page 9 A/V source to the MiniMe DSP P63 amplifier. (9) 115V/230V AV Selector The MiniMe DSP P63 can operate in a 110-120V or 220-240V environment. The subwoofer should be set to the cor- rect voltage depending on your region.
-
Page 10: Placing Your Subwoofer(S)
PLACING YOUR SUBWOOFER(S) You often hear the term “subwoofers The black arrows rep- are non-directional.” This is not true. It resent the sub-har- is harder to choose subwoofer place- monic frequencies ment when low frequencies are crossed. The gray arrows rep- The wider the room, the more direc- resent the lows, mids, tional the subwoofer. - Page 11 600 WATTS Low Level RCA Setup - Single Subwoofer This is the best way to drive an audio signal to your MiniMe DSP P63 sub- woofer. Today, all signal processors (5.1, 6.1, etc.) come equipped with built-in pre-amplifier outputs (RCA) that in- clude a subwoofer output.
-
Page 12: Connecting Your Subwoofer(S)
LEVEL INPUT of the left side MiniMe DSP P63. Using another “Y” RCA cable, connect the SUB PRE OUT 2 of the receiver to the LOW LEVEL INPUT of the right side MiniMe DSP P63. PRE OUT (SINGLE) BACK OF TYPICAL A/V RECEIVER OR... -
Page 13: Room Tuning With Iwoofer
• Dynamic Bass Base Control named from the “Options” menu. • Dynamic Bass Detailed Control* • Remote Hardware Control • Preset Manager • Preset Import/Export Features • Room Correction* • SPL Meter* *iWoofer Pro Features Only ™ MiniMe DSP P63 Manual 13... - Page 14 second to select it. Once selected, slide ROOM TUNING WITH iWoofer ™ the band left or right to change the fre- quency and up and down to control the gain. You can also use two fingers in a Main Menu Cont’d zoom in or zoom out fashion to change the Q factor, or PEQ bandwidth.
- Page 15 SPL and only compen- sates for the room reflection. The final reference, Linear, creates as flat as a re- sponse curve as possible throughout the frequency range. MiniMe DSP P63 Manual 15...
-
Page 16: Dimensions And Specifications
DIMENSIONS AND SPECIFICATIONS - MiniMe DSP P63 8.75″ ( 222mm ) 9″ 8.75″ ( 229mm ) ( 222mm ) Dual Passive Tuned Enclosure Type 600 Watts MAX Amplifier Power Single 6.5 ″ Premium Active Driver Drivers Dual 6.5 ″ Passive Bass Radiators 30Hz–160Hz... -
Page 17: Warranty Information
• Each product sent in for repair must be packaged in its original packaging. Otherwise, repackaging charges will apply in addition to the labor, parts, and shipping charges. (C) Earthquake agrees to repair or replace - at our discretion - all such defective products/parts subject to the following provisions: •... - Page 18 A copy of the original sales receipt must accompany the product(s) returned for service. Ship the product(s) to: Earthquake Sound Corporation. 2727 McCone Avenue. Hayward, CA 94545 The customer is responsible for the cost of shipping the product(s) to Earthquake Sound Corporation (G) Disputes Resolution: All disputes - between clients and Earthquake Sound Corporation - resulting from the one (1) year limited warranty policy must be resolved according to the laws &...
-
Page 19: For Your Records
FOR YOUR RECORDS Date of Purchase: __________________________________________ Authorized Dealer/Installer Info: Name: __________________________________________ Address: __________________________________________ __________________________________________ Phone: __________________________________________ Serial Number: Notes: MiniMe DSP P63 Manual 19... - Page 20 Earthquake Sound reserves the right to amend details of the specifications without notice @ Copyright Earthquake Sound Corporation www.earthquakesound.com www.earthquakesoundshop.com 2727 McCone Avenue, Hayward, CA 94545 USA Phone: 510-732-1000...
