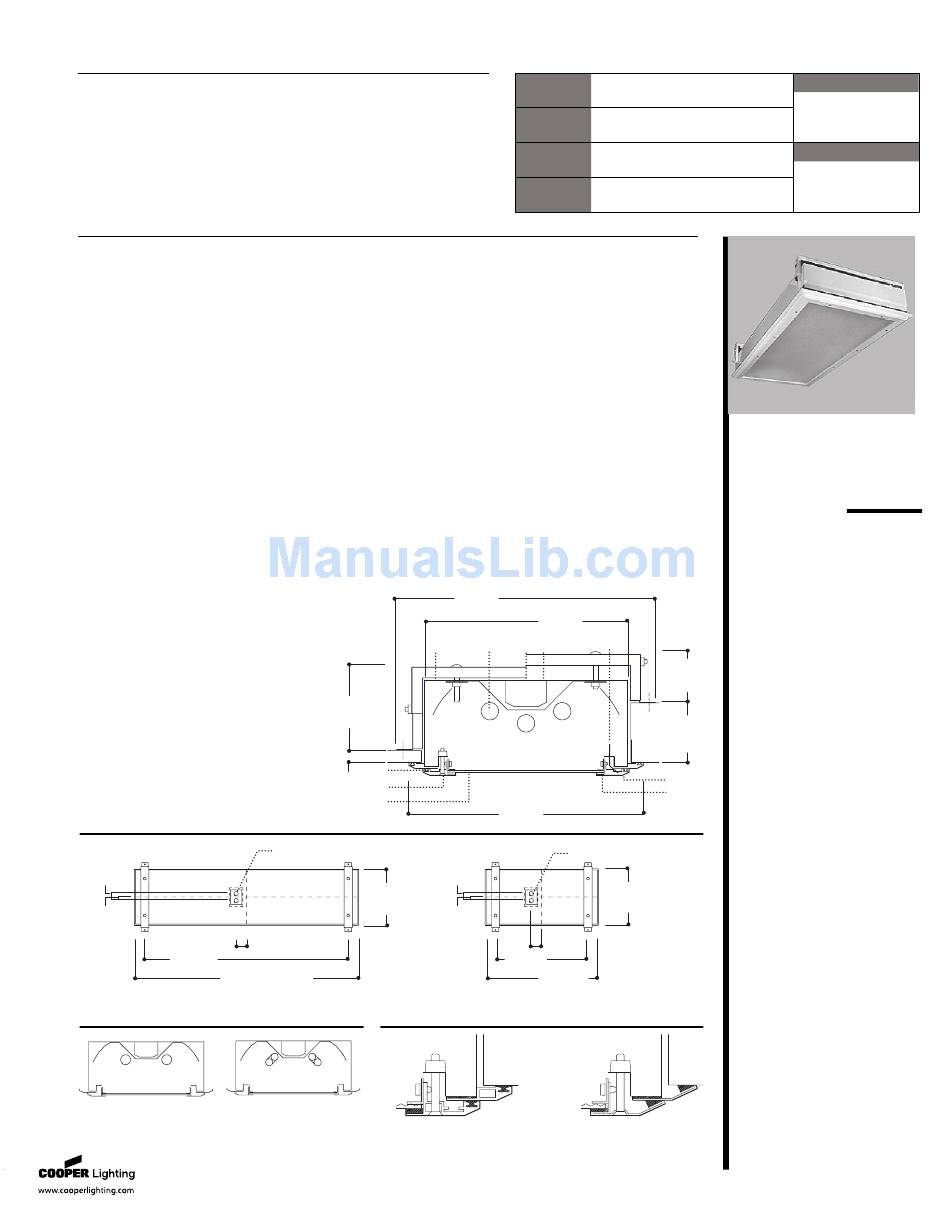

Cooper Lighting FAIL-SAFE SCF12 Specification Sheet

DESCRIPTION
The SCF12 Series is designed for use in horizontal or non-laminar air flow
clean rooms and features the added convenience of field retrofitting for
flange or grid installations. The enclosed and gasketed housing and outside
flanged door protect against infiltration of airborne bacteria. Fixture tested
to minimum of 100 PSI hose down, higher ratings available(consult factory).
The mitered edges on the door frame and the hole-free housing design
prevents air exchange between the fixture and plenum. These luminaires
are manufactured in accordance with U.S.D.A., F.D.A., N.S.F. and Federal
Standard 209E.
SPECIFICATION FEATURES
Application
The SCF12 Series is suitable for
use in I.E.S. Class 10 (M2.5), 100 (M
3.5) 1,000 (M 4.5), 10,000 (M 5.5)
and 100,000 (M 6.5) clean room
environments. Applications include
cleanrooms, technical and bio-
medical labs, food processing/
testing centers and pharmaceutical
labs.
A ... Lens
Lens is clear extruded with prisms
positioned inside fixture and
smooth surface on the outside for
easy cleaning.
B ... Fasteners
Flush mounted, stainless steel
machine screws secure through
captive cage nuts in housing and
are evenly spaced to compress
gasketing on all sides.
C ... Housing
Nominal 5" deep recessed one-
piece housing made of 20 ga. CRS.
Die-formed and seam welded to
create a sealed chamber.
D ... Lamps
(By Others)
MOUNTING DIMENSIONS
1 1/2"
[38mm]
3/4"
[19mm]
[57mm]
44"
[1118mm]
48 1/2"
[1232mm]Cutout
LAMP CONFIGURATIONS
Specifications and Dimensions subject to change without notice.
E ... Lens Retention
Unique, Particulock(TM) lens
retention system utilizes con-
tinuous, 18 ga. media clamp-
downs. Lens is hermetically sealed
to door frame for an airtight seal
against the environment.
F ... Hinge
Reversible drop-link hinging
system for easy maintenance.
G ... Door
(Optional) Door can be extruded
aluminum, fully gasketed, outside
flanged door with mitered edges
eliminates seams which could
entrap microscopic contaminants.
Not standard, must specify. One-
piece die-formed stainless steel
door and housing trim flange
optional.
C
5"
[127mm]
Maximum
I
11/16"
B
[17mm]
Minimum
A
(2) 7/8" [22mm] Dia.KO
Gasketed Access Plate
12 1/4"
[311mm]
Cutout
2 1/4"
DOOR FRAME
Extruded aluminum mitered door frame
and housing trim flange with extruded
silicone rubber perimeter gasketing
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
H ... Ballast
Standard Class P, CBM/ETL ballast.
I ... Gasket
MicroSeal(TM) gasketing system
features silicone RTV sealant
surrounding the perimeter of lens
to seal lens to door frame and
extruded silicone rubber gasketing
around perimeter of door and
housing trim flange to seal door to
housing and housing to ceiling.
J ... Access
A gasketed access plate on top of
the housing with two flattened,
7/8" diameter knockouts allows
connection of vapor tight conduit
fitting.
Labels
U.L. listed, C.S.A. certified,
standard wet label.
14 15/16"
[379mm]
11 11/16"
[297mm]
D J H F
13 1/2"
[343mm]
(2) 7/8" [22mm] Dia. KO
Gasketed Access Plate
1 1/2"
[38mm]
12 1/4"
[211mm]
Cutout
3/4"
[19mm]
2 1/4"
[57mm]
20"
[508mm]
24 1/2"
[622mm]
Cutout
One piece stainless steel door
frame and housing trim flange
with extruded closed cell silicone
perimeter gasketing
FAIL-SAFE
Type
Date
17W - 120W
SPECIFICATION GRADE
FLUORESCENT FLANGE
Outside Flanged Door
3"
[76mm]
Minimum
3 7/16"
[87mm]
Maximum
G
E
E N E R G Y D AT A
Input Watts:
STD Ballasts & STD Lamps
(1) 20W T12 Fluorescent: 32W
(2) 20W T12 Fluorescents: 53W
(3) 20W T12 Fluorescents: 85W
(1) 40W Biaxial Fluorescent: 45W
(2) 40W Biaxial Fluorescents: 82W
ES Ballasts & STD Lamps
(1) 17W T8 Fluorescent: 23W
(2) 17W T8 Fluorescents: 45W
(3) 17W T8 Fluorescents: 68W
(1) 32W T8 Fluorescent: 37W
(2) 32W T8 Fluorescents: 71W
(3) 32W T8 Fluorescents: 108W
(1) 40W T12 Fluorescent: 50W
(2) 40W T12 Fluorescents: 86W
(3) 40W T12 Fluorescents: 136W
ES Ballasts & ES Lamps
(1) 40W T12 Fluorescent: 44W
(2) 40W T12 Fluorescents: 76W
(3) 40W T12 Fluorescents: 120W
Electronic Ballast Data:
Consult Cooper Lighting Representative
ADC041654
06/25/2007 4:16:46 PM
®
SCF12
Fluorescent
1' X 2'
1' X 4'
