Cooper Lighting Fail-Safe FSR24 Specification Sheet

DESCRIPTION

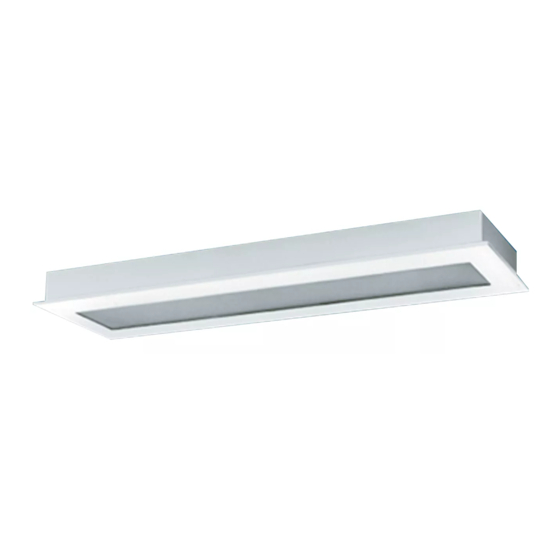

The Fail-Safe FSR Series combines maximum security construction features
with energy saving technology. This recessed luminaire utilizes a one-piece
overlapping door frame, security lensing and tamper resistant fasteners to
maximize impact resistance and prevent contraband concealment and
unauthorized fixture penetration. U.L. listed and C.S.A. certified for wet
locations.
The FSR Series is ideal for confinement/security applications. Suitable for
use in inmate cells, psychiatric wards, secure corridors and general
population areas.
SPECIFICATION FEATURES
A ... Lens
Choice of prismatic acrylic,
prismatic polycarbonate or
prismatic tempered glass on
fixture side, clear polycarbonate or
clear tempered glass on
environmental side.
B ... Fasteners
Stainless steel tamper-resistant
TORX® screws are standard.
Allen-head screws with center
reject pin are optional.
C ... Housing
Clamshell design combines
die-formed 12 ga.-18 ga. CRS body
with welded corners to form a
one-piece housing
C
A
E
B
H
F
[533mm]
MOUNTING DIMENSIONS
[51mm]
48 1/8"
[1222mm]
(2) 7/8" [22mm]
Knock Out
LAMP CONFIGURATIONS
6 11/16"
[170mm]
8 5/16"
[211mm] [127mm]
3 5/8" 4 11/16" 3 5/8" 4 3/16"
[92mm] [119mm] [92mm]
[106mm]
Specifications and Dimensions subject to change without notice.
C ... Housing
which prevents contraband
concealment and unauthorized
fixture penetration. Standard white
high reflectance polyester powder
coat finish. Gloss: 85%;
Reflectance: 93%; Hardness: 2H;
Salt Spray: 500 Hours.
D ... Lamps
(By Others)
E ... Lens Retention
Lens secured by thru-studs and
vertically adjustable internal CRS
hold-downs.
D G
21"
23 15/16"
[608mm]
23 13/16"
[604mm]
2" 24 1/8"
[610mm]
CEILING COMPATABILITY
6"
[152mm]
5"
5"
[127mm]
4 3/16"
[106mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
F ... Door
One-piece, CRS door frame with
die-formed edges and tightly
closed corners increases rigidity
(gauge to match housing).
G ... Ballast
Standard Class P, CBM/ETL ballast.
H ... Light Mask
Polyurethane gasketing surrounds
door frame and prevents light
leaks.
Labels
U.L. listed, C.S.A. certified,
standard wet label.
24"
[610mm]
Metal Pan*
T-Grid
* Includes four (4) heavy gauge steel batwing
hangers providing easy and secure mounting
TORX is a registered trademark
®
of Camcar Division of Textron Inc.
FAIL-SAFE
MAXIMUM SECURITY
RECESSED LUMINAIRE
5 1/16"
[128mm]
7/16"
[11mm]
ENERGY DATA
Input Watts:
STD Ballasts & STD Lamps
(2) 20W T12 Fluorescents: 53W
(3) 20W T12 Fluorescents: 85W
(4) 20W T12 Fluorescents: 106W
(2) 40W Biaxial Fluorescents: 82W
(3) 40W Biaxial Fluorescents: 127W
ES Ballasts & STD Lamps
(2) 17W T8 Fluorescents: 45W
(3) 17W T8 Fluorescents: 68W
(4) 17W T8 Fluorescents: 90W
(2) 32W T8 Fluorescents: 71W
(3) 32W T8 Fluorescents: 108W
(4) 32W T8 Fluorescents: 142W
(2) 40W T12 Fluorescents: 86W
(3) 40W T12 Fluorescents: 136W
(4) 40W T12 Fluorescents: 172W
(1) 40W U-Lamp: 50W
Concealed
(2) 40W U-Lamps: 86W
Z-Spline
ES Ballasts & ES Lamps
(2) 40W T12 Fluorescents: 76W
(3) 40W T12 Fluorescents: 120W
(4) 40W T12 Fluorescents: 152W
(1) 40W U-Lamp: 44W
(2) 40W U-Lamps: 76W
Electronic Ballast Data
Consult Cooper Lighting Representative
03/29/2007 8:39:18 AM
®
Type
Date
FSR24
34W - 160W
Fluorescent
ADC041611
