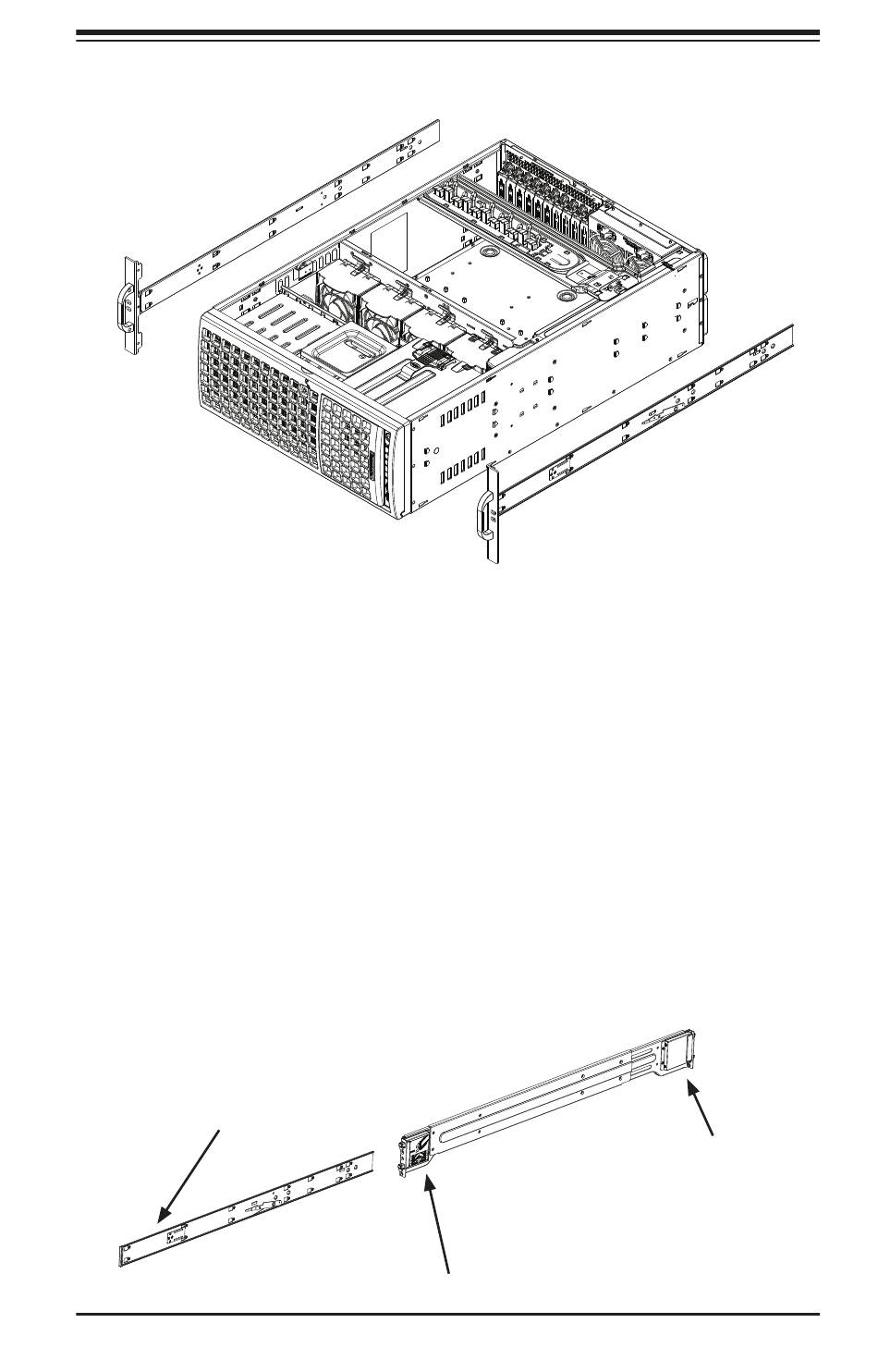

Figure 2-3. Installing the Inner Rack Rails

Installing the Outer Rails to the Rack

Installing the Outer Rails
1. Attach the rear bracket to the middle bracket.
2. Adjust both the brackets to the proper distance so that the rail fits snugly into
the rack.
3. Secure the rear of the outer rail with two M5 screws and the rear of the rack.
Note: The outer rail is adjustable from approximately 26" to 38.25".
4. Repeat steps 1-3 for the left outer rail.
Figure 2-4. Assembling the Outer Rails
Slide into the Inner Rail
Attach to Middle Rail
2-7
Chapter 2: Server Installation
Secure to the
Rear of the Rack
