Summary of Contents for Philips VR960BPH

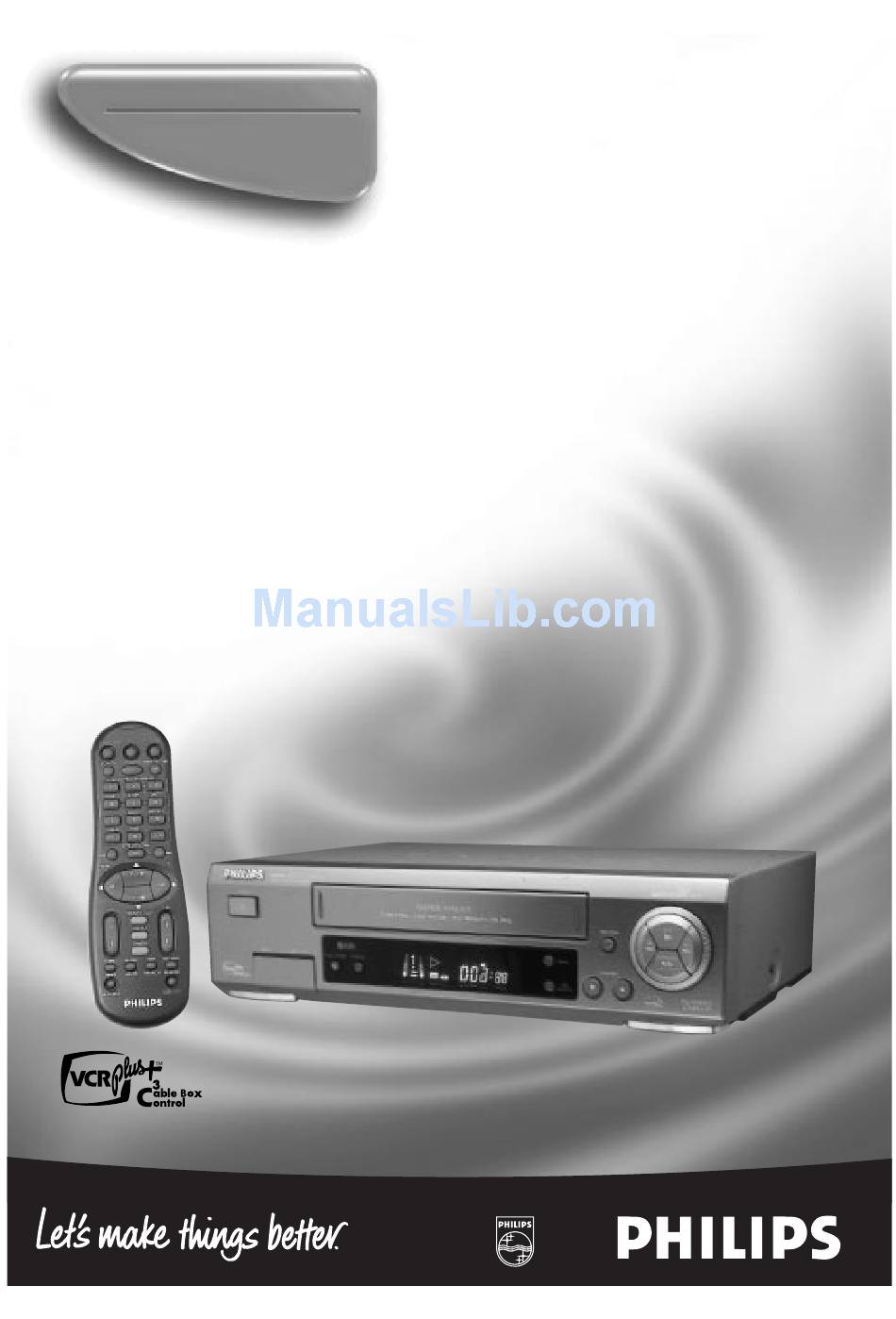

- Page 1 Video Cassette Recorder VR960BPH Hookup Pages I m p o r t a n t ! R e t u r n y o u r W a r r a n t y R e g i s t r a t i o n...
-
Page 2: Hookups Without A Cable Box
6 Hookups without a Cable Box The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or a Direct Broadcast System, please refer to pages 8-9. After you hook up the VCR, please go to pages 10-11 to turn on the VCR. - Page 3 Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever channel is not used or least used in your area. To operate your VCR with your TV, set the TV to the same channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on channel 3.
-
Page 4: Hookups With A Cable Box/Direct Broadcast System
You can only program a timer recording for one channel at a time if you are not using the Controller. Set the TV and the VCR to the Cable Box/DBS output channel (channel 03 or 04); set the CH3/CH4 switch to the same channel. Set your Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). -
Page 5: Recording One Channel/Watching Another
CH3/CH4 switch. Set the TV to the Cable Box/DBS output channel (03 or 04). Then, with the VCR in VCR position (the VCR light will appear on the display panel), use the CH(annel) 8/9 button to select the channel you want to record at the VCR. Start the recording. -
Page 6: Front Panel
22 Front Panel POWER Button Press to turn the VCR power on and off. Remote Sensor Receives a signal from your remote control so you can operate your VCR from a distance. Press the VCR button on the remote control before pressing other VCR operation buttons. -
Page 7: Rear Panel
RCA-style video (yellow) connections. S-Video connections provide a better picture. CH3/CH4 Switch Set to channel 3 or 4 to use your TV with your VCR. Set your TV to the same channel. Details are on pages 7-9. VIDEO IN Jack Connect a video cable coming from the VIDEO OUT jack of a camcorder, a Cable Box/DBS, or another VCR here. -
Page 8: Rerecording (Tape Duplication)
The instructions on this page show you how to copy tapes. Different VCRs may operate differently. To duplicate a tape, make the connections shown, then follow steps 1-6. (You may use the AUDIO and VIDEO In jacks on the front of VCR 2 instead if you prefer.) VCR 1... -
Page 9: Connecting The Controller
If you are using a Cable Box/DBS, connect the Controller to your VCR. The Controller will automatically select channels at the Cable Box/DBS during a timer recording. Leave your Cable Box/DBS turned on during a timer recording. Connect the Cable Box/DBS to the VCR as shown below. For more information, please read page 8. - Page 10 VCR SET UP TUNER SET UP INITIAL SET UP SELECT: ,9 CONFIRM: OK END: MENU Press the PLAY 8 or STOP 9 button to select VCR SET UP, then press the OK/STATUS button. DSPC ON SCREEN MODE BLUE BACKGROUND TIMER REC SPEED...
