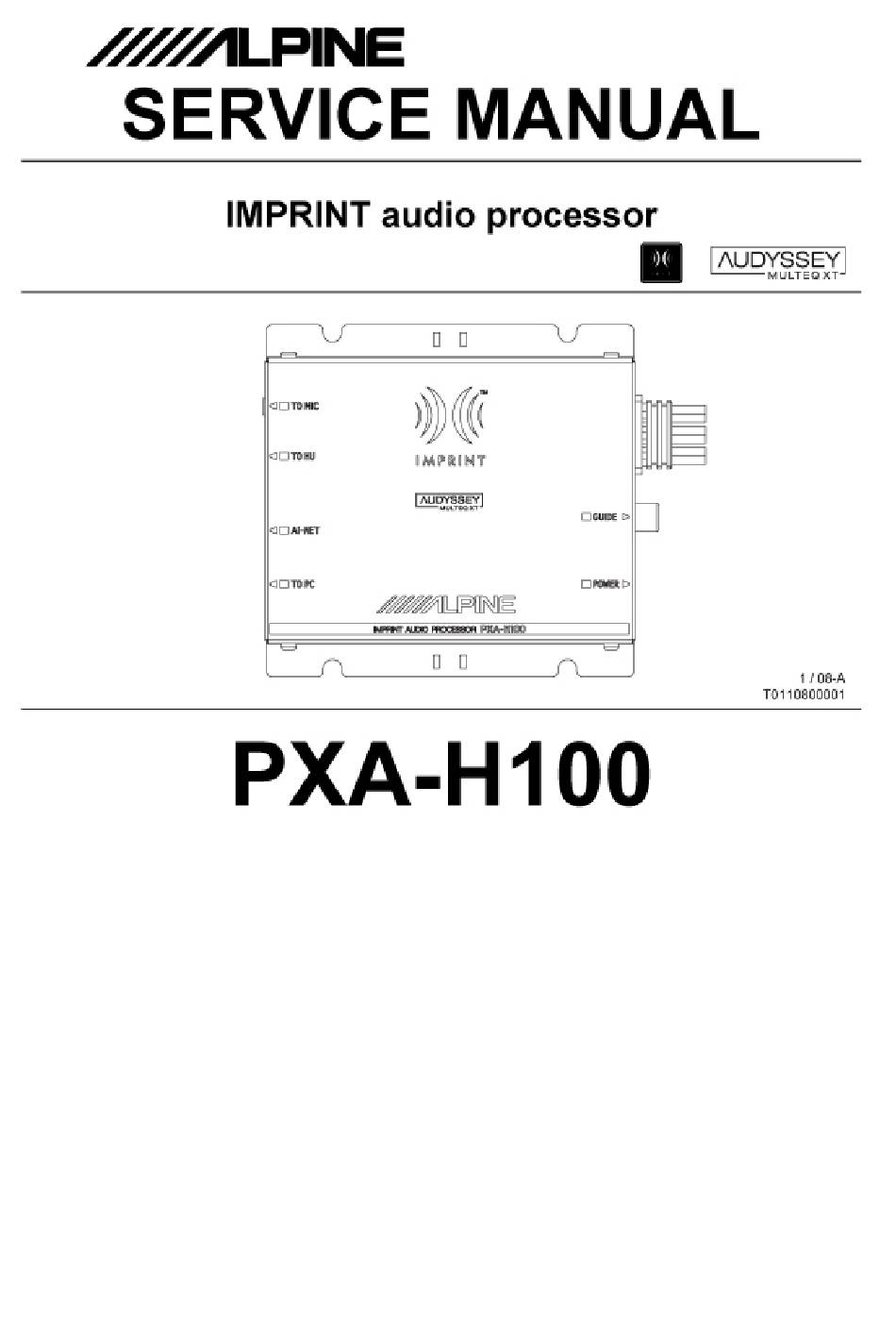

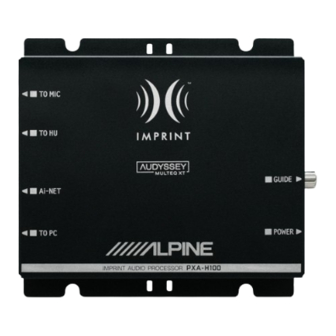

Alpine PXA-H100 Service Manual

Alpine PXA-H100 Service Manual

Imprint audio processor
Hide thumbs Also See for PXA-H100:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Alpine PXA-H100

Summary of Contents for Alpine PXA-H100

  • Page 2: Table Of Contents

    Table of Contents Packing View Packing List System Connections Extension Cables Specification Block Diagram Schematic Diagram Main PCB1 Schematic Diagram Main PCB2 Main PWB1 Foil Side Main PWB1 Component Side Main PWB2 Foil Side Main PWB2 Component Side Exploaded View Electrical Parts List Assembly Parts List...
  • Page 3 <Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.

  • Page 4: Packing View

    Packing Method View...

  • Page 5: Packing List

    Packing Assembly Parts List Model Code PXA-H100 NOTE:The part that has not PART NUMBER will not be supplied. ##### MODEL Symbol No. Parts No. Description 03S60820Y17 SCR,MCH 5X8 ZN A 75T58346F18 PAD,MAGIC TAPE 09-11799Z01 ASSY,ANIC-0033-01B 01T55561W32 ASSY,DIN S/L B/B2000 68-09359Z45...

  • Page 6: System Connections

    Ai-NET : Connect this to the output SUB · W connector of another device Verbinden Sie diese Buchse Raccordez-le au connecteur PXA-H100 (CD Changer, etc.) equipped mit dem Ausgang eines de sortie d’un autre appareil with Ai-NET. anderen Ai-NET-kompatiblen (changeur CD, etc.) équipé...
  • Page 7 “Changing the X-OVER Switch” (output signal of unit), and connect the speakers. Failure to make the proper connections may damage the (Blue/White)/(Blau/Weiß)/(Bleu/Blanc) speakers. PXA-H100 SUB · W Vorsicht REAR OUT Wenn Sie das 3WAY System verwenden möchten, schlagen Sie die Erläuterungen zum...
  • Page 8 English Deutsch Français Subwoofer Subwoofer Subwoofer AMP Input RCA Connectors Cinch-Eingangsbuchsen für Verstärker Connecteurs RCA d’entrée de l’amplificateur RCA Extension cable (Sold Separately) Cinch-Anschlusskabel (separat erhältlich) Câble d’extension RCA (vendu séparément) Ground lead (Black) Massekabel (Schwarz) Fil de terre (Noir) Battery lead (Yellow) Batteriezuleitungskabel (Gelb) Fil de la batterie (Jaune)
  • Page 9 Si vous utilisez le système 3WAY, vérifiez le (Blue/White)/(Blau/Weiß)/(Bleu/Blanc) système d’enceintes de la manière décrite à la section « Modification de la position du PXA-H100 SUB · W commutateur X-OVER » (signal de sortie de l’appareil) et raccordez les enceintes. Tout mauvais raccordement risque d’endommager...
  • Page 10 English Deutsch Français Subwoofer Subwoofer Subwoofer AMP Input RCA Connectors Cinch-Eingangsbuchsen für Verstärker Connecteurs RCA d’entrée de l’amplificateur RCA Extension cable (Sold Separately) Cinch-Anschlusskabel (separat erhältlich) Câble d’extension RCA (vendu séparément) Ground lead (Black) Massekabel (Schwarz) Fil de terre (Noir) Battery lead (Yellow) Batteriezuleitungskabel (Gelb) Fil de la batterie (Jaune)
  • Page 11 Schließen Sie das AV-Hauptgerät an IMPRINT und NAVIGATION an./ Raccordez l’unité principale AV au système IMPRINT et au système de NAVIGATION. Massekabel (Schwarz) English Batteriezuleitungskabel (Gelb) SUB · W PXA-H100 Ai-NET connector To external/internal amplifier/ Massekabel mit der Schraube an lack- an externen/internen Verstärker/ REAR OUT und fettfreiem Karosseriepunkt Vers l’amplificateur externe/interne/...

  • Page 12: Extension Cables

    Extension Cable *Always connect the Extension Cable when making checks of voltage and repair. (1) 01E40727S01 CB101 CH301 MAIN1-P.W.Board MAIN2-P.W.Board...

  • Page 13: Specification

    Specifications * Head Unit and CD Changer are connected. * 2WAY(FRONT/REAR/SUB W.) / 3WAY switch is set to 2WAY. < CD > Channel Balance (TCD-782, 1kHz) 0±3dB Distortion (TCD-782, 1kHz) 0.1% Frequency Response (TCD-782, Ref. 1kHz, 0dB) 17Hz : 0±3dB 127Hz : 0±2dB 10.007kHz : 0±2dB 19.997kHz : -1±4dB...

  • Page 14: Block Diagram

    Block Diagram E-VOL TDA7417 4V MINUS POWER BUFFER MUTE Pre-OUT Front BUFFER Pre-OUT Rear MUTE BUFFER Sub- Pre-OUT MUTE Woofer CODEC WM8772 DIGITAL I/F FILTER DIGITAL FILTER BUFFER DSP56371 NAVI Mix USB (TO PC) Main u-COM UART-USB Ai-Net Bus I/F Ai-Net IN V850ES/SG2 FT232BL...

  • Page 19: Main Pwb1 Foil Side

    MAIN1-P.W.Board Orange Color Pattern:Component Side Pattern...

  • Page 20: Main Pwb1 Component Side

    MAIN1-P.W.Board Orange Color Pattern:Component Side Pattern...

  • Page 21: Main Pwb2 Foil Side

    MAIN2-P.W.Board Orange Color Pattern:Component Side Pattern...

  • Page 22: Main Pwb2 Component Side

    MAIN2-P.W.Board Orange Color Pattern:Component Side Pattern...

  • Page 23: Exploaded View

    Exploded View (Cabinet) DIN301 DIN302 CB302 SW301 CB301 JK301 ET201 JK201...

  • Page 24: Electrical Parts List

    Electrical Parts List Model Code PXA-H100 NOTE:The part that has not PART NUMBER will not be supplied. ##### P.W.Board MIS MODEL Ref. Parts No. Parts Name MAIN1-P.W.Board C100 08S35374W01 CAP,CER 104K-B1E-CP MAIN1-P.W.Board C101 08S45677W22 CAP,CER.27RJ-CH1H-CP MAIN1-P.W.Board C102 08S45677W22 CAP,CER.27RJ-CH1H-CP MAIN1-P.W.Board...
  • Page 25 MAIN1-P.W.Board E107 23S75244Y03 CAP,ELY 101-0J -E3 MAIN1-P.W.Board E108 23S75244Y03 CAP,ELY 101-0J -E3 MAIN1-P.W.Board E110 23S75244Y13 CAP,ELY 471-1A -EA MAIN1-P.W.Board E111 23S75244Y28 CAP,ELY 101-1E -E6 MAIN1-P.W.Board IC101 51-10494Z01 KIA393F-EL -SE2 MAIN1-P.W.Board IC102 51T15362Y01 TC74HCT7007AFTP2-SE6 MAIN1-P.W.Board IC103 51T25370W01 IC ,MC14538BFEL -SE6 MAIN1-P.W.Board IC104 51T55070W05 MB88385CPF-ER -SE9...
  • Page 26 MAIN1-P.W.Board R128 06S45674W81 RES,RK 103J 1/10 -CP MAIN1-P.W.Board R129 06S45674W65 RES,RK 222J 1/10 -CP MAIN1-P.W.Board R130 06S55362Y06 RES,RK 473J 1/4 -CP MAIN1-P.W.Board R131 06S45674W97 RES,RK 473J 1/10 -CP MAIN1-P.W.Board R132 06S15593Y41 RES,RK 471F 1/10 -CP MAIN1-P.W.Board R133 06S15593Y91 RES,RK 563F 1/10 -CP MAIN1-P.W.Board R134 06S45674W89...
  • Page 27 MAIN1-P.W.Board ZD104 48-07043Z22 DIO,ZEN KDZ5.1V-Y-CP MAIN1-P.W.Board ZD105 48-07043Z26 DIO,ZEN KDZ6.2V-Y-CP MAIN2-P.W.Board C201 08S45677W32 CAP,CER.68RJ-CH1H-CP MAIN2-P.W.Board C202 08S45676W85 CAP,CER 104K-B1C -CP MAIN2-P.W.Board C203 08S45676W85 CAP,CER 104K-B1C -CP MAIN2-P.W.Board C204 08S45676W85 CAP,CER 104K-B1C -CP MAIN2-P.W.Board C205 08S45677W36 CAP,CER.101J-CH1H-CP MAIN2-P.W.Board C206 08S45677W60 CAP,CER 102J-CH1H-CP MAIN2-P.W.Board C207 08S45676W85...
  • Page 28 MAIN2-P.W.Board C255 08S45677W38 CAP,CER 121J-CH1H-CP MAIN2-P.W.Board C256 08S45677W38 CAP,CER 121J-CH1H-CP MAIN2-P.W.Board C257 08S45677W38 CAP,CER 121J-CH1H-CP MAIN2-P.W.Board C258 08S45677W12 CAP,CER.10RD-CH1H-CP MAIN2-P.W.Board C259 08S45677W12 CAP,CER.10RD-CH1H-CP MAIN2-P.W.Board C260 08S45677W50 CAP,CER 391J-CH1H-CP MAIN2-P.W.Board C261 08S45677W50 CAP,CER 391J-CH1H-CP MAIN2-P.W.Board C262 08S45677W50 CAP,CER 391J-CH1H-CP MAIN2-P.W.Board C263 08S45677W50 CAP,CER 391J-CH1H-CP MAIN2-P.W.Board...
  • Page 29 MAIN2-P.W.Board C321 08S45677W32 CAP,CER.68RJ-CH1H-CP MAIN2-P.W.Board C323 08S45677W32 CAP,CER.68RJ-CH1H-CP MAIN2-P.W.Board C324 08S45677W32 CAP,CER.68RJ-CH1H-CP MAIN2-P.W.Board C325 08S45677W32 CAP,CER.68RJ-CH1H-CP MAIN2-P.W.Board C326 08S45677W32 CAP,CER.68RJ-CH1H-CP MAIN2-P.W.Board C330 08S45676W65 CAP,CER.222K-B1H -CP MAIN2-P.W.Board C331 08S45676W65 CAP,CER.222K-B1H -CP MAIN2-P.W.Board C332 08S65676Y05 CAP,CER 105KX7R1E-CP MAIN2-P.W.Board C333 08S65676Y05 CAP,CER 105KX7R1E-CP MAIN2-P.W.Board C334 08S45676W62...
  • Page 30 MAIN2-P.W.Board E302 23S75244Y02 CAP,ELY 47R-0J -E2 MAIN2-P.W.Board E303 23S65134W31 CAP,ELY 10R-1C(4)-E2 MAIN2-P.W.Board E304 23T75486W59 CAP,RZ 102-1E -H5 MAIN2-P.W.Board E305 23S75244Y02 CAP,ELY 47R-0J -E2 MAIN2-P.W.Board E306 23S75244Y03 CAP,ELY 101-0J -E3 MAIN2-P.W.Board E307 23S65134W34 CAP,ELY 47R-1C(6)-E6 MAIN2-P.W.Board E310 23S75244Y28 CAP,ELY 101-1E -E6 MAIN2-P.W.Board E311 23S75244Y19...
  • Page 31 MAIN2-P.W.Board R203 06S45674W33 RES,RK 101J 1/10 -CP MAIN2-P.W.Board R204 06S45674W33 RES,RK 101J 1/10 -CP MAIN2-P.W.Board R205 06S45674W33 RES,RK 101J 1/10 -CP MAIN2-P.W.Board R206 06S45674W81 RES,RK 103J 1/10 -CP MAIN2-P.W.Board R207 06S45674W41 RES,RK 221J 1/10 -CP MAIN2-P.W.Board R208 06S45674W81 RES,RK 103J 1/10 -CP MAIN2-P.W.Board R209 06S15593Y66...
  • Page 32 MAIN2-P.W.Board R258 06S55365Y99 RES,RK 273J 1/10 -CP MAIN2-P.W.Board R259 06S55365Y97 RES,RK 223J 1/10 -CP MAIN2-P.W.Board R266 06S45674W98 RES,RK 513J 1/10 -CP MAIN2-P.W.Board R267 06S45674W98 RES,RK 513J 1/10 -CP MAIN2-P.W.Board R268 06S45674W98 RES,RK 513J 1/10 -CP MAIN2-P.W.Board R269 06S45674W98 RES,RK 513J 1/10 -CP MAIN2-P.W.Board R270 06S45674W98...
  • Page 33 MAIN2-P.W.Board R353 06S45674W33 RES,RK 101J 1/10 -CP MAIN2-P.W.Board R354 06S35083Y25 RES,RK 102F 1/4 -CP MAIN2-P.W.Board R355 06S35083Y25 RES,RK 102F 1/4 -CP MAIN2-P.W.Board R356 06S35083Y25 RES,RK 102F 1/4 -CP MAIN2-P.W.Board R357 06S45674W33 RES,RK 101J 1/10 -CP MAIN2-P.W.Board R358 06S45674W33 RES,RK 101J 1/10 -CP MAIN2-P.W.Board SD201 48T95294W01...

  • Page 34: Assembly Parts List

    Assembly Parts List Model Code PXA-H100 NOTE:The part that has not PART NUMBER will not be supplied. ##### MODEL Symbol No. Parts No. Description 03-00340Z15 SCR,S-T 2.6X5 ZB A 03T25225Y01 SCR,GND - - - - - - - - -...
