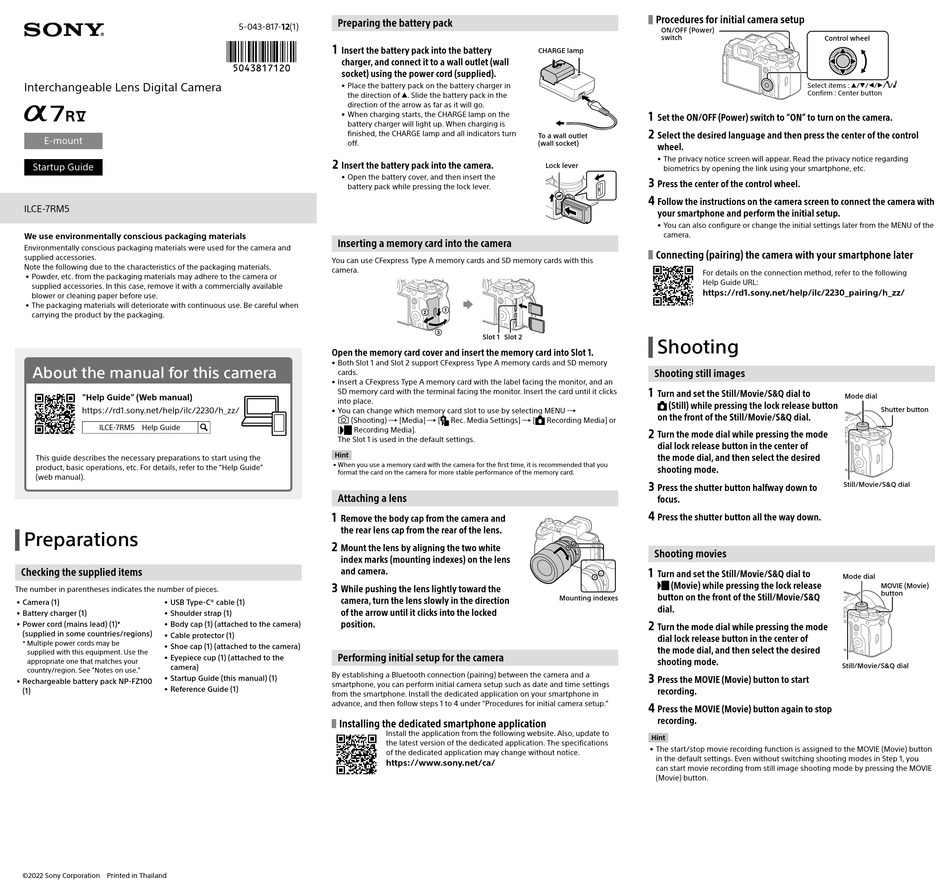

Sony Alpha 7R V Startup Manual

Interchangeable Lens Digital Camera
E-mount
Startup Guide
ILCE-7RM5
We use environmentally conscious packaging materials
Environmentally conscious packaging materials were used for the camera and
supplied accessories.
Note the following due to the characteristics of the packaging materials.
• Powder, etc. from the packaging materials may adhere to the camera or
supplied accessories. In this case, remove it with a commercially available
blower or cleaning paper before use.
• The packaging materials will deteriorate with continuous use. Be careful when
carrying the product by the packaging.
About the manual for this camera
"Help Guide" (Web manual)
https://rd1.sony.net/help/ilc/2230/h_zz/
ILCE-7RM5 Help Guide
This guide describes the necessary preparations to start using the
product, basic operations, etc. For details, refer to the "Help Guide"
(web manual).
Preparations
Checking the supplied items
The number in parentheses indicates the number of pieces.
• Camera (1) • USB Type-C® cable (1)
• Battery charger (1) • Shoulder strap (1)
• Power cord (mains lead) (1)* • Body cap (1) (attached to the camera)
(supplied in some countries/regions)
• Cable protector (1)
* Multiple power cords may be
• Shoe cap (1) (attached to the camera)
supplied with this equipment. Use the
• Eyepiece cup (1) (attached to the
appropriate one that matches your
camera)
country/region. See "Notes on use."
• Startup Guide (this manual) (1)
• Rechargeable battery pack NP-FZ100
• Reference Guide (1)
(1)
©2022 Sony Corporation Printed in Thailand
Preparing the battery pack
5-043-817-12(1)
1
Insert the battery pack into the battery
charger, and connect it to a wall outlet (wall
socket) using the power cord (supplied).
• Place the battery pack on the battery charger in
the direction of . Slide the battery pack in the
direction of the arrow as far as it will go.
• When charging starts, the CHARGE lamp on the
battery charger will light up. When charging is
finished, the CHARGE lamp and all indicators turn
off.
2
Insert the battery pack into the camera.
• Open the battery cover, and then insert the
battery pack while pressing the lock lever.
Inserting a memory card into the camera
You can use CFexpress Type A memory cards and SD memory cards with this
camera.
Open the memory card cover and insert the memory card into Slot 1.
• Both Slot 1 and Slot 2 support CFexpress Type A memory cards and SD memory
cards.
• Insert a CFexpress Type A memory card with the label facing the monitor, and an
SD memory card with the terminal facing the monitor. Insert the card until it clicks
into place.
• You can change which memory card slot to use by selecting MENU 
(Shooting)  [Media]  [
[ Recording Media].
The Slot 1 is used in the default settings.
Hint
• When you use a memory card with the camera for the first time, it is recommended that you
format the card on the camera for more stable performance of the memory card.
Attaching a lens
1
Remove the body cap from the camera and
the rear lens cap from the rear of the lens.
2
Mount the lens by aligning the two white
index marks (mounting indexes) on the lens
and camera.
3
While pushing the lens lightly toward the
camera, turn the lens slowly in the direction
of the arrow until it clicks into the locked
position.
Performing initial setup for the camera
By establishing a Bluetooth connection (pairing) between the camera and a
smartphone, you can perform initial camera setup such as date and time settings
from the smartphone. Install the dedicated application on your smartphone in
advance, and then follow steps 1 to 4 under "Procedures for initial camera setup."
Installing the dedicated smartphone application
Install the application from the following website. Also, update to
the latest version of the dedicated application. The specifications
of the dedicated application may change without notice.
https://www.sony.net/ca/
CHARGE lamp
To a wall outlet
(wall socket)
Lock lever
Slot 1 Slot 2
Rec. Media Settings]  [
Recording Media] or
Mounting indexes
Procedures for initial camera setup
ON/OFF (Power)
switch
Control wheel
Select items : //// /
Confirm : Center button
1
Set the ON/OFF (Power) switch to "ON" to turn on the camera.
2
Select the desired language and then press the center of the control
wheel.
• The privacy notice screen will appear. Read the privacy notice regarding
biometrics by opening the link using your smartphone, etc.
3
Press the center of the control wheel.
4
Follow the instructions on the camera screen to connect the camera with
your smartphone and perform the initial setup.
• You can also configure or change the initial settings later from the MENU of the
camera.
Connecting (pairing) the camera with your smartphone later
For details on the connection method, refer to the following
Help Guide URL:
https://rd1.sony.net/help/ilc/2230_pairing/h_zz/
Shooting
Shooting still images
1
Turn and set the Still/Movie/S&Q dial to
(Still) while pressing the lock release button
on the front of the Still/Movie/S&Q dial.
2
Turn the mode dial while pressing the mode
dial lock release button in the center of
the mode dial, and then select the desired
shooting mode.
3
Press the shutter button halfway down to
focus.
4
Press the shutter button all the way down.
Shooting movies
1
Turn and set the Still/Movie/S&Q dial to
(Movie) while pressing the lock release
button on the front of the Still/Movie/S&Q
dial.
2
Turn the mode dial while pressing the mode
dial lock release button in the center of
the mode dial, and then select the desired
shooting mode.
3
Press the MOVIE (Movie) button to start
recording.
4
Press the MOVIE (Movie) button again to stop
recording.
Hint
• The start/stop movie recording function is assigned to the MOVIE (Movie) button
in the default settings. Even without switching shooting modes in Step 1, you
can start movie recording from still image shooting mode by pressing the MOVIE
(Movie) button.
Mode dial
Shutter button
Still/Movie/S&Q dial
Mode dial
MOVIE (Movie)
button
Still/Movie/S&Q dial
