Master Elite Series Instruction Manual

INSTRUCTION MANUAL

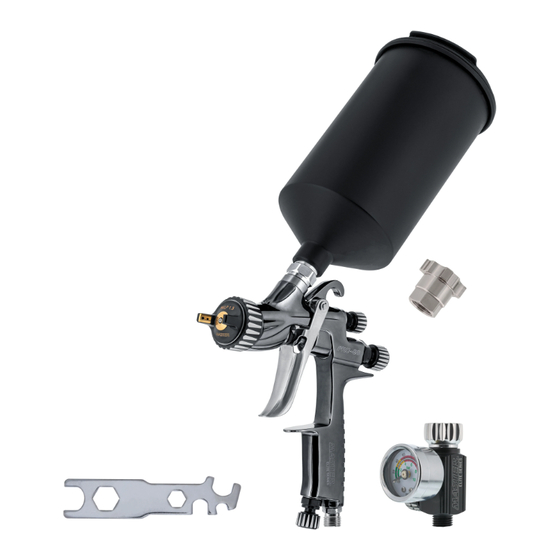

ELITE PEFORMANCE HVLP SPRAY GUN
MAS PRO-88
Important
This manual contains IMPORTANT, WARNINGS and INSTRUCTIONS.
Equipment in this manual is exclusively for painting purpose.
Do not use for other purpose.
The operator shall be fully conversant with the requirements stated in this instruction manual including important warnings, cautions and
operation and correct handling.
Read and understand the instruction manual, before use and retain for reference.
Be sure to observe warnings and cautions in this instruction manual.
If not, it can cause paint ejection and serious bodily injury by drawing organic solvent.
Be sure to observe following
WARNING
CAUTION
Important
Main Specifications
Model Type of
feed
MAS PRO-88-
Gravity
HV
MAS PRO-88-
Gravity
MP
*Means air pressure at gun inlet when trigger is pulled and air flows.
Safety precautions
WARNING
Fire and explosion
1. Spark and open flames are strictly prohibited.
Paints can be highly flammable and can cause fire.
2. Never use the following HALGOGENATED HYDROCARBON SOLVENTS
Which can cause cracks or dissolution on gun body (aluminum) by chemical reaction.
*unsuitable solvents: methyl chloride,dichloromethane,1.2- dichloromethane, carbon
(Be sure that all fluids and solvents are compatible with gun parts)
3. Securely ground spray gun by using air hose with built-in ground wire.
Ground wire: Less than 1MΩ. Check the earth stability periodically.
If not, insufficient grounding can cause fire and explosion due to static electric sparking.
Improper use of equipment
1. Never point gun toward people or animal.
If done, it can cause inflammation of eyes and skin or bodily injury.
2. Never exceed maximum operating pressure and maximum operating Temperature
3. Be sure to release air and fluid pressures before cleaning, disassembling or servicing
If not, remaining pressure can cause bodily injury due to improper operation or scattering cleaning liquid.
In order to release pressure, first stop supply of compressed air, fluid and thinner to spray gun.
Then remove needle adjust knob and pull fluid needle set toward you.
4. Tip of fluid needle set has a sharp point.
Do not touch the tip of fluid needle during maintenance for the protection of human body.
marked items which are especially important.
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or
property damage.
Indicates notes which we ask you to observe. The safety precautions in this instruction manual are the
minimum necessary conditions.
Following national and local regulations regarding fire prevention, electricity and safety as well as your
own company regulations.
Atomization Nozzle range
technology
mm
HVLP φ1.0~2.8
MP(LVMP) φ1.0~2.8
tetrachloride,trichloroethylene,1.1.1- trichloroethane
Declaration of Conformity available on request
Pattern width Air
(@1.3mm) consumption
mm/inch lpm/cfm
280/11 400/14
300/11.8 270/9.5
1
www.tcpglobal.com
*Rec. working Max.
pressure Pressure Temp.
bar/psi bar/psi
2.0/29 6.8/98
2.0~2.5/29~36 6.8/98
Max. Mass
g/lbs
℃
5~40 450/1.0
5~40 450/1.0
