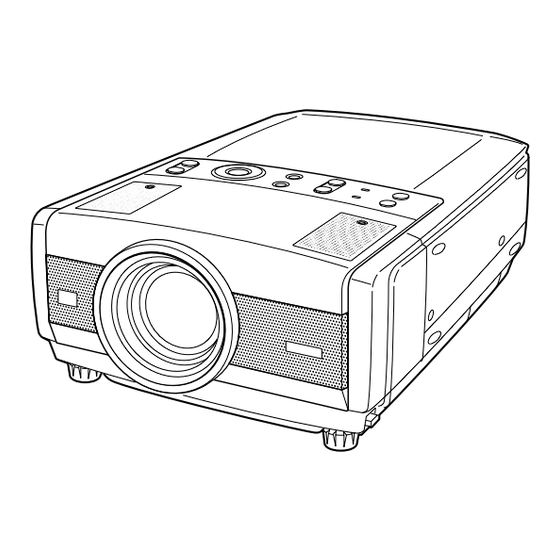

Summary of Contents for Philips LC1341
-

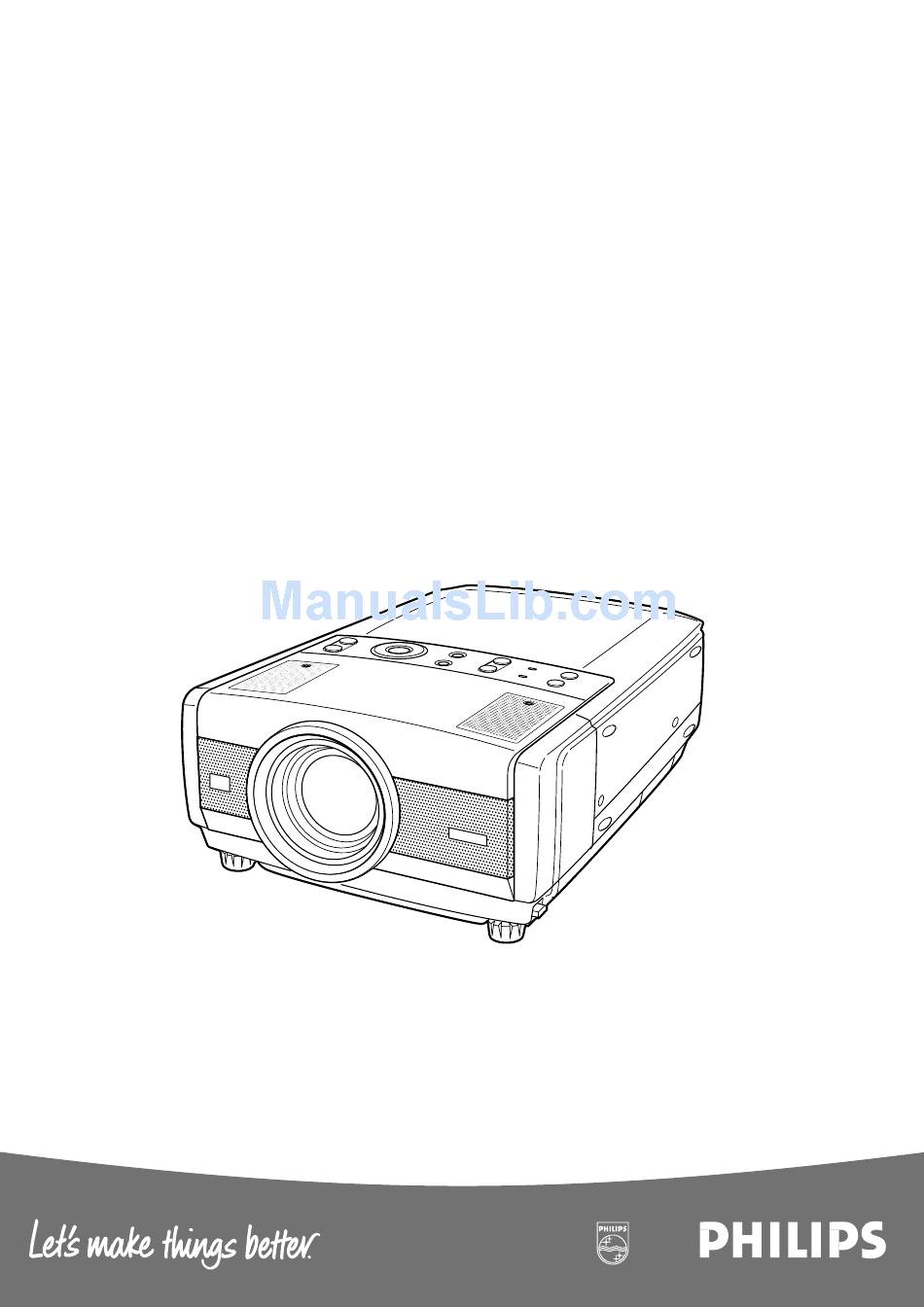

Page 1: User Guide
User Guide Multimedia Projector ProScreen PXG30 Series... -
Page 2: Important Safeguards
1. Important Safeguards IMPORTANT NOTE FOR USERS IN THE U.S.A. The responsible party of this multi media projector is the following: Philips Consumer Electronics Company One Philips Drive Knoxville, TN 37914 Telephone (1888) 873-4672 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. - Page 3 Electric energy can perform many useful functions. This projector has been engineered and manufactured to meet applicable safety standards. IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated into this projector, observe the following basic rules for its installation, use and servicing.
- Page 4 20cm 50cm 50cm INSTALLING THE PROJECTOR IN THE PROPER POSITION. Install the projector properly. Improper Installation may reduce the lamp lifetime and cause a fire hazard. 20˚ Do not tilt the projector more than 20 degrees to either side. 20˚...
-
Page 5: Table Of Contents
Table of Contents ..... . 5 Projector Features..... . 6 Functional Overview. -
Page 6: Projector Features
), SmartSet ( auto image for trouble- free operation and optimal image quality ) and SmartSave ( power management to be green friendly ). 8. High reliability Philips UHP lamp guarantees long life, sustained brightness over the lamp's lifetime and excellent color reproduction. 9. Optional accessories... -
Page 7: Functional Overview
Intake of air for ventilation. u Top control See the next page. q Terminals See page 9. w AC socket For connecting the projector to AC power cord. e Air exhaust vent Exhaust of air for ventilation. r Carry handle t Air intake vent Intake of air for ventilation. -
Page 8: Top Control
Becomes dim red when the projector is turned on. Lights bright red in standby mode.(P20,45) e Standby Indicator Lights green when the projector is ready to be turned on. (P20) r Lamp Indicator (Lamp) Lights yellow when the life of the projection lamp draws to an end.(P41,42,45) -
Page 9: Functional Overview
Do not use it excessively. u RS-232C port For connecting to mouse port of a computer which is controlled via the remote control of the projector. i S-video in Input socket for connecting S-video output from video equipment. - Page 10 (Jump to Main Menu, see the next page.) !0 Volume Up / Down For adjusting the volume.(P22) !1 Mute For muting the sound of the projector. (P22) ✽ This figure shows the Device Overview screen. !2 Cursor Control For operating and navigate through the activated menu via Up/Down and Left/Right buttons.(P18)
-
Page 11: Remote Control Unit
Menu For activating or de-activating the On-Screen Menu of the projector. (P18) o AV Mute For muting the sound and picture of the projector. (P22) !0 Device For jumping to the Device Overview. (P10) !1 mouse For jumping to the Mouse Menu. (P38) !2 lens For jumping to the Lens Menu. -
Page 12: Set Up
Note: AC power cord must meet requirement of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer. -
Page 13: Positioning The Projector
5. Set Up Positioning the Projector This projector is designed to project on a flat projection – surface. projector can be focused from 4.1’ (1.2m) ~ 32.8’ – The (10.0m). Refer to the figure below to adjust the screen size. -
Page 14: Adjustable Feet
When moving the projector, attach the Lens cap and retract the Adjustable Feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into the case (or cover with the supplied dust cover). -
Page 15: Installation
(See page 23) ◆ MAC ADAPTER A Macintosh adapter may be required for use with some Macintosh computers. Contact your nearest Philips Authorised LCD projector Dealer or Service Centre. Note: When connecting the cable, the power cords of both the projector and the... -
Page 16: Connecting To Video Equipment
S-Video socket are connected, Y,Pb/Cb,Pr/Cr sockets has priority over S-Video socket. Note: When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. • Audio Cable {Mini Plug (stereo)} • Scart Cable... -
Page 17: Operation
In this case, press OK and look up the correct codeset number. Then repeat this procedure. ✽ To get back to the Projector Menu, tap Use button on the mode screen. Mode Operating Range... -
Page 18: Operating The On-Screen Menu
7. Operation Operating the On-Screen Menu How to operate the On-Screen Menu Adjustments and settings of this projector can be done via On- Screen Menu. Refer to the following pages regarding each adjustment and setting procedure. Display the On-Screen Menu Press Menu button to display the On-Screen Menu. - Page 19 /Sharpness/Gamma /Noise Reduction/Progressive] (Refer to P34, 35) Operating the On-Screen Menu Setting Menu For changing the settings of the projector or reset Lamp Replace Counter (Refer to P36, 37,42) Sound Menu For adjusting volume or muting sound. (Refer to P22) Same function as Menu for PC source.
-
Page 20: Turning On/Off The Projector
5 minutes before turning it off. When “Power management” function is ON, the projector turns off its lamp when the signal is interrupted and no button is pressed for a certain period. Refer to “Power management” on page 37. -
Page 21: Adjusting The Screen
7. Operation Adjusting the Screen Zoom Adjustment – Top Control Press Lens button and select Zoom function. Press Cursor Up/Down to adjust the image – Remote Control Press zoom – / + button to adjust the image. Focus Adjustment – Top Control Press Lens button and select Focus function. -
Page 22: Picture Freeze
7. Operation Picture Freeze Function Press D-freeze button on the remote control to capture a moving picture. To cancel, press D-freeze button once again or press any other button. A/V Mute Function Press AV Mute button on the top control or the remote control to black out the image and to mute the sound . -
Page 23: Computer Input
Data1, Data2 and Data3. – Press D1, D2 or D3 button on the remote control. If the projector cannot project properly, select a correct input source following the Menu Operation as shown below. Note: Data 3(D3) cannot be selected when Data (Out) is set as Data 3 source. -
Page 24: Selecting Computer System
Selecting Computer System This projector accepts various kinds of computer signals including VGA, SVGA, XGA and SXGA. By selecting a Data input as a signal source, it automatically detects the signal format and tune itself to project a proper image without any additional settings. -
Page 25: Pc Adjustment
✽To store adjusted parameters. Parameters adjusted with Auto Image function can be store in this projector. Once parameters are stored, the setting can be done just by selecting Mode in PC System Menu (P24). Refer to step 3 of "Manual PC Adjustment" section (P27). -
Page 26: Manual Pc Adjustment
This projector can automatically tune the display signals from the most of personal computers currently distributed. However, some computers employ the special signal formats which may not be tuned by SmartSet of this projector. In this case, the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture, and projected improperly. - Page 27 8. Computer Input Display area Selects the area displayed by this projector. Select the resolution at Display area dialog box. Display area H Adjusts the horizontal area displayed by this projector. Press Cursor Left/Right button(s) to decrease/increase value and then press OK button.
-
Page 28: Picture Image Adjustment
Select image level from Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing V-effect button on the remote control. Standard Normal picture level preset on this projector. Real Picture level with improved halftone for graphics. Image 1~4 User preset image adjustment in Image Adjust Menu (P29). -
Page 29: Image Level Adjustment
8. Computer Input Image Level Adjustment Press Menu button to display the On-Screen Menu. Press Cursor Left/Right buttons to select Image Adjust Menu icon. Press Cursor Down button to select the item that you want to adjust. and then press OK button. The level of each item is displayed. -
Page 30: Picture Screen Adjustment
8. Computer Input Picture Screen Adjustment This projector has a picture screen resize function, which enables you to display the desirable image size. Press Menu button to display the On-Screen Menu. Press Cursor Left/Right button(s) to select Screen Menu icon. -
Page 31: Video Input
Y,Pb/Cb,Pr/Cr. ) – Press video, S-video or Y, Pb/Cb, Pr/Cr button on the remote control. If the projector cannot project properly, select correct input source through Menu Operation (see below). Menu Operation Press Menu button to display the On-Screen Menu. Press Cursor Left/Right button to select Input Menu icon. -
Page 32: Selecting The Video System
When Video System is PAL-M or PAL-N, select system manually. – PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If the projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format from PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N. -
Page 33: Picture Image Adjustment
Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing V-effect button on the remote control. Standard Normal picture level preset on this projector. Cinema Picture level adjusted for the picture with fine tone. Image 1~4 User preset picture adjustment in Image Adjust Menu (P34, 35). -
Page 34: Image Level Adjustment
9. Video Input Image Level Adjust Press Menu button to display the On-Screen Menu. Press Cursor Left/Right button(s) to select Image Adjust Menu icon. Press Cursor Down button to select the item to adjust and then press OK button. The level of each item is displayed. Adjust each level by pressing Cursor Left/Right button(s). -
Page 35: Picture Screen Adjustment
Quit Closes Image Menu. Picture Screen Adjustment This projector has a picture screen resize function, which enables you to display the desirable image size. Press Menu button to display the On-Screen Menu. Press Cursor Left/Right button(s) to select Screen Menu icon. -
Page 36: Other Settings
Off ···· sets On-Screen Displays disappeared except; – On-Screen Menu – “Power off?” message Logo When this function is “On,” projector displays Philips logo when starting up. Ceiling When this function is “On,” picture is top / bottom and left / right reversed. -
Page 37: Other Settings
When this function is “On,” the projector is automatically turned on just by connecting AC power cord to a wall outlet. Note ; Be sure to turn projector off properly (refer to the section “Turning Off the Projector" on P20). If the projector is turned off in the wrong steps, On Start function does not operate properly. -
Page 38: Operating Wireless Mouse
Operating the Wireless Mouse The remote control is able to not only operate this projector but also function as a wireless mouse for most Personal Computers. Left button, Right button and Cursor buttons in the mouse menu are used for wireless mouse operation. -
Page 39: Maintenance
If the projector shuts itself down again or fails to be turned on, the internal check and repair will be required. Plug off the AC power cord and contact a Philips Authorised LCD Projector Dealer or Service Centre. -
Page 40: Air Filter Care And Cleaning
Do not put any objects into the Air Intake Vents. It may result in malfunction of the projector. Recommendation: For minimal servicing and to maintain high image quality, Philips recommends that this projector be installed in an area free from humidity, dust and cigarettesmoke. If the projector is used in... -
Page 41: Lamp Replacement
12. Maintenance Lamp Replacement When the life of the Projection Lamp of this projector draws to an end, the Lamp Indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly. CAUTION For continued safety, replace with a lamp assembly of the same type. - Page 42 Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service.
-
Page 43: Appendix
Troubleshooting Before calling your dealer or service center for assistance, check the matters below once again. – Make sure you have properly connected the projector to peripheral equipment as described in the section "Installation" on page15 and 16. – Make sure all equipment is connected to AC outlet and turned on the power. - Page 44 – Turn the projector on before turning on a computer. If the problem still persists after following all operating instructions, contact a Philips Authorised LCD Projector Dealer or Service Centre. Give the model number and explain the difficulty. Advice to obtain service will be given.
-
Page 45: Indicators And Projector Condition
When turning on the projector, the Temperature Warning Indicator stops flashing. Check and clean the Air Filter. The projector is being cooled down. It cannot be turned on until the Standby Indicator lights on. The projector detects an abnormal condition and cannot be turned on. -
Page 46: Menu Tree
13. Appendix Menu Tree (Projector) Main menu Input Data 1 Data 2 Data 3 Video Data Input Main menu System SVGA 1 VGA 1 MODE 1 MODE 2 - - - - - - ✽Systems displayed in the system menu vary depending on the using environment. - Page 47 13. Appendix Video Input Main menu System Auto SECAM NTSC NTSC 4.43 PAL-M PAL-N System Auto 1080i 1035i 720p 575p 480p 575i 480i Image Select Standard Cinema Image 1 Image 2 Image 3 Image 4 Image Adjust Contrast Brightness Color Tint Color temp.
- Page 48 13. Appendix Menu Tree (Remote Control) Device Proj. PXG30 ✽ stands for the hard buttons on the remote control. Code set Code canceled Mode Brand video S-video YPbPr lens focus - / + zoom - / + lens shift - / + auto Feature V-effect...
-
Page 49: Compatible Computer Specification
13. Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 140 MHz of Dot Clock. H-Freq. On-Screen Resolution Display VGA 1 640 x 480 VGA 2... -
Page 50: Technical Specifications
306mm x 166mm x 436mm (12.0" x 6.5" x 17.2" ) (W x H x D) 7.9 kg (17.4 lbs) LC1345/00 : 3 x 1.0" HT Poly Silicon TFT with µ lens LC1341/00 : 3 x 1.0" HT Poly Silicon TFT XGA (1024 x 768 ), RGB Stripe 2,359,296 (1024 x 768 x 3 panels) PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N... - Page 52 1AA6P1P3757-- (MC3W) Printed in Japan...
