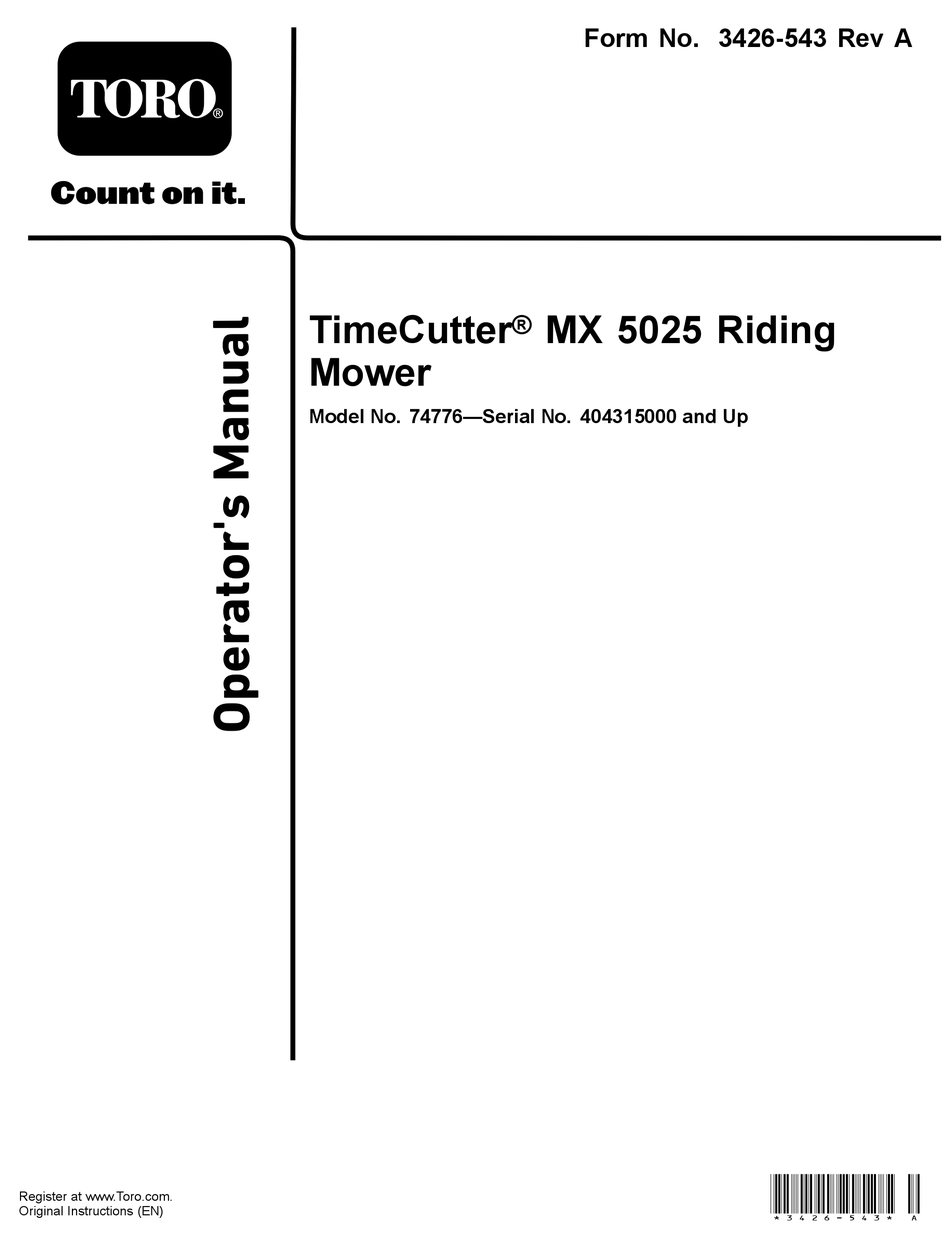

- Page 1 Form No. 3426-543 Rev A TimeCutter ® MX 5025 Riding Mower Model No. 74776—Serial No. 404315000 and Up *3426-543* A Register at www.Toro.com. Original Instructions (EN)
- Page 2 QR manufacturer in accordance with the Society of code or visit www.Toro.com. You may also call us Automotive Engineers (SAE) J1940 or J2723. As at 1-888-384-9939 to request a written copy of the configured to meet safety, emission, and operating product warranty.
-
Page 3: Table Of Contents
Contents Replacing the Mower Belt ......... 39 Mower Maintenance..........40 Blade Safety ............. 40 Safety ............... 4 Servicing the Cutting Blades ......40 Safety Alert Symbol ..........4 Leveling the Mower Deck........42 General Safety ........... 4 Removing the Mower Deck....... 44 Slope Indicator ........... -
Page 4: Safety
Safety This machine is capable of amputating hands and feet The following instructions are from ANSI standard and of throwing objects. Toro designed and tested B71.1-2017. this lawn mower to offer reasonably safe service; however, failure to comply with safety instructions may result in injury or death. -
Page 5: Slope Indicator
Slope Indicator g011841 Figure 3 You may copy this page for personal use. 1. The maximum slope you can operate the machine on is 15 degrees. Use the slope chart to determine the degree of slope of hills before operating. Do not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line to match the recommended slope. -
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decalbatterysymbols Battery Symbols Some or all of these symbols are on your battery. 1. - Page 7 decal112-9840 112-9840 1. Read the Operator's 3. Remove the ignition key Manual. and read the instructions before servicing or performing maintenance. 2. Height of cut decal119-8870 119-8870 1. Height of cut decal119-8814 119-8814 1. Parking position 4. Neutral 2. Fast 5.
- Page 8 decal121-0773 121-0773 1. Fast 4. Choke 2. Continuous variable setting 5. Power take-off (PTO), Blade control switch 3. Slow...
- Page 9 decal127-6663 127-6663 1. Warning—read the 2. Crushing hazard—engage decal121-2989b Operator's Manual. the parking brake, shut 121-2989 off the engine, and remove the key; jack 1. Bypass lever position for 2. Bypass lever position for the machine using a pushing the machine operating the machine manufacturer-approved jack, and always use a...
- Page 10 decal132-0869 132-0869 Note: This machine complies with the industry standard stability test in the static lateral and longitudinal tests with the maximum recommended slope indicated on the decal. Review the instructions for operating the machine on slopes in the Operator’s Manual as well as the conditions in which you would operate the machine to determine whether you can operate the machine in the conditions on that day and at that site.
- Page 11 decal132-0872 132-0872 1. Thrown object 3. Severing hazard of hand hazard—keep bystanders or foot—keep away from away from the machine. moving parts. 2. Thrown object hazard, 4. Entanglement raised baffle—do not hazard—keep away operate the machine with from moving parts; keep an open deck;...
-
Page 12: Product Overview
Product Overview g028166 Figure 4 1. Deflector 4. Height-of-cut lever 7. Footrest 10. Engine 2. Rear drive wheel 5. Operator seat 8. Fuel-tank cap 11. Engine guard 3. Motion-control levers 6. Smart Speed™ lever 9. Control panel 12. Front caster wheel Controls Key Switch Become familiar with all the controls before you start... - Page 13 Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. g014521 To ensure optimum performance and continued safety...
-
Page 14: Before Operation
10% ethanol by volume, such as E15 (contains safely perform the job. Only use accessories and 15% ethanol), E20 (contains 20% ethanol), or E85 attachments approved by Toro. (contains up to 85% ethanol). Using unapproved • Inspect the area where the equipment is to be... -
Page 15: Performing Daily Maintenance
Using the Safety-Interlock System WARNING If the safety-interlock switches are disconnected or damaged, the machine could operate unexpectedly, causing personal injury. • Do not tamper with the interlock switches. • Check the operation of the interlock switches daily and replace any damaged switches before operating the machine. -
Page 16: Positioning The Seat
Adjusting the rise slightly from the seat; the engine should shut off. Motion-Control Levers Positioning the Seat Adjusting the Height The seat can move forward and backward. Position You can adjust the motion-control levers higher or the seat where you have the best control of the lower for maximum comfort (Figure 10). -
Page 17: During Operation
During Operation • Be sure all drives are in neutral and parking brake is engaged before starting engine. • Start the engine carefully according to instructions During Operation Safety with feet well away from the blades. • Never operate the mower with damaged guards, General Safety shields, or covers. - Page 18 – Whenever you leave the mower. Do Not leave distance (twice the width of the machine) between a running machine unattended. the machine and any hazard. Use a walk behind machine or a hand trimmer to mow the grass in •...
-
Page 19: Operating The Mower Blade-Control Switch (Pto)
Operating the Mower Operating the Throttle Blade-Control Switch (PTO) You can move the throttle control between F positions (Figure 15). The blade-control switch (PTO) starts and stops the Always use the F position when engaging the PTO. mower blades and any powered attachments. Engaging the Blade-Control Switch (PTO) g187517... -
Page 20: Starting The Engine
Starting the Engine Shutting Off the Engine Disengage the blades by moving the Note: A warm or hot engine may not require choking. blade-control switch to the O position (Figure Important: Do not engage the starter for more 17). than 5 seconds at a time. Engaging the starter Engage the parking brake;... -
Page 21: Driving The Machine
Driving the Machine To go backward, slowly pull the motion-control levers rearward (Figure 20). The drive wheels turn independently, powered by hydraulic motors on each axle. You can turn 1 side in reverse while you turn the other forward, causing the machine to spin rather than turn. -
Page 22: Using The Side Discharge
Using the Side Discharge The following are only recommendations for use. Adjustments vary by grass type, moisture content, and the height of the grass. The mower has a hinged grass deflector that disperses clippings to the side and down toward the Suggested Trim turf. -
Page 23: Adjusting The Height Of Cut
Adjusting the Height of Cut Adjusting the Anti-Scalp Rollers Note: The transport position is the highest height-of-cut position or cutting height at 115 mm Whenever you change the height of cut, adjust the (4-1/2 inches) as shown in Figure height of the anti-scalp rollers. Height of cut is controlled by the lever located to the Note: Adjust the anti-scalp rollers so that the rollers... -
Page 24: Operating Tips
It is best to cut only about a third of the grass blade. genuine Toro replacement blade. Cutting more than that is not recommended unless grass is sparse, or it is late fall when grass grows more slowly. -
Page 25: After Operation
After Operation After Operation Safety General Safety • Park machine on level ground, disengage drives, set parking brake, stop engine, remove key or g027708 Figure 24 disconnect spark plug wire. Wait for all movement to stop and allow the machine to cool before 1. - Page 26 on the down side of the slope and the ramp extends up the slope. This will minimize the ramp angle. WARNING Loading a machine onto a trailer or truck increases the possibility of tip-over and could cause serious injury or death. •...
-
Page 27: Pushing The Machine By Hand
and loss of control. Reduce the towed weight and slow down. • Stopping distance increases with the weight of the towed load. Travel slowly and allow extra distance to stop. • Make wide turns to keep the attachment clear of the machine. -
Page 28: Maintenance
While maintenance or adjustments are being modifications to the original equipment or made, someone could start the engine. failure to use original Toro parts could lead Accidental starting of the engine could to serious injury or death. Unauthorized seriously injure you or other bystanders. -
Page 29: Recommended Maintenance Schedule(S)
WARNING Contact with moving parts or hot surfaces may cause personal injury. Keep your fingers, hands, and clothing clear of rotating components and hot surfaces. • Check all bolts frequently to maintain proper tightness. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval •... -
Page 30: Pre-Maintenance Procedures
Pre-Maintenance Lubrication Procedures Greasing the Bearings Raising the Seat Service Interval: Every 25 hours—Grease all the lubrication points. Ensure that the parking brake is engaged. Lift the Grease Type: No. 2 lithium grease seat forward. Park the machine on a level surface, disengage You can access following components by raising the the blade-control switch, and engage the parking seat:... -
Page 31: Engine Maintenance
Engine Maintenance Servicing the Paper Air-Cleaner Element Engine Safety Service Interval: Every 100 hours—Clean the paper air-cleaner element (more often in • Shut off the engine before checking the oil or dirty or dusty conditions). adding oil to the crankcase. Every 200 hours—Replace the paper air-cleaner •... -
Page 32: Servicing The Engine Oil
Servicing the Engine Oil Engine-Oil Specifications Oil Type: Detergent oil (API service SF, SG, SH, SJ, or SL) Crankcase Capacity: 1.8 L (61 fl oz); without filter; 2.1 L (70 fl oz) with filter Viscosity: See the table below. g017470 Figure 31 Checking the Engine-Oil Level Service Interval: Before each use or daily... - Page 33 Changing the Engine-Oil Filter Service Interval: Every 200 hours—Change the engine-oil filter (more often in dirty or dusty conditions). Drain the oil from the engine; refer to Changing the Engine Oil (page 32). Change the engine-oil filter (Figure 35). g027539 Figure 33 Slowly pour approximately 80% of the specified oil into the filler tube and slowly add the...
-
Page 34: Servicing The Spark Plug
Servicing the Spark Plug Service Interval: Every 100 hours Ensure that the air gap between the center and side electrodes is correct before installing the spark plug. Use a spark plug wrench for removing and installing the spark plug and a gapping tool or feeler gauge to check and adjust the air gap. -
Page 35: Fuel System Maintenance
Fuel System Maintenance DANGER g027590 In certain conditions, fuel is extremely flammable and highly explosive. A fire or explosion from fuel can burn you and others and can damage property. Refer to Adding Fuel (page 14) for a complete list of fuel related precautions. Replacing the In-Line Fuel Filter Service Interval: Every 100 hours—Replace the... -
Page 36: Electrical System Maintenance
Electrical System WARNING Incorrectly removing the cables from Maintenance battery could damage the machine and cables, causing sparks. Sparks can cause the battery gasses to explode, Electrical System Safety resulting in personal injury. • Disconnect the battery before repairing the •... -
Page 37: Servicing The Fuses
Charging the Battery Servicing the Fuses Service Interval: Before storage—Charge the battery The electrical system is protected by fuses. It requires and disconnect the battery cables. no maintenance; however, if a fuse blows, check the component/circuit for a malfunction or short. Remove the battery from the chassis;... -
Page 38: Drive System Maintenance
Releasing the Electric Drive System Brake Maintenance You can manually release the electric brake by rotating the link arms forward. Once the electric brake Checking the Tire Pressure is energized, the brake resets. Service Interval: Every 25 hours—Check tire Turn the key to the position or disconnect pressure. -
Page 39: Belt Maintenance
Route the new belt around the engine pulley and mower pulleys (Figure 46). Using a spring-removal tool (Toro Part No. 92-5771), install the idler spring over the deck hook and place tension on the idler pulley and the mower belt (Figure 46). -
Page 40: Mower Maintenance
Mower Maintenance Blade Safety A worn or damaged blade can break, and a piece of the blade could be thrown toward you or bystanders, resulting in serious personal injury or death. Trying to repair a damaged blade may result in discontinued safety certification of the product. - Page 41 g014973 g014973 Figure 49 Figure 51 1. Blade (in position for measuring) 1. Opposite blade edge (in position for measuring) 2. Level surface 2. Level surface 3. Measured distance between blade and the surface (A) 3. Second measured distance between blade and surface (B) Rotate the same blade 180 degrees so that If the difference between A and B is greater the opposing cutting edge is now in the same...
-
Page 42: Leveling The Mower Deck
Installing the Blades Install the blade onto the spindle shaft (Figure 52). Important: The curved part of the blade must be pointing upward toward the inside of the mower to ensure proper cutting. Install the curved washer (cupped side toward the blade) and the blade bolt (Figure 52). - Page 43 Check the side-to-side adjustments again. Repeat this procedure until the measurements are correct. Continue leveling the mower deck by checking the front-to-rear blade slope; refer to Adjusting the Front-to-Rear Blade Slope (page 43). Adjusting the Front-to-Rear Blade Slope Check the front-to-rear blade level any time you install the mower.
-
Page 44: Removing The Mower Deck
g014634 Figure 58 1. Adjusting rod 3. Locknut 2. Adjusting block g014635 Figure 59 To raise the front of the mower, tighten the adjustment nut. 1. Front support rod 3. Deck bracket 2. Locking nut To lower the front of the mower, loosen the adjustment nut. -
Page 45: Installing The Mower Deck
Slide the mower deck out from underneath the machine. Note: Retain all parts for future installation. Installing the Mower Deck Park the machine on a level surface, disengage the blade-control switch (PTO), and engage the parking brake. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position. -
Page 46: Cleaning
Cleaning Washing the Underside of the Mower Deck Service Interval: After each use—Clean the mower-deck housing. Important: You can wash the machine with a mild detergent and water. Do not pressure wash the machine. Avoid excessive use of water, especially near the control panel, under the seat, around the engine, hydraulic pumps, and motors. -
Page 47: Disposing Of Waste
Storage Turn the water off and remove the coupling from the washout fitting. Note: If the mower is not clean after 1 washing, Storage Safety soak it and let it stand for 30 minutes. Then repeat the process. • Let the engine cool before storing the machine. •... -
Page 48: Storing The Battery
Storing the Battery an alcohol-based stabilizer (ethanol or methanol). Fully charge the battery. Note: A fuel stabilizer/conditioner is most Let the battery rest for 24 hours, then check the effective when mixed with fresh fuel and battery voltage. used at all times. Note: If the battery voltage is below 12.6 V, Run the engine to distribute conditioned fuel... -
Page 49: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The engine overheats. 1. The engine load is excessive. 1. Reduce the ground speed. 2. The oil level in the crankcase is low. 2. Add oil to the crankcase. 3. The cooling fins and air passages 3. - Page 50 Problem Possible Cause Corrective Action There is an abnormal vibration. 1. The engine-mounting bolts are loose. 1. Tighten the engine-mounting bolts. 2. The engine pulley, idler pulley, or blade 2. Tighten the appropriate pulley. pulley is loose. 3. The engine pulley is damaged. 3.
-
Page 51: Schematics
Schematics g028022 Electrical Diagram (Rev. A) - Page 52 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
