Summary of Contents for HANNspree HC272PPB

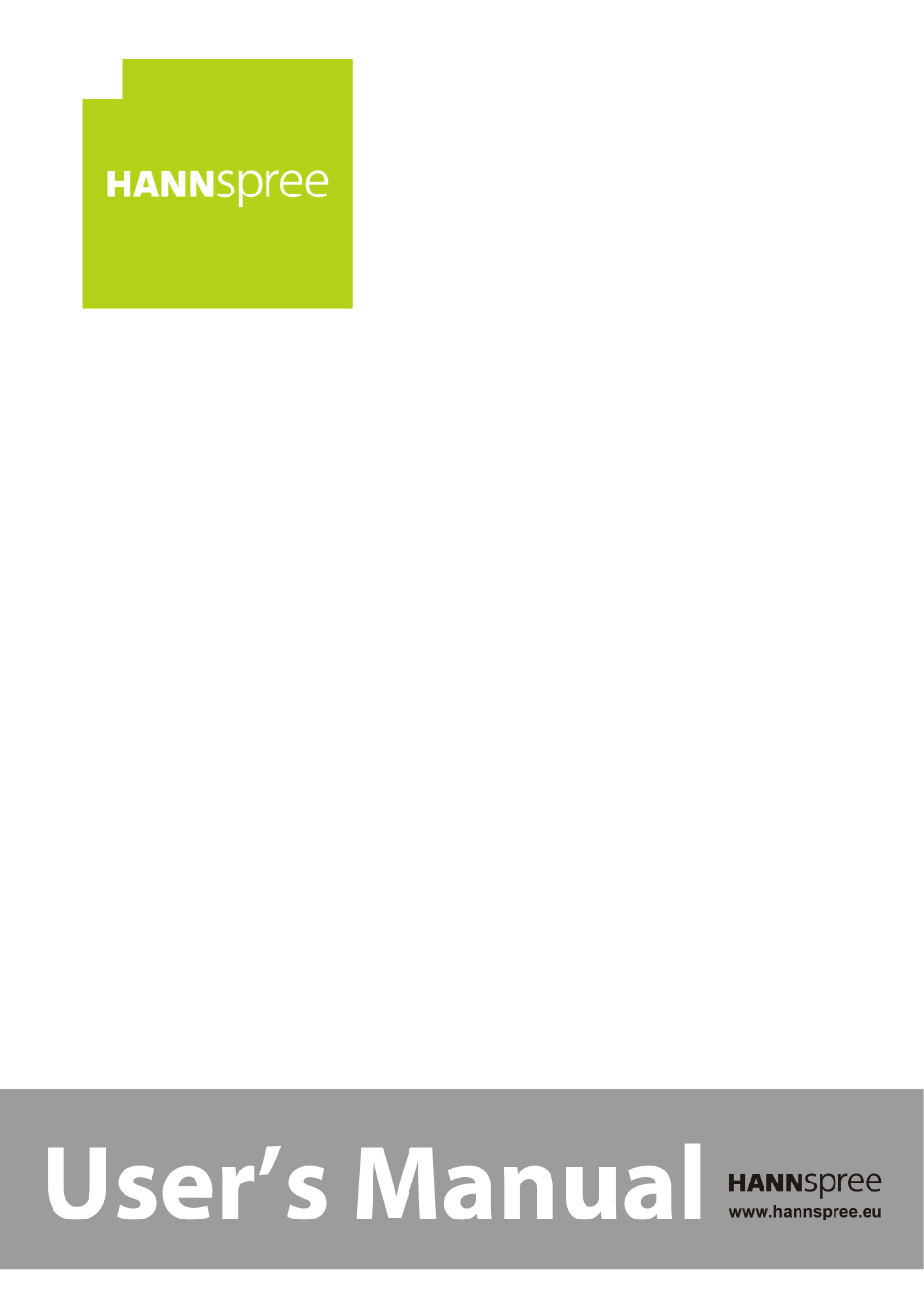

- Page 1 HC272PPB (HSG1435) LCD Monitor...
- Page 2 【Optional, depend on selected model】 Socket-outlet shall be near the equipment and shall be accessible. Trademark Notice: HANNspree products incorporate High-Definition Multimedia Interface (HDMI ) technology. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 3 User’s Manual RECYCLING INFORMATION We, at HANNspree care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.
-
Page 4: Table Of Contents
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................5 PRECAUTIONS....................5 SPECIAL NOTES ON LCD MONITORS ............6 BEFORE YOU OPERATE THE MONITOR ............7 FEATURES......................7 CHECKING THE CONTENTS OF THE PACKAGE ........7 INSTALLATION INSTRUCTIONS ..............8 POWER....................... 8 SETTING THE MONITOR ON THE WALL .......... -
Page 5: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 6: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 68,58cm / 27” Wide Screen TFT Color LCD Monitor Crisp, Clear Display for Windows Ergonomic Design Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: LCD Monitor Cables and User manual Adaptor... -
Page 8: Installation Instructions
User’s Manual INSTALLATION INSTRUCTIONS INSTALL REMOVE Figure.1. Installing and Removing the Base POWER POWER SOURCE: 1. Make sure that the power cord is the correct type required in your area. 2. This LCD monitor has an Internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3. -
Page 9: Setting The Monitor On The Wall
*Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. HANNspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a... -
Page 10: Making Connections
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Plug one end of the 12V DC adapter to the LCD monitor’s DC 12V input socket, plug one end of the AC power cord to the 12V DC adapter AC input socket, and the other end of the AC power cord to Wall outlet. -
Page 11: Adjusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. ... -
Page 12: Operating Instructions
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 13: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: Press this button to switch ON/OFF of monitor’s power. Power Indicator: Blue — Power On mode. — Power Saving mode. MENU / ENTER: Turn the OSD menu on/off or enter to the previous menu. Adjust ▲▼: ... -
Page 14: How To Adjust A Settings
User’s Manual HOW TO ADJUST A SETTINGS BRIGHTNESS/ CONTRAST Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the BRIGHTNESS brightness value. Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast CONTRAST value. - Page 15 User’s Manual availability of this function depends upon the selected model] Select the「SHARPNESS」option to adjust the sharpness of the SHARPNESS display. Set the value from 0 to 100. COLOR SETTING Adjust the color temperature value of the display according to GREEN your preference: RED / GREEN / BLUE.
-
Page 16: Plug And Play
User’s Manual While transferring via the HDMI port, it is recommended to set AUDIO INPUT to HDMI; if no sound is outputted, it is AUDIO INPUT recommended to select AUDIO INPUT as PC, and make sure the PC audio output cable is connected to monitor’s LINE IN (or AUDIO IN) port. -
Page 17: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &... - Page 18 62,5cm / 24.6 (16:9) 68,6cm / 27 ” (16:9) 70cm / 27.5” (16:10) 1920×1200@60Hz 1920×1200@50Hz And if you still have display problem after doing the above procedure, please visit HANNspree support and Service Website: http://www.hannspree.eu/en/monitors Windows is a registered trademark of Microsoft Corporation.
-
Page 19: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. - Page 20 User’s Manual 1400×1050 @60Hz 64.744 59.948 1600×900 @60Hz 55.540 59.978 1680×1050 @60Hz 65.290 59.954 1920×1080 @60Hz 67.500 60.000 1920×1200 @60Hz 74.038 59.950 1920×1200 @75Hz 94.038 74.930 1920×1440 @60Hz 90.000 60.000 1920×1440 @75Hz 112.500 75.000 2560×1440 @50Hz 74.146 49.964 2560×1440 @60Hz 88.787 59.951 (Video mode)
-
Page 21: Appendix
4.4 kg (9.7 lb) *** The above specification is subject to actual product specification and is subject to change without prior notice. NOTES: The Maximum Resolution will depends on the display card supporting. Related issue can refer to http://www.hannspree.eu/en/monitors. FAQ section.
