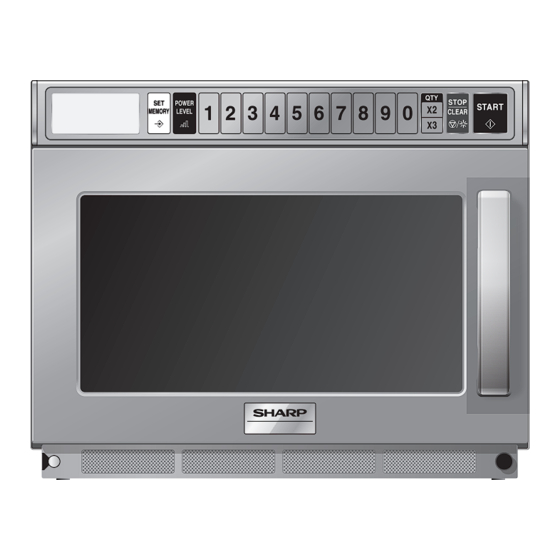

Sharp YB-S6192AE Original Instruction

Commercial microwave oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
COMMERCIAL MICROWAVE OVEN
Original Instruction
OPERATION MANUAL
- This operation manual contains important information which you should read
EN
carefully before using your microwave oven.
IMPORTANT:
There may be a serious risk to health if this operation manual is not followed or if the oven is modified
so that it operates with the door open.
YB-S6192AE 1800W (IEC 60705)

Advertisement

Table of Contents
loading

Related Manuals for Sharp YB-S6192AE

Summary of Contents for Sharp YB-S6192AE

  • Page 1 IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open. YB-S6192AE 1800W (IEC 60705)

  • Page 2: Table Of Contents

    Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for used equipment. Return is free of charge. If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back.

  • Page 3: Important Safety Instructions

    19. The oven should not be cleaned with a water against exposure to microwave energy.   j et. 9. If the power supply cord of this appliance is damaged, it must be replaced by an authorised SHARP service agent in order to avoid a hazard. EN-2...
  • Page 4 16. See the corresponding hints in this operation manual. 6. Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP service agent.
  • Page 5 To avoid the possibility of explosion and To avoid misuse by children sudden boiling 1. Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. 1. Never use sealed containers. Remove seals and lids before use.

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS WARNING: Always keep the caution sheet (SPECIAL INSTRUCTIONS AND WARNINGS) close to the oven for your reference. 1) Remove all packing materials from the inside of the oven step B and tighten it. cavity. Remove all the blue protective fi lm from the outside WARNING: of the oven.

  • Page 7: Part Names

    • When you order accessories, please mention the two • Operation manual items: part name and model name to your dealer or • Touch guide SHARP authorized service agent. • Caution sheet • The model name is printed on the door of the microwave (SPECIAL INSTRUCTIONS AND WARNINGS) oven.

  • Page 8: Short Description Of Features

    BEFORE OPERATION SHORT DESCRIPTION OF FEATURES Program Lock: Memory function: You can limit functions available to prevent misuse. Preprogrammed cooking times and power levels (possible to The oven has 3 kinds of Program Lock Setting; change individually). LL1 (Lock Level 1), LL2 (Lock Level 2) and L (Unlocked) Double/Triple quantity function: LL1 is the factory setting.

  • Page 9: Cooking Double/Triple Quantity With Memory

    SAVING MEMORIES Memory Cooking can be started in 2 operating ways. 1. Program Lock Setting: LL1 or LL2 2. Program Lock Setting: L Saving Memories is available when the oven is set at the Program Lock Setting L. See page EN-11. 1.

  • Page 10: Memory Check

    2. Setting multiplication factor for double/triple quantity Suppose you want to set the multiplication factor to 2.00 for double quantity in memory 1. Procedure Display 3 Press the STOP/CLEAR pad twice to exit from the Memory Check. Then close the door. 1 Set the oven L (unlocked).

  • Page 11: Manual Operation

    MANUAL OPERATION 2. Multi stage cooking Maximum Cooking Time MANUAL COOKING Total Cooking Time: 75 minutes Details: Manual Cooking is available when the oven is set the Program Power Level 13-6: a total of 15 minutes Lock Setting LL1 or L. See page EN-11. Power Level 5-0: a total of 60 minutes Your oven can be programmed for up to 7 cooking stages and Suppose you want to cook for 1 minute on 1500 W for 1st...

  • Page 12: Other Convenient Features

    OTHER CONVENIENT FEATURES Suppose you want to set the Program Lock Setting LL2 (current setting: LL1) PROGRAM LOCK SETTING Procedure Display You can limit functions available to prevent misuse. 1 Open the door. The oven has 3 kinds of Program Lock Setting; : Unlocked LL1 : Lock Level 1 = Factory Setting LL2 : Lock Level 2...

  • Page 13: Oven Lamp Setting

    OVEN LAMP SETTING You can check 4 kinds of oven lamp setting, and customize them. 1. ON/OFF during the Door Opening 2. ON/OFF during Cooking 8 Press the POWER LEVEL pad within 3 seconds to 3. ON/OFF at Cooking Completion proceed to the next setting.

  • Page 14: Audible Signal Sound Setting

    AUDIBLE SIGNAL SOUND SETTING You can check 4 kinds of sound settings, and customize them. 1. Sound Volume 2. Sound Pattern of Cooking Completion Alarm 3. Sound Pitch of Cooking Completion Alarm 8 Press the START pad within 3 proceed to the next 4.

  • Page 15: Counter Check/Clear

    COUNTER CHECK/CLEAR NOTES : 1. Except for total usage, each counter will count up to 9999, Confi rm counters are set to “0” before using the oven for the and then will automatically reset to 0 and begin counting fi rst time. again.

  • Page 16: Care And Cleaning

    CARE AND CLEANING CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS - Keep the oven clean, or the oven could lead to deterioration of the surface. This could adversely aff ect the life of the appliance and possibly result in a hazardous situation. UNPLUG THE APPLIANCE BEFORE CLEANING.

  • Page 17: Service Call Check

    SERVICE CALL CHECK Please check the following before calling for service. Power Supply Check the power plug is properly connected to a suitable wall outlet. Check the line fuse/circuit breaker is functioning properly. QUESTION / SITUATION ANSWER “CC with number” appears. •...

  • Page 18: Guide

    GUIDE USEFUL THINGS TO KNOW ABOUT MICROWAVES Microwaves set the water molecules contained in the food Metal vibrating. The resulting friction generates heat that can be used to defrost or cook the food. Food Microwaves are The microwaves are refl ected absorbed by the food Small metal skewers and aluminium trays (of prepackaged food) SUITABLE UTENSILS...

  • Page 19: Specifications

    Cavity Dimensions ....332(W) x 171.5(H) x 330(D) mm on eco-design requirements for standby and off mode Oven Capacity ..... 0.7 cu.ft (19 litres) electric power consumption. Sharp do not recommend Cooking Uniformity ....Rotary antenna system the product for domestic application and will not accept Weight .........
  • Page 20 Manufacturer: SHARP Corporation 1 Takumi-cho, Sakai-ku, Sakai-shi, Osaka 590-8522, Japan Authorised Representative: SHARP Electronics GmbH, Nagelsweg 33 - 35, 20097 Hamburg, Germany SDA/MAN/0300 V2 www.sharpconsumer.eu TINSMA099WRRZ-H31...
