IBM Proventia MX3006 Getting Started

IBM Proventia Network Multi-Function Security
®
Welcome
Congratulations on your new appliance!
This card will help you do the following:
Connect to the Setup Utility
1
Determine the Best Operation Mode
2
Configure Basic Settings for Routing Mode or
3
Transparent Mode
Install Your Product License
4
Download the Latest Security Updates and Turn
5
On Automatic Updates
Back Up the System
6
After you finish these tasks, you will need to connect to the IBM
Proventia Manager to configure advanced system settings and
protection features as described in the Policy Configuration Guide.
Note: To simplify connecting to the setup tool and the
Proventia Manager, the appliance is configured by default to
provide an appropriate IP address to any PC connected to its
internal interface. This document does not explain how to
change these default settings or the ramifications of such
changes. We recommend changing these settings after you
have successfully completed the full configuration and testing
of the appliance, but if you want to change these settings, skip
this card and go directly to the Policy Configuration Guide.
Requirements:
• PC with Internet Explorer and an Internet connection
• Red Ethernet cross-over cable included with
the appliance
G
F

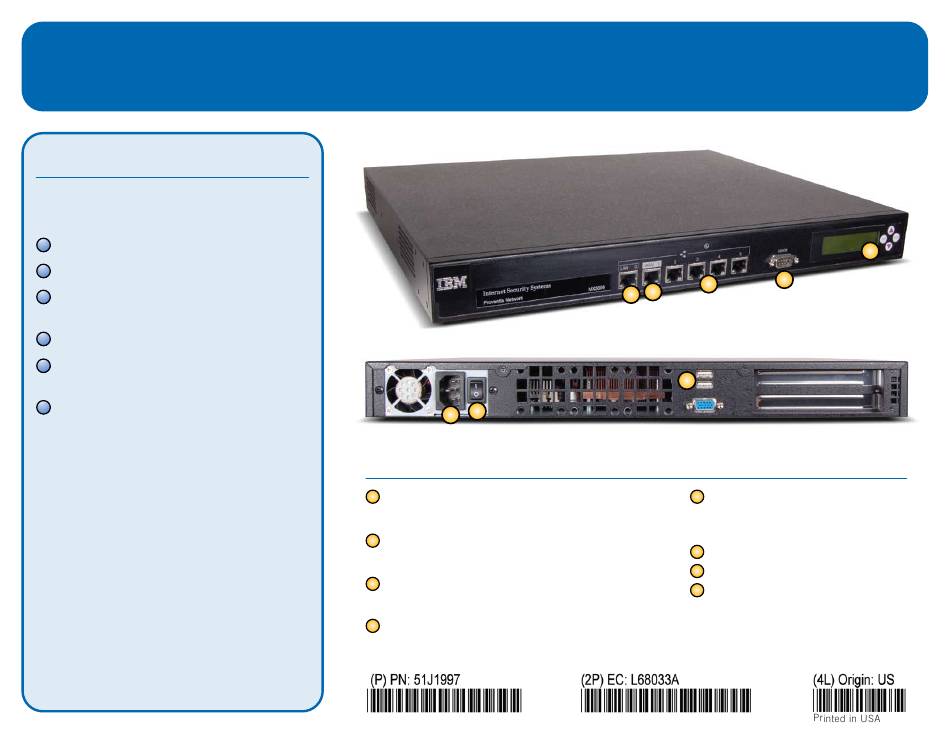

MX3006 – Reference Key
Internal Interface
A
Connects to an internal network. Also connects to a
computer for initial setup.
External Interface
B
Connects to an external network. Supports static IP
addresses, DHCP, or PPPoE.
Additional Network Interfaces
C
Connect to additional networks. The number of ports
varies by model.
D Serial Console Port
Used for optional terminal-based setup and recovery.
Getting Started
Model MX3006
D
C
B
A
H
LCD Controller Module
E
Used for initial network configuration,
restarting or shutting down the appliance
and obtaining MFS version information.
Power Connection
F
G Power Switch
H USB Ports
E
