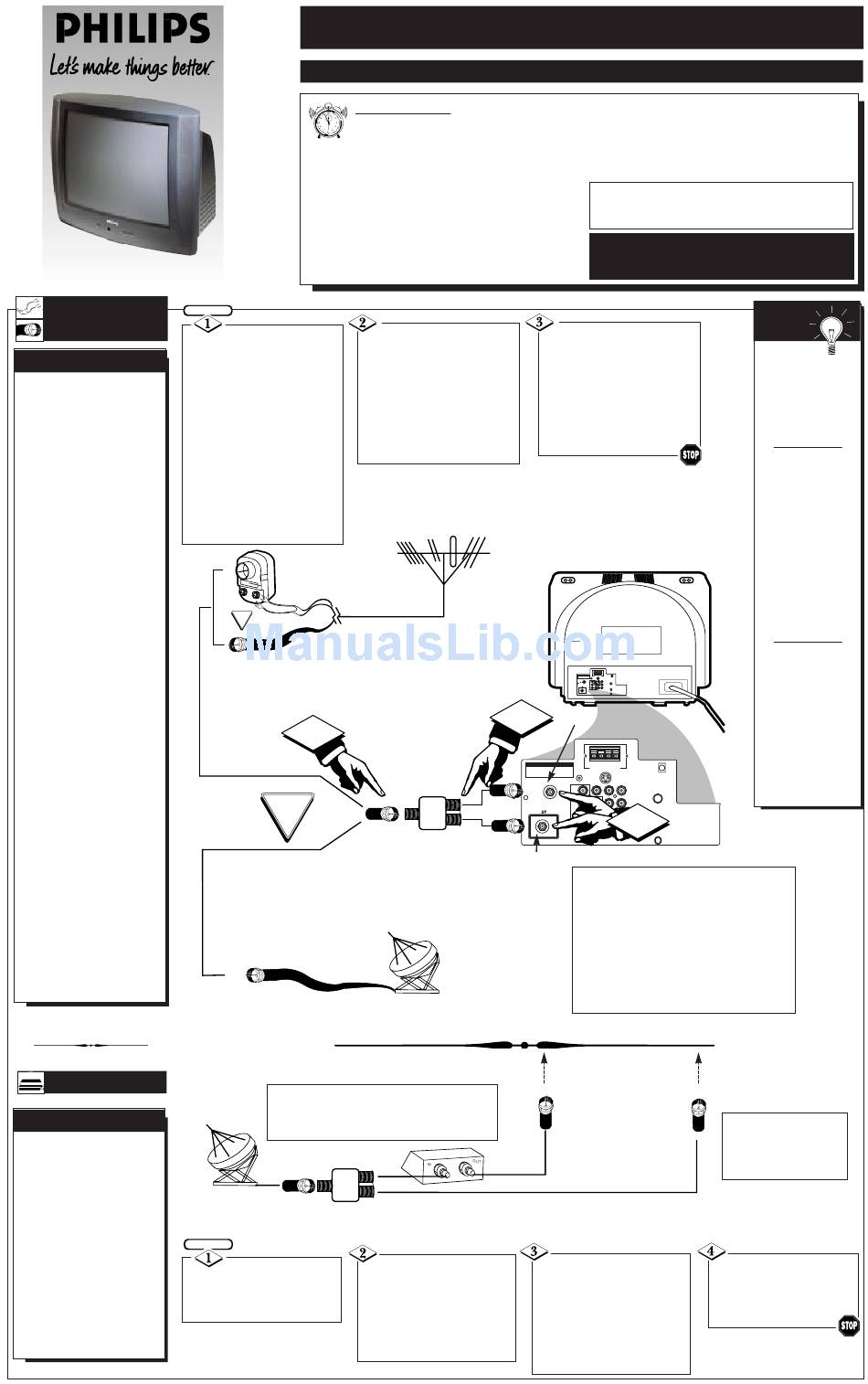

Philips 32PT70B Quick Use And Installation Manual

Color Television and Remote Control
A
NTENNA OR
C TV
ABLE
A ( ) A & B I
NT ENNA NPUTS
Y our TV has two sepa-
rate ANT(enna)/Cable
inputs on the rear of the
set. These two signal
inputs offer convenient
hook-up options for both
normal TV program view-
ing and Picture-In-Picture
(PIP) features.
The ANT(enna) A input is
intended for use and view-
ing on the TV's main
screen. Your home's prima-
ry Antenna, or Cable TV
signal, should be connect-
ed to this input for normal
TV setup, use and feature
operation.
The PIP ANT(enna) B
input is a second, or auxil-
iary signal source,
designed to supply your
TV's Picture-In-Picture
(PIP) feature. For many
homes the use of a single
existing Antenna (or Cable
TV) source, for both ANT A
and PIP ANT B, will be the
preferred method of con-
nection. This type of con-
nection (optional Signal
Splitter required) will work
properly for the TV's Main
onscreen features, as well
as retain all the features
designed for PIP. For more
details refer to the Picture-
In-Picture section in your
other owner's manual.
C B
ABLE OX
C C B
ABLE ONVERTER OXES
F or homes with Cable
TV Converter
Descrambler Boxes (with
Premium/Movie Channels
scrambled), follow the
steps to the right for an
alternative ANT A and
PIP ANT B feature
hookup. Note the Cable TV
signal will be split before
connection to the
Converter box (an option-
al two-way 75 ohm Signal
Splitter will be required).
Q
UICK
Basic TV and Remote Control Operation .................2
How to Use the "INSTALL" Controls ..................3-4
Using the Language Control......................................3
Setting the TV to Auto Program Channels ................3
Setting the TV for a Cable or Antenna Signal...........3
Using the Channel Edit Control ................................4
Setting the Channel Name Control............................4
How to use the AutoChron control............................4
BEGIN
A typical ANT(enna)
A and PIP ANT B connection
(using a common signal source
and an optional Signal Splitter):
If your Antenna or Cable TV
signal has a round cable con-
nector (75 ohm) on the end,
then you're ready to connect it
to the 75ohm Signal Splitter.
If your antenna has flat twin-
lead wire (300 ohm), you first
need to attach the antenna wires
to the screws on a 300 to 75
ohm adapter before connecting
to the 75ohm Signal Splitter.
300 to 75Ω Adapter
Twin Lead
Wire
OR
Round Cable
75Ω Ohm
1
OR
Cable TV Signal
Round Cable
75Ω Ohm
• The signal routed to the TV's ANT A input will allow for
Premium/Movie channels to be viewable on the TV.
• Channel selection will be at the Converter.
• The ANT A input channel on the TV should be set to the same
output channel as the Converter box (usually CH3 or 4).
Cable TV Company
OPTIONAL TWO-WAY
SIGNAL SPLITTER
BEGIN
Connect your Cable
TV signal to the single 75 ohm
INPUT plug on a two-way
Signal Splitter (optional).
U
SE AND
T
ABLE OF

Getting Started

Warning/Precautions ..................................1
Hooking Up Your TV ................................1
Connect your Antenna or
Cable TV signal to the single
75 ohm input plug on the two-
way Signal Splitter (optional).
Then connect two lengths of RF
Coaxial Cable to the two Output
plugs on the two-way Signal
Splitter (F-type connector on
both ends).
Combination VHF/UHF Antenna
- Outdoor or Indoor Antenna -
receives normal broadcast channels
2-13 (VHF) and 14-69 (UHF).
2
OPTIONAL TWO-WAY
SIGNAL SPLITTER
ANT(enna) A
(single 75ohm Input to twin
75 ohm Outputs - optional
RF Coaxial connecting
cables also required)
Cable TV Company
Connect to ANT A Input
Cable TV Converter
Box Connection
Connect one end of RF
Coaxial Cable to each of the
OUTPUT plugs on the 75 ohm
Signal Splitter. The two lengths
of RF Coaxial Cable need F-
type connectors (screw-on or
push type) for both ends.
1
I
NSTALLATION
C
ONTENTS
• For details on product registration, warranty,
and service refer to the other literature included
with your TV information packet.
Please retain all these materials and keep them
handy for future reference.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD DO NOT EXPOSE THIS UNIT TO RAIN
OR EXCESSIVE MOISTURE.
NOTE: This Quick Use Guide may be used with
other models. Some of the features listed may or
may not apply to your TV.
Connect the twin Output
plugs on the Signal Splitter to
the ANT A and PIP ANT B
inputs on the rear of the TV.
Push the round connector end of
the RF Coaxial Cable onto the
ANT(enna) plug and screw it
down tight (if using threaded
cables).
Back of TV
8 8
ATTENTION - TO AVOID DAMAGE + R – – L +
TO A SEPARATE AMPLIFIER OR TO SPEAKERS 1. DO NOT CONNECT SURROUND SOUND SPEAKERS SURROUND SOUND
CONNECTED TO ANOTHER PRODUCT. 2. DO NOT CONNECT LEFT AND RIGHT SPEAKER
OUTPUT TOGETHER. G-LINK S-VIDEO-2
PIP ANT "B"
75 Y VIDEO
Pb L
ANT "A" AUDIO
75
Pr R
AV1 AV2 AV
in in out
PIP ANT(enna)
B Input
8 8
+ R – – L +
ATTENTION - TO AVOID DAMAGE
1. DO NOT CONNECT SURROUND SOUND SPEAKERS SURROUND SOUND
TO A SEPARATE AMPLIFIER OR TO SPEAKERS
CONNECTED TO ANOTHER PRODUCT.
2. DO NOT CONNECT LEFT AND RIGHT SPEAKER
OUTPUT TOGETHER.
G-LINK S-VIDEO-2
PIP ANT "B" VIDEO
Y
75
Pb L
ANT "A"
AUDIO
3
75
Pr
R
AV1 AV2 AV
in in out
Input
Note: Proper operation of your TV is not dependent upon
connection of the PIP ANT B input. Its main purpose is to
provide an easily connected, dedicated picture source for PIP
feature use. Other signal source options (such as a satellite dish
system, additional external antenna, VCR, or Video Game)
could also be connected and displayed on the TV screen
through the use of the PIP ANT B input.
Note: Although the PIP ANT B input can be used and
swapped as the source for the TV's Main picture, certain
setup features (such as ATUO CHRON) are only based on a
signal being detected at the ANT A input. To ensure that all fea-
tures are operating properly, you may not want to rely solely on
the PIP ANT B input as your TV's Main screen signal source.
Connect to PIP ANT B Input
Connect one of the Signal
Splitter OUTPUTs to the
INput terminal on the Cable
TV Converter Box. Then route
another connection from the
Cable Converter OUTput ter-
minal to the ANT A Input on
the rear of the TV.
G
UIDE
S
MART
H
ELP
Remember,
be sure to set the
TV for the type sig-
nal you've connect-
ed (see "TUNER"
section on page 3 of
this Guide.)
Your TV can set
itself to select only
the channel numbers
on your Cable sys-
tem (see "Auto
Program" page 3). If
you use a Cable
Converter box, set
the TV to the same
channel as the con-
verter's CH 3/4
switch (on the rear of
the converter.)
To order accessories
such as those listed
below contact your
dealer:
• Two Way Splitter
• 300-75 ohm
Adapter
• UHF/VHF
Antenna
Combiner
• The signal routed to the TV's
PIP ANT B input will allow for
the selection and viewing of Cable
channels at the TV (except for the
scrambled Premium/Movie
channels).
Connect the remaining
Signal Splitter OUTPUT
from the Splitter to the PIP
ANT B Input on the rear of
the TV.
