Disassembly - Sharp QT-CD131H Service Manual

Caution on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep it safe and ensure excellent
performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing the
unit, be sure to rearrange the leads where they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
STEP REMOVAL
1 Rear Cabinet 1. Screw ................. (A1) x10
2. Socket .................. (A2) x2
2 Top Cabinet 1. Knob ..................... (B1) x1
(with CD Mechanism/ 2. Screw ................... (B2) x3
Tape Mechanism/ 3. Socket .................. (B3) x2
Main PWB)
3 Main PWB/ 1. Screw ................... (C1) x8
Switch PWB 2. Socket .................. (C2) x4
4 Tuner Display PWB/ 1. Screw .................. (D1) x3
Switch PWB
5 Tape Mechanism 1. Screw ................... (E1) x4
6 CD Mechanism 1. Screw ................... (F1) x3
7 Terminal PWB 1. Screw ................... (G1) x5
2. Hook ..................... (G2) x1
8 Battery PWB 1. Hook ..................... (H1) x2

DISASSEMBLY

PROCEDURE FIGURE
5-1
5-2
5-2
5-3
5-3,6-2
6-1
6-2
6-2
6-3
6-4
(A1)x6
ø3x20mm
(A1)x3
ø3x12mm
(B2)x3
(A2)x1
ø3x10mm
(C1)x6
(C2)x1
ø3x10mm
(C1)x2
ø3x10mm
Headphones
PWB
Top Cabinet
– 5 –
QT-CD131H/132H
Front Cabinet
Rear Cabinet
(A1)x1
ø3x12mm

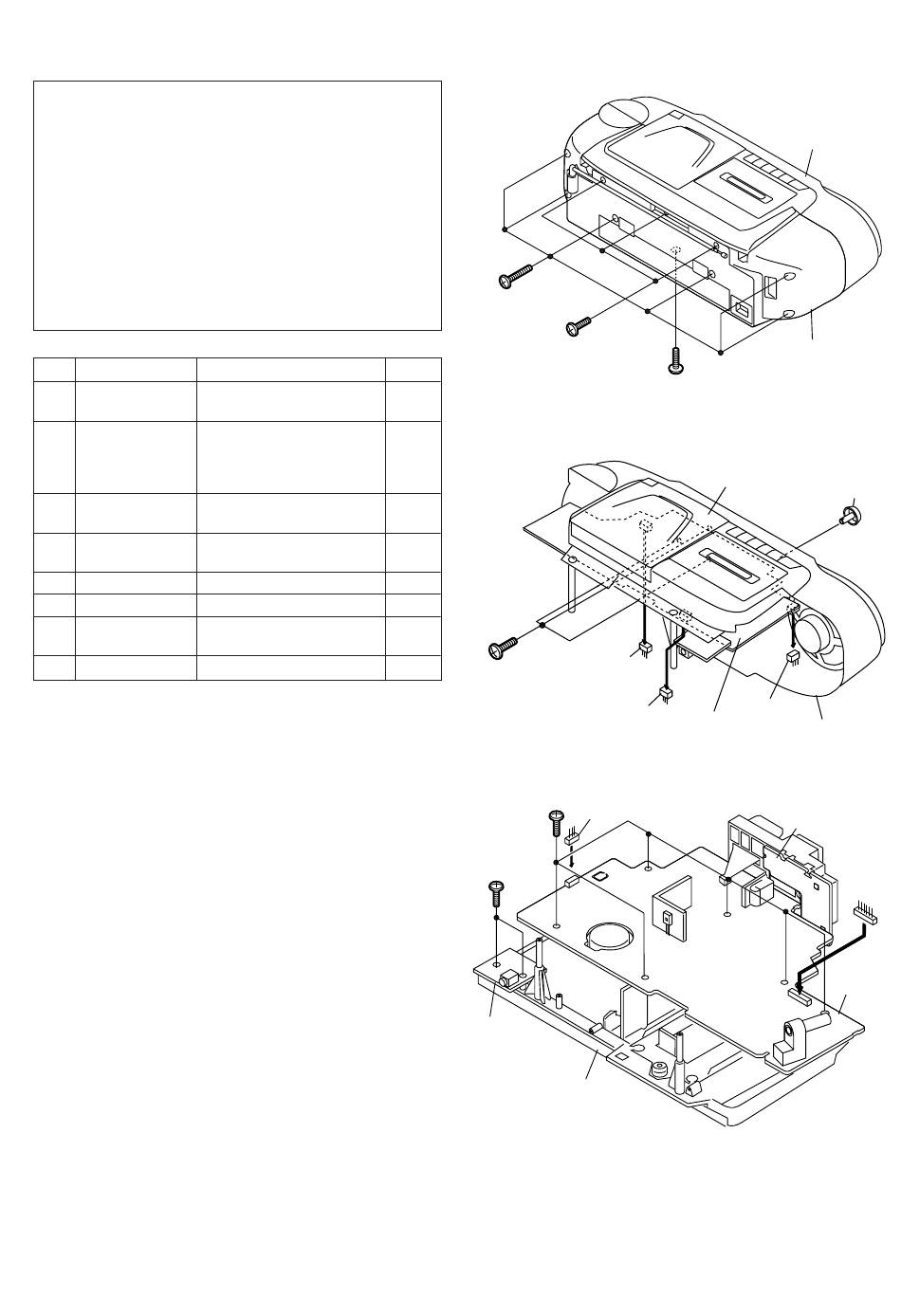

Figure 5-1
Top Cabinet
(B3)x1
(A2)x1
Main PWB
Front Cabinet
Figure 5-2
Switch PWB
Figure 5-3
(B1)x1
Main PWB
