- Page 1 B560M D3H User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
- Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
-
Page 3: Table Of Contents
Table of Contents B560M D3H Motherboard Layout ..................4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the CPU ....................9 Installing the Memory ..................9 Installing an Expansion Card ................10 Back Panel Connectors ..................10 Internal Connectors................... -

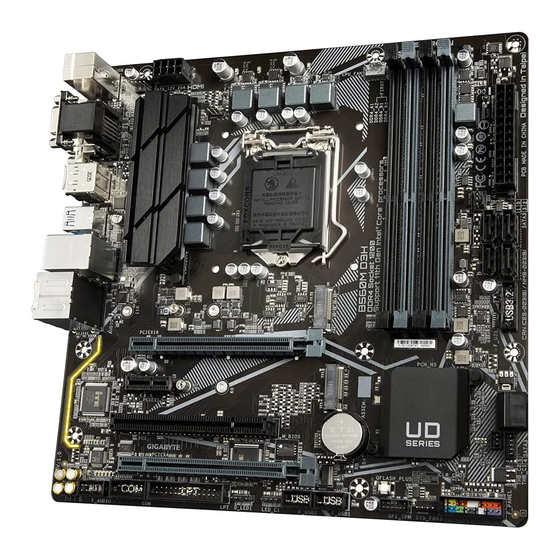

Page 4: B560M D3H Motherboard Layout
B560M D3H Motherboard Layout KB_MS_USB ATX_12V_2X4 CPU_FAN SYS_FAN1 LGA1200 DP_HDMI U32_LAN Intel ® GbE LAN AUDIO PCIEX16 PCIEX1 ® Super I/O Intel ® B560 M_BIOS PCIe to PCI Bridge PCIEX4 CODEC CLR_CMOS USB 2.0 Hub QFLASH_PLUS D_LED1 QFLED F_AUDIO F_USB2... -
Page 5: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 6: 1-2 Product Specifications
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Š Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Š Onboard Integrated Graphics Processor-Intel ®... - Page 7 Expansion Slots Š 1 x PCI Express x16 slot, running at x4 (PCIEX4) Š 1 x PCI Express x1 slot (PCIEX1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) Š 1 x PCI slot Storage Interface Š CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Page 8 * G IGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Please visit GIGABYTE's website Please visit the Support\Utility List for support lists of CPU, memory page on GIGABYTE's website to modules, SSDs, and M.2 devices. download the latest version of apps. - 8 -...
-
Page 9: Installing The Cpu
• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. -
Page 10: Installing An Expansion Card
(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-D connection to this port. (Note 1) To enable the Q-Flash Plus function please visit the "Unique Features" webpage of GIGABYTE's website. (Note 2) Supported by 11th Generation processors only. - Page 11 DisplayPort DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission. DisplayPort can support HDCP 2.3 content protection mechanisms. You can use this port to connect your DisplayPort-supported monitor. Note: The DisplayPort Technology can support a maximum resolution of 4096x2304@60 Hz but the actual resolutions supported depend on the monitor being used.
- Page 12 • When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector. Please visit GIGABYTE's website for details on configuring the audio software. - 12 -...
-
Page 13: Internal Connectors
Internal Connectors ATX_12V_2X4 F_U32 F_USB1/F_USB2 CPU_FAN SPI_TPM SYS_FAN1/2/3 THB_C1/THB_C2 LED_C1 D_LED1 SATA3 0/1/2/3/4/5 M2A_CPU/M2P_SB CLR_CMOS F_PANEL QFLASH_PLUS F_AUDIO Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •... - Page 14 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design.
- Page 15 LED strip. For how to turn on/off the lights of the LED strip please visit the "Unique Features" webpage of GIGABYTE's website. Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
- Page 16 Incorrect connection may lead to the damage of the LED strip. For how to turn on/off the lights of the LED strip please visit the "Unique Features" webpage of GIGABYTE's website. Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
- Page 17 8) M2A_CPU (Note) /M2P_SB (M.2 Socket 3 Connectors) The M.2 connector supports M.2 SATA SSDs or M.2 PCIe SSDs. M2A_CPU (Note) M2P_SB Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Use a screw driver to unfasten the screw and standoff from the motherboard. Locate the proper mounting hole for the M.2 SSD to be installed and then screw the standoff first.
- Page 18 9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...
- Page 19 11) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer. Pin No. Definition Pin No. Definition Pin No. Definition VBUS SSTX2- SSRX1- SSRX1+ SSRX2+ SSRX2- SSTX1-...
- Page 20 14) THB_C1/THB_C2 (Thunderbolt ™ Add-in Card Connectors) The connectors are used to connect to a GIGABYTE Thunderbolt ™ add-in card. THB_C2 Supports a Thunderbolt ™ add-in card. THB_C1 15) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer.
