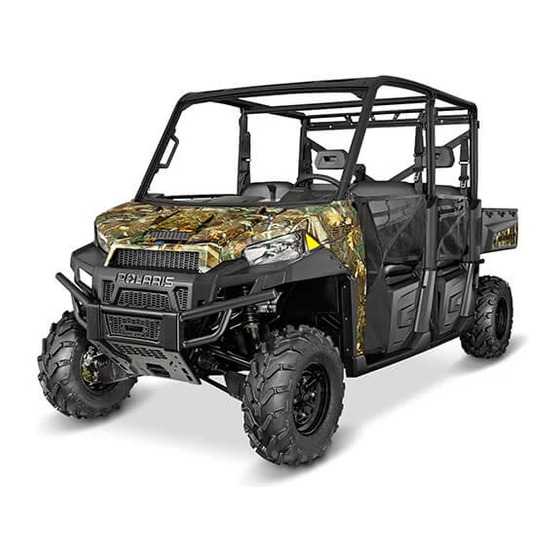

Polaris RANGER 570 Full Size 2016 Owner's Manual
  1. Manuals
  2. Brands
  3. Polaris Manuals
  4. Utility Vehicle
  5. RANGER 570 Full Size 2016
  6. Owner's manual

Polaris RANGER 570 Full Size 2016 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

RANGER® 570
Full Size
RANGER CREW® 570
Full Size
Owner's Manual
for Maintenance and Safety

Advertisement

Table of Contents
loading

Related Manuals for Polaris RANGER 570 Full Size 2016

Summary of Contents for Polaris RANGER 570 Full Size 2016

  • Page 1 RANGER® 570 Full Size RANGER CREW® 570 Full Size Owner's Manual for Maintenance and Safety...
  • Page 2 The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For videos and more information about a safe riding experience with your Polaris vehicle, scan this QR code with your smartphone.
  • Page 3 WELCOME Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for the latest news, new product introductions, upcoming events, career opportunities and more. Here at POLARIS we proudly produce an exciting line of utility and recreational products.
  • Page 4 POLARIS® RANGER® and RANGER CREW® are trademarks of POLARIS Industries Inc. Copyright 2015 POLARIS Industries Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to constant improvements in the design and quality of production components, some minor discrepancies may result between the actual vehicle and the information presented in this publication.

  • Page 5: Table Of Contents

    Specifications ........85 POLARIS Products........89 Troubleshooting .

  • Page 6: Introduction

    INTRODUCTION The RANGER is an off-road vehicle. Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your area. The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.
  • Page 7 Failure to follow the warnings contained in this manual can result in severe injury or death. Your POLARIS RANGER is not a toy and can be hazardous to operate. This vehicle handles differently than other vehicles, such as cars, trucks or other off-road vehicles. A collision or rollover can occur quickly, even during routine maneuvers like turning, or driving on hills or over obstacles, if you fail to take proper precautions.
  • Page 8 Remove the spare key and store it in a safe place. An ignition key can be duplicated only by ordering a POLARIS key blank (using your key number) and mating it with one of your existing keys. The ignition switch must be replaced if all keys are lost.
  • Page 9 INTRODUCTION European Vibration and Noise The driver-perceived noise and hand/arm and whole body vibration levels of this machinery is measured per prEN 15997. The operating conditions of the machinery during testing: The vehicles were in like-new condition. The environment was controlled as indicated by the test procedure(s).

  • Page 10: Safety

    Helmet Wearing a helmet can prevent a severe head injury. Whenever riding this POLARIS vehicle, always wear a helmet that meets or exceeds established safety standards. Approved helmets in the USA and Canada bear a U.S. Department of Transportation (DOT) label.
  • Page 11 Gloves Wear gloves for comfort and for protection from sun, cold weather and other elements. Boots Wear sturdy over-the-ankle boots for support and protection. Never ride a POLARIS vehicle with bare feet or sandals. Clothing Wear long sleeves and long pants to protect arms and legs.
  • Page 12 If any label becomes illegible or comes off, contact your POLARIS dealer to purchase a replacement. Replacement safety labels are provided by POLARIS at no charge. The part number is printed on the label.
  • Page 13 SAFETY Safety Labels and Locations Seat Belt/Drive Responsibly Warning WARNING Improper vehicle use can result in SEVERE INJURY or DEATH Be Prepared • Fasten seat belts. • Wear an approved helmet and protective gear. • ALWAYS use vehicle cab nets and/or doors. •...
  • Page 14 SAFETY Proper Use Warning (570 Full Size) Require Proper Use of Your Vehicle Do your part to prevent injuries: • Do not allow careless or reckless driving. • Make sure operators are 16 or older with a valid driver’s license. •...
  • Page 15 SAFETY Safety Labels and Locations Passenger/Tire Pressure Warning WARNING • Passengers can be thrown off. This can cause serious injury or death. • Never carry passengers in cargo box. WARNING IMPROPER TIRE PRESSURE OR OVERLOADING CAN CAUSE LOSS OF CONTROL RESULTING IN SERIOUS INJURY OR DEATH.
  • Page 16 SAFETY Operator Safety WARNING Serious injury or death can result if you do not follow these instructions and procedures, which are outlined in further detail within your owner's manual. • Read this entire manual and all labels carefully. Follow the operating procedures described.
  • Page 17 • Always follow proper procedures for turning. Practice turning at slow speeds before attempting to turn at faster speeds. Never turn at excessive speeds. • Always have this vehicle checked by an authorized POLARIS dealer if it has been involved in an accident.
  • Page 18 FOR MORE INFORMATION ABOUT SAFETY, call POLARIS at 1-800-342-3764. Equipment Modifications Do not install any non-POLARIS approved accessory or modify the vehicle for the purpose of increasing speed or power. Any modifications or installation of non-POLARIS approved accessories could create a substantial safety hazard and increase the risk of bodily injury.
  • Page 19 SAFETY Operator Safety WARNING Failure to operate the RANGER properly can result in a collision, loss of control, accident or rollover, which may result in serious injury or death. Heed all safety warnings outlined in this section of the owner’s manual. See the OPERATION section of the owner’s manual for proper operating procedures. Age Restrictions This vehicle is an ADULT VEHICLE ONLY.
  • Page 20 SAFETY Operator Safety Cab Nets Riding in this vehicle without using the cab nets (or doors, if equipped) increases the risk of serious injury or death in the event of an accident or rollover. Always use the cab nets (or doors) while riding in this vehicle.
  • Page 21 SAFETY Operator Safety Handling Gasoline Gasoline is highly flammable and explosive under certain conditions. • Always exercise extreme caution whenever handling gasoline. • Always turn off the engine when refueling. • Always refuel outdoors or in a well ventilated area free of any source of flame or sparks. •...
  • Page 22 SAFETY Operator Safety Operating on Public Roads Operating this vehicle on public streets, roads or highways could result in a collision with another vehicle. Never operate this vehicle on any public street, road or highway, including dirt and gravel roads (unless designated for off-highway use).
  • Page 23 SAFETY Operator Safety Improper Tire Maintenance Operating this vehicle with improper tires or with improper or uneven tire pressure could cause loss of control or accident. Always use the size and type of tires specified for your vehicle. Always maintain proper tire pressure as described in the owner's manual and on safety labels.

  • Page 24: Features And Controls

    FEATURES AND CONTROLS Vehicle Components Your vehicle is equipped with cab nets on both sides of the vehicle. Cab nets (or doors, if equipped) must be used by both operator and passengers at all times. Any illustrations with- out cab nets are only to allow component identification. Always use the cab nets (or doors). Not all models come with all features.
  • Page 25 FEATURES AND CONTROLS Console Gear Selector Ignition/Light Switch (Shifter) Steering Wheel Adjustment Instrument Cluster Lever Switch MODE Button Holder Holder Storage 12V Auxiliary Storage Compartment Outlet Tray Auxiliary Outlet The 12-volt receptacle has spade connections on the back that may be used to power an auxiliary light or other optional accessories or lights.
  • Page 26 Tip: Maintaining shift linkage adjustment is important to assure proper transmission function. Your POLARIS dealer can assist in resolving any shifting problems. NOTICE: Shifting gears with the engine speed above idle or while the vehicle is moving could cause transmission damage.
  • Page 27 FEATURES AND CONTROLS Brake Pedal Depress the brake pedal to slow or stop the vehicle. Apply the brakes while starting the engine. Throttle Pedal Push the pedal down to increase engine speed. Spring pressure returns the pedal to the rest position when released.
  • Page 28 FEATURES AND CONTROLS Seat Belts This POLARIS vehicle is equipped with three- point lap and diagonal seat belts on all seats. Always make sure the seat belts are secured for all Latch Plate riders before operating. The driver’s seat belt is equipped with a seat belt interlock.
  • Page 29 Always inspect cab nets and latches for tightness, wear and damage before each use of the vehicle. Use the strap adjusters to tighten any loose straps. Promptly replace worn or damaged cab nets and latches with new cab nets and latches. Your POLARIS dealer can assist.
  • Page 30 An optional extreme use battery may be available for your model. If the performance of the factory-installed battery is inadequate due to operation in extreme cold or due to extended use of multiple electrical accessories, your POLARIS dealer can assist. Your dealer can provide any installation procedures that may differ for an extreme use battery.
  • Page 31 15 MPH (24 km/h) if the seat belt is not secured. Check Engine This indicator appears if an EFI-related fault occurs. Do not operate the vehicle if this warning appears. Serious engine damage could result. Your POLARIS dealer can assist.
  • Page 32 6. Service Indicator - A flashing wrench symbol alerts the operator that the preset service interval has been reached. Your POLARIS dealer can provide scheduled maintenance. See page 32 for resetting instructions. 7. 4X4 Indicator - This indicator illuminates when the 4X4 system is engaged (switch is...
  • Page 33 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Use the MODE button to toggle through the information area options. Display Units (Standard/Metric) MODE Button The display can be changed to show either standard or metric units of measurement for each of the following settings. Tip: To exit the set-up mode, turn the key off.
  • Page 34 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Odometer Mode The odometer records and displays the distance traveled by the vehicle. Trip Meter Mode The trip meter records the distance traveled by the vehicle if reset before each trip. To reset, select the trip meter mode.
  • Page 35 Instrument Cluster Rider Information Center Diagnostic Display Mode The EFI diagnostic display mode is for informational purposes only. Your POLARIS dealer can provide for all major repairs. The diagnostic mode is accessible only when the check engine warning indicator activates after the key has been turned on.

  • Page 36: Operation

    Break-In Period The break-in period for your new POLARIS RANGER is the first twenty hours of operation, or the time it takes to use the first two tanks full of gasoline. No single action on your part is as important as a proper break-in period.
  • Page 37 Ensure proper operation Indicator lights/switches Ensure operation Air filter, pre-filter Inspect, clean Headlamp Check operation, apply POLARIS dielectric grease when lamp is replaced Brake light/tail lamp Check operation, apply POLARIS dielectric grease when lamp is replaced Seat Belts Check length of belt for damage, check latches for...
  • Page 38 OPERATION Starting Engine 1. Always start the engine outdoors or in a well-ventilated area. 2. Sit in the driver's seat and fasten the seat belt. Secure the cab nets (or doors). 3. Apply the brakes. Place the transmission in PARK. 4.
  • Page 39 OPERATION Driving Procedure 1. Wear a helmet, eye protection, gloves, long-sleeve shirt, long pants and over-the-ankle boots. 2. Sit in the driver's seat and fasten the seat belt. 3. Start the engine and allow it to warm 4. Always use the cab nets (or doors) while riding in this vehicle.
  • Page 40 OPERATION Driving On Slippery Surfaces WARNING Skidding or sliding can cause loss of control or rollover (if tires regain traction unexpectedly). When operating on slippery surfaces such as ice or loose gravel, reduce speed and use extra caution to reduce the chance of skidding or sliding out of control. Do not operate on excessively slippery surfaces. Whenever riding on slippery surfaces such as wet trails or loose gravel, or during freezing weather, follow these precautions: 1.
  • Page 41 OPERATION Driving Uphill Whenever traveling uphill, follow these precautions: 1. Avoid excessively steep hills. 2. Always travel straight uphill. 3. Keep both feet on the floor. 4. Always check the terrain carefully before ascending any hill. Never climb hills with excessively slippery or loose surfaces.
  • Page 42 OPERATION Driving on a Sidehill (Sidehilling) Driving on a sidehill is not recommended. Improper procedure could cause loss of control or rollover. Avoid crossing the side of any hill unless absolutely necessary. If crossing a sidehill is unavoidable, follow these precautions: 1.
  • Page 43 OPERATION Driving Through Water Your POLARIS RANGER can operate through water up to a maximum recommended depth equal to the floorboards. NOTICE: If your vehicle becomes immersed or is operated in water that exceeds the floor level, service is required before starting the engine. Your POLARIS dealer can provide this service.
  • Page 44 OPERATION Hauling Cargo WARNING Hauling cargo improperly can alter vehicle handling and may cause loss of control or brake instability, which can result in serious injury or death. Always follow these precautions when hauling cargo: Never exceed the maximum weight capacity of the vehicle. When determining the weight you are adding to the vehicle, include the weight of the operator, passenger, accessories, loads in the rack or box and the load on the trailer tongue.
  • Page 45 OPERATION Towing Loads Towing improperly can alter vehicle handling and may cause loss of control or brake instability. Always follow these precautions when towing: 1. Never load more than 150 lbs. (68.1 kg) tongue weight on the towing bracket. 2. When towing a disabled RANGER vehicle, place the disabled vehicle’s transmission in neutral.
  • Page 46 OPERATION Dumping the Cargo Box 1. Select a level site to dump the cargo box. Do not Release attempt to dump or unload the vehicle while Lever parked on an incline. 2. Apply the brakes. 3. Place the transmission in PARK. 4.
  • Page 47 OPERATION All Wheel Drive (AWD) System The All Wheel Drive system is controlled by the AWD switch. When the switch is on 2X4, the vehicle is in two-wheel drive at all times. When the switch is on AWD, the vehicle is in all wheel drive and the 4X4 indicator in the instrument cluster will be on.

  • Page 48: Winch Guide

    WINCH GUIDE These safety warnings and instructions apply if your vehicle came equipped with a winch or if you choose to add an accessory winch to your vehicle. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.
  • Page 49 WINCH GUIDE Winch Safety Precautions 13. Never winch up or down at sharp angles. This can destabilize the winching vehicle and possibly cause it to move without warning. 14. Never attempt to winch loads that weigh more than the winch’s rated capacity. 15.
  • Page 50 WINCH GUIDE Winch Operation Read the Winch Safety Precautions in the preceding pages before using your winch. Tip: Consider practicing the operation and use of your winch before you actually need to use it in the field. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.
  • Page 51 WARNING! Replace the winch cable at the first sign of damage to prevent SEVERE INJURY or DEATH in the event of failure. For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer.
  • Page 52 WINCH GUIDE Winch Operation 8. Read and adhere to the following information for winch damping to ensure safe winch use. In order to absorb energy that could be released by a winch cable failure, always place a “damper” on the winch cable. A damper can be a heavy jacket, tarp, or other soft, dense object.
  • Page 53 WINCH GUIDE Winch Operation 13. Extensive winching will run down the battery on the winching vehicle. Let the winching vehicle’s engine run while operating the winch to prevent the battery from running low if winching for long periods. 14. The winch motor may become hot during winch use. If you winch for more than 45 seconds, or if the winch stalls during operation, stop winching and permit the winch to cool down for 10 minutes before using it again.
  • Page 54 WINCH GUIDE Winch Cable Care For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer. WARNING! Use of worn or damaged cable could lead to sudden failure and SEVERE INJURY.
  • Page 55 WINCH GUIDE Shock Loading WARNING! Your winch cable is very strong but it is NOT designed for dynamic, or “shock” loading. Shock loading may tension a winch cable beyond its strength and cause the cable to break. The end of a broken winch cable under such high loading can cause SEVERE INJURY or DEATH to you and other bystanders.
  • Page 56 3. Never work on your winch without first disconnecting the battery connections to prevent accidental activation of the winch 4. For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer.

  • Page 57: Emission Control Systems

    Operation on Public Lands in the U.S.A. Your POLARIS vehicle has a spark arrester that was tested and qualified to be in accordance with the USFS standard 5100-1c. Federal law requires that this spark arrester be installed and functional when the vehicle is operated on public lands.

  • Page 58: Maintenance

    D Have an authorized POLARIS dealer or other qualified person perform these services. WARNING! Improperly performing the procedures marked with a “D” could result in component failure and lead to serious injury or death. Have an authorized POLARIS dealer or other qualified person perform these services.
  • Page 59 Inspect; adjust; replace as needed Cooling system (if applicable) 50 H Inspect coolant strength seasonally; pressure test system yearly Perform these procedures more often for vehicles subjected to severe use. D Have an authorized POLARIS dealer or other qualified person perform these services.
  • Page 60 MAINTENANCE Periodic Maintenance Chart Item Maintenance Interval Remarks (whichever comes first) Hours Calendar Miles (Km) Oil lines, fasteners 50 H Inspect for leaks and loose fittings Engine oil and filter change 100 H 1000 (1600) Change oil and filter; (perform a break- in oil change at one month) Front Gearcase oil (if equipped) 100 H...
  • Page 61 MAINTENANCE Engine Oil Always check and change the oil at the intervals Oil Fill outlined in the Periodic Maintenance Chart beginning on page 56. Always use the recommended engine oil. See page 58. NOTICE: Allowing dirt or debris to enter the engine can result in serious engine damage.
  • Page 62 MAINTENANCE Engine Oil Oil and Filter Change 3. Clean the area around the drain plug. CAUTION! Hot oil can cause burns to skin. Do not allow hot oil to contact skin. 4. Place a drain pan beneath engine crankcase and remove the drain plug.
  • Page 63 Refer to the Gearcase Specifications Chart for recommended lubricants, capacities and torque specifications. See page 89 for the part numbers of POLARIS products. Fluid Check The fill plug is located on the rear of the gearcase.
  • Page 64 Maintenance Chart beginning on page 56. Maintain the oil level even with the bottom thread of the fill plug hole. Refer to the Gearcase Specifications Chart on page 61 for recommended lubricants, capacities and torque specifications. See page 89 for the part numbers of POLARIS products. Oil Check The front gearcase fill plug is located on the right side of the front gearcase.
  • Page 65 Refer to the specifications section beginning on page 85 for the recommended spark plug type for your vehicle. Always torque spark plugs to specification. NOTICE: Using non-recommended spark plugs can result in serious engine damage. Always use POLARIS-recommended spark plugs or their equivalent. Spark Plug Gap/Torque Electrode Gap...
  • Page 66 Observe coolant levels and maintain as recommended by adding coolant to the overflow bottle. Adding or Changing Coolant POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix. This antifreeze is already premixed and ready to use. Do not dilute with water. See page 89 for the part numbers of POLARIS products.
  • Page 67 But if the overflow bottle has run dry, the level in the radiator should also be inspected. 5. Reinstall the pressure cap. Use of a non-standard pressure cap will not allow the recovery system to function properly. Your POLARIS dealer can provide the correct replacement part.
  • Page 68 • See your dealer or other qualified service person as outlined in the owner's manual. • This PVT system is intended for use on POLARIS products only. Do not install it in any other product. • Always make sure the PVT housing is securely in place during operation.
  • Page 69 MAINTENANCE POLARIS Variable Transmission (PVT) System Belt Replacement/Debris Removal 8. Rotate the driven clutch by hand until the belt is completely off. Step 8 9. Slide the front of the belt out from between the drive clutch and inner clutch cover to completely remove it.
  • Page 70 7. Test for belt slippage. If the belt slips, repeat the process. 8. Your vehicle requires service as soon as possible. Your POLARIS dealer can assist. Vehicle Immersion NOTICE: If your vehicle becomes immersed, major engine damage can result if the machine is not thoroughly inspected.
  • Page 71 6. Reinstall the air filter (if clean) or install a new air filter (if soiled). Do not attempt to clean the air filter. NOTICE: Use of a non-POLARIS-approved air filter may cause engine damage. Always use a POLARIS-approved replacement filter. See page 89 for the part numbers of POLARIS products.
  • Page 72 MAINTENANCE Spark Arrester WARNING Failure to heed the following warnings while servicing the spark arrester could result in serious injury or death. • Do not perform clean-out immediately after the engine has been run, as the exhaust system becomes very hot. Serious burns could result from contact with the exhaust components. Allow components to cool sufficiently before proceeding.
  • Page 73 MAINTENANCE Brakes The front and rear brakes are hydraulic disc type brakes. Press down on the brake pedal to engage the brakes. See page 25. Brake Fluid Inspect the brake system routinely. Inspect the level of the brake fluid before each operation. WARNING! After opening a bottle of brake fluid, always discard any unused portion.
  • Page 74 3. There should be 0.8”-1.0” (20-25 mm) of freeplay. 4. If there is excessive freeplay or strange noises, or the steering feels rough or “catchy”, have the steering system inspected by an authorized POLARIS dealer. Spring Adjustment Adjust the rear shock absorber springs by rotating the adjustment cam either clockwise or counter-clockwise to increase or decrease spring tension.
  • Page 75 Always follow all tire maintenance procedures as outlined in this manual and on the labels on the vehicle. Always use POLARIS-approved size and type of tires for this vehicle when replacing tires. Tire Tread Depth Always replace tires when tread depth is 1/8”...
  • Page 76 Always ensure that all nuts are torqued to specification. Do not service axle nuts that have a cotter pin installed. Your POLARIS dealer can assist. 3. Attach the wheel nuts and washers and finger tighten.
  • Page 77 The fuse box is located in the electrical compartment under the driver’s seat. Spare fuses are provided in the fuse box. If you suspect that a fuse or relay may not be working properly, your POLARIS dealer can assist. Fuse Size Feature Supported Brake Light...
  • Page 78 MAINTENANCE Lights Headlight Beam Adjustment 8” (20 cm) 25 ft. (7.6 m) 1. Place the vehicle on a level surface with the headlight approximately 25 ft. (7.6 m) from a wall. 2. Measure the distance from the floor to the center of the headlight and make a mark on the wall at the same height.
  • Page 79 MAINTENANCE Battery WARNING Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing. Antidote: External: Flush with water. Internal: Drink large quantities of water or milk. Follow with milk of magnesia, beaten egg, or vegetable oil.
  • Page 80 MAINTENANCE Battery Battery Removal WARNING Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last. 1.
  • Page 81 If your factory-installed battery cannot maintain a charge because of operation in extreme cold or with multiple electrical accessories, you may need to purchase a 30 AH battery. Your POLARIS dealer can assist. Your dealer can provide any installation procedures that may differ for an extreme use battery.
  • Page 82 MAINTENANCE Battery Battery Charging (Conventional Battery) 1. Remove the battery from the vehicle to prevent damage from leaking or spilled electrolyte during charging. See page 78. 2. Charge the battery with a charging output no larger than 1/10 of the battery’s amp/hr rating.
  • Page 83 NOTICE: Certain products, including insect repellents and chemicals, will damage plastic surfaces. Do not allow these types of products to contact the vehicle. The best and safest way to clean your POLARIS vehicle is with a garden hose and a pail of mild soap and water.
  • Page 84 Stabilize the Fuel 1. Fill the fuel tank. 2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel Stabilizer or equivalent fuel treatments or stabilizers. Follow the instructions on the container for the recommended amount. Carbon Clean removes water from fuel systems, stabilizes fuel and removes carbon deposits from pistons, rings, valves and exhaust systems.
  • Page 85 5. Turn the engine over several times. Oil will be forced in and around the piston rings and ring lands, coating the cylinder with a protective film of fresh oil. 6. If POLARIS fuel system additive is not used, fuel tank, fuel lines, and injectors should be completely drained of gasoline.
  • Page 86 3. Fill the fuel tank with fuel. 4. Check all the points listed in the Daily Pre-Ride Inspection section on page 35. Tightness of the bolts, nuts and other fasteners should be checked by an authorized POLARIS dealer or other qualified service facility.

  • Page 87: Specifications

    SPECIFICATIONS RANGER 570 Full Size Maximum Weight Capacity 1500 lbs. (680.4 kg) (4X4) (includes weight of operator, 1300 lbs. (590 kg) (4X4 sold in California) passenger, cargo, accessories) Dry Weight 1165 lbs. (528 kg) Test GVW - Rollover Protection 2650 lbs. (1202 kg) per OSHA 29 CFR 1928.53 System (ROPS) Fuel Capacity 8.8 gal.
  • Page 88 10 psi (69 kPa) Brakes, Front/Rear Foot Activated, 4 wheel hydraulic disc Hood Headlights 2 single beam, 50W, quartz/halogen Taillights 10 L.E.D. (.28W) Brake Light 10 L.E.D. (3.1W) Indicator Light 1.0 W Clutching See your POLARIS dealer for clutching specifications.
  • Page 89 SPECIFICATIONS RANGER CREW 570 Full Size Maximum Weight Capacity 1750 lbs. (795 kg) (including operator, passengers, cargo, accessories) 1350 lbs. (612 kg) (Models sold in California) Dry Weight 1520 lbs. (689.46 kg) Test GVW - Rollover Protection 3270 lbs. (1483.25 kg) per OSHA 29 CFR 1928.53 System (ROPS) Fuel Capacity 8.8 gal.
  • Page 90 Tire Pressure - Rear 18 psi (124 kPa) Brakes, Front/Rear Foot Activated, 4 wheel hydraulic disc Hood Headlight 2 single beam, 50W, quartz/halogen Taillights 10 L.E.D. (.28W) Brake Light 10 L.E.D. (3.1W) Clutching See your POLARIS dealer for clutching specifications.

  • Page 91: Polaris Products

    U-Joint Grease (3 oz./89 ml cartridge) 2871551 U-Joint Grease (14 oz./414 ml cartridge) 2871329 Dielectric Grease (Nyogel™) Additives / Miscellaneous 2871326 Carbon Clean 2870652 Fuel Stabilizer 2872189 DOT 4 Brake Fluid 2871956 Loctite™ 565 Thread Sealant 2859044 POLARIS Battery Tender™ Charger...

  • Page 92: Troubleshooting

    Dry out the PVT. See page 68. Inspect clutch seals for damage if repeated ingestion into the PVT system leaking occurs. Clutch malfunction Your POLARIS dealer can assist. Poor engine performance Check for fouled plugs or foreign material in fuel tank or fuel lines. Your POLARIS dealer can assist.
  • Page 93 Possible Cause Solution Out of fuel Refuel Clogged fuel filter Your POLARIS dealer can assist. Water is present in fuel Drain the fuel system and refuel Old or non-recommended fuel Replace with fresh recommended fuel Fouled or defective spark plug...
  • Page 94 Solution Fouled or defective spark plug Inspect, clean and/or replace spark plug Worn or defective spark plug wires Your POLARIS dealer can assist. Incorrect spark plug gap or heat range Set gap to specs or replace plug Loose ignition connections...

  • Page 95: Warranty

    This warranty is transferable to another owner during the warranty period through a POLARIS dealer, but any such transfer will not extend the original term of the warranty. The duration of this warranty may vary by international region based upon local laws and regulations.
  • Page 96 THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE, AT POLARIS' OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.
  • Page 97 If you purchase from a private party: If you purchase a POLARIS product from a private party, to be kept and used outside of the country in which the product was originally purchased, all warranty coverage will be denied. You must nonetheless register your product under your name and address with a local POLARIS dealer in your country to ensure that you receive safety information and notices regarding your product.
  • Page 98 30 calendar months from the date of purchase, whichever comes first. This EPA emissions warranty period is extended for at least as long as the standard factory warranty that Polaris provides on the vehicle as a whole. The EPA emissions warranty period does not further extend if you purchase additional warranty coverage in the form of a service contract or other paid warranty extension, but emission-related parts may be covered subject to the terms of any such paid service contract or paid warranty extension.
  • Page 99 The exclusive remedy for breach of this limited warranty shall be, at the exclusive option of POLARIS, repair or replacement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.

  • Page 100: Maintenance Log

    MAINTENANCE LOG Use the following chart to record periodic maintenance. DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS...

  • Page 102: Index

    INDEX Accessory Outlets ......23 Demand Drive ......62 Adjustment Disengaging AWD .
  • Page 103 Brake Lights..... 76 Polaris Products ......89 Headlight Beam Adjustment .
  • Page 104 INDEX Safety Labels ..... . . 10-11, 13 Tachometer ......32 Safety Symbols .
  • Page 106 12 or who cannot comfortably reach the floor and hand holds. • On paved surfaces - pavement may seriously affect handling and control. • With non-Polaris approved accessories - they may seriously affect stability. ALWAYS: • Wear your seat belt. Vehicle rollover can cause severe injury or death.
