INSTRUCTION MANUAL

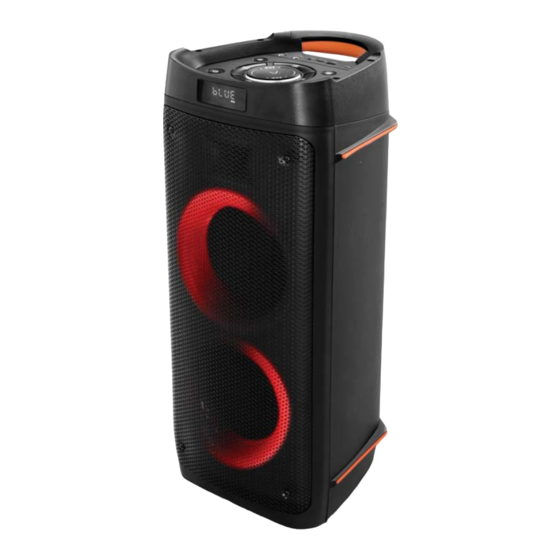

TS 200BT USB/AX
BLUETOOTH PARTY SPEAKER/MICROSD/USB/AUX
BUILT-IN RECHARGEABLE BATTERY
New MAJESTIC SpA
Via Rossi Martini, 41
26013 Crema (CR) - Italy
www.newmajestic.com
MADE IN CHINA
Per scaricare il manuale d'istruzioni inquadra qui:
To download the instruction manual click here:
Um die Bedienungsanleitung herunterzuladen, klicken Sie hier:
Pour télécharger le manuel d'instructions, cliquez ici :
Para descargar el manual de instrucciones haga clic aquí:
Advertisement
Related Manuals for Majestic TS 200BT USB/AX
Summary of Contents for Majestic TS 200BT USB/AX

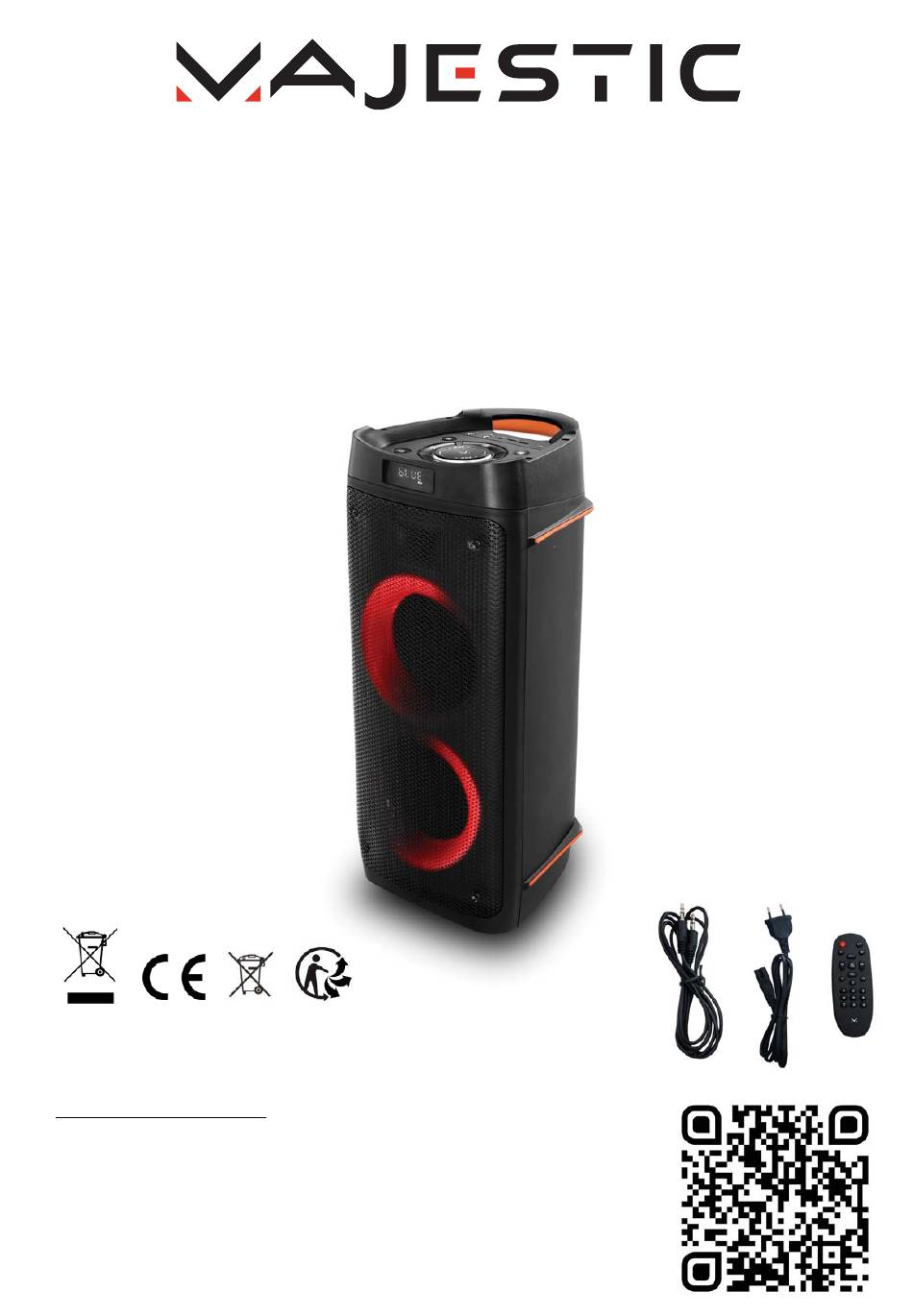

- Page 1 INSTRUCTION MANUAL TS 200BT USB/AX BLUETOOTH PARTY SPEAKER/MICROSD/USB/AUX BUILT-IN RECHARGEABLE BATTERY New MAJESTIC SpA Via Rossi Martini, 41 26013 Crema (CR) - Italy www.newmajestic.com MADE IN CHINA Per scaricare il manuale d'istruzioni inquadra qui: To download the instruction manual click here: Um die Bedienungsanleitung herunterzuladen, klicken Sie hier: Pour télécharger le manuel d'instructions, cliquez ici :...
- Page 2 Sa ety warnings Package Contents Description o keys TS 200 TV remote Battery installation and replacement Remote control operation Power supply perating Instructions Power n Stand y Source change Volume adjustment Equalizer Settings ED e ect selection Bluetooth unction Bluetooth connection T S unction T S unction acti ation (how to pair two TS 200BT USB A ) USB microSD unction...
-
Page 3: Important Notes
SA ETY ARNINGS or sa e use and ma imum per ormance please read this manual care ully e ore use. CAUTI N: T REDUCE THE RIS E ECTRIC SH C , D DISASSEMB E THE APP IANCE. THERE ARE N USER SERVICEAB E PARTS. - Page 4 Moderate the olume le el. nly contact quali ied ser ice personnel to a oid oiding the warranty. or in ormation and questions, contact the New Majestic SpA technical assistance ser ice...
- Page 5 TS 200BT USB A 1 piece 2 Power ca le 1 piece 3. mm AU ca le 1 piece Remote Control 1 piece 1. V AAA atteries 2 pieces Instruction manual 1 piece arranty card 1 piece...
- Page 6 Description of keys TS 200 01 On/Off /Standby button 02 MODE button (source change) 03 Previous track button 04 Next track button 05 LED effect selection button 06 REC button 07 MENU button 08 Play/Pause /TWS button 09 Volume knob 10 6.35mm guitar input 11 6.35mm microphone input 12 3.5mm AUX input...
- Page 7 14 USB input 15 AC 100-240V 50 / 60Hz input 16 Battery charge LED TV REMOTE 01 Standby button 02 MUTE button MUTE 03 REC button 04 MODE button (source change) 05 VOL + button 06 Next track button 07 Previous track button 08 Play / Pause / TWS button 09 Repeat button 10 EQ button...
- Page 8 The remote control works best at a distance of less than 3 meters at an angle of up to 30 degrees to the front of the unit. If the remote control does not work even when near the unit, replace the batteries. Use two 1.5V AAA type batteries.
- Page 9 Volume ad ustment Turn the knob on the device or press the VOL + and VOL- buttons on the remote control to adjust the volume. E uali er Press the EQ button on the remote control to choose the equalization among the 5 available presets: Flat, Pop, Rock, Jazz, Classic.
- Page 10 TWS function (True Wireless Stereo) If you have two “TS 200” you can activate the TWS function which allows you to pair two speakers together and obtain Stereo audio reproduction (the speakers will reproduce the same audio at the same time). When the mode is active, the functions performed on one speaker (volume adjustment, track selection, play/pause, off, etc.) will also be reproduced on the other.
- Page 11 NOTE: in AUX mode it is not possible to go to the previous / next track with the “Next track” and “Previous track” buttons but it is necessary to carry out the operation directly from the connected external device. Using the microphone/guitar Connect a microphone/guitar (not supplied) via the appropriate input, then turn it on and adjust the volume, treble,bass and any ECHO effect (available on the Microphone source) / adjust the volume (available on the Guitar source) from the Speaker settings.
- Page 12 Guide to any problems encountered Defect Possible cause Solution No sound when the product The selected source is Select the correct source. is turned on. wrong. Increase the volume level. Volume too low. Start playback. Playback paused. Distorted sound. Volume too high. Reduce the volume level.
- Page 13 Operating temperature 0 ° ~ 40 ° C Unit size: 29 (L) x 62.6 (H) x 26.9 (D) cm Weight 8.92 kg New Majestic SpA Via Rossi Martini, 41 26013 CREMA (CR) ITALY TEL: 0373 31415 Made in China www.newmajestic.com Class II,double insulation/Classe ll,doppio isolamento CAPACITA ’...
