Grandstream Networks, Inc.
DP760
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Grandstream Networks DP760

Summary of Contents for Grandstream Networks DP760

  • Page 1 Grandstream Networks, Inc. DP760 User Manual...

  • Page 2: Product Overview

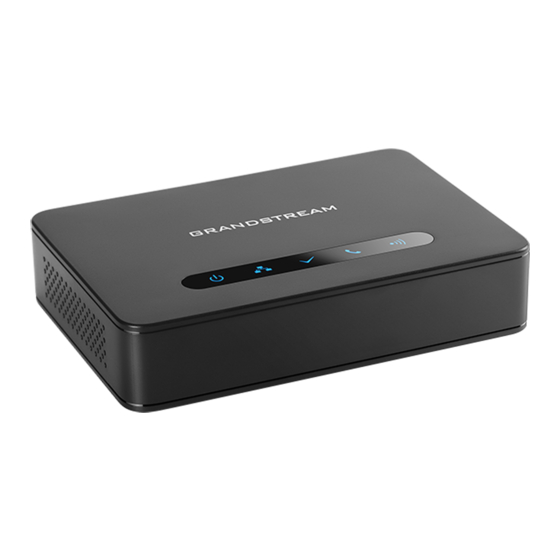

    When paired with Grand stream DP750 DECT VoIP base station and DP720 handsets, the DP760 is a powerful DECT Repeater that allows any busi ness or residential user to create a cordless VoIP solution of extended coverage.
  • Page 3 Telephony standards: DECT EN 301 406:2001 DECT GAP TBR22 EN 300 444:2001 DECT DECT EN 300 700 CAT-iq TS 102 527 Frequency bands: Air Interface 1880 – 1900 MHz (Europe) 1920 – 1930 MHz (US) 1910 – 1920 MHz (Brazil) Number of channels: 10 (Europe), 5 (US, Brazil).

  • Page 4: Getting Started

    1 GPL Statement. Table 3: Equipment Packaging Figure 1: DP760 Package Content Note Check the package before installation. If you find anything missing, contact your system administrator. Connecting DP760 To set up the DP760 DECT Repeater, please follow the steps below:...

  • Page 5: Connecting Via Ac Power

    DP760 Implementation Architecture The DP750 Base Station can support up to 5 DP760 DECT Repeater stations to extend the coverage area of the base in all directions, including through floors and ceilings using star architecture as displayed on the following diagrams.

  • Page 6: Dp760 Led Patterns

    In star mode configuration, the coverage area of the repeaters should overlap the coverage area of the base station. DP760 LED Patterns The DP760 has 5 LED lights. Please refer to following table describing the status of each LED. Figure 5: DP760 LED Patterns Status Indicates Power ON/OFF.

  • Page 7: Configuration Guide

    DP760 through a Web browser such as Google Chrome, Mozilla Firefox and Microsoft Internet Explorer. Note: If DP760 has a known IP, users can access to its Web GUI by entering the IP address in their Web browser on a device connected to same network.

  • Page 8: Accessing The Web Gui Using Dp750 Repeater Management Mode

    If using the Save button, after making all the changes, click on the Apply button on top of the page to submit. After submitting the changes in all the Web GUI pages, reboot DP760 to have the changes take effect if necessary; most of the...

  • Page 9: Changing User Level Password

    Changing User Level Password 1. Access the Web GUI of your DP760 using the admin’s username and password. (Starting HW version 1.3A the default admin username is ‘admin’ while the admin password is the random password that can be found on the sticker at the back of the unit.
  • Page 10 Changing HTTP/HTTPS Web Access Port 1. Access your DP760 DECT Repeater Web GUI by entering its IP address in your favorite browser. 2. Enter your admin’s username and password. (Starting HW version 1.3A the default admin username is ‘admin’ while the admin password is the random password that can be found on the sticker at the back of the unit.

  • Page 11: Web Configuration Definitions

    Figure 9: Web Access Port Web Configuration Definitions This section describes DP760 options available in its Web GUI. As mentioned, you can log in as an administrator or an end user. Status: Display the system info, network status, DECT status options.
  • Page 12 ● Core: Specifies Core version ● Base: Specifies Base version ● Prog: Specifies Prog version. This is the main firmware release number, which is always used for identifying the software system of the DP760 ● Locale: Specifies Locale version ● Recovery: Specifies Recovery version System Up Time Indicates system uptime since last reboot.

  • Page 13: Dect Page Definitions

    Allows to use manually configured RFPI (if non-empty) when set to Yes. Use Manually Configured RFPI If set to NO, the DP760 will search for a DP750 to connect with, regardless of manual configuration. Table 7: DECT Page Definitions Network Settings Network Settings –...

  • Page 14: Maintenance Page Definitions

    802.1X CA Uploads / deletes the 802.1X CA certificates. Certificate 802.1X Client Uploads / Deletes the 802.1X Client Certificates. Certificate Enable LLDP Activates LLDP (Link Layer Discovery Protocol). Default is Yes. Enable VLAN Enables / Disables the VLAN mode. Default is Disabled. Layer 2 QoS 802.1Q/VLAN Sets layer 2 QoS 802.1Q/VLAN tag.
  • Page 15 Checks if firmware file is with matching postfix before downloading it. Firmware File Postfix This field enables user to store different versions of firmware files in one directory on the firmware server. Obtains configuration and upgrade server’s information from DHCP server using options 66 and 43.
  • Page 16 Obtains configuration and upgrade server’s information from DHCP server using options 66 and 43. Allow DHCP Option 43 and Note: If DHCP Option 66 is enabled, the DP750 will attempt downloading Option 66 to Override Server the firmware file from the server URL provided by DHCP, even though Config Server Path is left blank. ...
  • Page 17 Obtains time zone setting (offset) from a DHCP server using DHCP Option Allow DHCP Option 2 to 2; it will override selected time zone. If set to No, DP760 DECT repeater override time zone will use selected time zone even if provided by DHCP server. Default is Yes.
  • Page 18 Displays packet capture status. When user starts to capture trace file, it Status will show “RUNNING” status, otherwise, it will show “STOPPED”. Factory Reset Force Reboot Kills active processes and forces the reboot of DP750 base station. Specifies the type of reset to perform via the Web UI reset button: - There are 3 reset type for Web UI button:...

  • Page 19: Rebooting From Remote Location

    Rebooting from Remote Location Press the Reboot button on the top right corner of the Web GUI page to reboot the DP760 remotely. The Web browser will then display a reboot message to confirm the reboot by pressing OK or avoid by clicking on Cancel button. Wait for about 1 minute to log in again.

  • Page 20: Dp760 Dect Repeater Association

    Note If all the LEDs remain on, it indicates that the DP760 Repeater has successfully associated with a DP750 Base and ready for use. You may need to dissociate it before continuing (Please refer to [DP760 DECT REPEATER DISSOCIATION]).

  • Page 21: Manual Association

    To manually associate your DP760 DECT Repeater to your DP750 Base Station: 1. Access the Web GUI of your DP760 using the admin’s username and password. (Starting HW version 1.3A the default admin username is ‘admin’ while the admin password is the random password that can be found on the sticker at the back of the unit.
  • Page 22 Note Make sure that Repeater Mode is enabled on your DP750 Base Station. Use DP750 Repeater Management to Associate DP760 The repeater management mode on the DP750 allows to as sociate, dissociate and manage discovered and paired re peater stations from DP750 web GUI.

  • Page 23: Dp760 Dect Repeater Dissociation

    Note The DP760 Repeater stations associated with DP750 Base Station are displayed and available under Status �� DECT Repeater Status �� Paired Devices with their status, signal strength, number of active calls and also the ability to discon nect them from the paired base station.

  • Page 24: Using Dp760 Web Gui

    Figure 15: DECT Repeater Status on DP750 Using Page Button Long press on page button on the back panel of DP760 for 7 seconds, it will remove the association values of the previous base station. Using Repeater Management Mode on DP750 To disconnect your DP760 DECT Repeater using the repeater management mode on DP750: 1.

  • Page 25: Upgrading And Provisioning

    Please follow below steps in order to upgrade the firmware version of your DP760 repeater station: 1. Access the Web GUI of your DP760 using the admin’s user name and password. (Starting HW version 1.3A the default admin username is ‘admin’ while the admin password is the random password that can be found on the sticker at the back of the unit.
  • Page 26 Figure 17: Firmware Upgrade Page Upgrading via Local FTP/HTTP Servers For users that would like to use remote upgrading without a local FTP/HTTP server, Grandstream offers a NAT-friendly HTTP server. This enables users to download the latest software upgrades for their devices via this server. Please refer to the webpage: http://www.grandstream.com/support/firmware Alternatively, users can download a free FTP or HTTP server and conduct a local firmware upgrade.

  • Page 27: Resetting Dp760 Repeater Station

    Cancel to annul the reset. CHANGE LOG This section documents significant changes from previous versions of administration guide for DP760. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here.
  • Page 28 No major changes. Firmware Version 1.0.4.2 No major changes. Firmware Version 1.0.3.40 Added support for automatic upgrade and provisioning be triggered at a random time in every certain day. [Automatic Upgrade] Firmware Version 1.0.3.34 This is the initial version for DP760.
