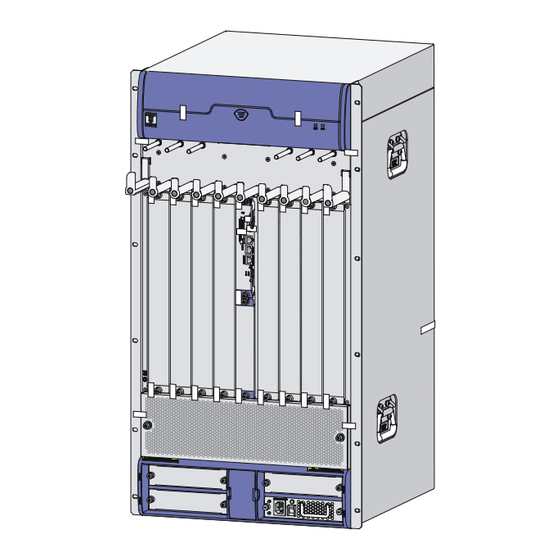

HP 6616 Installation Manual

HP 6616 Router FIPS Enclosure (JG576A) Installation Guide-6PW102
HP 6616 routers meet the requirement of FIPS security level 2.
Installation tools (user supplied)
ESD-preventive
Needle-nose pliers
wrist strap
FIPS enclosure assembly
Rear opacity shield Mounting plates
Installation preparation
Wear an ESD-preventive wrist strap, and make sure that the wrist strap has
!
a good skin contact and is well grounded.
The installation procedures must be performed by qualified personnel.
Before installation, you should read the Compliance and Safety Manual for
router compatibility information.
Philips Alcohol-based
screwdriver cleaning pad
M3 countersunk-
head screw Front opacity shield
Installing a FIPS enclosure
If the router has been mounted to a rack, remove the router from the rack
!
first.
If an air filter has been attached to the router, remove it from the chassis.
Only use the screws and hex bolts that are supplied in the opacity shield kit
to secure the opacity shield.
Attach the mounting plates to the chassis with M3 countersunk-head
screws.
Before installing mounting plates, remove the fastening screws from where
mounting plates are to be installed on the chassis.
Attach the mounting plates to the chassis with M3 countersunk-head
screws.
BOM:3105A022 Part number:5998-3567R
