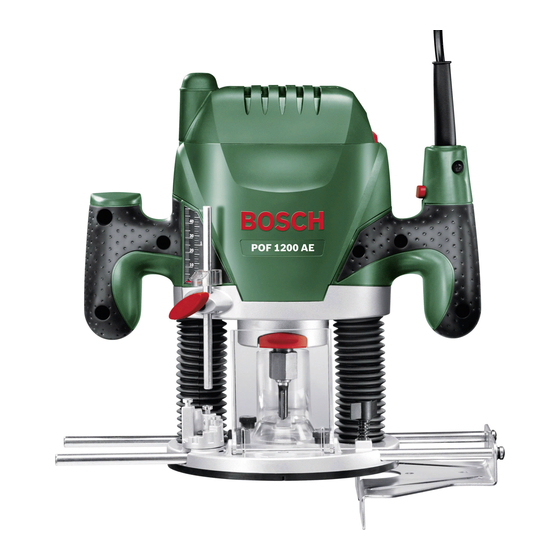

Bosch POF 1200 AE Instruction Manual
Bosch POF 1200 AE Instruction Manual

Bosch POF 1200 AE Instruction Manual

Advertisement

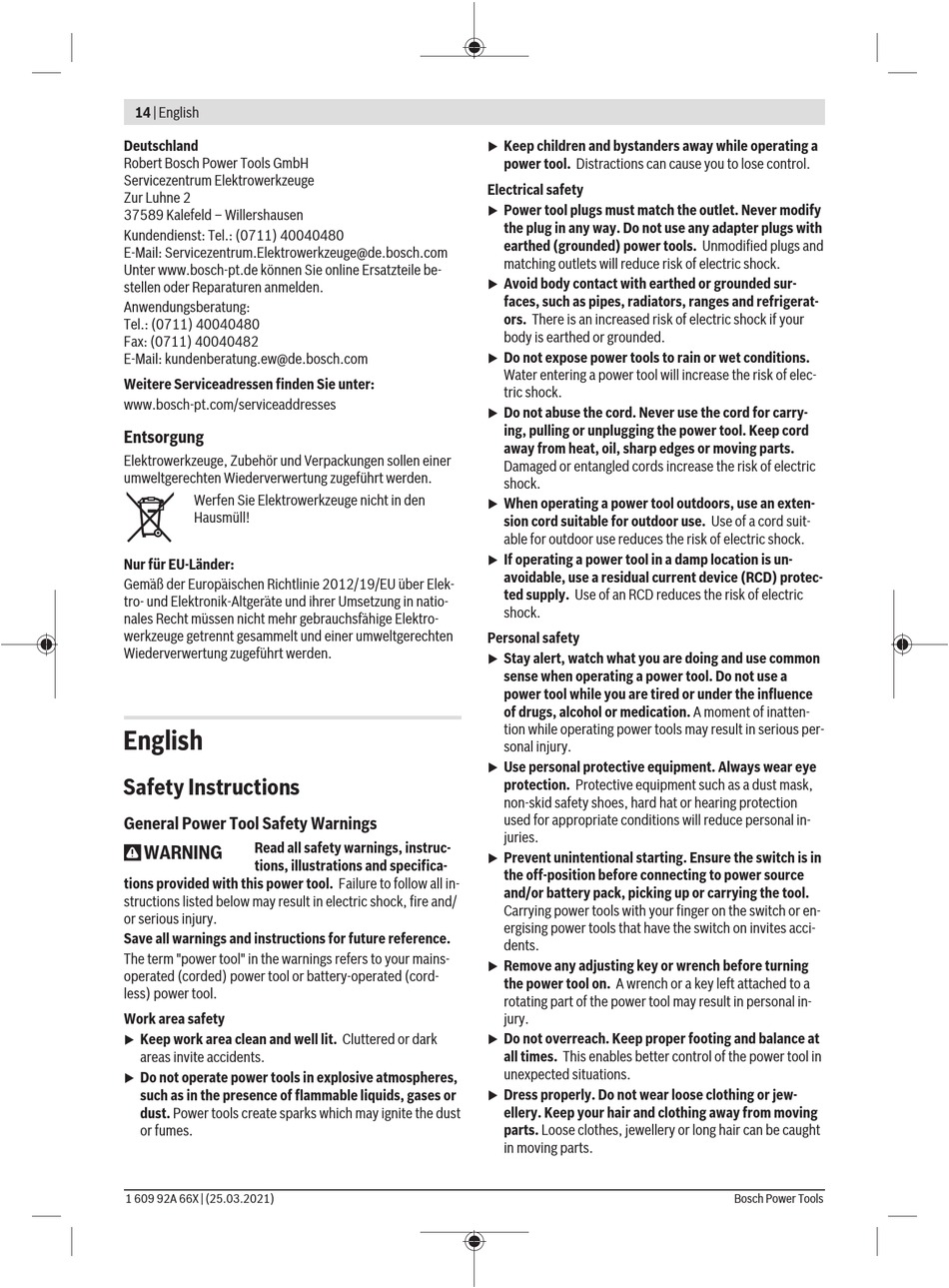

14 | English
Deutschland
Robert Bosch Power Tools GmbH
Servicezentrum Elektrowerkzeuge
Zur Luhne 2
37589 Kalefeld – Willershausen
Kundendienst: Tel.: (0711) 40040480
E-Mail: Servicezentrum.Elektrowerkzeuge@de.bosch.com
Unter www.bosch-pt.de können Sie online Ersatzteile be-
stellen oder Reparaturen anmelden.
Anwendungsberatung:
Tel.: (0711) 40040480
Fax: (0711) 40040482
E-Mail: kundenberatung.ew@de.bosch.com
Weitere Serviceadressen finden Sie unter:
www.bosch-pt.com/serviceaddresses
Entsorgung
Elektrowerkzeuge, Zubehör und Verpackungen sollen einer
umweltgerechten Wiederverwertung zugeführt werden.
Werfen Sie Elektrowerkzeuge nicht in den
Hausmüll!
Nur für EU-Länder:
Gemä ß der Europä i schen Richtlinie 2012/19/EU ü b er Elek-
tro- und Elektronik-Altgerä t e und ihrer Umsetzung in natio-
nales Recht mü s sen nicht mehr gebrauchsfä h ige Elektro-
werkzeuge getrennt gesammelt und einer umweltgerechten
Wiederverwertung zugefü h rt werden.
English
Safety Instructions
General Power Tool Safety Warnings
Read all safety warnings, instruc-
WARNING
tions, illustrations and specifica-
tions provided with this power tool. Failure to follow all in-
structions listed below may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cord-
less) power tool.
Work area safety
Keep work area clean and well lit. Cluttered or dark
u
areas invite accidents.
Do not operate power tools in explosive atmospheres,
u
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
1 609 92A 66X | (25.03.2021)
Keep children and bystanders away while operating a
u
power tool. Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify
u
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded sur-
u
faces, such as pipes, radiators, ranges and refrigerat-
ors. There is an increased risk of electric shock if your
body is earthed or grounded.
Do not expose power tools to rain or wet conditions.
u
Water entering a power tool will increase the risk of elec-
tric shock.
Do not abuse the cord. Never use the cord for carry-
u
ing, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use an exten-
u
sion cord suitable for outdoor use. Use of a cord suit-
able for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is un-
u
avoidable, use a residual current device (RCD) protec-
ted supply. Use of an RCD reduces the risk of electric
shock.
Personal safety
Stay alert, watch what you are doing and use common
u
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious per-
sonal injury.
Use personal protective equipment. Always wear eye
u
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce personal in-
juries.
Prevent unintentional starting. Ensure the switch is in
u
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or en-
ergising power tools that have the switch on invites acci-
dents.
Remove any adjusting key or wrench before turning
u
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal in-
jury.
Do not overreach. Keep proper footing and balance at
u
all times. This enables better control of the power tool in
unexpected situations.
Dress properly. Do not wear loose clothing or jew-
u
ellery. Keep your hair and clothing away from moving
parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
Bosch Power Tools

Advertisement

loading

Summary of Contents for Bosch POF 1200 AE

  • Page 1 (grounded) power tools. Unmodified plugs and E-Mail: Servicezentrum.Elektrowerkzeuge@de.bosch.com matching outlets will reduce risk of electric shock. Unter www.bosch-pt.de können Sie online Ersatzteile be- Avoid body contact with earthed or grounded sur- stellen oder Reparaturen anmelden. faces, such as pipes, radiators, ranges and refrigerat- Anwendungsberatung: ors.
  • Page 2: Product Description And Specifications

    Cutting a "live" wire may make exposed metal parts of the structions may result in electric shock, fire power tool "live" and could give the operator an electric and/or serious injury. shock. Bosch Power Tools 1 609 92A 66X | (25.03.2021)
  • Page 3: Intended Use

    You can find the complete selection of (17) Routing depth fine-adjustment scale accessories in our accessories range. (POF 1400 ACE) Technical data Router POF 1200 AE POF 1400 ACE Article number 3 603 B6A 0.1 3 603 B6C 7.1 Rated power input...
  • Page 4: Noise/Vibration Information

    (accessory). minium. The power tool can be directly connected to the plug socket Original router bits from the extensive range of Bosch ac- of a Bosch all-purpose dust extractor with remote starter. cessories are available from your specialist dealer.
  • Page 5: Starting Operation

    [mm] position audibly clicks into place. Hardwood (beech) 4–10 5–6 – POF 1200 AE: Turn the adjusting screws for the step 12–20 3–4 buffer (24) until it is halfway in/out. 22–40 1–2 – Loosen the wing bolt on the depth stop (11) so that the depth stop (13) moves freely.
  • Page 6: Working Advice

    English | 19 POF 1200 AE: The spacing of the steps can be altered by push the clamping lever for routing depth stop (16) up to turning the adjusting screws (24). fully lock it. Carry out the routing process with a uniform feed.
  • Page 7: Maintenance And Service

    In order to avoid safety hazards, if the power supply cord Then loosen the wing bolt (38) and use the knob (39) to needs to be replaced, this must be done by Bosch or by an fine-adjust the length. One revolution corresponds to an ad- after-sales service centre that is authorised to repair Bosch justment range of 2.0 mm.
