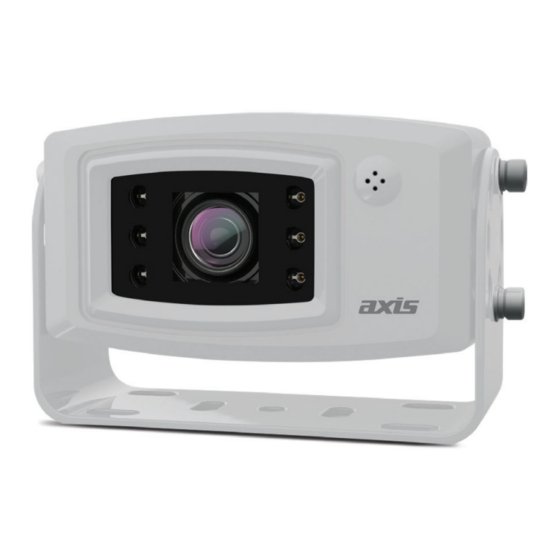

INSTRUCTION MANUAL ECC80W Series 2 HEAVY DUTY HIGH RESOLUTION CAMERA SPECIFICATIONS - Image Device: 1/3” CMOS - Diagonal Viewing Angle: 120° - Signal System: - Effective Pixels: 1.23m - Resolution: 700 TV Lines - Sync System: Internal - Orientation: Mirror Image - Night Vision: Yes, 5 IR LEDs - Illumination:...
Page 2
GENERAL: • Powered by DC 12 volts, negative ground • Universal heavy duty applications • A high quality CCD image sensor is utilized • Automatically adjusts picture quality with changes in light • Robust diecast aluminium waterproof housing • Operates over a wide temperature range 90cm Camera Tail - Terminates to 4-Pin(M) 20m Extension Cable - 4-Pin(F) to 4-Pin(M) 40cm Adapter Cable (For RCA Input Monitors)
Page 3
Monitor To adjust the camera mounting angle This system is a reversing guide only and does not replace careful driving. Design and specifications are subject to change without notice.
