INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP IT FOR REFERENCE.
INSTRUCTIONS
19 LITER (5 GALLON) PAIL SIZE

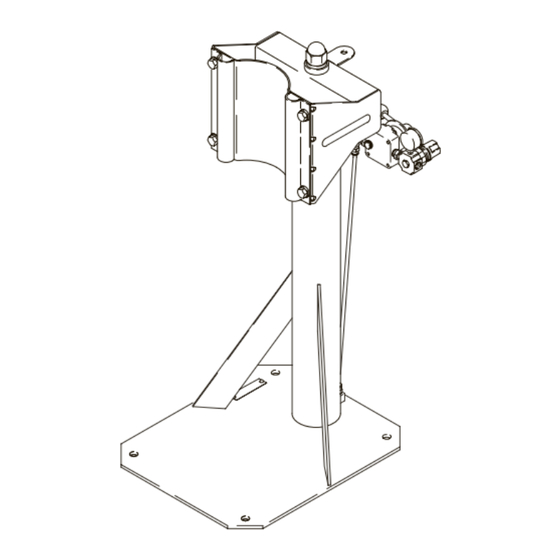

Air-Powered Ram
10 bar, 1.0 MPa (150 psi) Maximum Air Inlet Pressure
Part No. 206-450, Series K
For use with high pressure extrusion pumps.
Order wiper plate separately.
Part No. 222-781, Series A
For use with Check-Mate
Order wiper plate separately.
Part No. 237-636, Series A
For use with short versions of Monark and
President Check-Mate
Order wiper plate separately.
Part No. 237-561, Series A
For use with Bulldog and Senator Check-Mate
Pumps and all Check-Mate
Order wiper plate separately.
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
200 and 450 Pumps.
200 and 450 Pumps.
450
800 Pumps.
. . . . . . . . . . . . . . . . .
COPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.
Model 206-450
Model 237-561
2
3
4
7
8
10
16
19
20
20
306-838
Rev. U
Supersedes N
and PCN P
Includes Rev. R - T
