Summary of Contents for Ryobi EXPAND-IT AHF05

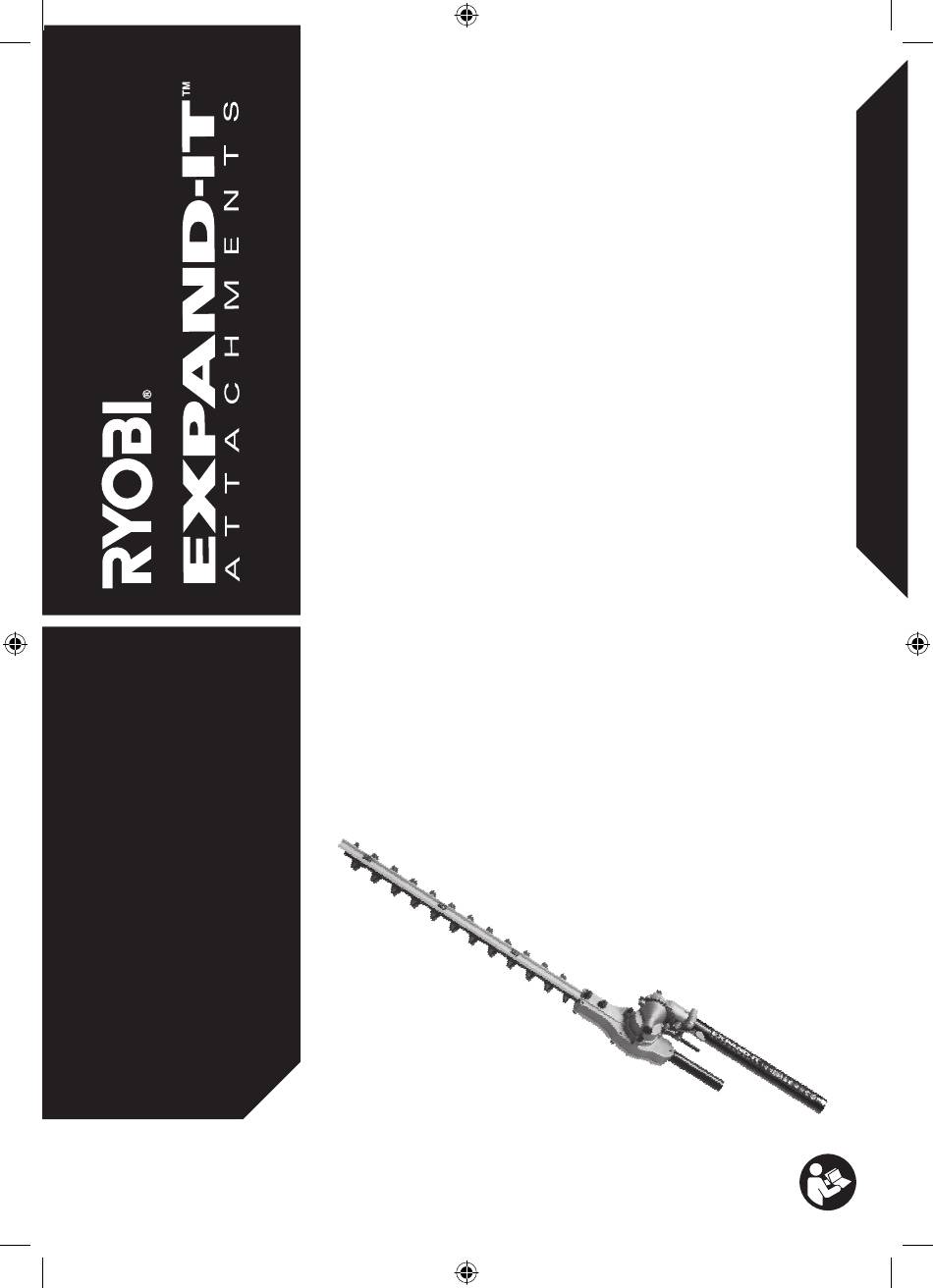

- Page 1 ORIGINAL INSTRUCTIONS Hedge Trimmer Attachment AHF05...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
-
Page 3: Intended Use
Allow the engine to cool; empty the fuel tank and oil This hedge trimmer attachment is approved for use with tank (if applicable), and secure the unit from moving all Ryobi petrol-driven power head of 25.4 cc or less before transporting in a vehicle. with... -
Page 4: Personal Safety
When operating a power tool outdoors, use an Maintain power tools. Check for misalignment or ■ ■ extension cord suitable for outdoor use. Use of a binding of moving parts, breakage of parts and any cord suitable for outdoor use reduces the risk of electric other condition that may affect the power tool’s shock. -
Page 5: Transportation And Storage
■ Inspect the product before each use. Check for loose ● checking, maintaining, or working on the product. fasteners. Make sure all guards and handles are ■ Do not force the product through heavy shrubbery. This properly and securely attached. Replace any damaged can cause the blades to bind and slow down. -
Page 6: Maintenance
■ Do not store outdoors. ■ Switch off, disconnect the product from the power supply (if applicable), and make sure all moving parts ■ When transporting the product in a vehicle, secure it have come to a complete stop before conducting any against movement or falling to prevent injury to persons maintenance or cleaning work. -
Page 7: Symbols In This Manual
■ If you experience any of the symptoms of this condition, SYMBOLS IN THIS MANUAL immediately discontinue use and see your doctor. WARNING Parts or accessories sold separately Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure to take regular breaks. - Page 11 p.10 p.12 p.14 p.15...
- Page 12 ≤60˚ ≥15m (50’)
- Page 13 ≤90º...
- Page 14 180º...
- Page 15 ≤90º...
-
Page 18: Product Specifications
PRODUCT SPECIFICATIONS Hedge trimmer attachment Model AHF05 Blade type Dual reciprocating Teeth pitch 35 mm Blade length 440 mm Usable cutting length 385 mm Cutting capacity 28 mm Weight (hedge trimmer 2.0 kg attachment only) For assembling with petrol-driven power head (below values measured with RBC30SESA power head) No load speed 4 670/min... - Page 20 Imported by: Techtronic Industries (Australia) Pty. Ltd. 31 Gilby Road, Mount Waverley, VIC 3149, Australia RYOBI is a trademark of Ryobi Limited, Techtronic Industries New Zealand Ltd. and is used under license. 2 Landing Drive, Mangere, HOMELITE is a trademark of Techtronic Outdoor Products Technology Auckland, New Zealand 2022 Limited.
