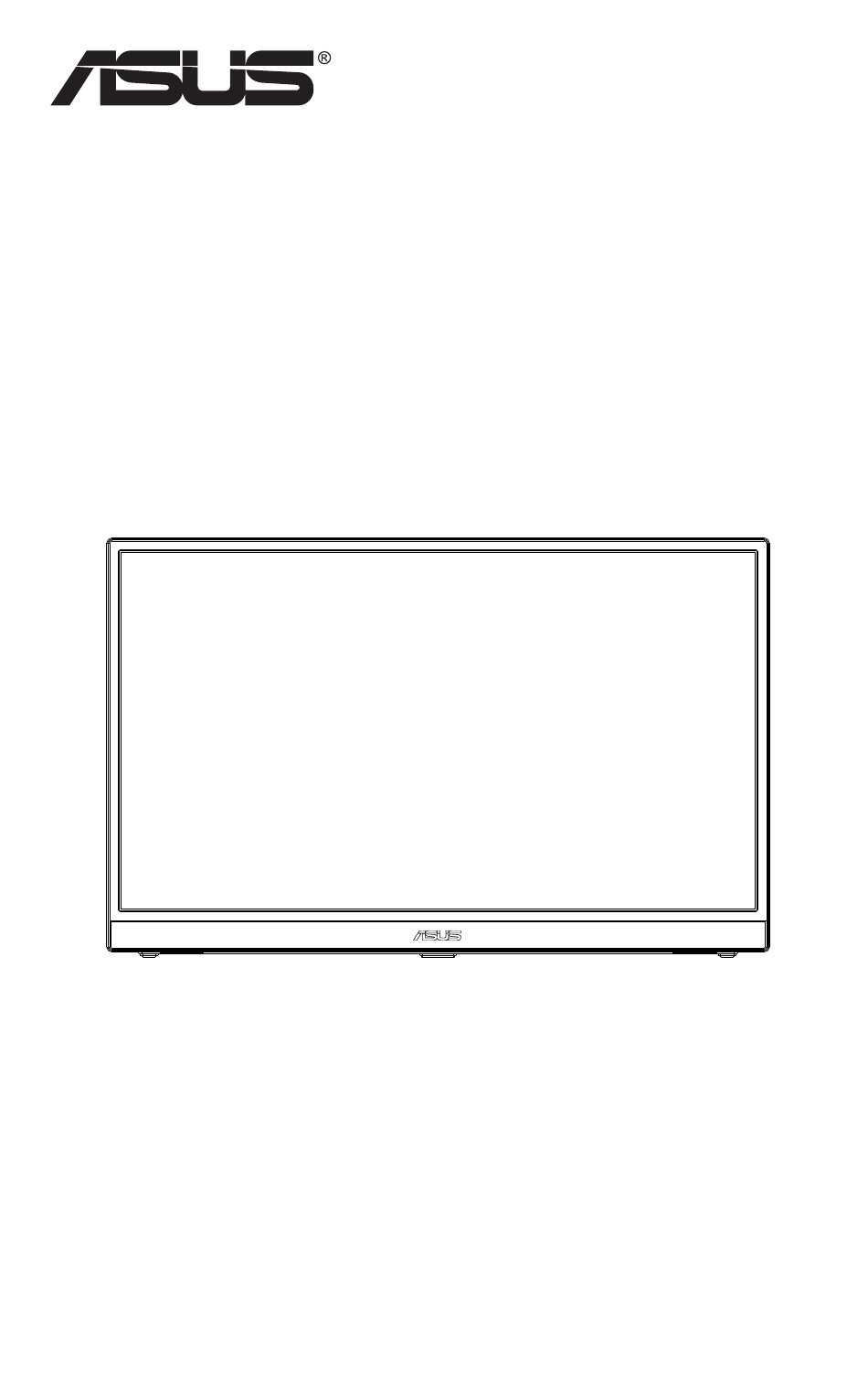

- Page 1 MB17AHG Portable USB Monitor User Guide...
-
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. - Page 4 Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards published under Directives of Official Journal of the European Union.
-
Page 5: Safety Information
0.01% by weight in homogenous materials for cadmium, except of exemptions listed in Schedule 2 of the Rule. ASUS CONTACT INFORMATION ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria) Address 1F, No.15, Address 48720 Kato Rd, Fremont, Address Harkortstr. -
Page 6: Care & Cleaning
Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. -
Page 7: Takeback Services
Protect your eyes with ASUS EYE CARE Monitors The latest ASUS monitors feature exclusive Blue Light Filter and Flicker free technologies to keep your eyes healthy in today’s digital world. Refer to https://www.asus.com/Microsite/display/eye_care_technology/ Takeback services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. -
Page 8: Welcome
Welcome! Thank you for purchasing the ASUS Portable USB Monitor! The latest ASUS Portable USB Monitor provides great portability and productivity to your daily life, enhancing both of your viewing and working experience. Package contents Check your package for the following items:... -
Page 9: Monitor Introduction
Monitor introduction 1.3.1 Front View and Charging Instructions USB Type-C port • Used to connect to power adapter or USB Type-C host devices that support “DP Alt Mode”. Earphone jack Port: • Used to connect to earphone Power key/5 way key •... - Page 10 If your device become unusual hot, disconnect the USB cable from your device and send the device including the power adapter and USB cable to an ASUS qualified service personnel ASUS USB Type-C Monitor MB17AHG...
-
Page 11: Quickfit Function
1.3.2 QuickFit Function The QuickFit function contains two patterns: (1) Grid (2) Photo size. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment grid 1 will be rotated automatically if auto rotation is enabled. -
Page 12: Adjusting The Monitor
0 to 35 degrees for the most comfortable visual experiences. To connect with a tripod stand, you can fold the stand closely and utilize the tripod hole on the stand to connect with. 90° ASUS USB Type-C Monitor MB17AHG... -
Page 13: Connect The Usb Monitor With System
Connect the USB monitor with system PC Type C power output too low • When connecting with system by HDMI port, please connect inbox adapter to power up the monitor. • When the input power is detected not sufficient, the “Brightness” will be limited in certain value, please plug in inbox adapter, the “Brightness”... -
Page 14: Osd (On-Screen Display) Menu
Central button to enter the slide bar, and then use the Up or Down keys (depending on the indicators in the menu) to make changes. Move the Left key to return to the previous menu. ASUS USB Type-C Monitor MB17AHG... -
Page 15: Osd Function Introduction
3.1.2 OSD Function Introduction Splendid This function contains eight sub-functions that you can select for your preference. ASUS MB17A Splendid Scenery Mode Type-c 1 1920 x 1080 @ 144Hz Standard Mode sRGB Mode Scenery Mode Theater Mode Game Mode Night View Mode... - Page 16 (2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). ASUS USB Type-C Monitor MB17AHG...
- Page 17 Color Select the image color you like from this function. ASUS MB17A Color Scenery Mode Type-c 1 1920 x 1080 @ 144Hz Brightness Contrast Saturation Color Temp. Skin Tone • Brightness: The adjusting range is from 0 to 100. •...
- Page 18 0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “Equivalent”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. •...
- Page 19 Input Select Select the input source from HDMI, Type-C 1,Type-C 2 input signal. ASUS MB17A Input Select Scenery Mode Type-c 1 1920 x 1080 @ 144Hz HDMI Type-C 1 Type-C 2 Chapter 3: General Instruction...
- Page 20 Particularly, Chrosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. To active GamePlus: • Press GamePlus Button to enter the GamePlus main menu. ASUS USB Type-C Monitor MB17AHG...
- Page 21 • Activate Crosshair, Timer, FPS Counter or Display Alignment function. • Move the button up/down to select and press to confirm the function needed. Press to go off, and exit. • Crosshair/Timer/FPS Counter is movable by moving 5-way key. GamePlus main menu GamePlus-Crosshair GamePlus-Timer GamePlus GamePlus...
- Page 22 “Brightness”, “Contrast”, “Auto Rotation”, “Input Select”, “Volume” and set as shortcut key. MyFavorite Load/Save all settings on the monitor. ASUS MB17A MyFavorite Scenery Mode Type-c 1 1920 x 1080 @ 144Hz Setting 1 Setting 2 Setting 3 Setting 4 ASUS USB Type-C Monitor MB17AHG...
-
Page 23: Displaywidget Center
DisplayWidget Center Please go to MB17AHG official website, find “Support” tab and choose “Driver &Utility” to download latest DisplayWidget center. Please always connect your MB17AHG to input device FIRST, and then turn on DisplayWidget center. We also suggest you to create a shortcut of DisplayWidget center on your computer desktop for easier activation. -
Page 24: Specifications
PC Recycle , J-MOSS, KCC, Sdoc, e-Standby, Vietnam Energy, CEC, RoHS, WHQL Windows 10/11, TUV Flicker free, TUV Low Blue Light, Freesync Premium Voltage Rating 100-240V, 50/60Hz *Specifications are subject to change without notice. ASUS USB Type-C Monitor MB17AHG 3-11... -
Page 25: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the USB Type-C cable is properly connected to the monitor and the computer. The power LED lights amber •... - Page 26 *1: White color background will consume higher power, so it’s better to use white color background to test the power limit from source USB Type-C device. *2: If MB17AHG does not re-start when adjusting to value 100, that means source USB Type-C device has sufficient power supply. ASUS USB Type-C Monitor MB17AHG...
-
Page 27: Supported Timing List
Supported Timing List PC Supported Primary Timing Resolution H(KHz) V(Hz) Pixel(MHz) 640x480, 60Hz 31.469 59.94 25.175 640x480, 67Hz 66.667 30.24 640x480,72Hz 37.861 72.809 31.5 640x480,75Hz 37.5 31.5 720x400, 70Hz 31.469 70.087 28.322 800x600,60Hz 37.879 60.317 800x600,72Hz 48.077 72.188, 800x600,75Hz 46.875 49.5 832x624, 75Hz 66.667...
