Multimedia Projector
PLC-XU4000
MODEL
Owner's Manual
Network Supported
 Wired LAN
Refer to the Owner's Manual below for
details about network function.
 Network Set-up and Operation

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PLC-XU4000

Summary of Contents for Sanyo PLC-XU4000

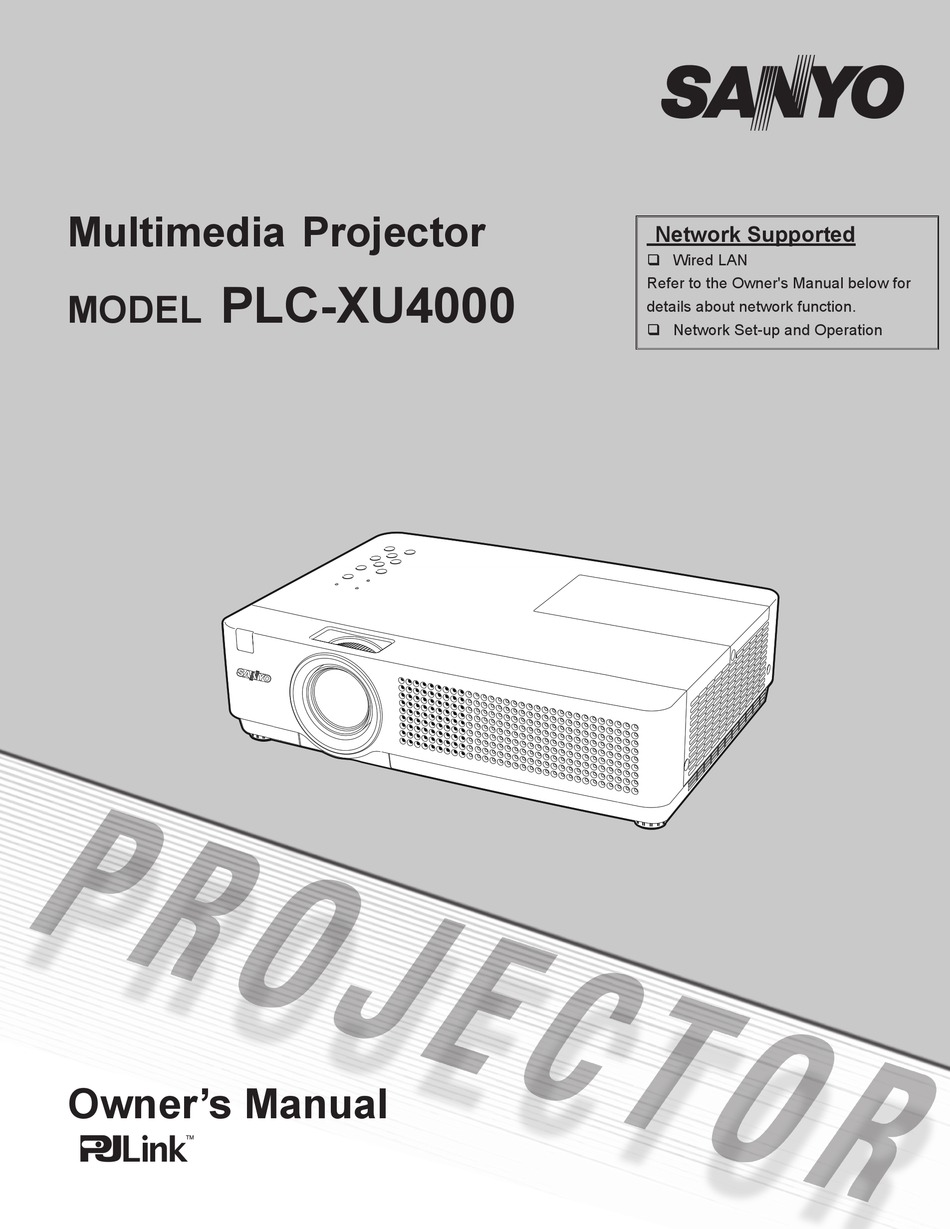

  • Page 1 Multimedia Projector PLC-XU4000 MODEL Owner’s Manual Network Supported  Wired LAN Refer to the Owner's Manual below for details about network function.  Network Set-up and Operation...

  • Page 2: Features And Design

    This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.  Compact Design This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use.

  • Page 3: Table Of Contents

    Features and Design . . . . . . . . . . . . . . . . . . .2 Table of Contents .

  • Page 4: To The Owner

    Before installing and operating this projector, read this manual thoroughly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

  • Page 5: Safety Instructions

    All the safety and operating instructions should be read before the product is operated. Read all of the instructions mentioned here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners.

  • Page 6: Air Circulation

    Safety Instructions Air Circulation Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

  • Page 7: Compliance

    Model Number : PLC-XU4000 Trade Name : Sanyo Responsible party : SANYO NORTH AMERICA CORPORATION Address : 21605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-7322 The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

  • Page 8: Part Names And Functions

    Part Names and Functions Front ⑨ ① ② ③ ④ Back ⑧ ⑨ ⑦ ⑬ ⑥ Bottom ⑭ ⑮ ① Infrared Remote Receiver ② Zoom Ring ③ Focus Ring ④ Projection Lens CAUTION Do not cover the light beam in front of the lens. High temperature from light beam may damage the lens.

  • Page 9: Rear Terminal

    ④ ③ ⑩ ⑧ ⑨ ① LAN Connection Terminal Connect the LAN cable (refer to the owner’s manual of "Network Set-up and Operation"). ② COMPUTER IN 1 / COMPONENT IN Connect output signal from a computer, RGB scart 21-pin video output or component video output to this terminal(pp.14,16).

  • Page 10: Top Control

    Part Names and Functions ① SELECT button – Execute the selected item (p.21). – Expand or compress the image in the Digital zoom mode (p.36). (VOLUME – /+) buttons ② POINT ▲▼◄► – Select an item or adjust the value in the On-Screen Menu (p.21).

  • Page 11: Remote Control

    ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ Remote Control ① ON/STAND-By button Turn the projector on or off. (pp.18-20) ② AUTO SET button Execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu. (pp.23, 47) ③...

  • Page 12: Remote Control Battery Installation

    Part Names and Functions Remote Control Battery Installation Open the battery compartment lid. To ensure safe operation, please observe the following precautions :  Use two (2) AAA or LR03 type alkaline batteries.  Always replace batteries in sets.  Do not use a new battery with a used battery. ...

  • Page 13: Installation

    For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. Note:  • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image. • All measurements are approximate and may vary from the actual sizes. 17.4' (5.3 m) 11.6' (3.5 m) 4.6' (1.4 m) Screen Size 40"...

  • Page 14: Connecting To A Computer

    Installation Cables used for connection • VGA Cables (Mini D-sub 15 pin) * • Audio Cables (*One cable is supplied; other cables are not supplied with the projector.) External Audio Equipment Audio Input This terminal is switchable. Set up the terminal as either Audio cable Computer input or (stereo) Monitor output.

  • Page 15: Connecting To Video Equipment

    Connecting to Video Equipment Cables used for connection • Video and Audio Cable (RCA x 3) • S-VIDEO Cable • Audio Cable (Cables are not supplied with the projector. ) External Audio Equipment Audio Input Audio cable (stereo) AUDIO OUT (stereo)  Note: When the AUDIO OUT is plugged-in, the projector's built- in speaker is not available.

  • Page 16: Connecting To Component Video Equipment

    Installation Connecting to Component Video Equipment Cables used for connection • Audio Cables • Scart-VGA Cable • VGA Cable • Component Cable • Component-VGA Cable (Cables are not supplied with this projector.) External Audio Equipment Audio Input Audio cable (stereo) AUDIO OUT (stereo)  Note: • When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.

  • Page 17: Connecting The Ac Power Cord

    Connecting the AC Power Cord This projector uses nominal input voltages of 100-240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 18: Basic Operation

    Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red. Open the lens cap (see pages 8, 62). Press the ON/STAND-BY button on the top control or on the remote control.
  • Page 19 Enter a PIN code Use the Point buttons to enter a number. Press the ▲▼ Point button to fix the number and move the red frame ► pointer to the next box. The number changes to “ fixed an incorrect number, use the Point the pointer to the number you want to correct, and then enter the correct number.

  • Page 20: Turning Off The Projector

    Basic Operation Press the ON/STAND-BY button on the top control or on the remote control, and Power off? appears on the screen. Press the ON/STAND-BY button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running.

  • Page 21: How To Operate The On-Screen Menu

    How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.

  • Page 22: Menu Bar

    Basic Operation For detailed functions of each menu, see “Menu Tree” on pages 68-69. Main Menu            Input Used to select an input source from Computer 1, Computer 2, Video or S-video. ...

  • Page 23: Zoom And Focus Adjustment

    Zoom and Focus Adjustment Rotate the Zoom Ring to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search, Auto PC adj.

  • Page 24: Sound Adjustment

    Basic Operation Direct Operation Volume Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Mute Press the MUTE button on the remote control to select On to temporarily turn off the sound.

  • Page 25: Remote Control Operation

    Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER 1/2, VIDEO, S-VIDEO and COMPONENT buttons Press the COMPUTER 1/2, VIDEO, S-VIDEO and COMPONENT buttons on the remote control to select the input source.
  • Page 26 Basic Operation NO SHOw button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as User in the Logo selection (p.

  • Page 27: Computer Input

    Input Source Selection (Computer 1: RGB ) Direct Operation Choose Computer 1(RGB) or Computer 1(Scart) by pressing the INPUT button on the top control or press the COMPUTER 1 button on the remote control. Before using INPUT button, correct input source should be selected through Menu operation as described below.

  • Page 28: Input Source Selection (Computer 2: Rgb)

    Computer Input Input Source Selection (Computer 2: RGB) Direct Operation Choose Computer 2(RGB) by pressing the INPUT button on the top control or press the COMPUTER 2 button on the remote control. Remote Control COMPUTER 2 button Computer 2(RGB) Menu Operation Press the MENU button to display the On-Screen Menu.

  • Page 29: Computer System Selection

    Computer System Selection This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on page 71.) One of the following messages may appear when: The projector cannot recognize the connected...

  • Page 30: Auto Pc Adjustment

    Computer Input Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical to conform to your computer. Menu Operation Auto PC adj . Press the MENU button to display the On-Screen Menu. Use the Point ▲▼...

  • Page 31: Manual Pc Adjustment

    Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
  • Page 32 Computer Input Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures. Mode free To clear the stored data, select Mode free and then press the Point ►...

  • Page 33: Image Mode Selection

    Direct Operation Select the desired image mode among Dynamic, Standard, Real, Cinema, Blackboard(Green), Colorboard, Image 1, Image 2, Image 3 and Image 4 by pressing the IMAGE button on the remote control. Menu Operation Press the MENU button to display the On-Screen Menu.

  • Page 34: Image Adjustment

    Computer Input Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ adjust and then press the Point button. Use the Point buttons to select the desired item ▲▼ and then press the SELECT button to display the adjustment dialog box.

  • Page 35: Screen Size Adjustment

    Store To store the adjusted data, select Store and press the Point ► button or the SELECT button. Use the Point to select one from Image 1 to 4 and press the SELECT button. A confirmation box appears and then select yes. Stored data can be called up by selecting an Image (1–4) in the Image Mode Selection on page 33.
  • Page 36 Computer Input Custom adj . Adjust the screen scale and position manually with this function. Press the Point ► button at Custom and the Custom is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust. Scale H/V ... Adjust the Horizontal/Vertical screen scale.
  • Page 37 Keystone This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Keystone To correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.23).

  • Page 38: Video Input

    Input Source Selection (Video, S-video) Direct Operation Choose Video or S-video by pressing the INPUT button on the top control, or the VIDEO button or the S-VIDEO button on the remote control. Before using INPUT button, correct input source should be selected through menu operation as described below.

  • Page 39: Input Source Selection (Component, Rgb Scart)

    Input Source Selection (Component, RGB Scart) Direct Operation Choose Computer 1(Component) or Computer 1(Scart) by pressing the INPUT button on the top control or press the COMPUTER 1 or the COMPONENT button on the remote control. Before using INPUT button, correct input source should be selected through Menu operation as described below.

  • Page 40: Video System Selection

    Video Input Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ then press the Point or the SELECT button. ► Use the Point buttons to select Video, S-video ▲▼ or Computer 1(Component) and then press the SELECT button.

  • Page 41: Image Mode Selection

    Direct Operation Select the desired image mode among Dynamic, Standard, Real, Cinema, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3 and Image 4 by pressing the IMAGE button on the remote control. Menu Operation Press the MENU button to display the On-Screen Menu.

  • Page 42: Image Adjustment

    Video Input Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ adjust and then press the Point button. Use the Point buttons to select the desired item ▲▼ and then press the SELECT button to display the adjustment dialog box.
  • Page 43 Sharpness Press the Point button to decrease the sharpness of the ◄ image; press the Point button to increase the sharpness ► of the image (from 0 to 15). Gamma Use the Point buttons to adjust the gamma value to ◄►...

  • Page 44: Screen Size Adjustment

    Video Input This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ then press the Point ► or the SELECT button. Use the Point buttons select the desired item and ▲▼...
  • Page 45 Keystone This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Keystone To correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.23).

  • Page 46: Setting

    This projector has a Setting menu that allows you to set up the other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ Setting and press the Point to access the submenu items. Use the Point buttons to select the desired item ▲▼...
  • Page 47 Auto setup This function enables Input search, Auto Keystone correction and Auto PC adjustment by pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. Settings for those functions can be altered as follows: Input search This function detects the input signal automatically.
  • Page 48 Setting Background Select the background screen when no input signal is detected. Press the Point ▲▼ each option. Blue . . . Project a blue background User . . . Project an image captured in the Logo setting. Black . . Project a black background Display This function decides whether to display On-Screen Displays.
  • Page 49 Capture This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations. Select Capture and press the SELECT button. A confirmation box appears and select yes to capture the projected image. After capturing the projected image, go to the Logo select function and set it to User.
  • Page 50 Setting Enter a Logo PIN code Use the Point buttons to enter a number. Press the ▲▼ Point button to fix the number and move the red frame ► pointer to the next box. The number changes to “ you fixed an incorrect number, use the Point move the pointer to the number you want to correct, and then enter the correct number.
  • Page 51 Terminal The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 9) Select Computer 2 or Monitor Out with the Point buttons. ▲▼ Computer 2 . . computer input Monitor Out .
  • Page 52 Setting Standby mode This function is available when operating the projector via network. Eco ... Select Eco when you do not use the projector via network. The projector’s network function will stop when turning off the projector. Network ... Supply the power to the network function even after turning off the projector.
  • Page 53 Closed caption Closed caption is a function that displays the audio portion of a TV program as text on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4.
  • Page 54 Setting Lamp control Lamp control This function allows you to change brightness of the screen. Auto ... Brightness according to the input signal. Normal ... Normal brightness Eco 1 ... 70%-80% of the normal brightness. Eco 2 ... 50% of the normal brightness. Lamp life control Select the lamp operation when the total lighting time of a lamp exceeds the recommended total hours of use.
  • Page 55 Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock This function locks the top control and remote control buttons to prevent operation by unauthorized persons.
  • Page 56 Setting Enter a PIN code Use the Point buttons to enter a number. Press the ▲▼ Point button to fix the number and move the red frame ► pointer to the next box. The number changes to “ you fixed an incorrect number, use the Point move the pointer to the number you want to correct, and then enter the correct number.
  • Page 57 Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector. Off... Normal speed. Set this function to Off when using the projector in non-high altitude environment. On 1...
  • Page 58 Setting Total power savings This function displays the saved amount of power and the exhausted CO2 of the projector. Use the Point ▲▼ buttons to select Total power savings and then press the Point ► or the SELECT button to access the submenu items. Total power savings...Show the total accumulated power savnings of the projector and display the total amount of CO2 exhausted from the projector.

  • Page 59: Information

    Input Source Information Display The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. Direct Operation Press the INFO. button on the remote control to display the Information Menu. Menu Operation Press the Point buttons to select the Information.

  • Page 60: Maintenance And Cleaning

    Maintenance and Cleaning The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the wARNING indicator is blinking red . When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector.

  • Page 61: Replacing The Filters

    Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, replace the filters immediately.

  • Page 62: Attaching The Lens Cap

    Maintenance and Cleaning Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, replace the lens cap. Attach the lens cap according to the following procedures. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place.

  • Page 63: Lamp Replacement

    When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.

  • Page 64: Lamp Handling Precautions

    Maintenance and Cleaning ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Model No . of your projector ● Replacement Lamp Type No . ● LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly.

  • Page 65: Appendix

    Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 14-16. – Make sure all equipment is connected to AC outlet and the power is turned on. –...
  • Page 66 Appendix No image . No sound The color is strange . Some displays are not seen during the operation . Auto PC adjustment function does not work . The setting does not remain after turning off power . Power management does not work .
  • Page 67 The image is distorted or runs off . PIN code dialog box appears at start-up . The Remote Control does not work . Indicator blinks or lights . The exclamation mark appears on the screen . Top control does not work . Unable to unlock the Logo PIN code lock, Security key lock or Security PIN code lock .

  • Page 68: Menu Tree

    Appendix Input Input Computer 1 Computer 2 Video S-video Sound Sound Volume Mute MIC gain Standby MIC OUT Computer Input System * Systems displayed in the System Menu vary depending on an input signal. PC Adjust Auto PC adj. Fine sync Total dots Horizontal Vertical...
  • Page 69 Video Input System Auto 1080i 1035i 720p 575p 480p 575i 480i System Auto SECAM NTSC NTSC 4.43 PAL-M PAL-N Image Select Dynamic Standard Real Cinema Blackboard (Green) Colorboard Red/Blue/Yellow/Green Image 1 Image 2 Image 3 Image 4 Image Adjust Contrast Brightness Color Tint...

  • Page 70: Indicators And Projector Condition

    Appendix Check the indicators for projector condition. Indicators LAMP POWER WARNING REPLACE red/green yellow • • • green. • • • blinks green. When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow. When this  indicator lights yellow, replace the projection lamp with a new one promptly. Indicators and Projector Condition Projector Condition The projector is off.

  • Page 71: Compatible Computer Specifications

    Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN H-Freq . RESOLUTION DISPLAy (KHz) VGA 1...

  • Page 72: Technical Specifications

    Appendix Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System SD/HD TV Signal Input Scanning Frequency Optical Information Projection Image Size (Diagonal) Throw Distance Projection Lens Projection Lamp...

  • Page 73: Optional Parts

    Accessories Owner’s Manual (CD-ROM) Quick Reference Guide AC Power Cord Remote Control and Batteries VGA Cable Lens Cap with String PIN Code Label Soft Carrying Case Filter Cover for Ceiling Mount ● The specifications are subject to change without notice. ●...

  • Page 74: Pj Link Notice

    Appendix This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1. For PJ Link password, see the owner’s manual of “Network Set-up and Operation.” Projector Input Computer 2 (Analog) Computer 1...

  • Page 75: Configurations Of Terminals

    Configurations of Terminals COMPUTER IN 1 /COMPONENT IN Terminal: Analog RGB (Mini D-sub 15 pin) COMPUTER IN 2/MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) CONTROL PORT CONNECTOR (D-sub 9 pin) Serial ----- R X D T X D ----- ----- -----...

  • Page 76: Pin Code Number Memo

    Appendix Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No . Logo PIN Code Lock No .

  • Page 77: Dimensions

    350 (13.78) 94 (3.70) 256 (10.08) Dimensions Appendix Unit: mm(inch) Screw Holes for Ceiling Mount Screw: M4 Depth: 12.0(0.472) 216.5 (8.52) 208 (8.19) 60 (2.36)
  • Page 78 KA2AC SANyO Electric Co ., Ltd .
