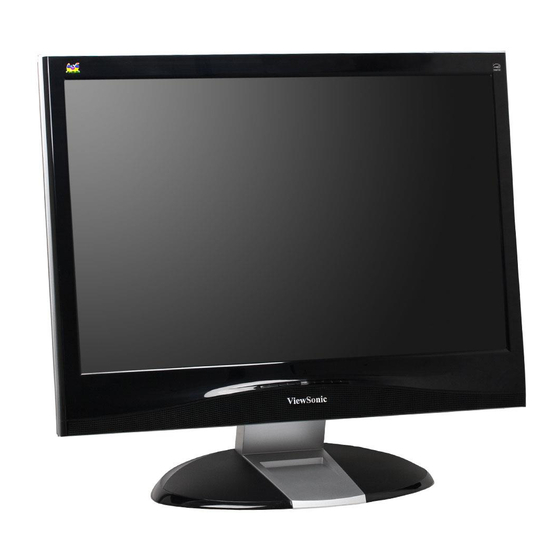

ViewSonic
VX2835wm
LCD Display
IMPORTANT: Please read this User Guide to obtain important
information on installing and using your product in a safe manner, as
well as registering your product for future service. Warranty information
contained in this User Guide will describe your limited coverage from
ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specific languages using the
Regional selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en
este manual"
Model No. : VS11531
Advertisement
Table of Contents
Related Manuals for ViewSonic VX2835wm
Summary of Contents for ViewSonic VX2835wm
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
-
Page 2: Table Of Contents
OSD and Power Lock Settings ... 8 Adjusting the Screen Image ... 9 Main Menu Controls ... 11 Other Information Specifications ... 17 Troubleshooting... 18 Customer Support ... 19 Cleaning the LCD Display ... 20 Limited Warranty ... 21 Mexico Limited Warranty ... 23 ViewSonic VX2835wm... -
Page 3: Tco Information
Full specifications and lists of certified products can be found on our homepage * For a display used primarily for conventional work tasks such as word processing, we recommend a display certified to our office display series TCO’03 Displays or later version. ViewSonic VX2835wm www.tcodevelopment.com... -
Page 4: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. ViewSonic VX2835wm... -
Page 5: Important Safety Instructions
ViewSonic VX2835wm... -
Page 6: Declaration Of Rohs Compliance
3. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic VX2835wm Proposed Maximum Concentration 0.1% 0.1%... -
Page 7: Copyright Information
SRS Labs, Inc. WOW HD technology is incorporated under license from SRS Labs, Inc. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 8: Getting Started
NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files. -
Page 9: Quick Installation
NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 4. Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions. If your computer does not have a CD-ROM drive, please refer to Customer Support page. -
Page 10: Wall Mounting (Optional)
Wall Mounting (Optional) To obtain a wall-mounting kit, contact ViewSonic instructions that come with the base mounting kit. To convert your LCD display from a desk- mounted to a wall-mounted display, do the following: Step 1. Verify that the power button is turned Off, then disconnect the power cord. -
Page 11: Using The Lcd Display
LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow ViewSonic VX2835wm for 10 seconds. If any buttons are again for 10 seconds. -
Page 12: Adjusting The Screen Image
Also a shortcut to Auto Image Adjust. Displays the Main Menu or exits the control screen and saves adjustments. ViewSonic VX2835wm Main Menu with OSD controls Front Control Panel shown below in detail Standby Power On/Off Power light... - Page 13 (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VX2835wm The command line at the bottom of the control screen tells what to do next from this screen.
-
Page 14: Main Menu Controls
Audio Adjust Volume increases the volume, decreases the volume, and mutes the audio. Treble Adjusts the treble level. Bass Adjusts the bass level. Balance Adjusts left and right audio balance. Mute temporarily silences audio output. ViewSonic VX2835wm and down buttons. - Page 15 1. To select color (R, G or B) press button [2]. 2. To adjust selected color, press and . Important: If you select RECALL from the Main Menu when the product is set to a Preset Timing Mode, colors return to the 6500K factory preset. ViewSonic VX2835wm...
- Page 16 1920 x 1200 and the refresh rate is 60 Hertz. NOTE 2: Video Format only acts on video signal. Manual Image Adjust Horizontal Size adjusts the width of the screen image. H./V. Position (Horizontal/Vertical Position) moves the screen image left or right and up or down. ViewSonic VX2835wm...
- Page 17 Scenery optimized for displaying outdoor scenery images. Vivid optimized for color luster and sharpness. These 7 presets are carefully chosen by Viewsonic, but may not suit all users' tastes. In that case, the user can either return to the Standard setting and manually adjust the brightness and contrast as desired.
- Page 18 PIP. Setup Menu displays the menu shown below: Language Select allows the user to choose the language used in the menus and control screens. ViewSonic VX2835wm Available Sub-Screen Input Source AV / S-Video AV / S-Video AV / S-Video...
- Page 19 Sleep Set up the auto power off time for 30/45/60/120 minutes. (It's inactive in D-SUB mode only) Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. ViewSonic VX2835wm...
-
Page 20: Other Information
Preset Timing Mode (pre-adjusted to VESA Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic ViewSonic. ViewSonic VX2835wm 27.5”... -
Page 21: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic Control buttons do not work • Press only one button at a time. -
Page 22: Customer Support
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ Macau www.hk.viewsonic.com... -
Page 23: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic VX2835wm... -
Page 24: Limited Warranty
How long the warranty is effective: ViewSonic LCD displays are warranted for 3 years for all parts including the light source and 3 years for all labor from the date of the first consumer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. - Page 25 Exclusion of damages: ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon incon- venience, loss of use of the product, loss of time, loss of profits, loss of business opportu- nity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
-
Page 26: Mexico Limited Warranty
& accessories. How long the warranty is effective: ViewSonic LCD displays are warranted for 3 years for all parts including the light source and 3 years for all labor from the date of the first consumer purchase. - Page 27 Tel: (52) 999-925-1916 E-Mail: rrrb@sureste.com Tijuana: Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico 4.3: ViewSonic Mexico Limited Warranty ViewSonic VX2835wm Villahermosa: Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx...
