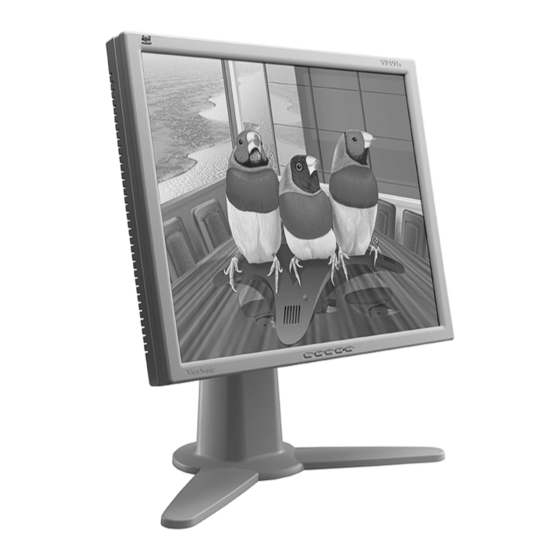

Full 19.0" diagonal viewable screen
Hide thumbs
Also See for VP191b:
- User manual (22 pages) ,
- Service manual (82 pages) ,
- Service manual (82 pages)
Related Manuals for ViewSonic VP191b
Summary of Contents for ViewSonic VP191b
-
Page 1: Lcd Display
Full 19.0" Diagonal Viewable Screen VP191 VP191b VP191s User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell’utente Guia do Usuário Användarhandbok Käyttöopas Podr cznik u ytkownika LCD Display... -
Page 2: Table Of Contents
Other Information Specifications ... 14 Troubleshooting... 15 Customer Support ... 16 Cleaning the LCD Display ... 17 Limited Warranty ... 18 Appendix Safety Guidelines ... 19 Compliance Information for U.S.A... 20 CE Conformity for Europe ... 20 03/10/03 A ViewSonic VP191/VP191b/VP191s... -
Page 3: Product Registration
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate- rial, or the performance or use of this product. -
Page 4: Getting Started
NOTE: User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. Precautions • Sit at least 18" from your LCD display. -
Page 5: Quick Installation
NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 4 Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions. If your computer does not have a CD-ROM drive, see “Customer Support.”... -
Page 6: Landscape/Portrait Modes
Portrait software included with your LCD display. Perfect Portrait software is compatible with most PCI and AGP graphics (video) cards. For information about compatible graphics cards and approved hardware configurations, go to the ViewSonic website, http:// Portrait www.viewsonic.com ViewSonic VP191/VP191b/VP191s... -
Page 7: Installation Of Wall Mount (Optional)
Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following:... -
Page 8: Using The Lcd Display
LCD display’s power will automatically turn ON when power is restored. Power Button Unlock: Press and hold [1] and the down arrow seconds. ▲ for 10 seconds. If any ▲ again for 10 seconds. ViewSonic VP191/VP191b/VP191s controls ® ▼ for 10 ▼ again for 10... -
Page 9: Adjusting The Screen Image
Displays the control screen for the highlighted control. Also toggles between two controls on some screens. Also a shortcut to toggle analog and digital connection. Power light Green = ON Orange = Power ViewSonic VP191/VP191b/VP191s ® Saving Power On/Off... -
Page 10: Do The Following To Adjust The Screen Image
The command line at the bottom of the control screen tells what to do next from this screen. You can toggle between control screens, adjust the selected option, or exit the screen. ▲ ▼ or down buttons. ViewSonic VP191/VP191b/VP191s... -
Page 11: Main Menu Controls
Brightness Input Select computer connected to the VP191/VP191b/VP191s. Color Adjust color temperatures and RGB which allows you to adjust red (R), green (G), and blue (B) separately. The factory setting for this product is 6500K (6500 Kelvin). - Page 12 (video signal input) Information coming from the graphics card in your computer, the LCD model number, the serial number, and the ViewSonic website URL. See your graphic card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
- Page 13 Resolution Notice If you enable the Resolution Notice shown above and your computer is set at a resolution other than 1280 x 1024, the following screen appears. allows you to enable or disable this notice. ViewSonic VP191/VP191b/VP191s...
- Page 14 Landscape to Portrait mode. Memory Recall if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. allows you to turn the On-Screen Display returns the adjustments back to factory settings ViewSonic VP191/VP191b/VP191s...
-
Page 15: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic contact ViewSonic. 19" (full 19" viewable diagonal area), TFT (Thin Film Transistor), Active Matrix SXGA LCD, 0.294 mm pixel pitch... -
Page 16: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic for a non-DDC adapter. Control buttons do not work •... -
Page 17: Customer Support
F: +61 2 9929 8393 T: 65 273 4018 F: 65 273 1566 T: 886 2 2246 3456 F: 886 2 8242 3668 T: 886 2 2246 3456 F: 886 2 8242 3668 ViewSonic VP191/VP191b/VP191s Email service.us@ viewsonic.com service.ca@ viewsonic.com service.eu@ viewsoniceurope.com service.eu@... -
Page 18: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 19: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 20: Appendix
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. Switzerland ... SEV Britain ... BASE/BS Japan ... Electric Appliance Control Act Figure A2 Maximum Current Rating of Unit 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps ViewSonic VP191/VP191b/VP191s... -
Page 21: Compliance Information For U.s.a
CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” ViewSonic VP191/VP191b/VP191s... - Page 22 ViewSonic Corporation...
