DVR48K

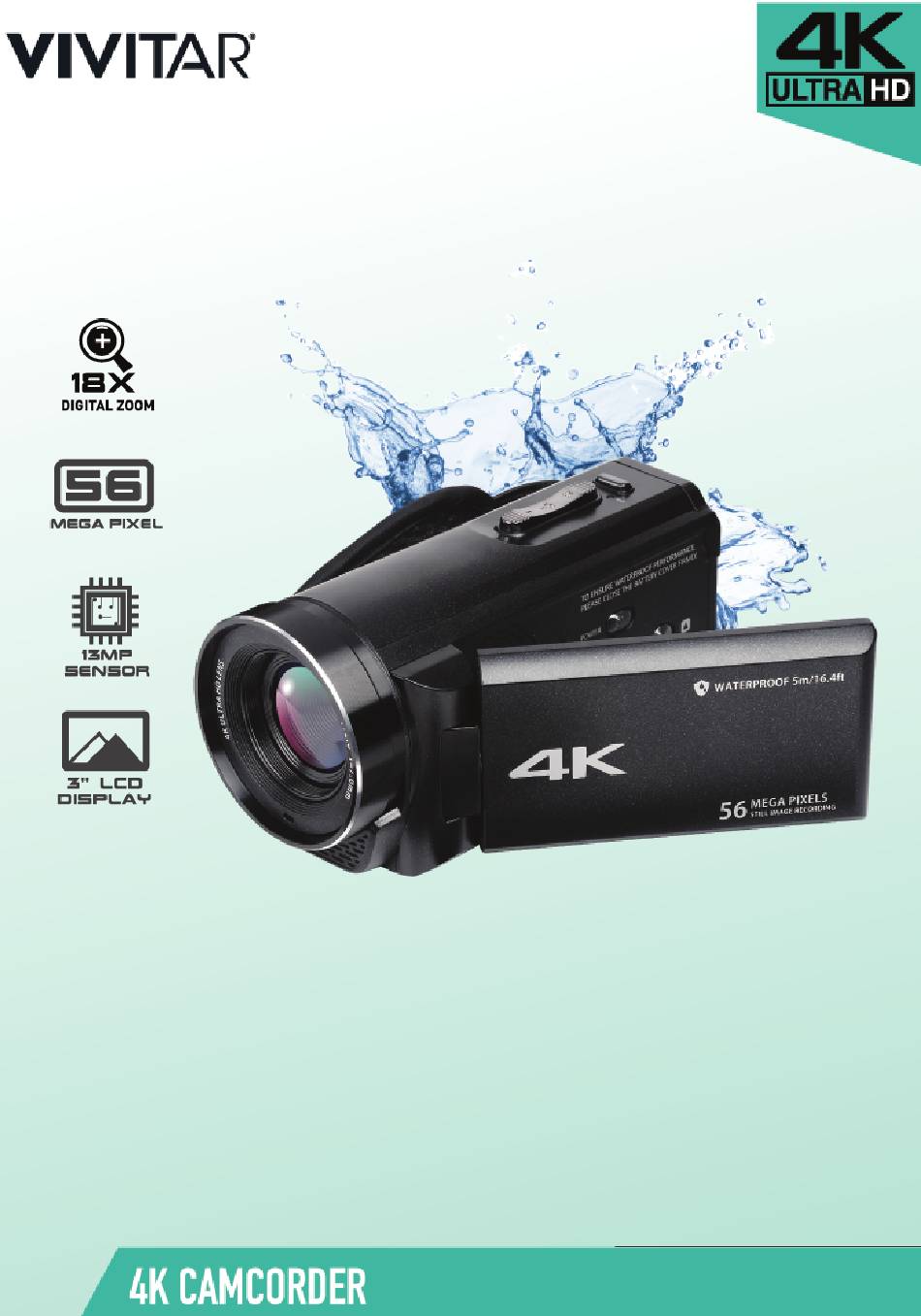

INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Vivitar DVR48K

Summary of Contents for Vivitar DVR48K

  • Page 1 DVR48K INSTRUCTION MANUAL...
  • Page 2 Important Safety Precautions When using your Vivitar 4K Waterproof Camcorder, basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS BEFORE USING YOUR CAMCORDER. 2. Shut down immediate and remove the battery if it is exposed to water or short circuiting.

  • Page 3: Table Of Contents

    ............20 Setting Menu (For Video Mode) ..........21 Setting Menu (For Playback Mode) ..........22 Setup Menu (Camcorder Settings) Specifications .................... . 23 Maintenance and Care ................23 FCC Compliance Statement ............... 24 Vivitar Warranty Card ................25-26...

  • Page 4: Introduction

    Introduction Thank you for purchasing your Vivitar 4K Waterproof Camcord- er, item DVR48K. You can use your camcorder to capture high quality videos and photos. In order to get the best results when using this device, please read this manual first before using.

  • Page 5: A Quick Look At Your Camcorder

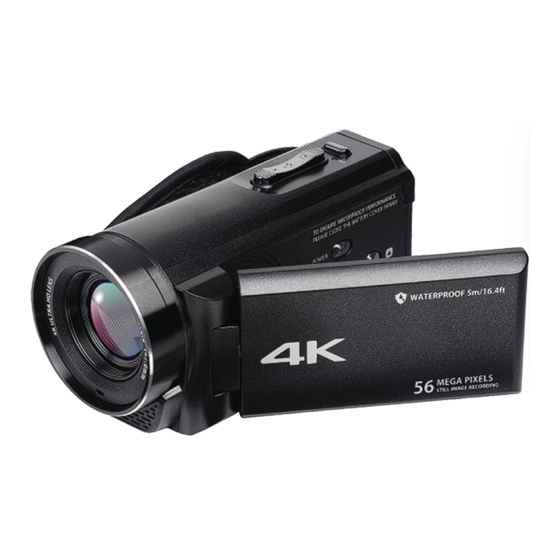

    A Quick Look at Your Camcorder Lens FRONT VIEW LCD Screen REAR VIEW Cover Lock Battery Cover USB Port Memory Card Slot HDMI Port BATTERY COMPARTMENT Battery...
  • Page 6 A Quick Look at Your Camcorder (cont.) BOTTOM VIEW Tripod Mount Memory Card Cover SIDE VIEW Microphone Power Button UP Button DOWN Button Menu Button Speaker Mode/OK Button TOP VIEW Busy Light Indicator Record/Shutter Button Zoom/Volume Button Charging Light Indicator...

  • Page 7: Button Functions

    Button Functions Power Button -Press to power on the camcorder. -Press and hold to power o the camcorder. Mode Button -Press to switch between camera modes. Menu Button -Press to pull up settings menu. -Press to exit menu or return to previous menu. Zoom/Volume Button -Zoom in or out in (wide/telephoto) in photo/video mode.

  • Page 8: Inserting A Memory Card

    Inserting a Memory Card Before powering on your camcorder, insert a Micro SD memory card into the memory card slot. A Micro SD memory card is required in order to store recorded photos and videos. To ensure smooth performance, it is recommended to use a memory card rated class 10 or above, with a capacity between 16-128GB.

  • Page 9: Opening And Closing The Battery Cover

    Opening and Closing the Battery Cover To Open the Battery Cover 1.Slide the cover lock downward and hold. 2. While holding the cover lock down, push the battery cover to the right. 3. Lift the cover slowly. To Close the Battery Cover 1.

  • Page 10: Charging The Battery

    Charging the Battery A rechargeable battery is included with your camcorder. Open the battery cover and insert battery into the battery slot. The battery should slide securely in place. Plug the Micro USB Charging Cable into the USB port. Then attach the other end of the cable to a computer or an AV adapter.

  • Page 11: Powering On & Off

    Powering On & Off Powering On To power on your camcorder, press the Power button. Powering Off Press and hold the Power button to power off your camcorder. When Powering on, the BUSY light indicator will emit a red light. NOTES: 1.

  • Page 12: Switching Modes

    Switching Modes Selecting a Mode To switch between video, photo, and playback mode, press the Mode/OK button while the camcorder screen is on capture. Each mode will be indicated by their unique screen displays.

  • Page 13: Video Mode/Recording Videos

    Video Mode/Recording Videos After powering on your camcorder, press the Mode/OK button on the side of your camcorder to switch between modes. Video mode will be indicated by the features on the display screen. Recording a Video To record a video, press the Shutter button on your camcorder to start recording a video.

  • Page 14: Photo Mode/Taking Photos

    Photo Mode/Taking Photos After powering on your camcorder, press the Mode/OK button on the side of your camcorder to switch between modes. Photo mode will be indicated by the features on the display screen. Taking a Picture To take a picture, press the Shutter button to focus and press down all the way to take the picture.

  • Page 15: Playback Mode And Deleting Files

    Playback Mode and Deleting Files To enter playback mode, press the Mode/OK button until you see playback mode display screen. Once in playback mode, use the Up & Down buttons to toggle through videos or photos. Press the Shutter button on your camcorder to play or pause videos.

  • Page 16: Playback On A Tv

    Playback on a TV 1. Connect one of the included HDMI cable to the HDMI port on your camcorder. 2. Connect the other end to the HDMI In port on your television. 3. Set the TV input to HDMI in. 4.

  • Page 17: Connecting To A Computer

    Connecting to a Computer 1. Connect one end of the included USB-C cable into the USB port on your camcorder. 2. Connect the other end to an available USB port on your computer. Once connected your camcorder’s battery can be charged or you can transfer files from your camcorder’s memory card to your computer.

  • Page 18: Formatting Micro Sd Memory Card

    Formatting Micro SD Memory Card You may need to format the memory card for the camcorder to be able to recognize it properly. The Micro SD card file system should be formated to FAT/exFAT. To format the memory card, press the Menu button twice (or press Menu button once and use the Zoom/Volume button) to open the Setup menu.

  • Page 19: Accessing Menus

    Accessing Menus Each mode has a corresponding menu that is accessed with the Menu button. To change photo or video settings, the correspond- ing mode must be running. To access photo settings, photo mode must be on. To access video settings, video mode must be on. The two menu categories are labeled as Photo/Video and Setup.

  • Page 20: Setting Menu (For Photo Mode)

    Setting Menu (For Photo Mode) The following photo settings can be changed when in photo mode. Picture Sharpness Settings Strong Normal Soft Photo Size 56 Mega Pixels White Balance 48 Mega Pixels Auto 30 Mega Pixels Daylight 24 Mega Pixels Cloudy 20 Mega Pixels Tungsten...

  • Page 21: Setting Menu (For Video Mode)

    Setting Menu (For Video Mode) The following video settings can be changed when in video mode. Video Settings Exposure Setting Movie Size (Recording Resolution) +3.0, +2.0, +2.0, +0.0 4k (30fps) -1.0, -2.0, -3.0 2.7K (30fps) Motion Detection 1080P (60fps, 30fps) Turn On/O 720P (60fps, 30fps) Record Audio...

  • Page 22: Setting Menu (For Playback Mode)

    Setting Menu (For Playback Mode) The following photo settings can be changed when in playback mode. Playback Settings Delete Delete Current Delete All Protect Lock Current Unlock Current Lock All Unlock All Slide Show 2 S, 5 S, 8 S...

  • Page 23: Setup Menu (Camcorder Settings)

    Setup Menu (Camcorder Settings) Date and Time YYYY-MM-DD, hour, minute, second Auto Power Off O , 1 Minute, 2 Minutes, 3 minutes, 5 minutes, 10 minutes Screen Save O , 5 Minutes, 10 Minutes Beep Set (beeping volume) Turn O /On Language English, Français, Español, Português, Deutsch, Italiano, (languages may vary)

  • Page 24: Specifications

    Specifications Image Sensor Sony CMOS Memory Micro SD/SDHC Card Slot up to 128gb Auto, 100, 200, 400, 800, 1600 Lens Fixed lens F/2.4, f=7.0mm Focal Distance 0.5 M ~ infinite Photo Format: JPEG Resolution Video Format: MP4 4K, 2.7K, 1080P, 720P Dustproof Rating IP6X Waterproof Rating...

  • Page 25: Fcc Compliance Statement

    FCC Compliance Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 26: Vivitar Warranty Card

    To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 or visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures.
  • Page 27 Vivitar One Year Warranty (continued) NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUD- ING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE.
  • Page 28 Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies. Keep All Relevant Information for Future Reference.
