Peavey Pro Rider Specifications

Suggested enclosures
For those who want to build their own enclosures but don't want to go through the design process using driver
parameters, Peavey provides the following optimized designs:
ENCLOSURES Net Volume Vent diameter Vent length
cubic feet/liters (qty) inches/mm inches/mm
1508-8 alcp
Small vented box 3.0 / 84.9 (2) 4" / 102 6-7/8" / 175
Medium vented box 4.0 / 113.3 (2) 4" / 102 5" / 127
Large vented box 5.0 / 141.6 (2) 4" / 102 4-3/8" / 111
Single-reflex bandpass Sealed: 2.25 / 63.7
Vented: 1.75 / 49.6 (2) 6" / 152 8" / 203
1508-8cucp
Small vented box 1.5 / 56.6 (2) 4" / 102 11-3/8" / 289
Medium vented box 2.25 / 84.9 (2) 4" / 102 7-1/4" / 184
Large vented box 3.0 / 113.3 (2) 6" / 152 5-1/4" / 133
FOR 1508-8 alcp:
1. Small vented enclosure
Excellent performance for compact, general purpose use. Warm mid-bass response. F 3 is 50 Hz.
2. Medium vented enclosure
Terrific compromise of bass performance and enclosure size. Warm mid-bass response. F 3 is 44 Hz.
3. Large vented enclosure
Big box, big bass! Great as a subwoofer or the bottom end of a large multi-way enclosure design. F 3
is 40 Hz.
4. Single-reflex bandpass enclosure
Special enclosure design that uses the enclosure as an acoustic filter for shaped response. Great
choice for a compact subwoofer system. Response is 47 Hz – 135 Hz.
FOR 1508-8cucp:
1. Small vented enclosure
A small enclosure with outstanding bass performance for its size an F 3 is 61 Hz.
2. Medium vented enclosure
Small box with powerful bass and predictable, flat response down to an F 3 of 50 Hz.
3. Large vented enclosure
Strong, flat reponse with bass extension to an F 3 of 45 Hz. Deep, predictable bass quality for great
subwoofer and multi-way system performance.
Kapton ® is a registered trademark of DuPont.
Kevlar ® is a registered trademark of DuPont.
Nomex ® is a registered trademark of DuPont.
Rubatex ® is a registered trademark of Rubatex Corporation.
1. Prior to replacement procedure, clean work area of all metal objects and other debris.
2. With speaker lying face down, remove the three screws on back of magnet structure with 7/16"
V b box tuning F 3 , -3 dB
nut driver.
frequency in Hz point in H
3.. After screws are removed, lift the magnet structure off the basket frame.
4. Clean the voice coil "gap" before magnet structure is put on new replacement basket. (See
45 51
illustration.) Fold a piece of masking tape over on itself several times, sticky side out, and insert it
43 45
into the voice coil "gap." Run it all the way around the "gap" several times to remove all particles of
metal and other trash before magnet structure is put on new replacement basket.
40 41
5. Holding magnet structure in slanted position, gently lower the structure down into the basket so
that it rests inside the magnet structure counter bore, being sure to align the screw holes, and
83 48 - 138
lower the structure down into place. Insert screws and tighten.
53 61
STEP 1
51 50
49 45
STEP 3
Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301
©2003

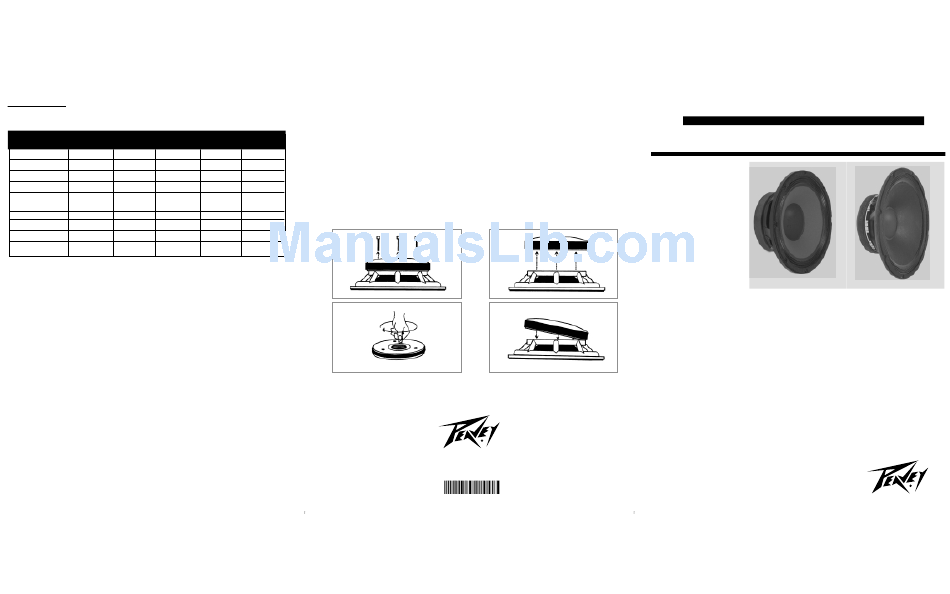

REPLACEMENT OF SPEAKER BASKET ASSEMBLY
STEP 2
STEP 4
ONE YEAR LIMITED WARRANTY
NOTE: For details, refer to the warranty statement. Copies of this
statement may be obtained by contacting Peavey Electronics
Corporation, P.O. Box 2989, Meridian, MS 39335
Features and specifications subject to change without notice.
(601) 483-5365 • FAX (601) 486-1278 • www.peavey.com
Printed in the U.S.A. 4/03
80304925
S P E C S
P E A V E Y E L E C T R O N I C S
00494100
1508-8 alcp
00494080
1508-8 cucp

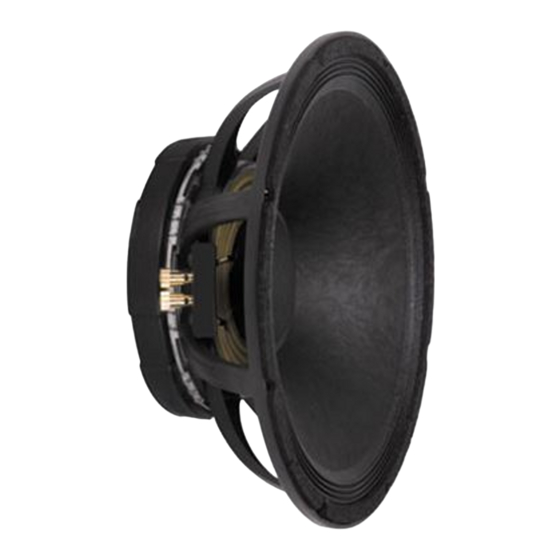

INTRODUCTION
The Pro Rider ® driver series represents a
new level of power and performance for
Black Widow ® loudspeakers. These
outstanding drivers have a power
handling rating of 1,200 Watts program,
along with high efficiency, reduced
distortion and excellent overall sound
quality.
The series includes two 15" models in
8 Ohm impedance, suitable for both
subwoofer and woofer applications.
cyanoacrylate adhesive, which is also
used to bond the dustcap to the cone.
DESIGN
The magnet structure includes subtle
The Pro Rider series uses a new cone
changes to its geometry that improve
that is a variation on the existing Kevlar ® -
power handling. While it appears the
impregnated cones used on all Black
same as the standard structure, and the
Widows. The new cone is stronger and
replacement baskets from the Pro Rider
tougher, highly water-resistant and has a
series will fit on standard BW magnet
specially designed deep-roll accordion
structures, the improved power handling
surround. The dustcap is also made of
will be compromised if the standard
the same extremely strong material.
structure is used.
Voice coil assemblies on the new drivers
The vent plate assembly used on Low
use thermoset-insulated aluminum or
Rider ® drivers to increase power handling
copper ribbon wire, edge-wound and
is included in the Pro Rider series. This
bonded onto an incredibly durable, heat-
results in a significant improvement in
resistant polyimide composite former. The
power handling capabilities and long-term
coil wires are solderless diffusion-welded
power compression.
to high conductivity OFHC copper foil
leads, which are embedded inside the
These new drivers also adhere to the
former assembly and attached to the familiar features of Black Widow
tinsel leads with high temperature silver products: Cast aluminum frames,
solder. The solder joint is then coated replaceable basket assemblies, Rubatex
with a special thermally conductive
gaskets and highly reliable, spring-loaded
silicone adhesive for encapsulation and
terminals are all used.
heat dissipation.
The voice coil assembly is bonded to the
APPLICATIONS
Kevlar cone and new super-tough nylon
composite spider using a thermoset
The Pro Rider drivers are superior
epoxy originally developed for attaching
choices for a wide range of sound
nose cones on ICBM missiles – truly an
reinforcement, high level playback,
aerospace-grade adhesive. The spider
subwoofer and monitor applications.
and surround are bonded to the frame
with a high strength, toughened
The 1508-8 alcp driver is an excellent
choice for general purpose sound
reinforcement. The enclosure size is
reasonable and its performance from sub-
bass to upper mid-range is strong. Its
versatility includes vented and bandpass
enclosure designs.
The 1508-8 cucp is specifically optimized
for amazing bass performance in very
small vented enclosures, along with flat
mid-bass and mid-range response for an
accurate, clean sound quality. It is an
excellent choice for compact enclosures,
multi-driver subwoofers and monitors
where enclosure size is limited.
Pro Riders can work with crossover
points as high as 2.0 kHz, but work best
below 1.5 kHz. They deliver excellent
performance in both woofer and
subwoofer applications.
®
ENCLOSURES
To assist with the growing interest in
home-built enclosure designs, Peavey
provides complete parameter data on
