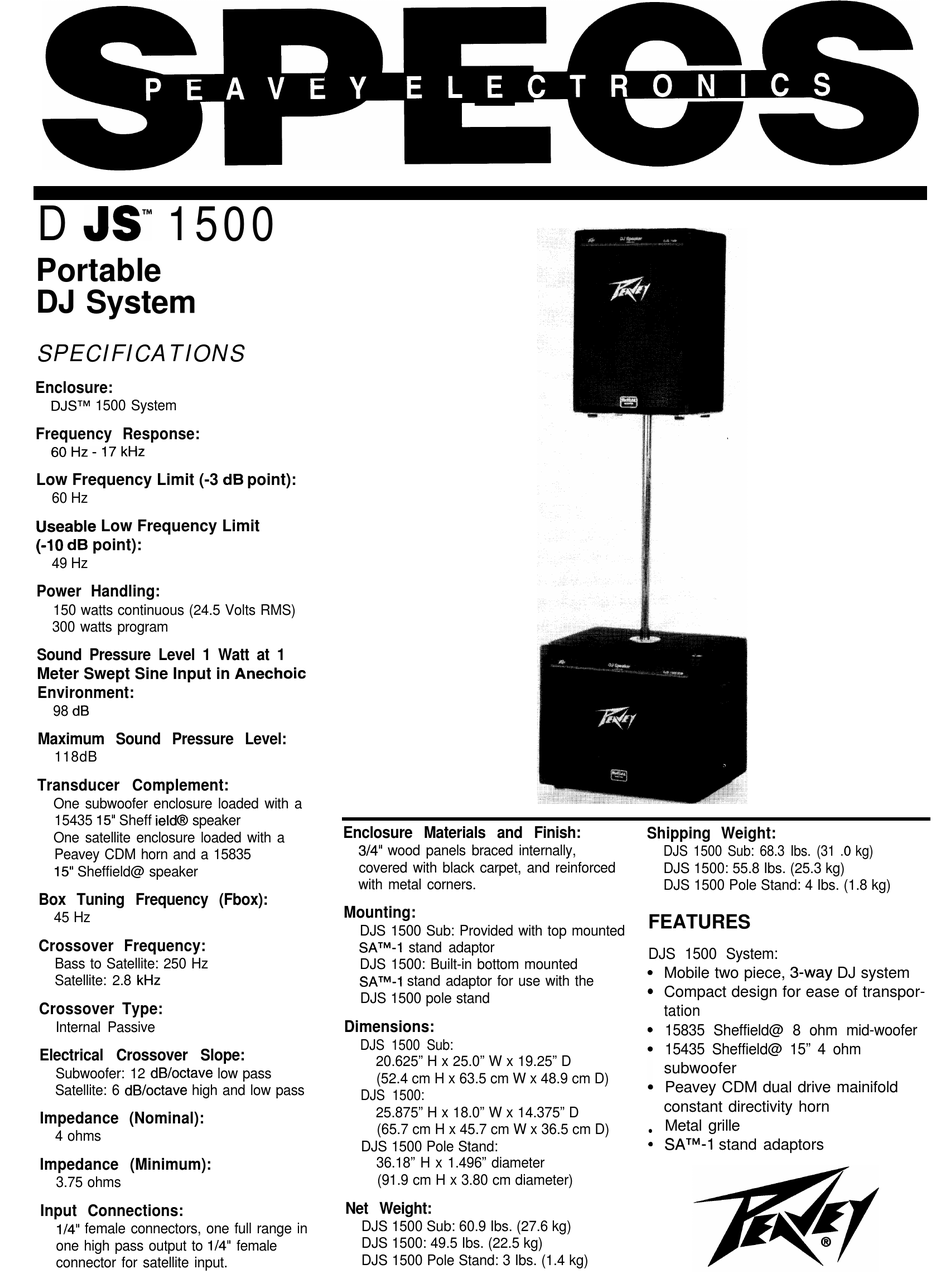

D JS'" 1500
Portable
DJ System
SPECIFICATIONS
Enclosure:
Frequency Response:
Low Frequency Limit (-3 dB point):
60 Hz
49 Hz
Power Handling:
150 watts continuous (24.5 Volts RMS)
300 watts program
Sound Pressure Level 1 Watt at 1
Meter Swept Sine Input in Anechoic
Environment:
98 dB
Maximum Sound Pressure Level:
118dB
Transducer Complement:
One subwoofer enclosure loaded with a
15435 15" Sheff ield8 speaker
One satellite enclosure loaded with a
Peavey CDM horn and a 15835
Box Tuning Frequency (Fbox):
45 Hz
Crossover Frequency:
Bass to Satellite: 250 Hz
Satellite: 2.8 kHz
Crossover Type:
Internal Passive
Electrical Crossover Slope:
Subwoofer: 12 dB/octave low pass
Satellite: 6 dB/octave high and low pass
Impedance (Nominal):
4 ohms
Impedance (Minimum):
3.75 ohms
Input Connections:
one high pass output to l/4" female
connector for satellite input.
Enclosure Materials and Finish:
covered with black carpet, and reinforced
with metal corners.
Mounting:
DJS 1500 Sub: Provided with top mounted
DJS 1500: Built-in bottom mounted
DJS 1500 pole stand
Dimensions:
DJS 1500 Sub:
20.625" H x 25.0" W x 19.25" D
(52.4 cm H x 63.5 cm W x 48.9 cm D)
DJS 1500:
25.875" H x 18.0" W x 14.375" D
(65.7 cm H x 45.7 cm W x 36.5 cm D)
DJS 1500 Pole Stand:
36.18" H x 1.496" diameter
(91.9 cm H x 3.80 cm diameter)
Net Weight:
DJS 1500 Sub: 60.9 Ibs. (27.6 kg)
DJS 1500: 49.5 Ibs. (22.5 kg)
DJS 1500 Pole Stand: 3 Ibs. (1.4 kg)
Shipping Weight:
DJS 1500 Sub: 68.3 Ibs. (31 .O kg)
DJS 1500: 55.8 Ibs. (25.3 kg)
DJS 1500 Pole Stand: 4 Ibs. (1.8 kg)
FEATURES
DJS 1500 System:
Mobile two piece, 3-way DJ system
Compact design for ease of transpor-
tation
15835 Sheffield@ 8 ohm mid-woofer
15435 Sheffield@ 15" 4 ohm
subwoofer
Peavey CDM dual drive mainifold
constant directivity horn
Metal grille
