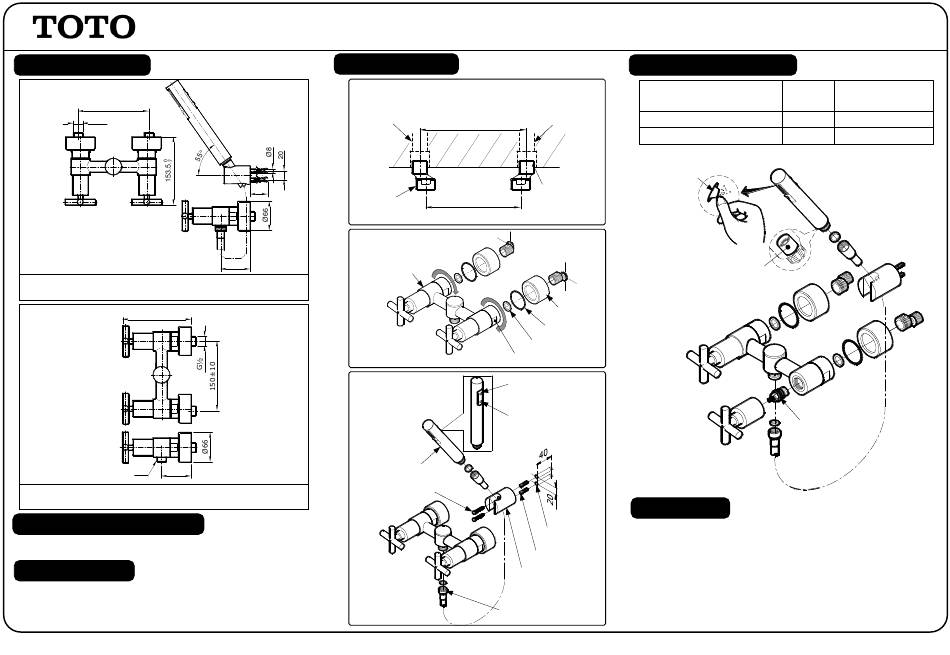

Toto EGO II TX446SEC Quick Start Manual

SPECIFICATIONS
150±10
G ½
TX 446 SECM
"EGO II" Cross Handle Combination Shower Set
0
153.5
-7
0
67
G½
-7
TX 446 SECV1BR
"EGO II" Cross Handle Comb inat ion Shower Mixer w/o Hand Sho wer Set
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc. )
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which
could adversely affect the finish and are not recommended for cleaning
S06491MS
"EGO II" CROSS HANDLE COMBINATION SHOWER SET TX446SEC
INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH THE WALL
Hot
Water
Supply
40
Leg
2
* Tighten the nut with
wrench
0
67
-7
Body
3
Shower
Screw
Cold
150±10 Water
Supply
Use Seal tape
(Not Include)
150
Cover
O-Ring
Packing
Nut *
Massage
Spray Button
Rain Spray
Button
2 X Ø 8
1.
Holes
2.
Sleeve
Anchor
3.
Hanger
4.
Flexible Hose
w/ Packing
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray 1
Water leaks around the handle
2
1. NOZZLES
Flow Regulator Inside
(Don t Remove)
2. CERAMIC
HEAD WORK
ATTENTION
Don t use abrasive cleaners or solvents on faucets and fittings.
Flow Regulator should not be remove because it could damage the
system
As the product model is constantly updated, the actual product may
not look the same as it shown in the diagram, but the basic
installation principles are the same.
The hot water supply side of the faucets is in a condition of high
temperature. Do not allow skin to contact with the hardware surface
directly. Otherwise, scalding may occur.
SOLUTION
Clean
Tighten
R7
