Installation
Instructions
Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at: GEAppliances.com
MODELS
JX1095STBB, JX1095STSS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT –
•
local inspector's use.
IMPORTANT –
•
and ordinances.
• Note to Installer – Be sure to leave these instructions with
the Consumer.
• Note to Consumer – Keep these instructions for future
reference.
• For easier installation and personal safety, we recommend
that two people install this microwave oven.
• Unplug the microwave oven before attempting installation of
this kit.
• Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
• Completion time – 30 minutes – 1 hour
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered
under the Warranty.
FOR YOUR SAFETY
WARNING
Before beginning the installation, switch
power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to
the service panel.
WARNING
This oven must be plugged into a properly
grounded 3-hole, 120 volt receptacle as required by the
National Electric Code.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Save these instructions for
Observe all governing codes
Built-In Trim Kits

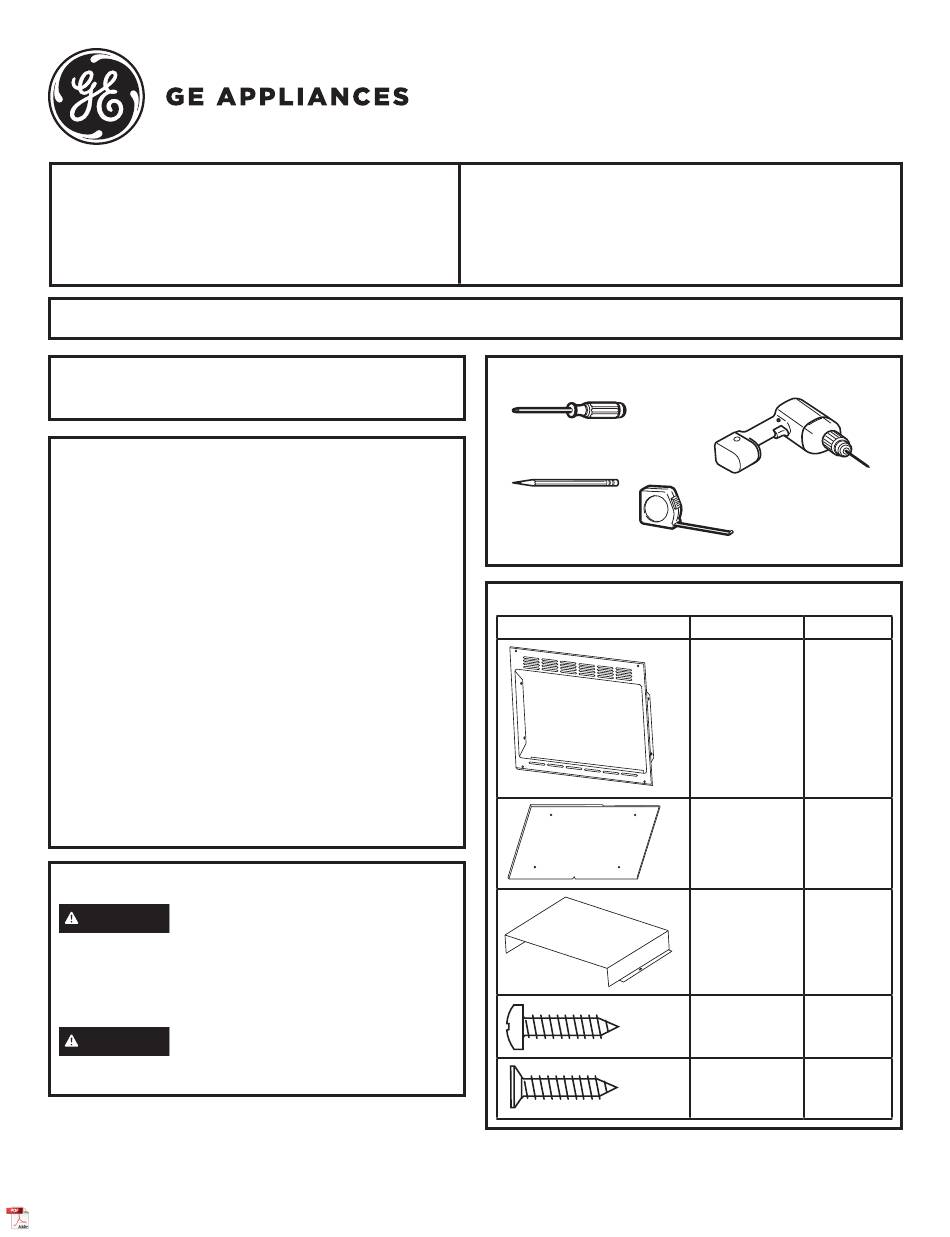

TOOLS YOU WILL NEED
#2 Phillips
screwdriver
Pencil
Tape measure
PARTS INCLUDED
Part Image
⁄
Drill with
7
" bit or #35
64
Part Name
Quantity
Trim
1
Duct Bottom
1
Duct Upper
1
Phillips Pan
8
Head Sheet
Metal Screws
Phillips Flat
8
Head Wood
Screws
31-7000180 Rev. 1 06-22 GEA
Advertisement
Table of Contents
Related Manuals for GE JX1095STBB
Summary of Contents for GE JX1095STBB
- Page 1 Installation Built-In Trim Kits Instructions Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at: GEAppliances.com MODELS TOOLS YOU WILL NEED JX1095STBB, JX1095STSS #2 Phillips screwdriver BEFORE YOU BEGIN Read these instructions completely and carefully. ⁄ Drill with ”...
-
Page 2: Grounding Instructions
Installation Instructions CUTOUT DIMENSIONS GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an Minimum Maximum electrical short circuit, grounding reduces the risk of 13 3⁄8” (340 mm) 13 1⁄2” (344 mm) Height electric shock by providing an escape wire for the 20”... - Page 3 Installation Instructions 1 MARK CENTER LINE FOR 3 REVIEW THE TRIM DUCT BOTTOM Take Trim and check it. The top is recogized as the wider side with 24 vent holes and the bottom has 6 Locate the center line of the front of the cabinet vent holes.
- Page 4 Installation Instructions 7 MOUNT THE MICROWAVE 5 MOUNT THE DUCT UPPER OVEN ASSEMBLY Mount the Duct Upper on the on top of the outer case of the Microwave cover. Use the remaining 4 Sheet Mount the Assembly to the Cabinet. Using the Trim as Metal Screws to fasten the Duct Upper at points a template, drill pilot holes at the 4 screw holes.
-
Page 5: Instructions D'installation
Instructions Trousses de garniture intégrées d’installation Des questions? Appelez le Centre de réponse GE au 800.626.2000 ou visitez notre site Web à l’adresse suivante : GEAppliances.com MODÈLES OUTILS DONT VOUS AUREZ BESOIN JX1095STBB, JX1095STSS Tournevis Phillips AVANT DE COMMENCER no 2 Veuillez lire toutes ces instructions attentivement. -
Page 6: Instructions De Mise À La Terre
Instructions d’installation DIMENSIONS DE L’OUVERTURE INSTRUCTIONS DE MISE À LA TERRE Minimum Maximum Cet appareil doit être mis à la terre. Dans l’éventualité 13 3⁄8 po (340 mm) 13 1⁄2 po (344 mm) d’un court-circuit, la mise à la terre réduit les Hauteur risques de choc électrique en procurant une voie 20 po (510 mm) - Page 7 Instructions d’installation 1 MARQUER LA LIGNE CENTRALE 3 EXAMINER LA GARNITURE POUR LE BAS DU CONDUIT Prenez la garniture et vérifiez-la. Le haut est reconnu comme le côté plus large avec 24 trous d’aération et Repérez la ligne centrale de l’avant de la découpe de le bas comporte 6 trous d’aération.
- Page 8 Instructions d’installation 7 MONTER L’ASSEMBLAGE DU 5 MONTER LA PARTIE FOUR À MICRO-ONDES SUPÉRIEURE DU CONDUIT Montez la partie supérieure du conduit sur le dessus Montez l’assemblage sur l’enceinte. En utilisant la du boîtier externe du couvercle du four à micro-ondes. garniture comme gabarit, percez des trous de guidage Utilisez les 4 vis à...
-
Page 9: Instrucciones De Instalación
Instrucciones Kits Ajustables para Empotrar de Instalación ¿Preguntas? Llame a un Centro de Consultas de GE comunicándose al 800.626.2000 o visite nuestro sitio web en: GEAppliances.com HERRAMIENTAS QUE NECESITARÁ MODELOS JX1095STBB, JX1095STSS Destornillador Phillips nº2 ANTES DE COMENZAR Taladro con broca de 7⁄64” o nº 35 Lea estas instrucciones en su totalidad y atentamente. -
Page 10: Instrucciones De Conexión A Tierra
Instrucciones de Instalación INSTRUCCIONES DE CONEXIÓN A DIMENSIONES DEL RECORTE TIERRA Máximo Mínimo Este electrodoméstico deberá estar conectado a tierra. En 13 3⁄8” (340 mm) 13 1⁄2” (344 mm) caso de que se produzca un cortocircuito, la conexión a tierra Altura reduce el riesgo de descarga eléctrica, brindando un cable 20”... - Page 11 Instrucciones de Instalación 1 MARQUE LA LÍNEA CENTRAL DE 3 REVISE EL MARCO LA PARTE INFERIOR DEL Tome el Marco y realice un control de éste. La parte CONDUCTO superior se reconoce por su lado más ancho con 24 agujeros de ventilación y la parte inferior con 6 Ubique la línea central del frente del recorte del agujeros de ventilación.
- Page 12 Instrucciones de Instalación 7 MONTE EL ENSAMBLE DEL 5 MONTE EL CONDUCTO MÁS HORNO MICROONDAS ARRIBA Monte el Conducto Más Arriba en la parte superior Monte el Ensamble en el Gabinete. Use el Marco de la carcasa exterior de la tapa del Microondas. como plantilla, perfore agujeros piloto en los 4 Use los 4 Tornillos para Plancha Metálica restantes agujeros de los tornillos.
