RKC800 -- XLR Connector Kit
General Description
Use the Shure RKC800 XLR Connector Kit to connect XLR and phono pin connectors to Shure SCM810 and
SCM800 Microphone Mixers. The RKC800 occupies a single rack space in a standard 483 mm (19-inch) width au-
dio equipment rack. Its front panel contains eight latching XLR input connectors, two XLR output connectors, and
gold-plated Aux In and Aux Out (two each) phono jacks. Input connectors from the RKC800 are hardwired, and
Aux and Line Out connectors contain resistive circuitry (see Figure 2). Connecting cables are 61 cm (24 in.).
Installation
To mount an RKC800 adjacent to an SCM810 or SCM800 mixer in an audio equipment, proceed as follows.
1. Mount the RKC800 in the rack below the mixer using the supplied rack-mount screws and washers.
2. Set the mixer MIC/LINE switches to the appropriate level.
3. Connect the RKC800's eight block terminal connectors (at the ends of the eight cables) to the matching termi-
nal block connectors on the mixer's rear panel. See Figure 1.

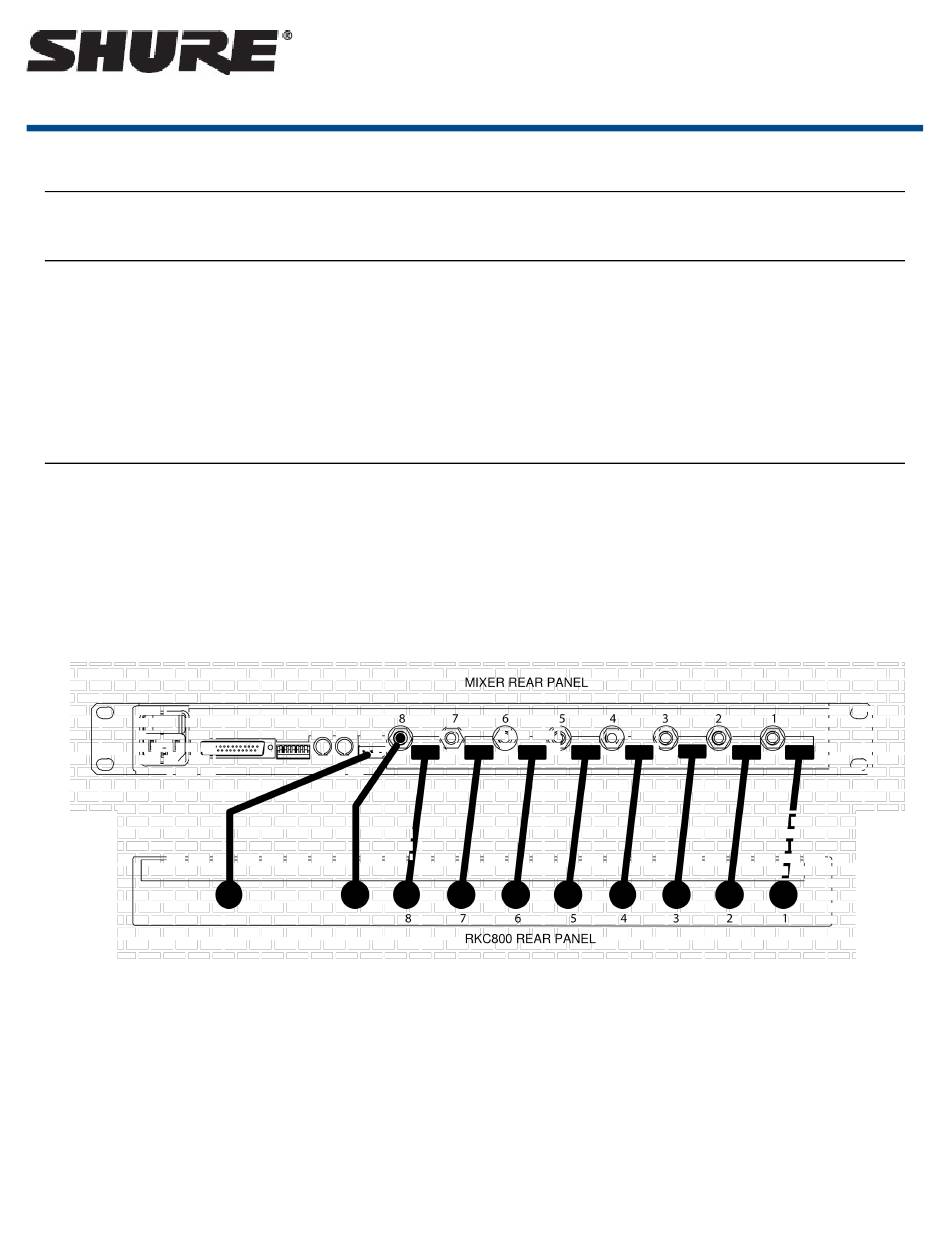

FIGURE 1: REAR PANEL CONNECTIONS
4. To use the AUX IN jacks, set the mixer's rear-panel AUX/ D.O./D.O. switch (located behind the LINE OUTPUT
connector) to AUX, and connect the RKC800 AUX IN cable to the mixer's Channel 8/AUX IN jack.
5. Connect the RKC800 LINE OUT cable to the mixer's LINE OUTPUT terminal block connector.
