Vector GSM-DSA Quick Start Manual

GSM-DSA Gateway Server with embedded DGLUX5
General description

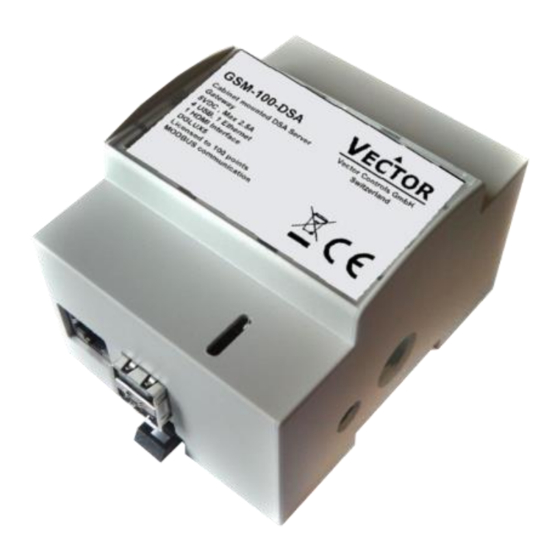

Vector GSM-DSA is a programmable HMI-Server
with fully embedded DGLUX5. It features multiple
protocols, uses flash memory and runs on Linux on
a DSA framework.
The GSM-DSA features a 1.2 GHz 64-bit quad-core
ARMv8 CPU with an 802.11n wireless LAN, 1 GB
RAM and 4 USB ports.
Programming is browser based, drag and drop and
easy to learn.
Meanwhile it also provides advanced functionality
such as supervision, data logging, alarming,
scheduling and network management functions
with internet connectivity and web-serving
capabilities.
Application / Operational area
The Vector GSM-DSA is designed as a high power server for connection to Ethernet bus systems.
The device is designed for control and regulation of building services. Via the integrated Ethernet bus system, the
integration in modern buildings is used efficiently in central as well as in decentralized information focuses. Across the
broad range of connectable Vector communicating devices, the scalable controllers can be extended at any time
concerning the individual project requirements.
About the free programmability a maximum of flexibility and comfort is guaranteed. As a result, the projects are ideally
suited to the particular requirements both in the modernization of existing installations as well as for implementing
current and future automation projects.
DGLUX5
DGLUX5 is a modern toolset to design real-time, data-driven applications and dashboards with drag and drop
configuration. It runs on a browser and enables faster communication through real-time, data-driven dashboards for web,
desktop and mobile devices. It is cost effective because, there is no special software or tool needed, no PC required on
site and no certification classes necessary.
Licensing
Licensing is based solely on data being utilized in the interfaces built with DGLux5. This is achieved by keeping track of
the number of topics a DGLux5 project employs when end users navigate through various pages and components. All
DGLux5 licenses include unlimited user seats and projects on a single host device (embedded, personal or server).
Topics
A topic is defined as a unique interaction with the server such as a subscription to a data point, an executed query, or a
command like a set value. For example: a page with 3 gauges showing one unique value per gauge, a chart displaying
two trends, and a graphic of a fan displaying and allowing control of fan status, would equate to 7 topics.
Ordering
Item Item code
GSM-DSA 40-12 0007
GSM-100-DSA 40-12 0008
GSM-1500-DSA 40-12 0009
Doc: 70-00-0667, V1.0, Date: 20170512
Subject to alteration
DGLUX5 License Description
Gateway Server, 10/100 Ethernet,
100 topics
Wi-Fi 2.4 GHz 802.11n, 4 x USB 2.0 ports
1500 topics
© Vector Controls GmbH, Switzerland
www.vectorcontrols.com
GSM-DSA Gateway Server
Overview
Page 1
