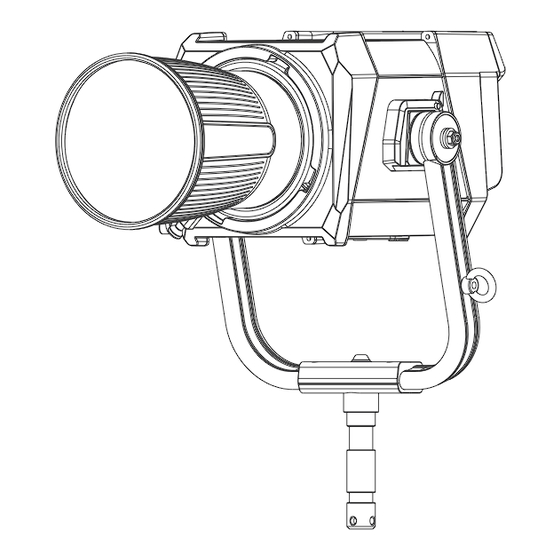

Evoke 900C

LED RGBLAC Spot Light

USER MANUAL

Guangdong NanGuang Photo&Video Systems Co., Ltd.

Summary of Contents for NANLUX Evoke 900C

Page 1 Evoke 900C LED RGBLAC Spot Light USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd.
Page 2 Thank you for purchasing Nanlux product-Eovke 900C! Evoke 900C is a high power output, full color spot light with RGBLAC color mixing technology, owning fully adjustable color temperature ranging from 1800K-20000K (G/M±200). It supports CCT, Advanced HSI, XY, RGBW, GEL and EFFECT lighting modes, and on board control, wire control, APP, DMX/RDM, LumenRadio CRMX and Art-Net, sACN controlling modes.
Page 3 Evoke 900C LED RGBLAC Spot Light Product Diagram Technical Data Rated Power: 940W Input: DC 48V/18.75A Max AC 100-240V 50/60Hz Color Temperature: 1800K-20000K (G/M±200) CRI: Average 96 TLCI: Average 96 WWW.NANLUX.COM...
Page 4 Product Details 3. NL Mount 4. Quick Release Device 5. Lock Catch 6. Eye Bolt 7. Yoke 8. COB Protective Cap 1. Wire Control 2. USB Port Socket WWW.NANLUX.COM...
Page 5 15. Fixture Body Handle 16. Adjustable Handle 9. Display 10. Buttons 11. Left Knob 17. Right Knob 12. Middle Knob 13.LAN1 18. DMX IN 19. DMX OUT 14.LAN2 20. DC IN WWW.NANLUX.COM...
Page 6 21. Power Supply Handle 26. Reflector 22. AC Power Input Socket 24. DC Power Output Socket 23. Power Switch 25. Quick Release Plate WWW.NANLUX.COM...
Page 7 23. Power switch: To turn on/off the fixture. 24. DC power output socket: For connecting the fixture to the power supply with DC cable. 25. Quick release plate: For mounting the quick release clamp. 26. Reflector: For concentrating light to improve the central illumination. WWW.NANLUX.COM...
Page 8 Includes Evoke 900C × 1 DC Connection Cable × 1 AC Power Cable × 1 Power Supply × 1 Yoke × 1 CC-ST-EV900C Trolley Case × 1 Reflector × 1 AS-CP-QR-EV × 1 Remote Controller × 1 USB Flash Drive × 1 User Manual ×...
Page 9 WS-RC-C2 Remote Controller × 1 Reflector × 1 User Manual × 1 DC Connection Cable 7.5M × 1 AC Power Cable 6M × 1 Evoke 900C FL-YK-KIT Flight Case Kit Evoke 900C × 1 AS-CP-QR-EV × 1 Yoke × 1 FL-35YK Lens × 1 Power Supply ×...
Page 10 Evoke 900C Flight Case Kit Evoke 900C × 1 AS-CP-QR-EV × 1 Yoke × 1 USB Flash Drive × 1 Power Supply × 1 WS-RC-C2 Remote Controller × 1 Reflector × 1 User Manual × 1 DC Connection Cable 7.5M × 1 CC-EV1200-FT Flight Case ×...
Page 11 Usage 1. Connection Between Light Fixture and Power Supply WWW.NANLUX.COM...
Page 12 Firmly hold the yoke in place with one hand, and pull on both sides of the fixture. installing the quick release plate, then insert the quick release lever with the other hand to lock the them into the mount. plate. WWW.NANLUX.COM...
Page 13 Press the quick release lever lock catch of the fixture the fastening screws on the light stand. from the heavy-duty light stand first and lay it down on both sides, then release the quick release lever to on flat ground. remove the fixture. WWW.NANLUX.COM...
Page 14 The installation of the plate mounts to the plates of the yoke. yoke is completed. (Note: Please adjust the plate to right directions when installing the quick release plate, then insert them into the mount.) WWW.NANLUX.COM...
Page 15 (Note: if the rotation is not smooth, pull the lock catch of the mount and rotate the reflector at the same time.) When removing the reflector, pull the lock catch of the mount, rotate the reflector anticlockwise and remove. WWW.NANLUX.COM...
Page 16 Align the quick release plate on the power supply with the quick release mount Press the lock catch on the clamp to remove the power supply from the light stand. on the clamp, a click sound will be heard when the power supply is fastened in place. WWW.NANLUX.COM...
Page 17 Remote Control ·Evoke 900C supports remote control via DMX/RDM, 2.4G, LumenRadio, Art-Net & sACN, and includes a built-in Bluetooth module as well. ▲The ADDRESS needs to be set before operating the remote control via DMX/RDM, 2.4G, LumenRadio, Art-Net & sACN.
Page 18 Rotate the ''right knob'' to select address number and press the ''right knob'' to set. NOTE: Evoke 900C has 25 channels, for multiple lights remote control via DMX/RDM and LumenRadio, the address of the first light should be set in 001, the second one in 023, the third one in 045, and so on.
Page 19 Rotate the ''right knob'' to DMX REDUCED CHANNELS, and press the ''right knob'' to enter the tertiary menu. MENU MENU SMART SMART CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the ''right knob'' to select ON or OFF and press the ''right knob'' to set. WWW.NANLUX.COM...
Page 20 DMX MODE DMX REDUCED CHANNELS DMX DIMMING CURVE DMX SMOOTHING CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the ''right knob'' to DMX SMOOTHING and press the ''right knob'' to enter the tertiary menu. WWW.NANLUX.COM...
Page 21 The fixture comes with 5-pin XLR plug/socket. lf a 3-pin XLR plug is used, please follow the instruction below. Five Pin Three Pin Pin 1:GND(SCREEN) Pin 1:GND(SCREEN) Pin 2:Signal(-) Pin 2:Signal(-) Pin 3:Signal(+) Pin 3:Signal(+) Pin 4:N/C Pin 5:N/C WWW.NANLUX.COM...
Page 22 PIN 2 PIN 3 2.3. ADDRESS Setting. 2.4. Refer to the DMX reference guide from www.nanlux.com and control the light via DMX/RDM console. (For specific operation methods, please refer to the DMX/RDM console operation manual.) 2.5. Note: For technical data, please download from https://www.nanlux.com/en/h-col-274.html.
Page 23 4. WIRELESS CONTROL 4.1 BLUETOOTH Setting The Evoke 900C has built-in Bluetooth module, so it can be controlled via Bluetooth connection. MENU SMART MENU SMART ADDRESS/DMX BLUETOOTH SETTINGS WIRELESS CONTROL 2.4G SETTINGS NETWORK SETTINGS LUMENRADIO SETTINGS Art-Net & sACN SETTINGS...
Page 24 Rotate the "right knob" to RESET BLUETOOTH, and press the "right knob" to enter the next level menu. MENU SMART MENU SMART RESET BLUETOOTH BACK RESET CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to select RESET, and press the "right knob" to set. WWW.NANLUX.COM...
Page 25 4.2 2.4G Setting ·Evoke 900C can be remotely controlled by 2.4G remote controller or by NANLINK APP via WS-TB-1 transmitter box. ① Note: 2.4G remote controller and NANLINK transmitter box are sold separately. ② The fixture supports 2.4G wireless protocol V1.0 and V2.0. The fixture should be set in V2.0 while using WS-RC-C2 remote controller, set in V1.0 while using other remote controllers.
Page 26 Rotate the "right knob" to WIRELESS PROTOCOL, and press the "right knob" to enter the next level menu. MENU SMART MENU SMART 2.4G WIRELESS PROTOCOL V1.0 V2.0 CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to select V1.0 or V2.0, and press the "right knob" to set. WWW.NANLUX.COM...
Page 27 4.3 LUMENRADIO Setting Evoke 900C has built-in CRMX TIMOTWO module, enabling it to receive and send CRMX wireless DMX signals. The specific operations are as below: press MENU to enter the interface. MENU SMART ADDRESS/DMX WIRELESS CONTROL NETWORK SETTINGS Art-Net & sACN SETTINGS...
Page 28 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to select ON or OFF, and press the "right knob" to set. CRMX wireless DMX signals can be received and transmitted when the LUMENRADIO is set to be on. WWW.NANLUX.COM...
Page 29 LUMENRADIO ON/OFF RADIO MODE DO YOU WANT TO UNLINK? UNLINK CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to UNLINK, and press the "right knob" to enter the next level menu. WWW.NANLUX.COM...
Page 30 LUMENRADIO ON/OFF RECEIVER MODE RADIO MODE TRANSMITTER MODE UNLINK CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to RADIO MODE, and press the "right knob" to enter the next level menu. WWW.NANLUX.COM...
Page 31 Rotate the "right knob" to RF OUTPUT POWER, and press the "right knob" to enter the next level menu. MENU SMART MENU SMART 20dBm 16dBm 11dBm 5dBm CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to select 20dBm, 16dBm, 11dBm or 5dBm, and press the "right knob" to set. WWW.NANLUX.COM...
Page 32 Rotate the "right knob" to select LINK, and press the "right knob" to set. ⑤ UNLINK Setting When the fixture needs to stop transmitting the CRMX wireless DMX signal, set the fixture to UNLINK. The setting method is the same as the UNLINK setting on P28. WWW.NANLUX.COM...
Page 33 PRESS “MENU” TO RETURN Rotate the "right knob" to select ON or OFF, and press the "right knob" to set. When all wirelss functions are set to be on, all the Bluetooth, 2.4G and LUMENRADIO settings will be in the ON state. WWW.NANLUX.COM...
Page 34 Rotate the "right knob" to Art-Net / sACN STATE, and press the "right knob" to the tertiary menu. MENU SMART MENU SMART Automatic Art-Net sACN CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to select Automatic, Art-Net, sACN or OFF, Press the "right knob" to set. WWW.NANLUX.COM...
Page 35 Rotate the "right knob" to select the needed Art-Net Universe value. MENU SMART MENU SMART Art-Net Universe NET: 0 SUB: 0 UNI: 1 CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Press the "right knob" to set. WWW.NANLUX.COM...
Page 36 PRESS “MENU” TO RETURN Rotate the "right knob" to select the needed sACN Universe value. MENU SMART MENU SMART sACN Universe CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Press the "right knob" to set. WWW.NANLUX.COM...
Page 37 1. Make sure the power is off, then connect the power supply with cable and switch it on. If the power indicator is on that means the power input is normal, the screen will display "NANLUX". 2. MODE button: Press the MODE button to enter the lighting mode interface. (The lighting modes include CCT, Advanced HSI, XY Coordinates, RGBW, GEL and Effect modes.)
Page 38 SMART LIGHTING MODE SMART CCT MODE 100.0% 5600K ADV.HSI MODE XY COORDINATES RGBW MODE GEL MODE EFFECT MODE CH: 512 CH: 512 MODE MENU PRESET LOCK Press the MODE button again to return to the lighting mode list interface. WWW.NANLUX.COM...
Page 39 LIGHTING MODE SMART CCT MODE SMART CCT MODE 100.0% 5600K ADV.HSI MODE XY COORDINATES RGBW MODE GEL MODE EFFECT MODE CH: 512 CH: 512 Rotate the "right knob" to CCT MODE, and press the "right knob" to enter the interface. WWW.NANLUX.COM...
Page 40 Note: In other modes, the CCT adjustment range is the same as in CCT mode. Press the “middle knob” to promptly switch among 2700K, 3200K, 4300K, 5600K, 6500K, 7500K, 8500K, 10000K, 12000K, 14000K, 16000K, 18000K and 20000K, which can be adjusted circularly. WWW.NANLUX.COM...
Page 41 Advanced HSI Mode Setting: rotate the "left knob" to adjust the brightness, rotate the "right knob" to select HUE (range: 1-360) , SAT (range: 0%-100%) or CCT, and rotate the "middle knob" to set the parameters. ADV.HSI MODE SMART ADV.HSI MODE SMART 0.0% 0.1% 5600K 5600K CH: 512 CH: 512 Rotate the "left knob" to adjust the brightness. WWW.NANLUX.COM...
Page 42 XY Coordinates Mode Setting: rotate the "left knob" to adjust the brightness, rotate the "middle knob" to adjust the X coordinate value, rotate the "right knob" to adjust the Y coordinate value. By adjusting X and Y coordinate values, Evoke 900C will provide light corresponding to the colors in the CIE1931 color space.
Page 43 RGBW Mode Setting: rotate the "left knob" to adjust the brightness, rotate the "right knob" to select red, green, blue or white, and rotate the "middle knob" to adjust the corresponding value, range from: 0-255, for both red, green, blue and white option. RGBW MODE RGBW MODE SMART SMART 100.0% 99.9% CH: 512 CH: 512 Rotate the "left knob" to adjust the brightness. WWW.NANLUX.COM...
Page 44 Gel Mode Setting: rotate the "left knob" to adjust the brightness, rotate the "middle knob" to choose 3200K or 5600K, and rotate the "right knob" to select the needed gel. GEL MODE SMART GEL MODE SMART 100.0% 99.9% Double CTB Double CTB 5600K 5600K CH: 512 CH: 512 Rotate the "left knob" to adjust the brightness. WWW.NANLUX.COM...
Page 45 Rotate the "right knob" to select the needed gel. 2.6 Effect Mode Evoke 900C has built-in effects including: HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding. EFFECT MODE...
Page 46 DIM: 100.0% EFFECT: HUE LOOP HUE1: HUE2: 360 SAT:100% HUE1: HUE2: 360 SAT:100% SPEED: 8s CYCLE: TWO WAY SPEED: 8s CYCLE: TWO WAY ADD-ON: OFF ADD-ON: OFF CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 47 (3) When the ADD-ON is RANDOM FLASH, there is flash effect in the HUE loop, flash can be set by adjusting the FLASH SPEED (range: 1-100). (4) When the ADD-ON is PULSE, there is pulse effect in the HUE loop, pulse can be set by adjusting the PULSES/MIN (range: 1-240). WWW.NANLUX.COM...
Page 48 Note: (1) In CCT LOOP, the setting method and range of CYCLE and ADD-ON are the same as in HUE LOOP. (2) When the cycle mode is in one way or two way, press the "right knob" to cycle from CCT 1. (3) When the cycle mode is in reverse, press the "right knob" to cycle from CCT 2. WWW.NANLUX.COM...
Page 49 There are four add-on effects in INT loop: OFF, FLASH, RANDOM FLASH and PULSE. Note: (1) The setting method and range of CYCLE and ADD-ON are the same as in HUE LOOP. (2) In INT loop, press the "right knob" to restart cycle. WWW.NANLUX.COM...
Page 50 ·When the color is HSI, rotate the "right knob" to select HUE, SAT, INTERVALS, FLASH RATIO or PAUSE, and rotate the "middle knob" to set the parameters (same setting method as in CCT). Note: Pause includes ON and OFF. When pause is on, the fixture won't flash. WWW.NANLUX.COM...
Page 51 Rotate the "middle knob" to set the parameters. ·When the color is HSI, rotate the "right knob" to select HUE, SAT or PULSES/MIN (range:1-240), and rotate the "middle knob" to set the parameters (same setting method as in CCT). WWW.NANLUX.COM...
Page 52 CCT: 5600K TRIGGER: MANUAL CCT: 5600K FLASH TIMES: 3 - 6 FLASH TIMES: 3 - 6 INTERVAL RANGE: 2s - 6s PAUSE: OFF CH: 512 CH: 512 PRESS “SELECT” TO TRIGGER Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 53 Rotate the "middle knob" to set the parameters. EFFECT MODE SMART DIM: 100.0% EFFECT: STORM TRIGGER: MANUAL CCT: 5700K FLASH TIMES: 3 - 6 CH: 512 PRESS “SELECT” TO TRIGGER Press the "right knob" to trigger the storm effect. WWW.NANLUX.COM...
Page 54 SMART DIM: 100.0% EFFECT: POLICE CAR DIM: 100.0% EFFECT: POLICE CAR COLOR: RED & BLUE COLOR: BLUE & WHITE MODE: DOUBLE MODE: DOUBLE SPEED: 50 SPEED: 50 CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 55 Rotate the "middle knob" to set the parameters. ·When the color is HSI, rotate the "right knob" to select HUE, SAT, HUE SHIFT (range: 0-180), SPEED (range: 1-100), or DIMMING RANGE, and rotate the "middle knob" to set the parameters (same setting method as in CCT). WWW.NANLUX.COM...
Page 56 Rotate the "right knob" to select CCT, G/M or SPEED. EFFECT MODE SMART EFFECT MODE SMART DIM: 100.0% EFFECT: PAPARAZZI DIM: 100.0% EFFECT: PAPARAZZI CCT: 5600K G/M: 0 CCT: 5700K G/M: 0 SPEED: 50 SPEED: 50 CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 57 ·When the color is HSI, rotate the "right knob" to select HUE, SAT, SPEED (range: 1-100), HUE SHIFT (range: 0-180), DIMMING RANGE or FLICKER, and rotate the "middle knob" to set the parameters (same setting method as in CCT). Note: Flicker includes ON and OFF. When the flicker is on, there is flicker in CANDLE/FIRE effect. WWW.NANLUX.COM...
Page 58 EFFECT MODE SMART EFFECT MODE SMART DIM: 100.0% EFFECT: DISCO DIM: 100.0% EFFECT: DISCO COLOR: DEFAULT AMOUNT: COLOR: DEFAULT AMOUNT: SPEED: 50 SAT: 100% SPEED: 50 SAT: 100% CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 59 EFFECT: DISCO DIM: 100.0% EFFECT: DISCO COLOR: MANUAL AMOUNT: COLOR: MANUAL AMOUNT: SPEED: 50 SAT: 100% SPEED: 50 SAT: 100% C1:0 C2:30 C3:60 C1:0 C2:30 C3:60 C4:90 CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 60 Rotate the "middle knob" to set the parameters. ·When the color is HSI, rotate the "right knob" to select HUE, SAT, INTENSITY (range: 1-100) or SPEED (range: 1-100), and rotate the "middle knob" to set the parameters (same setting method as in CCT). WWW.NANLUX.COM...
Page 61 EFFECT: FIREWORK COLOR: MANUAL AMOUNT: COLOR: MANUAL AMOUNT: SPEED: 50 DECAY: 50 SAT: 100% SPEED: 50 DECAY: 50 SAT: 100% C1:0 C2:30 C3:60 C1:0 C2:30 C3:60 C4:90 CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 62 SMART DIM: 100.0% EFFECT: FIREWORK DIM: 100.0% EFFECT: FIREWORK COLOR: DEFAULT AMOUNT: COLOR: DEFAULT AMOUNT: SPEED: 50 DECAY: 50 SAT: 100% SPEED: 50 DECAY: 50 SAT: 100% CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 63 EFFECT: FIREWORK COLOR: CCT CCT: 5600K G/M: 0 COLOR: CCT CCT: 5700K G/M: 0 CCT SHIFT: 600K CCT SHIFT: 600K SPEED: 50 DECAY: 50 SPEED: 50 DECAY: 50 CH: 512 CH: 512 Rotate the "middle knob" to set the parameters. WWW.NANLUX.COM...
Page 64 ·When the trigger is AUTO and color is HSI, rotate the "right knob" to select HUE, SAT, SPEED (range: 1-100) or DECAY (range: 1-100), and rotate the “middle knob” to set the parameters (same setting method as in CCT). WWW.NANLUX.COM...
Page 65 ·When the trigger is MANUAL and color is HSI, rotate the "right knob" to select HUE, SAT or DECAY (range: 1-100), and rotate the “middle knob” to set the parameters. Press the "right knob" to trigger explosion effect (same setting method as in CCT). WWW.NANLUX.COM...
Page 66 (same setting method as in CCT). Note: Pause includes ON and OFF. When the pause is on, the welding effect will suspend. ·Lighting effects and additional functionality will be probably upgraded with later firmware version. Detailed information is subject to the latest firmware instruction. WWW.NANLUX.COM...
Page 67 SUBNET MASK Art-Net & sACN SETTINGS GATEWAY ADDRESS FAN CONTROL MAC ADDRESS ROTATE SCREEN CH: 512 CH: 512 PRESS “MENU” TO RETURN Rotate the "right knob" to NETWORK SETTINGS, and press the "right knob" to enter the secondary menu. WWW.NANLUX.COM...
Page 68 Rotate the "right knob" to select the needed network mode, and press the "right knob" to set. Note: When DHCP or Art-Net is selected, the IP ADDRESS, SUBNET MASK and GATEWAY ADDRESS will be set automatically. When MANUAL is selected, the IP ADDRESS, SUBNET MASK and GATEWAY ADDRESS can be set manually. WWW.NANLUX.COM...
Page 69 Rotate the "right knob" to the bytes, and rotate the "middle knob" to select the needed IP address. MENU SMART MENU SMART IP ADDRESS 196 . . 0 . 0 CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Press the "right knob" to set. WWW.NANLUX.COM...
Page 70 Rotate the "right knob" to the subnet, and rotate the "middle knob" to select the needed subnet mask. MENU SMART MENU SMART SUBNET MASK 255 . . 255. 0 CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Press the "right knob" to set. WWW.NANLUX.COM...
Page 71 Rotate the "right knob" to the bytes, and rotate the "middle knob" to select the needed gateway address. MENU SMART MENU SMART CATEWAY ADDRESS 192 . . 0. 100 CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Press the "right knob" to set. WWW.NANLUX.COM...
Page 72 FULL SPEED NETWORK SETTINGS LOW SPEED Art-Net & sACN SETTINGS FAN CONTROL ROTATE SCREEN CH: 512 CH: 512 PRESS “MENU” TO RETURN Rotate the "right knob" to FAN CONTROL, and press the "right knob" to enter the secondary menu. WWW.NANLUX.COM...
Page 73 Rotate the "right knob" to the ROTATE SCREEN, and press the "right knob" to enter the secondary menu. MENU SMART DO YOU WANT ROTATE SCREEN? CH: 512 PRESS “MENU” TO RETURN Rotate the "right knob" to select YES or NO, and press the ''right knob'' to set. WWW.NANLUX.COM...
Page 74 NETWORK SETTINGS Art-Net & sACN SETTINGS FAN CONTROL ROTATE SCREEN SCREEN BRIGHTNESS BUTTON BACKLIGHT CH: 512 CH: 512 PRESS “MENU” TO RETURN Rotate the ''right knob'' to BUTTON BACKLIGHT, and press the ''right knob'' to enter the secondary menu. WWW.NANLUX.COM...
Page 75 Rotate the ''right knob'' to LANGUAGE, and press the ''right knob'' to enter the secondary menu. MENU MENU SMART SMART ENGLISH 简体中文已设置 CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the ''right knob'' to select ENGLISH or , and press the ''right knob'' to set. 简体中文 WWW.NANLUX.COM...
Page 76 3.10 FIRMWARE UPDATE Put the two firmware files of Evoke 900C into the root directory of the USB drive (ensure the firmware versions match), and connect the USB drive to the USB port. MENU SMART MENU SMART FAN CONTROL ROTATE SCREEN...
Page 77 Rotate the "right knob" to RESET ALL SETTINGS, and press the ''right knob'' to enter the secondary menu. MENU SMART MENU SMART RESET ALL SETTINGS OF THIS LIGHT? CH: 512 CH: 512 PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to select YES or NO, and press the ''right knob'' to set. WWW.NANLUX.COM...
Page 78 ﬁrmware, FIRMWARE UPDATE and choose the FIRMWARE UPDATE option in the menu. RESET ALL SETTINGS www.nanlux.com VERSION CH: 512 CH: 512 PRESS “MENU” TO RETURN Rotate the "right knob" to VERSION, and press the "right knob" to check the current version.
Page 79 Long press the PRESET button to enter the preset interface, to name the settings and save. EFFECT MODE SMART PRESET SMART DIM: 100.0% EFFECT: FIREWORK COLOR: MANUAL AMOUNT: 3 SPEED: 50 DECAY: 50 SAT: 100% C1:0 C2:30 C3:60 SPACE SAVE CANCEL CH: 512 CH: 512 MODE MENU PRESET LOCK WWW.NANLUX.COM...
Page 80 CH: 512 CH: 512 Press the "right knob" to set. PRESET SMART PRESET SMART MANAGE PRESET... SPACE CANCEL SAVE CH: 512 CH: 512 LONG PRESS “PRESET” TO Rotate the "right knob" to SAVE, and press the "right knob" to confirm. WWW.NANLUX.COM...
Page 81 MENU PRESET LOCK Press the PRESET button to enter the interface. PRESET SMART PRESET SMART MANAGE PRESET... MANAGE PRESET... CH: 512 CH: 512 LONG PRESS “PRESET” TO LONG PRESS “PRESET” TO Rotate the "right knob" to select preset settings. WWW.NANLUX.COM...
Page 82 SMART PRESET SMART DIM: 100.0% EFFECT: FIREWORK COLOR: DEFAULT AMOUNT: 9 MANAGE PRESET... SPEED: 50 DECAY: 50 SAT: 100% CH: 512 CH: 512 LONG PRESS “PRESET” TO MODE MENU PRESET LOCK Press the PRESET button to enter the interface. WWW.NANLUX.COM...
Page 83 Press the "right knob" to EXIT MANAGE. PRESET SMART PRESET SMART EXIT MANAGE... EXIT MANAGE... CH: 512 CH: 512 LONG PRESS “PRESET” TO LONG PRESS “PRESET” TO Rotate the "right knob" to select rename or delete the saved preset setting. WWW.NANLUX.COM...
Page 84 Press the "right knob" to select "×". MENU SMART PRESET SMART EXIT MANAGE... CONFIRM DELETING “2” ? CH: 512 CH: 512 PRESS “MENU” TO RETURN LONG PRESS “PRESET” TO Rotate the "right knob" to YES, and press the "right knob" to delete. WWW.NANLUX.COM...
Page 85 Long press the LOCK button to lock the settings, at this moment, any operation or adjustment on the button and knob will not change the current setting. Long press the LOCK button again to unlock. CCT MODE SMART CCT MODE SMART 100.0% 5600K 100.0% 5600K locked CH: 512 CH: 512 MODE MENU PRESET LOCK 6. When the fixture is not in use, please turn off the power switch. WWW.NANLUX.COM...
Page 86 LUMENRADIO and set it in RECEIVER MODE. Optional Purchase: FL-35YK Fresnel Lens SB-NLM-120-PR Parabolic Softbox SB-NLM-100-S Square Softbox RF-NLM-26 Reflector SB-NLM-150-O Octagonal Softbox RF-NLM-60 Reflector LT-NLM-120 Lantern Softbox RF-NLM-26/60-KIT 26°& 60°Reflector Kit SB-NLM-150-PR Parabolic Softbox AS-PJA-NLM NL Mount Projection Adapter WWW.NANLUX.COM...
Page 87 Nanlux Website Nanlink App This manual has been compiled according to the rigorous testing for Nanlux products. Product designs are subject to change without prior notice. The latest version of the manual for this product is downloadable at www.nanlux.com. WWW.NANLUX.COM...
Page 88 Certification Made in China WWW.NANLUX.COM...
Page 89 WWW.NANLUX.COM 0754-85751187 info@nanlux.com 0754-85300887 Dongli Section, Highway 324, Chenghai, Shantou City, Guangdong Province, China...
