Cateye MICRO Wireless CC-MC200W - Cyclocomputer Manual

Before using the computer, please thoroughly read this manual and keep it for future reference.
Please visit our website, where detailed instructions with movies are available and the instruction manual can be downloaded.

• Do not concentrate on the computer while riding. Ride safely!
• Install the magnet, sensor, and bracket securely. Check these periodically.
• If a child swallows a battery, consult a doctor immediately.
• Do not leave the computer in direct sunlight for a long period of time.
• Do not disassemble the computer.
• Do not drop the computer to avoid malfunction or damage.
• When using the computer installed on the bracket, change the MODE by pressing on the four dots below the screen, or by pressing on the SSE simultaneously, to start or stop the timer. Pressing hard on other areas may result in malfunction or damage to the computer.
• Be sure to tighten the dial of the FlexTight™ bracket by hand. Tightening it strongly using a tool, etc. may damage the screw thread.
• When cleaning the computer, bracket and sensor, do not use thinners, benzene, or alcohol.
• Dispose of used batteries according to local regulations.
• LCD screen may be distorted when viewed through polarized sunglass lenses.

Wireless Sensor

The sensor was designed to receive signals within a maximum range of 70 cm, to reduce chance of interference. When adjusting the wireless sensor, note the following:

• Signals cannot be received if the distance between the sensor and the computer is too large. The receiving distance may be shortened due to low temperature and exhausted batteries.
• Signals can be received only when the back of the computer is facing the sensor.

Interference may occur, resulting in incorrect data, if the computer is:

• Near a TV, PC, radio, motor, or in a car or train.
• Close to a railroad crossing, railway tracks, TV stations and/or radar base.
• Using with other wireless devices in close proximity.

How to install the unit on your bicycle

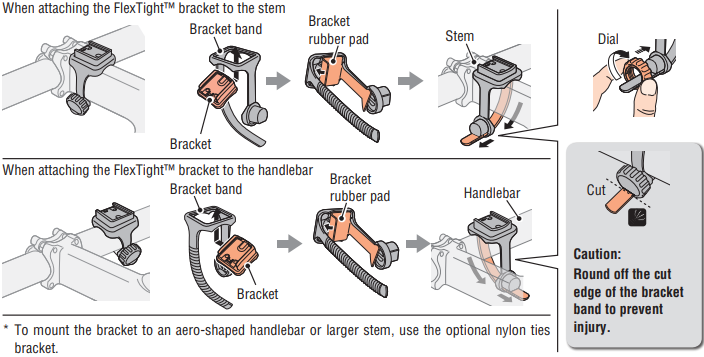

1. Attach the bracket to the stem or handlebar
   The FlexTight™ bracket can be attached to either the stem or the handlebar, depending on how the bracket fits into the bracket band.

   Be sure to tighten the dial of the FlexTight™ bracket by hand.
   Tightening it strongly using a tool, etc. may damage the screw thread.

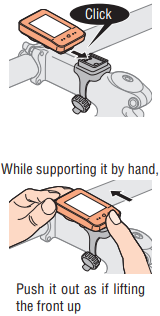

   Remove/Install the computer

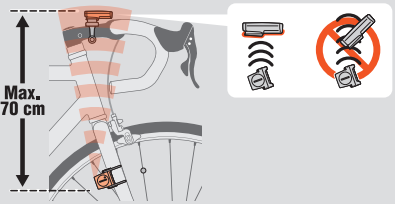

2. Install the sensor and magnet

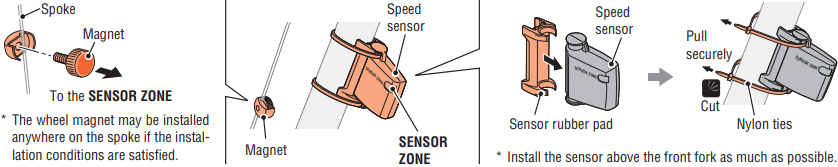

Install the sensor and magnet

1. The distance from the computer to the sensor is within the transmission data length, and the back of the computer faces downward.

2. The magnet passes through the sensor zone of the speed sensor.

3. The clearance between the sensor surface and the magnet is within 5 mm.


Preparing the computer

Perform the clear all data operation as shown below, when you use the unit for the first time or restore the unit to the condition checked at the factory.

1. Clear all data (initialization)
   Press the AC button on the back of the computer.

2. Select the speed units
   Select "km/h" or "mph".

3. Enter the tire circumference
   Enter the front wheel tire circumference of your bicycle in mm.
   * Use "Tire circumference reference table" as a guide.

4. Set the clock
   Pressing and holding the MODE button switches the display to "Displayed time", "Hour", and "Minute" in order.

5. Press the MENU button to complete setting


Operation test

After installed, check that the computer displays the speed by turning the front wheel. When it is not displayed, check the installation conditions A, B and C again (see previous section).

Tire circumference

You can find the tire circumference (L) of your tire size in the chart below, or actually measure the tire circumference (L) of your bicycle.

• How to measure the tire circumference (L)
  For the most accurate measurement, do a wheel roll out. With the tires under proper pressure, place the valve stem at the bottom. Mark the spot on the floor and with the rider's weight on the bike, roll exactly one wheel revolution in a straight line (until the valve comes around again to the bottom). Mark where the valve stem is and measure the distance.

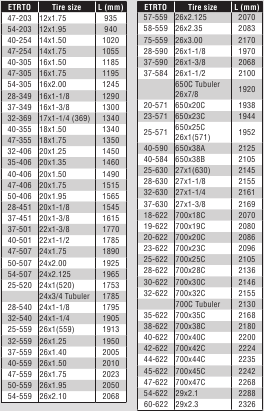

• Tire circumference reference table
  * Generally, the tire size or ETRTO is indicated on the side of the tire.


Operating the computer [Measuring screen]

Switching computer function

Pressing the MODE button switches the measurement data at the bottom in the order shown in the following figure.

*1 When Tm about 10 hours, or Dst exceeds 999.99 km, .E will appear. Reset the data.

*2 It appears only in the auto mode.

MODE operation when the computer is mounted on the bracket

Starting / Stopping measurement

There are two measurement methods; manual mode and auto mode.

Setting method See "Changing the computer settings: Selecting the auto mode".

The speed unit (km/h or mph) flashes during measurement.

* The maximum speed and total distance are updated regardless of start/stop of the measurement.

• Auto mode ( illuminated)
  Measurements start automatically when the bicycle is in motion.

• Manual mode
  Press the SSE button together with the unit to start/stop the measurement.

  * When the computer is removed from the bracket, press the SSE button on the front and the MODE button on the back simultaneously.

Resetting data

Pressing and holding SSE together with the unit on the measurement screen resets any measurement data, except the total distance (Odo), trip distance-2 (Dst2), and stopwatch ().

* The total distance (ODO) is not reset.

• Resetting separately the trip distance-2 and stop watch
  To reset the currently displayed data, display trip distance 2 (Dst2) or the stopwatch(), and hold down the main unit along with the SSE.
  * How to reset the trip distance 2 (Dst2) and the stopwatch displayed in top row of screen
  Display the current speed (Spd) in bottom row of screen and perform the reset operation.


Operating the computer [Various functions]

Backlight (Night mode)

With the night mode turned on, pressing the MODE button turns on the backlight (for 5 seconds). Pressing any button while the backlight is still on extends the illumination for another 5 seconds.

Setting method Pressing and holding the MODE button proceeds to setting the night mode. Pressing and holding the button again turns on the night mode, and returns to the measurement screen.

* The night mode is automatically turned off without any signal received for 10 minutes.

* You can switch ON/OFF also from the menu screen. See "Changing the computer settings: Setting the night mode".

* When (battery icon) is turned on, the backlight is not turned on even if the night mode is on.

Setting the function to display

Displaying only selected data can be done.

Setting method See "Changing the computer settings: Setting the function".

* The current speed (Spd), and the elapsed time (Tm) cannot be hidden.

* When you hide the function assigned to the top display, the upper display returns to the current speed (Spd).

* The unit keeps recording hidden data on background and each measurement data is updated when displayed (except for the stop watch).

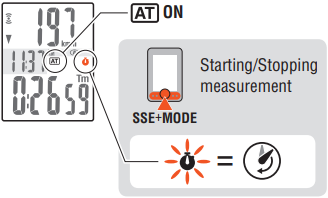

Stop watch

The time can be measured regardless of start/stop of the measurement. It can be used when the auto mode is on ( illuminated).

• Start/Stop: Press the SSE button together with the unit. flashes during measurement.
• Reset: Display the stopwatch (), and hold down the main unit along with the SSE button.
  * How to reset the trip distance 2 (Dst2) and the stopwatch displayed in top row of screen
  Display the current speed (Spd) in bottom row of screen and perform the reset operation.


Upper display selection

Any data can be selected for the top display, and constantly be displayed.

Setting method See "Changing the computer settings: Setting the upper display".

* The stopwatch cannot be set when the auto-mode is off.

Power-saving function

If the computer has not received a signal for 10 minutes, power-saving screen will activate and only the clock will be displayed. When you press MODE, or the computer receives a sensor signal, the measuring screen reappears.

* If another 12 hours of inactivity elapses in the power-saving screen, only the speed unit is displayed on the screen. With such a screen, pressing the MODE button returns to the measurement screen.

Changing the computer settings [Menu screen]

Pressing MENU on the measurement screen changes to the menu screen. Various settings can be changed on the menu screen.

* After changes are made, be sure to register the setting(s) by pressing the MENU button.

* Leaving the menu screen without any operation for 1 minutes returns to the measurement screen, and changes are not saved.

In use

Maintenance

To clean the computer or accessories, use diluted neutral detergent on a soft cloth, and wipe it off with a dry cloth.

Replacing the battery

Computer

When (battery icon) is turned on, replace the battery. Install a new lithium battery(CR2032) with the (+) side facing upward.

* After replacing the computer battery, follow the procedure described in "Preparing the computer".

Sensor

When the speed is not displayed even after adjusting correctly, replace the battery.

Insert new lithium batteries (CR2032) with the (+) sign upward, and close the battery cover firmly.

* After replacement, check the positions of the sensor and magnet.

Troubleshooting

The sensor signal icon does not flash (the speed is not displayed).
(Move the computer near the sensor, and turn the front wheel. If the sensor signal icon flashes, this trouble may be a matter of transmission distance due to battery drain, but not any malfunction.)

• Check that the clearance between the sensor and magnet is not too large. (Clearance: within 5 mm)
• Check that the magnet passes through the sensor zone correctly.
  • Adjust the positions of the magnet and sensor.
• Is the computer installed at the correct angle?
  • Back of computer must face toward the sensor.
• Check that the distance between the computer and sensor is correct. (Distance: within 20 to 70 cm)
  • Install the sensor within the specified range.
• Is the computer or sensor battery weak?
  In winter, battery performance diminishes.
  • Replace with new batteries according to the procedure specified in the section "Replacing the battery".

Nothing is displayed by pressing the button.

• Replace the computer battery according to the procedure specified in the section "Replacing the battery".

Incorrect data appear.

• Clear all according to the procedure described in "Preparing the computer".

The backlight is not turned on.

• Check if (battery icon) is turned on.
  • Replace the computer battery according to the procedure specified in the section "Replacing the battery".

Specification

* The specifications and design are subject to change without notice.
