CQ-VD6505U
¡Please read these instructions (including "Limited Warranty" and "Customer Services Directory") carefully before using this product and keep
this manual for future reference.
¡Prière de lire attentivement ces instructions (y compris la "Garantie limitée" et le "Répertoire des services à la clientèle") avant d'utiliser ce
produit et conserver ce manuel d'utilisation pour s'y référer ultérieurement.
¡Lea estas instrucciones cuidadosamente antes de usar este producto y guarde este manual para usar como referencia futura.
Dual DIN In-dash 6.5" Widescreen Color LCD Monitor/DVD Receiver
Moniteur vidéo couleur grand-écran à écran à cristaux liquides de
6,5 pouces double DIN/récepteur DVD intégrés en tableau de bord
Monitor LCD en color de pantalla panorámica de 6,5"/receptor y DVD
ALBUM
PWR
FOLDER
MUTE
SRC
VOL
TUNE
ENTER / BAND
TRACK
ENT
TOP MENU
NAVI
RET
RETURN
DVD MENU
CAR AV
DIN doble empotrado en el tablero de instrumentos
CQ-VD6505U
Model:
Operating Instructions
Manuel d'instructions
Manual de Instrucciones
TEXT
Advertisement
Table of Contents
Related Manuals for Panasonic CQ-VD6505U
Summary of Contents for Panasonic CQ-VD6505U
-

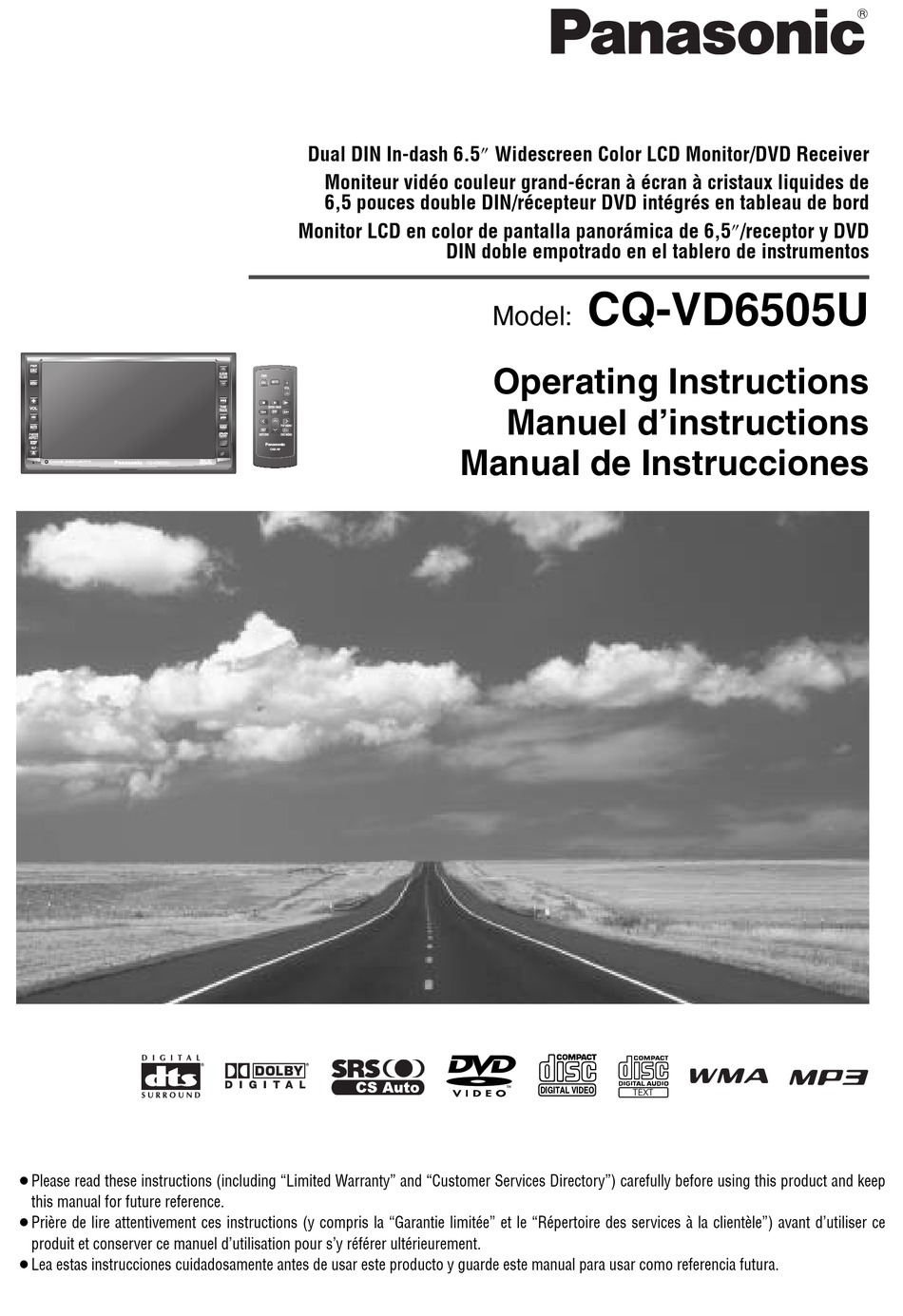

Page 1: Manual De Instrucciones
P-MODE ASPECT TILT CQ-VD6505U ¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product and keep this manual for future reference. ¡Prière de lire attentivement ces instructions (y compris la “Garantie limitée” et le “Répertoire des services à la clientèle”) avant d’utiliser ce produit et conserver ce manuel d’utilisation pour s’y référer ultérieurement. -
Page 2: Safety Information
They contain instructions about how to use the system in a safe and effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in this manual. - Page 3 Installation of this unit requires special skills and experi- ence. For maximum safety, have it installed by your dealer. Panasonic is not liable for any problems resulting from your own installation of the unit. Follow the instructions to install and wire the prod- uct.
- Page 4 Notice This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CQ-VD6505U (continued) This system is designed so that you cannot see moving pictures while you are driving. ¡Park your car in a safe and pull the side brake (parking brake) lever before watching the mon- itor.
-
Page 5: Notes On Use
¡The number in parenthesis underneath each accessory part name is the part number for maintenance and Qty.: 1 service. ¡Accessories and their parts numbers are subject to modification without prior notice due to improvements. Qty.: 1 Qty.: 1 Qty.: 1 Qty.: 1 CQ-VD6505U... -
Page 6: Customer Services Directory
For hearing or speech impaired TTY users, TTY : 1-877-833-8855 Accessory Purchases: Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.com or, send your request by E-mail to: npcparts@panasonic.com You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday- Friday 9 am to 8 pm, EST.) -
Page 7: Limited Warranty
5770 Ambler Drive, Mississauga Ontario L4W 2T3 PANASONIC PRODUCT LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in mate- rials and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. -
Page 8: Features
Features Panasonic welcomes you to our constantly growing family of electronic products owners. We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. -
Page 9: Table Of Contents
¢ Settings ... 30 Menu operation User (Clock setting), screen, audio, DVD, input/output, radio ¢ Troubleshooting ... 42 ¢ Maintenance ... 47 ¢ Notes on Discs ... 48 ¢ Language Code List... 49 ¢ Definition of Terms ... 50 ¢ Specifications... 51 CQ-VD6505U... -
Page 10: Preparation
¡Improper use of a battery may cause overheating, an explosion or ignition, resulting in injury or a fire. Note: ¡Battery Information: Battery Type: Panasonic lithium battery (CR2025) Battery Life: Approximately 6 months under normal use (at room temperature) Notice This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply. -
Page 11: Symbols Used In This Manual
“––” is displayed. Discos compatibles Compatible Discs Disc Marks The following pictographs are used for the descriptions of disc operation. page 19-23) : DVD : VCD (Video CD) : CD : CD-R/RWs containing MP3 files : CD-R/RWs containing WMA files CQ-VD6505U... -
Page 12: Name Of Controls And Functions
Note: [MENU], [ASP], [NAVI], [ ¡ : This book refers to connections to the Panasonic car navigation system that will come onto the market in the future. Descriptions regarding the car navigation system are boxed with a dotted line. [SRC] ¡Switches on/off the power. -
Page 13: Remote Control
¡Selects (vertically) or adjusts an operation or item. ¡Selects a band. ¡Shows OSD. ¡Searches for broadcast stations and memorizes them automatically. ¡Determines an operation or item. ¡Displays the DVD/title menu. (Operations vary according to the media.) CQ-VD6505U... -
Page 14: Touch Panel Operation Overview
Note : ¡The screen above appears when no external device is connected to AV1, AV2, and the Expansion Module (CY-EM100U, option). CQ-VD6505U ¡Do not use a pen or other sharp implements to page 47) operate the touch panel. ¡Do not bump the front panel. -
Page 15: Switching The Display
¡ Refer to the description of each mode for how to operate the operation screen. Showing the hidden part of the screen. Some items have continued parts. You can see the continued parts by pressing DVD mode Standard Screen Standard Screen Operation Screen OSD OFF * CQ-VD6505U... -
Page 16: General
Preparation: Turn your car’s ignition key to the ACC or ON position. General Operations Operations Power ON : Power OFF : Display Open/Close Source selection …… Touch/Press and hold for more than 2 seconds CQ-VD6505U [MUTE] CQ-VD6505U – [SRC] [SRC] [SRC] [SRC] – –... - Page 17 Down Mutes the sound. To cancel, press again. q Press and hold for more than 2 sec- onds. w Press to adjust. Setup is the same as from MENU. Refer to DISPLAY UNIT for details. page 32) page 34) CQ-VD6505U...
-
Page 18: Before Disc Playback
DVDs with a region number other than “1” or ¡ “ALL” Playing back a photo CD disc with this unit could ¡ damage the data that is recorded on the disc. CQ-VD6505U Symbols used on jackets (Examples of such symbols include) CD-R/RW ¡ ¡... -
Page 19: Disc Insert
MENU MUTE P-MODE ASPECT TILT CQ-VD6505U [u] (eject) Disc Insert Press [u] to open the display. ¡The mode that supports the disc is selected, and play- back starts. Caution ¡When the disc is inserted or ejected, to prevent disc scratches never exert any downward force on the disc. -
Page 20: Disc Player
Operation Buttons Audio Mode MP3/WMA mode display Source Button Playing time Operation Buttons mode display Source Button Current track Operation Buttons Title/text scroll CQ-VD6505U [SRC] w Touch (DVD) on the MENU Source Selection Screen. MUTE P-MODE ASPECT TILT To switch Operation Screen ON, touch the center of touch panel or press [ENTER] on the remote control. -
Page 21: Basic Operations
To resume normal playback, touch/press / [5]. To cancel, touch again. To cancel, touch and hold for more than 2 seconds again. To cancel, touch again. To cancel, touch again. To cancel, touch and hold again. {F= FOLDER (folder)} CQ-VD6505U... - Page 22 ¡When the current disc is not ready for the on-screen direct operation, perform operations with the buttons on the remote control or the unit. ¡The on-screen direct operation of the DVD menu is not available in the DVD changer mode. CQ-VD6505U (continued) Discs Discs [DVD MENU]...
- Page 23 : the right channel audio is output on both the left and MONO.R right speakers. is touched, the operation buttons disappear. Return Audio language/ Angle/ Subtitle language ¡ Touch during playback. ¡ Touch during playback. ¡ Touch during playback. page 38) ANGLE MARK previous page) or is at the DVD CQ-VD6505U...
-
Page 24: Notes On Mp3/Wma
¡Never assign the “.mp3”, or “.wma” file name extension to a file that is not in the MP3/WMA format. This may not only produce noise from the speaker damage, but also damage your hearing. CQ-VD6505U Display Information Displayed items ¡ CD-TEXT Disc title Track title ¡... - Page 25 Sampling frequency 32, 44.1, 48 kHz 16, 22.05, 24 kHz 32, 44.1, 48 kHz Root Folder (Root Directory) Folder Selection In the order – File Selection In the order – Tree 2 Tree 3 Tree 4 Tree 8 (Max.) CQ-VD6505U...
-
Page 26: Radio
MENU RADIO FM SETUP Tuning Operations Band Selection List Selection Refer to the next page. Station Selection Seek Tuning …… Touch/Press and hold CQ-VD6505U Source Button [SRC] w Touch (RADIO) on the Source Selection MENU Screen. MUTE P-MODE ASPECT TILT... -
Page 27: Preset Memory
– page 40) RADIO FM SETUP AUTO PRESET The preset station selected in the step q is – – interchanged with the targeted preset chan- nel selected in the step w (Preset Swap). blinks once EACH EACH EACH EACH CQ-VD6505U... -
Page 28: Av1/Av2
INPUT is not skipped even if ¡If no operation is performed for 10 seconds or touched, the operation buttons disappear. ¡AV terminal is not used for the Panasonic car navigation system (available in future). Refer to for setting. NAVI SETUP... - Page 29 CQ-VD6505U...
-
Page 30: Settings
AM SETUP Setting for AM stations XM SETUP Setting for XM radio SIRIUS SETUP Setting for Sirius satellite radio (*1) Please refer to the System Upgrade Guidebook. CQ-VD6505U (Language setting). MENU DISPLAY page 32) page 32) page 32) page 33) -
Page 31: Menu Operation
Goes back to the previous menu) Touch desired setting. page 32) Determines the setting and goes back to the pre- vious menu out of the menu. Determines the setting and gets out of the menu. ALBUM FOLDER TUNE TRACK NAVI CQ-VD6505U [}] [{] CQ-VD6505U... -
Page 32: Display Unit
(Fill in the ID code memo page 46).) If you forget it, you will be unable to use the unit. In case you forget the ID code, please consult your nearest Panasonic Servicenter. 4 digits numeric code default: none... - Page 33 (Security LED setting) : LED indicator not blinking with ignition key being at out-of-ACC : LED indicator blinking with ignition key being at out-of-ACC default: (Language setting) : displays the menu in English. : displays the menu in French. default: ENGLISH CQ-VD6505U...
-
Page 34: Sound Setup
: lightens the depth of color on the display. : deepens the depth of color on the display. TINT (Adjust the image tone or tint) : emphasizes red in the color image. : emphasizes green in the color image. CQ-VD6505U INPUT/OUTPUT RADIO USER SOUND SETUP Sound Set Up... - Page 35 (Applies to the Sub-woofer) Setting range: off, +1 to +10 default: off (Adjusts the SRS effect) (Adjusts the SRS effect (front) on rear speakers) (Adjusts the SRS effect (center) on rear speakers) Setting range: off, +1 to +10 default: +5 CQ-VD6505U...
- Page 36 * A subwoofer (option, CJ-SW3003 recommended) is required. A power amplifier (option) is also required for connecting a subwoofer. Note: ¡While the private mode is active, only adjusted. CQ-VD6505U PHASE : subwoofer phase 0 degree 0° 180° : subwoofer phase 180-degree inverted Note: ¡...
-
Page 37: Time Alignment
: up Setting range: 63 Hz to 200 Hz default: 125 Hz (High Pass Filter) : up Setting range: off, 63 Hz to 200 Hz default: off is set to CS Auto is enabled only on the front speakers CQ-VD6505U... - Page 38 ¡ These adjustments being executed, playback will start from the beginning of a disc. : English : French : Spanish OTHER : other language. Input the language code. page 49) CQ-VD6505U INPUT/OUTPUT RADIO DISPLAY Display aspect and DVD software mode DVD ASPECT NARROW WIDE...
-
Page 39: Camera Setup
INPUT SELECT OUTPUT SELECT H-F SETUP default: default: INPUT/OUTPUT RADIO (Navigation set up) System Upgrade Guidebook) System Upgrade Guidebook) (AV1 skip) default: (AV2 skip) default: is not enabled because the con- System Upgrade Guidebook) System Upgrade Guidebook) System Upgrade Guidebook) CQ-VD6505U... -
Page 40: Other Settings
WIDE received to prioritize sound quality. XM SETUP System Upgrade Guidebook) SIRIUS SETUP System Upgrade Guidebook) CQ-VD6505U RADIO Aspect Ratio Default: NORMAL Mode: 4 types Press and hold [ASP] on the main unit to change the aspect ratio as follows. - Page 41 TIME ALIGNMENT (speaker delay) page 37) on the sound setting menu while private mode is active. Private mode Private mode Radio Radio It is recommended to use optional Over-head Monitor (CY-VHD9401U) and headphones Radio Mute supplied to CY-VHD9401U. CS Auto CQ-VD6505U...
-
Page 42: Troubleshooting
Servicenter. The product should be serviced only by qualified per- sonnel. Please refer checking and repair to professionals. Panasonic shall not be liable for any accidents arising out of neg- lect of checking the unit or your own repair after your checking. - Page 43 The power of the unit The safety device works. aConsult your dealer, or your nearest Panasonic Servicenter. fails unintentionally. Radio Antenna installation or wiring of antenna cable is faulty.
-
Page 44: Display Settings
The picture is dark. The picture is whitish. Something is wrong with the picture. The picture is light in color. CQ-VD6505U (continued) The disc has unplayable formatted data. aRefer to the description about MP3/WMA for playable sound data except CD- DA (i.e. -
Page 45: Remote Control Unit
FRONT for the remote control setting. is selected for the ACC selection. for the ACC selection. NONE in the speaker setting. aSet subwoofer to aSet private mode to aSet Pro Logic to CQ-VD6505U... -
Page 46: Error Display Messages
¡ There may be cases when the disc numbers affected by an error are displayed before “NON PLAYABLE DISC”. In case you forget the ID code... In case you forget the ID code, please consult your nearest Panasonic Servicenter. ID code memo Copy the memo below, fill in the ID code, and keep it in a secure location. -
Page 47: Maintenance
Product Servicing If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician. Replacing the Fuse Use fuses of the same specified rating (15 A). Using dif-... -
Page 48: Notes On Discs
Discs with burrs Please remove the burrs before use. CQ-VD6505U Disc insert The surfaces of new discs tend to be slippery. Therefore, when using such a disc for the first time, it may not load satisfactorily even when it has been inserted into the unit. -
Page 49: Language Code List
8469 Telugu 8471 Tajik 8472 Thai 8473 Tigrinya 8475 Turkmen 8476 Tagalog 8479 Tonga 8482 Turkish 8484 Tatar 8487 8575 Ukrainian 8582 Urdu 8590 Uzbek 8673 Vietnamese 8679 Volapük 8779 Wolof 8872 Xhosa 8979 Yoruba 9072 Chinese 9085 Zulu CQ-VD6505U... -
Page 50: Definition Of Terms
This refers to a screen on which the playback picture of wide-screen DVDs or VCD (Video CD)s is cut off at the left and right sides. CQ-VD6505U Playback control (VCD (Video CD)) If the VCD (Video CD) has “With Playback Control”... -
Page 51: Specifications
” x 3 ” x 6 ”} : 280 880 pixels (234 vertical x 400 horizontal x 3) : Over 99.99% : Transparent color filter for- : TFT (Thin Film Transistor) active matrix format : Internal light (Built-in small fluorescent lamp) CQ-VD6505U... - Page 52 Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, New Jersey 07094 http://www.panasonic.com ©2006 Matsushita Electric Industrial Co., Ltd. Panasonic Sales Company, Division of Panasonic Puerto Rico, Inc. (“PSC”) Ave. 65 de Infanteria, Km. 9.5...
