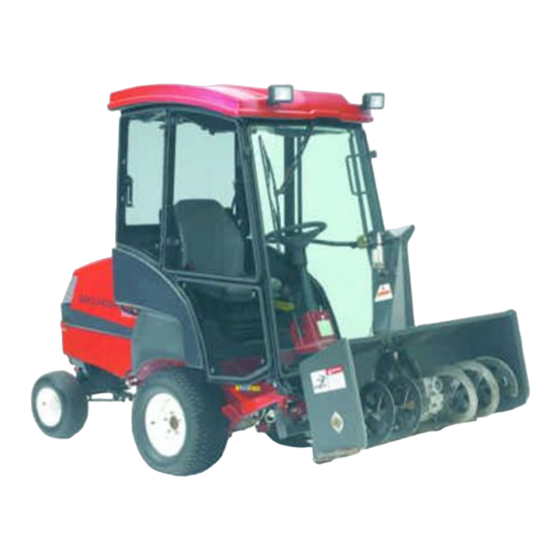

Toro 3280-D Operator's Manual
Hide thumbs
Also See for 3280-D:
- Service manual (508 pages) ,
- Operator's manual (72 pages) ,
- Installation instructions (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Toro 3280-D
Summary of Contents for Toro 3280-D
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page TO THE PURCHASER ILLUSTRATIONS DIRECTION REFERENCE WARRANTY SAFETY PRECAUTIONS SAFETY FIRST CHILDREN CAB SAFETY BEFORE OPERATION CAB OPERATION MAINTENANCE DECALS CAB OPERATING INSTRUCTIONS DOORS AND WINDOWS Locking and Un-locking the Door Opening the Door Opening Escape Window Opening Side Window DOME LIGHT CAB SWITCHPLATE... -
Page 4: To The Purchaser
TO THE PURCHASER All products are designed to give safe, dependable service if they are operated and maintained according to instructions. Read and understand this manual before operation. This manual has been prepared to assist the owner and operators in the safe operation and suitable maintenance of the cab. -
Page 5: Safety Precautions
Weight Requirements for compliance with ANSI B71.4-2004 Groundsmaster 3280-D 4WD Serial Numbers (250000001 – 250999999 205 lbs. Qty. (1) Toro Part 24-5780 Rear Weight Kit, Qty. (1) Toro Part 108-9682 Rear Weight Kit, and Qty. (1) Toro 24-5790 Rear Weight 35 lbs. -
Page 6: Children
CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are generally attracted to machines and the work being done. Never assume children will remain where you last saw them. 1. Keep children out of the operating area and under the watchful eye of another responsible adult. -
Page 7: Cab Safety
CAB SAFETY BEFORE OPERATION Read and understand both the tractor and this operator’s manual before operating the equipment. Know how to operate all controls and how to stop the unit and disengage controls quickly. Lack of knowledge could lead to accidents. 1. - Page 8 9. Never operate cab without guards, and other safety protective devices in place. All tractor and cab covers must be correctly installed at all times. When necessary to remove these, they must be re-installed immediately. 10. Never operate cab/tractor at high transport speeds on a slippery surface. 11.
-
Page 9: Maintenance
MAINTENANCE ALWAYS USE GENUINE PARTS WHEN REPLACEMENT PARTS ARE REQUIRED. 1. Keep the tractor and cab properly maintained. 2. Park the tractor/cab on level ground, place the transmission in neutral, set the parking brake, disengage the PTO, lower all tractor attachments to the ground, place all control levers in neutral, shut off the engine and remove the ignition key and allow all moving parts to stop BEFORE making any tractor/cab adjustments. -
Page 10: Decals
DECALS Replace immediately if damaged or missing. Contact Jodale Perry for replacement decals. CAUTION The resulting noise levels when using this product will exceed OSHA standards for an 8 hour workday and hearing protection with a Noise Reduction Rating (NRR) of 22 or higher is required. -
Page 11: Cab Operating Instructions
CAB OPERATING INSTRUCTIONS DOORS AND WINDOWS Locking and Un-locking the Door From the outside: Insert key into the door lock. Turn key clockwise to unlock the door. Turn key the counter-clockwise to lock the door. When the key is in the vertical position, it can be removed from the lock. -
Page 12: Opening Side Window
Opening Side Window Pull the side window latch up to release from the pin, and push out to open window. Push down on latch to secure open for ventilation. ——————————————————————————————— DOME LIGHT The rocker switch on the domelight activates the light. Push switch down to turn on domelight and to turn off downlight. -
Page 13: Using The Wipers In Winter
Using the Wipers in Winter 1. While not used in winter, keep the blades off the windshield to prevent them from being stuck with ice. 2. If the windshield is covered with snow, scrape it off before using the wipers. 3. -
Page 14: Heater/Pressurizing Fan
HEATER/PRESSURIZING FAN CAUTION To avoid personal injury: Have the tractor repaired immediately if any of the following defects are discovered. Such defects may cause burns or injuries. They may also cause engine seizure or other serious failure. Daily Inspection: 1. Check for scratches, cracks, or swelling in the water hoses. 2. -
Page 15: Parts
PARTS All parts are illustrated in ‘exploded views’ which show the individual parts in their normal relationship to each other. Reference numbers are u sed in the illustrations. These numbers correspond to those in the ‘Item #’ column, and are followed by the description and quantity required. -
Page 16: Fixed Glass
Fixed Glass Item # Description Qty. JDP P/N Windshield Glass 101454 Windshield Weatherstripping (16.04LF) 101460 Rear Window 101457 Rear Window Weatherstripping (11.09LF) 101463 Lower Right Window 101459 Lower Right Window Weatherstripping (7.43LF) 101465 Nut, Flange, 1/4", Macro-black 100223 Bolt, Step, 1/4" x 1 1/4", Macro-black 100003 Bushing, Neoprene, 5MM, Black 100382... -
Page 17: Rops Mounting Assembly
ROPS Mounting Assembly Item # Description Qty. JDP P/N Front Cab Bracket 101468 Rear Left Bracket 101469 Rear Right Bracket 101470 Bolt, Hex, 1/2" x 3", Gr. 8, YD 100121 Nut, Hex, Locking, 1/2", Gr. 8, YD 100116 Washer, Flat, Steel, 1/2" x 2 1/2", YD 100450 Isolator, Rubber, 1/2"... -
Page 18: Frame Parts
Frame Parts Item # Description Qty. JDP P/N Striker Pin 100013 Striker Pin Nut 100014 Bolt, Flange, 1/4" x 1/2", YD 100278 Striker Plate 100012 Washer, Flat, 1/2", Gr. 8, YD 100431 Gas Shock 100365 Gas Shock Ball Stud 100366 Gas Shock Clip 100367 Bolt, Hex, 5/16"... -
Page 19: Body Panels
Body Panels Item # Description Qty. JDP P/N Left Composite Side Panel 101471 Right Composite Side Panel 101472 Nut, Extruded-Panel, 1/4" 100042 Screw, Button-Head, 1/4" x 1", Macro-black 100441 Rear Shield 101482 Nut, 4-Lobe, 1/4" 101483... -
Page 20: Door Assembly
Door Assembly Item # Description Qty. JDP P/N Item # Description Qty. JDP P/N Door Glass 101455 Bolt, Flange, M6 x 1.0 x 25mm, YD 100007 Door Glass Weatherstripping (13.57LF) 101461 Door Latch - Left 100006 Nut, Flange, 1/4", Macro-black 100223 Nut, Flange, M6 x 1.0m YD 100008... -
Page 21: Accessories Assembly
Accessories Assembly Item # Description Qty. JDP P/N Exterior Mirror 100440 Nut, Lock, Crimped, 1/2", YD 101224 Mirror Bracket, Left 100438 Mirror Bracket, Right 100439 Worklamp 100731 Washer Bottle w/Pump 100220 Washer Bottle Mount Plate 101481 Nut, Flange, 1/4", MB 100223 Bolt, Flange, 1/4"... -
Page 22: Escape Window Assembly
Item # Description Qty. JDP P/N Escape Window 101458 Glass Weatherstripping (10.63LF) 101464 Nut, Flange, 1/4", Macro-black 100223 Bolt, Step, 1/4" x 1", Macro-black 100383 Bolt, Step, 1/4" x 1 1/4", Macro-black 100003 Bushing, Neoprene, 5MM, Black 100382 Escape Window Latch Bracket 100385 Window Arm 100017... -
Page 23: Opening Side Window Assembly
Opening Side Window Assembly Item # Description Qty. JDP P/N Item # Description Qty. JDP P/N Left Side Window 101456 Right Side Window 101456 Glass Weatherstripping (8.43LF) 101462 Glass Weatherstripping (8.43LF) 101462 Nut, Flange, 1/4", Macro-black 100223 Nut, Flange, 1/4", Macro-black 100223 Bolt, Step, 1/4"... -
Page 24: Roof/Headliner
Roof/Headliner Assembly Item # Description Qty. JDP P/N Item # Description Qty. JDP P/N Headliner 101466 Roof 101467 Nut, Extruded-Panel, 1/4" 100042 Air Filter Retainer 101220 Bolt, Step, 1/4" x 1", Macro-black 100003 Domelight 100402 Nut, Flange, 1/4", Macro-black 100223 Headliner Weatherstrip 1 (15.4 LF) 100530 Bushing, Neoprene, 5MM, Black...
