Summary of Contents for Panasonic CQ-2130
-
Page 1: Operating Instructions

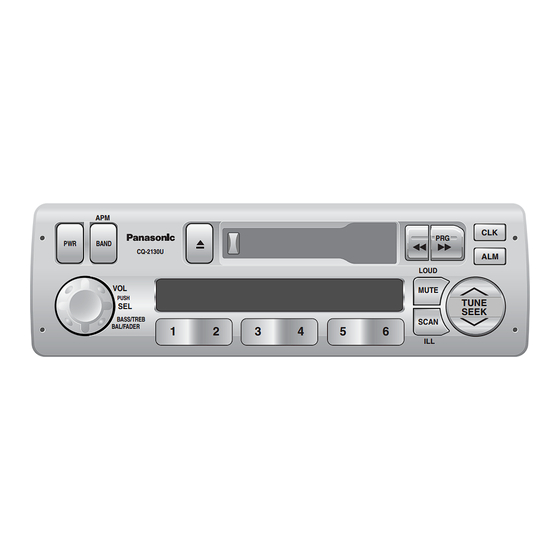

BAND CQ-2130U PUSH BASS/TREB BAL/FADER • Please read these instructions carefully before using this product and keep this manual for future reference. Heavy Duty Cassette/Weather Band Receiver Operating Instructions LOUD MUTE TUNE SEEK SCAN CQ-2130U... -
Page 2: Safety Information (Part 15 Of The Fcc Rules)
Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPLIANCE TO RAIN, SPLASH- ING, DRIPPING OR MOISTURE. CAUTION: PLEASE FOLLOW THE LAWS AND REGULATIONS OF YOUR STATE, PROVINCE OR COUNTRY FOR INSTALLATION OF THE UNIT. -
Page 3: Use This Product Safely
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family. -
Page 4: Table Of Contents
Contents Safety Information (Part 15 of the FCC Rules) ....page 2 Notice ........... . . 2 Use this product safely . -
Page 5: Power And Sound Controls
Power and Sound Controls Power Turn the key in the ignition until the accesso- ry indicator lights. Power on: Press [PWR] (power). Power off: Press [PWR] (power) again. A C C Volume Turn the knob clockwise to increase volume, and counterclockwise to decrease volume. Volume level (0 to 39) (default: 16) Down... - Page 6 Power and Sound Controls Audio Modes (Bass/Treble/Balance/Fader) Push [SEL] to select the audio mode. Volume Bass Fader Balance BAND CQ-2130U PUSH BASS/TREB BAL/FADER Turn [VOL] (volume) clockwise or counterclock- wise to change each level. Bass: Adjustable range: –12 to +12 dB (by 2 dB step) Treble: Adjustable range: –12 to +12 dB (by 2 dB step) Balance:...
-
Page 7: Clock Setting
Clock Setting Selecting the Clock Display Press [CLK] (clock) to switch clock and alarm time display both. clock display Alarm time display Note: if no operation takes place for more than 5 sec- onds in alarm time, the display returns to the clock display. -
Page 8: Alarm Time Setting
Alarm Time Setting BAND CQ-2130U PUSH BASS/TREB BAL/FADER Alarm Time Setting q Press and hold [ALM] (Alarm) and do not release to set alarm time. Display blinks and the alarm time setting mode is activated. (blink.) Hours w Press [{] to set the hour. (Hours set.) Minutes e Press [}] to set the minute. -
Page 9: Radio
Radio Change to the Radio mode Press [PWR] to change to the radio mode. CPlease press [u] (eject) to eject the tape when the cassette tape is playing. FM stereo indicator BAND BAND PUSH BASS/TREB BAL/FADER Band Press [BAND] to change the band. Scan •... - Page 10 Radio (Continued) Preset Station Setting Up to 6 stations can be saved in each of the FM1, FM2 and AM preset station memories. Note: Existing saved stations are overwritten with new stations after following this procedure. Band Press [BAND] to select a desired band. (➡...
-
Page 11: Tuning In A Weather Band Station
BAND CQ-2130U PUSH BASS/TREB BAL/FADER Tuning in a Weather Band Station • Press [BAND] to select WB (Weather Band) • Press any of the buttons [1] to [6] to monitor the preset station. The frequency (162) remains unchanged. Weather Band Frequency (channel) Number Note: The weather band (CH1-6) has been preset. -
Page 12: Cassette Tape Player
Cassette Tape Player Loading a Cassette Gently insert a cassette with the exposed tape side fac- ing to the right until the mechanism captures it, and playback starts. Program Indicator (This indication “ ” rotates.) Stop and Eject Once inserted into the unit, your tape will play continuously until you eject it. If you press [u] (eject), the unit ejects the tape and returns to radio operation. -
Page 13: Rewind And Fast Forward
Play Side Change Press [ a ] and [ f ] at the same time to switch to the program on the other side of the tape. The display changes to indicate which program is playing. Rewind and Fast Forward When the program indicator to fast forward the tape. -
Page 14: Troubleshooting
Troubleshooting Preliminary Steps Check and take steps as described in the tables below. If You Suspect Something Wrong Immediately switch the power off. Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs. -
Page 15: Cassette Tape
❐ Radio Trouble Much noise in FM stereo and monaural broad- casts. Preset station is reset. ❐ Cassette Tape Trouble No sound. Tape sound quality is poor. Reproduction of high tones is poor. Wow and flutter level is very high. ❐... -
Page 16: Speaker Connections
Product Servicing If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician. Maintenance Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exte- rior cleaning. -
Page 17: Installation Guide
Before you begin installation, look for the items which are packed with your unit. • Warranty Card…Fill this out promptly. • Panasonic Servicenter List for Service Directory WARNING …Keep for future reference in case the product needs servicing. - Page 18 Installation (Continued) ❐ Preparation Warning: If your vehicle is equipped with air bag and/or anti-theft systems, specific procedures may be required for connection and disconnection of the battery to install this product. Before attempting installation of this electronic com- ponent, contact your vehicle dealer or manufacturer to determine the required procedure and strictly fol- low their instructions.
- Page 19 Cautions: • We strongly recommend that you wear gloves for installation work to protect yourself from injuries. • When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers. First complete the electrical connections, and then check them for The included Mounting Collar q is designed specially for this unit.
- Page 20 Installation (Continued) To Remove the Unit from the vehicle's dashboard Insert each Removal Tool i and pull. i Removal Tool (U-shaped) Note: Do not lose Removal Tools. They will be needed to remove the unit from the vehicle's dashboard. CQ-2130U...
-
Page 21: Electrical Connections
Electrical Connections Cautions: • This wiring information is for experienced technical individual, for safety reason, please your dealer wire this con- nection. • This product is designed to operate with a 12 V DC, negative ground battery system. • To prevent damage to the unit, be sure to follow the connection diagram below. •... -
Page 22: Specifications
Specifications ❐ General Power Supply: Current consumption: Maximum Power Output: Tone adjustment range: Bass: Treble: Power Output: Suitable Speaker Impedance: Dimensions (W × H × D): Weight: ❐ FM Stereo Radio Frequency Range: Useable Sensitivity: 50 dB Quieting Sensitivity: Frequency Response: Alternate Channel Selectivity: Stereo Separation: Signal/Noise Ratio:... - Page 23 Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way, Secaucus, New Jersey 07094 YFM284C421ZA TAMACO0204-0 Printed in Taiwan...
