1. Follow "DRAWER ASSEMBLY AND CHOKE REMOVAL" (steps 1-3)
2. At this point, you can change Latch Hooks/Springs without removing the Door Frame.
3. Unhook Latch Spring, then remove Latch Screw (Fig. L-1).
4. Proceed in reverse to reinstall.
5. Adjust switches after assembled back to the cavity.
Door Panel screw
to door frame
Latch head L
Latch head screw
Latch spring
Note: The drawer on a microwave oven is designed to act as an electronic seal preventing the leakage of
microwave energy from oven cavity during cook cycle. This function does not require that door be air-
tight, moisture (condensation)-tight or light-tight. Therefore, occasional appearance of moisture, light
or sensing of gentle warm air movement around oven drawer is not abnormal and do not of themselves
indicate a leakage of microwave energy from oven cavity.

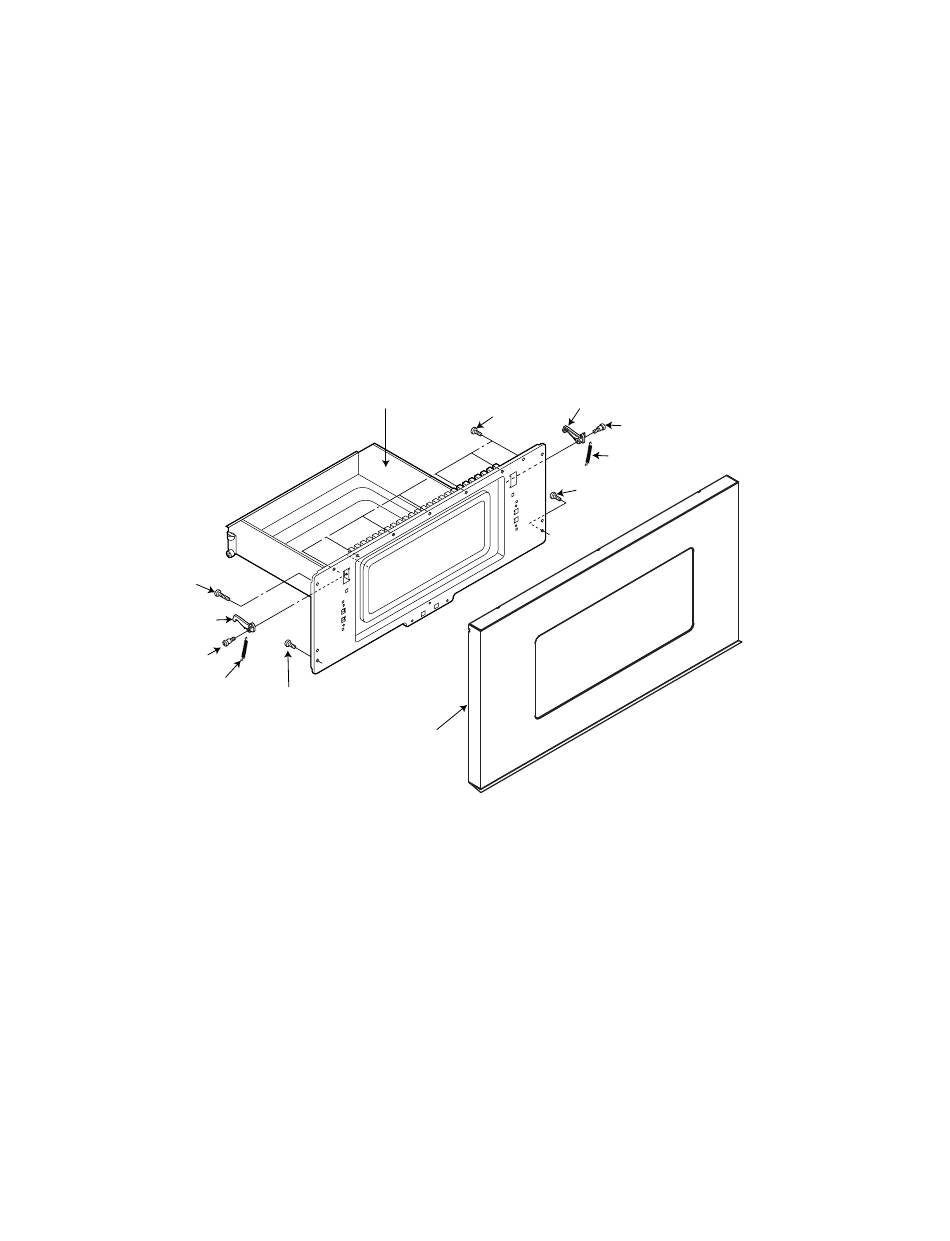

DOOR LATCH REMOVAL
Door Panel
Door Panel screw
to door frame
Door frame
Fig. L-1
30
Door Panel screws
Latch head R
to door frame
Latch head screw
Latch spring
Door Panel screw
to door frame
