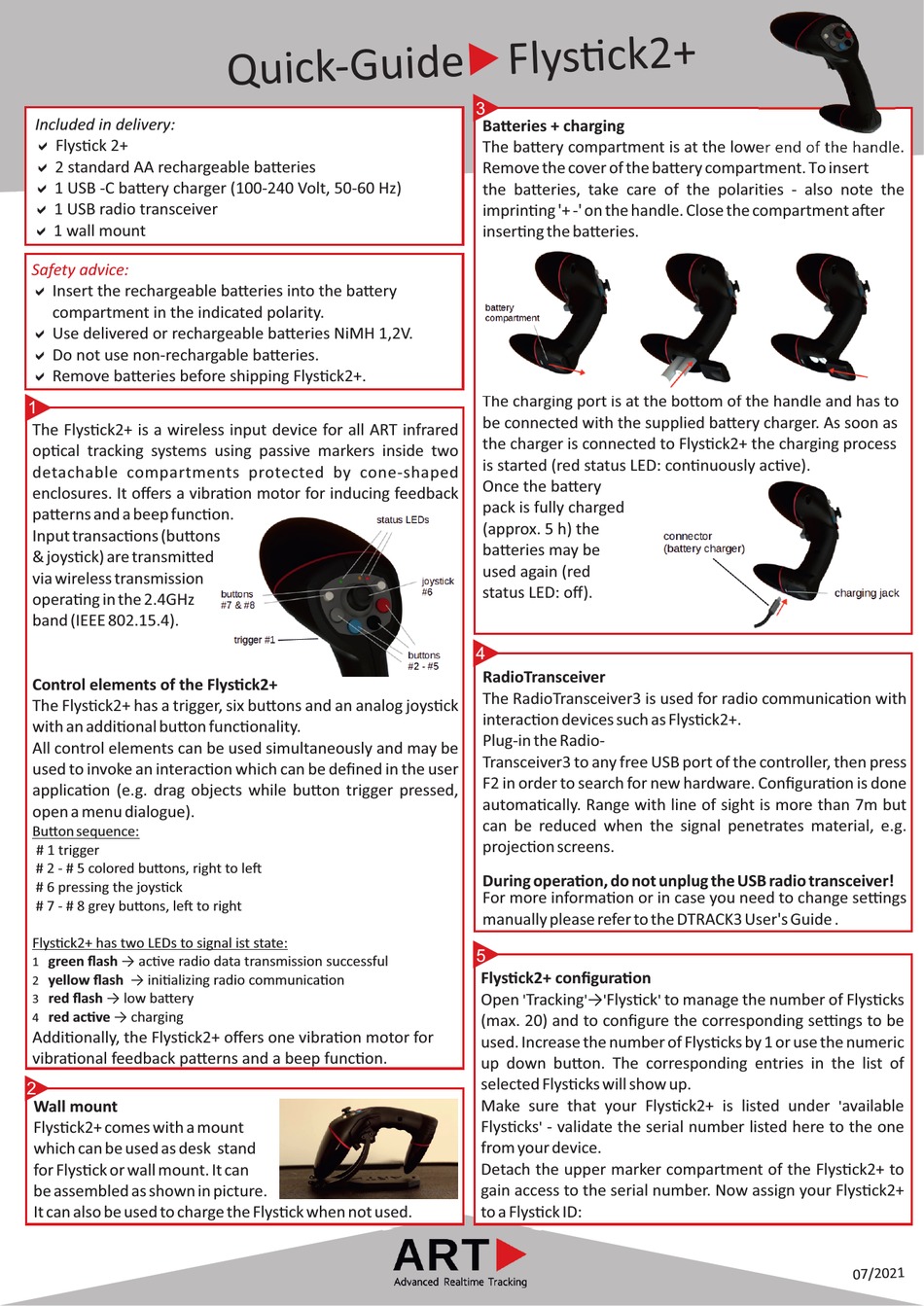

Art Flystick2+ Quick Manual

Included in delivery:
a Flys ck 2+
a 2 standard AA rechargeable ba eries
a 1 USB -C ba ery charger (100-240 Volt, 50-60 Hz)
a 1 USB radio transceiver
a 1 wall mount
Safety advice:
a Insert the rechargeable ba eries into the ba ery
compartment in the indicated polarity.
a Use delivered or rechargeable ba eries NiMH 1,2V.
a Do not use non-rechargable ba eries.
a Remove ba eries before shipping Flys ck2+.
1
The Flys ck2+ is a wireless input device for all ART infrared
op cal tracking systems using passive markers inside two
detachable compartments protected by cone-shaped
enclosures. It offers a vibra on motor for inducing feedback
pa erns and a beep func on.
Input transac ons (bu ons
& joys ck) are transmi ed
via wireless transmission
opera ng in the 2.4GHz
band (IEEE 802.15.4).
Control elements of the Flys ck2+
The Flys ck2+ has a trigger, six bu ons and an analog joys ck
with an addi onal bu on func onality.
All control elements can be used simultaneously and may be
used to invoke an interac on which can be defined in the user
applica on (e.g. drag objects while bu on trigger pressed,
open a menu dialogue).
Bu on sequence:
# 1 trigger
# 2 - # 5 colored bu ons, right to le
# 6 pressing the joys ck
# 7 - # 8 grey bu ons, le to right
Flys ck2+ has two LEDs to signal ist state:
green flash → ac ve radio data transmission successful
1
yellow flash → ini alizing radio communica on
2
red flash → low ba ery
3
red ac ve → charging
4
Addi onally, the Flys ck2+ offers one vibra on motor for
vibra onal feedback pa erns and a beep func on.
2
Wall mount
Flys ck2+ comes with a mount
which can be used as desk stand
for Flys ck or wall mount. It can
be assembled as shown in picture.
It can also be used to charge the Flys ck when not used.
3
Ba eries + charging
The ba ery compartment is at the lower end of the handle.
Remove the cover of the ba ery compartment. To insert
the ba eries, take care of the polarities - also note the
imprin ng '+ -' on the handle. Close the compartment a er
inser ng the ba eries.
The charging port is at the bo om of the handle and has to
be connected with the supplied ba ery charger. As soon as
the charger is connected to Flys ck2+ the charging process
is started (red status LED: con nuously ac ve).
Once the ba ery
pack is fully charged
(approx. 5 h) the
ba eries may be
used again (red
status LED: off).
4
RadioTransceiver
The RadioTransceiver3 is used for radio communica on with
interac on devices such as Flys ck2+.
Plug-in the Radio-
Transceiver3 to any free USB port of the controller, then press
F2 in order to search for new hardware. Configura on is done
automa cally. Range with line of sight is more than 7m but
can be reduced when the signal penetrates material, e.g.
projec on screens.
During opera on, do not unplug the USB radio transceiver!
For more informa on or in case you need to change se ngs
manually please refer to the DTRACK3 User's Guide .
5
Flys ck2+ configura on
Open Tracking → Flys ck
' ' '
(max. 20) and to configure the corresponding se ngs to be
used. Increase the number of Flys cks by 1 or use the numeric
up down bu on. The corresponding entries in the list of
selected Flys cks will show up.
Make sure that your Flys ck2+ is listed under
Flys cks - validate the serial number listed here to the one
'
from your device.
Detach the upper marker compartment of the Flys ck2+ to
gain access to the serial number. Now assign your Flys ck2+
to a Flys ck ID:
to manage the number of Flys cks
'
available
'
