Duracell D-HUB Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

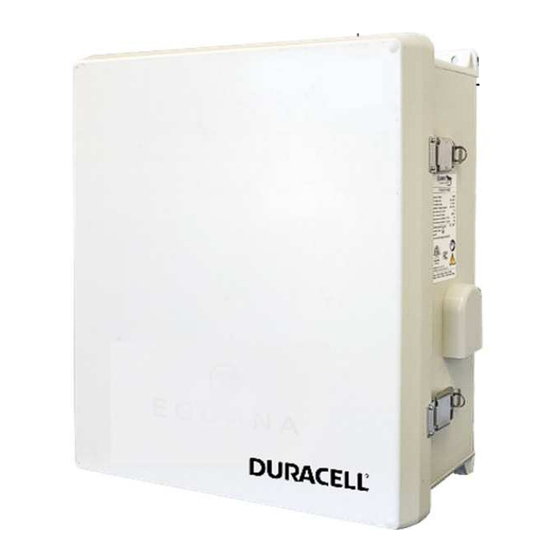

Model: D-HUB
INSTALLATION MANUAL
For use with the DURACELL POWER CENTER 5KW

Advertisement

Table of Contents
loading

Summary of Contents for Duracell D-HUB

  • Page 1 Model: D-HUB INSTALLATION MANUAL For use with the DURACELL POWER CENTER 5KW...
  • Page 2 Revision History Revision Date Status Author Comments Ian Grover 05/01/2022 Initial 08/30/2022 Ian Grover Released 04/05/2023 Released Ian Grover Removed TP-Link Kit...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for the DURACELL HUB as part of a complete home energy storage system. The DURACELL Hub is a peripheral of the DURACELL POWER CENTER 5KW energy storage system. The energy storage system will be referred to as the ESS throughout this manual.

  • Page 4: Table Of Contents

    8.2 W ........................... 14 IRE AND TORQUE RATINGS APPENDIX A: ELECTRICAL BLOCK DIAGRAM OF INTERNAL COMPONENTS ..........15 APPENDIX B: MULTI-MODE TRANSFER / BYPASS RELAY OPERATION ........... 16 : DURACELL HUB ......................16 BYPASS TRANSFER RELAY K3: PCS ............................16...

  • Page 5: Introduction

    This product is permanently wired to the home electrical service, and must be installed by a licensed electrician only. This product is a power distribution peripheral intended to be operated with the ESS. Refer to the DURACELL POWER CENTER 5KW Installation & Startup Manual for installation of the ESS.

  • Page 6: Special Tools & Hardware

    The DURACELL HUB is a power distribution center for the ESS, routing all AC power between the main and backup electrical panels. In the event of a grid outage, the DURACELL HUB will be energized by the ESS, which will island off the main electrical panel. As shown below, the PV inverter’s AC output is connected to the backup panel to support solar charging of the battery during a grid outage.

  • Page 7: Backup Solar Plus Storage

    PV inverter. If the PV inverter is equipped with its own curtailment controls that can limit PV output to 5kW or less in backup mode, the maximum rating of the PV inverter connected to the DURACELL HUB is 7.6 kW AC.

  • Page 8: Internal Component Overview

    1.6 Internal Component Overview The DURACELL HUB is equipped the following components as identified in the diagram below: Figure 6: DURACELL HUB internal component overview. 1.6.1: Energy management controller (EMC) IMPORTANT! The device unique identifier (UID) & serial number (S/N) tag attached to the front of the EMC is required to register the device to the cloud so that it may be monitored via the Fleet Installer monitoring system.

  • Page 9: Installation Planning

    2.1 Installation clearances between the DURACELL HUB and the battery system The DURACELL HUB includes a 10 foot communication cable that connects the hub to the battery system. If the installation is constrained such that the DURACELL HUB must be located greater than 24” from the battery system, consult the DURACELL POWER CENTER 5KW Installation &...

  • Page 10: Installation Conduit Plan - Power And Communication Circuits

    Disclaimer: Manufacturer supplied components represented here are limited to the PCS/Battery, DURACELL HUB, and CTs for PV, battery, and mains. All other materials and components represented are customer supplied. CEC/NEC electrical code compliance is the...

  • Page 11: Sld - Ac Coupled Pv System With Back-Up Power Operation

    11. Disclaimer: Manufacturer supplied components represented here are limited to the PCS/Battery, DURACELL HUB, and CTs for PV, battery, and mains. All other materials and components represented are customer supplied. CEC/NEC electrical code compliance is the responsibility of the designer and/or electrical permit holder.

  • Page 12: Installation Instructions

    CAUTION! All knockout holes must be sealed to maintain the Type 3R environmental rating of the enclosure after the installation is complete. CAUTION! The restricted knockout area is near the DURACELL HUB circuitry, so extra care must be taken to avoid internal components when the knockout holes are being drilled.

  • Page 13: Phase Orientation In Split Phase 120/240 Systems

    DURACELL HUB maintains consistent polarity, measure the AC voltage between L1 of the main feeder and the Grid terminals of the DURACELL HUB. The pole that measures 0.0 VAC is defined herein as L1 for the AC wiring instructions that follow.

  • Page 14: Backup Panel Connection

    4.3.4 ESS: PCS Grid Port Connection Route “AC_Grid_PCS” L1, L2, Neutral, and Ground to the PCS Grid port inside the ESS. Figure 18 : DURACELL HUB to PCS grid port connection. 4.3.5 ESS: PCS Load Port Connection Route “AC_Load_PCS” L1, L2, and Neutral to the PCS Load port inside the ESS.

  • Page 15: Ct Connections

    IMPORTANT! Do not complete this connection until the customer receives permission to operate the system, and the main panel DURACELL HUB breaker is ON. The EMC will be powered when the 12V battery is connected. Failure to comply with this instruction may cause irreversible damage to the battery due to battery drainage without a charge source.

  • Page 16: Operation

    Turn ON the DURACELL HUB breaker in the main panel. Powering up the DURACELL HUB will supply power to the on-board EMC. The red and green lights on the bottom of the EMC will flash for approximately 30 seconds, indicating initialization of the EMC. Following initialization, the lights will remain solid.

  • Page 17: Permission To Operate Checklist

    6 Maintenance The DURACELL HUB is a maintenance free product. Inspect the enclosure ventilator annually to ensure it is free from obstruction. For heavy soiling use a soft, dry brush to clean. Do not use any solvents, scouring, or corrosive materials to clean the unit.

  • Page 18: Technical Data

    8.1 Electrical specifications NOTE: About these ratings - The DURACELL HUB is a peripheral component of the DURACELL POWER CENTER 5KW. It is a power distribution center with an on-board energy management system. As such, this product is defined under the category of Interconnection System Equipment (ISE) for use in utility interactive and/or stand-alone power systems under the scope of the UL1741 Standard, and is intended to be operated in parallel with an electric power system (EPS) to supply power to common loads.

  • Page 19: Appendix A: Electrical Block Diagram Of Internal Components

    Appendix A: Electrical Block Diagram of Internal Components The following reference diagram outlines the internal wiring of the DURACELL HUB. Reference Title Notes 801003652 Voltage Sense Cable 120VAC L1 to N power meter reference 801003644 Backup Battery Cable 12V AGM battery power...

  • Page 20: Appendix B: Multi-Mode Transfer / Bypass Relay Operation

    Kx: DURACELL HUB bypass / transfer relay The DURACELL HUB bypass / transfer relay ensures the backup panel is connected to the main panel with or without an operating ESS. When standalone, the Kx relay bypasses the energy storage system to power the backup panel from the main supply.

  • Page 21: K1: Pcs Islanding Relay

    (critical, service mode: non-clearing). Fail-safe: Critical failure of the K1 relay will prevent operation of the PCS, but will allow the backup panel to be supplied by the main panel via the DURACELL HUB. PCS and Hub relay state map The following table summarizes the PCS operating states in both utility interactive and offgrid operating modes.

  • Page 22: Appendix C: Internet Connection Options

    Appendix C: Internet Connection Options C.1 Hard-wired Ethernet Hard-wired ethernet is recommended for a permanent installation, as it is not subject to interference, drop-outs, or ISP changes. Connecting the EMC gateway to the customer’s internet router via ethernet cable: Note: Refer to figure 2, page 6 for the following instructions / cable references.
