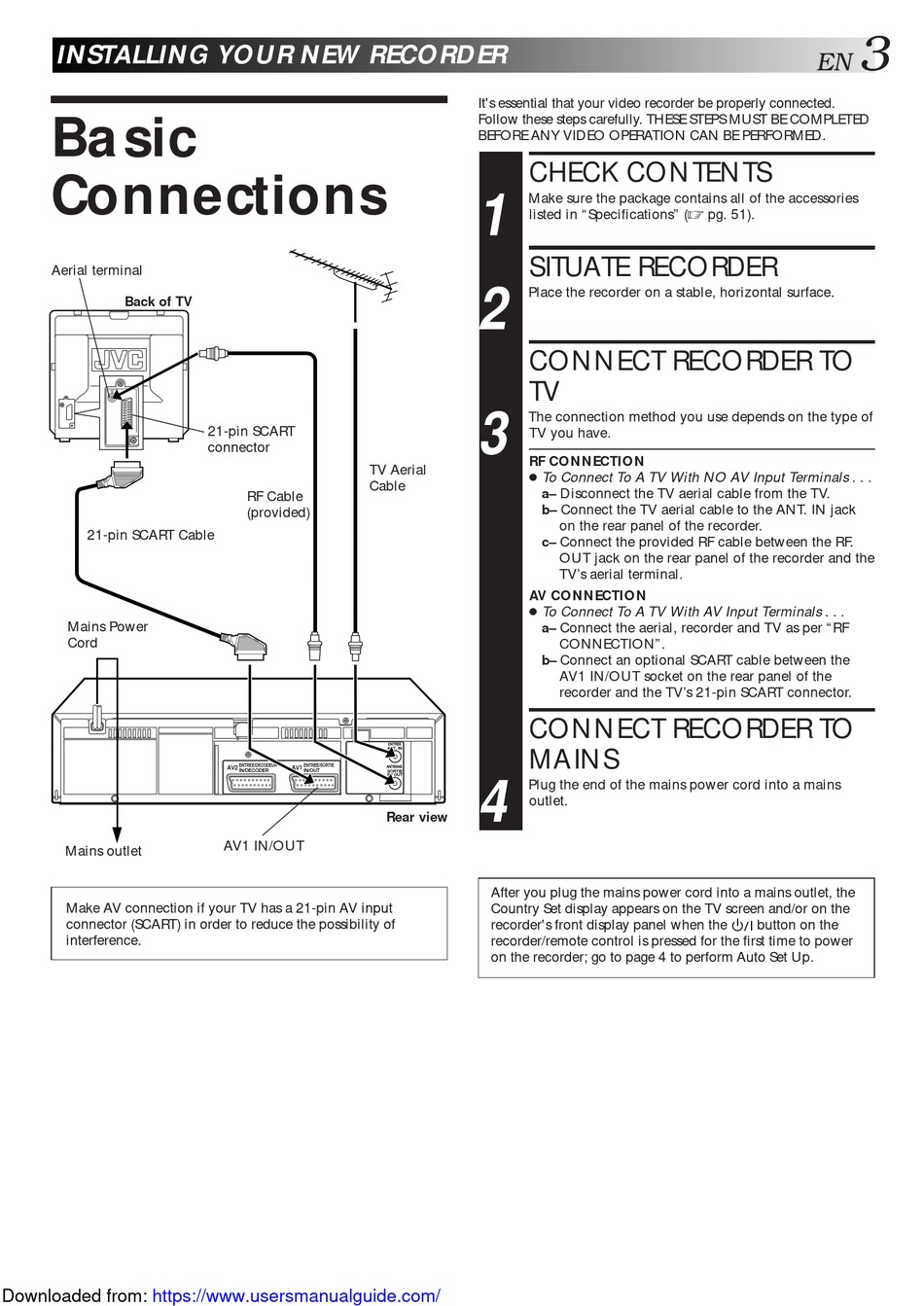

IN STALLIN G YO U R N EW RECO RD ER
Ba sic
Connections
Aerial terminal
Back of TV
21-pin SCART Cable
Mains Power
Cord
Mains outlet
Make AV connection if your TV has a 21-pin AV input
connector (SCART) in order to reduce the possibility of
interference.
Downloaded from:
https://www.usersmanualguide.com/
21-pin SCART
connector
TV Aerial
Cable
RF Cable
(provided)
ENTREE/DECODEUR
ENTREE/SORTIE
AV2
AV1
IN/DECODER
IN/OUT
AV1 IN/OUT
It's essential that your video recorder be properly connected.
Follow these steps carefully. THESE STEPS MUST BE COMPLETED
BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.
CHECK CO N TEN TS
Make sure the package contains all of the accessories
1
listed in " Specifications" (
SITUATE RECO RDER
Place the recorder on a stable, horizontal surface.
2
CO N N ECT RECO RDER TO
TV
The connection method you use depends on the type of
3
TV you have.
RF CO N N ECTIO N
● To Connect To A TV With NO AV Input Terminals . . .
a– Disconnect the TV aerial cable from the TV.
b– Connect the TV aerial cable to the ANT. IN jack
on the rear panel of the recorder.
c– Connect the provided RF cable between the RF .
OUT jack on the rear panel of the recorder and the
TV's aerial terminal.
AV CO N N ECTIO N
● To Connect To A TV With AV Input Terminals . . .
a– Connect the aerial, recorder and TV as per " RF
CONNECTION" .
b– Connect an optional SCART cable between the
AV1 IN/OUT socket on the rear panel of the
recorder and the TV's 21-pin SCART connector.
CO N N ECT RECO RDER TO
ENTREE
MAIN S
ANT. IN
ANTENNE
SORTIE
RF OUT
Plug the end of the mains power cord into a mains
4
outlet.
Rear view
After you plug the mains power cord into a mains outlet, the
Country Set display appears on the TV screen and/or on the
recorder's front display panel when the
recorder/remote control is pressed for the first time to power
on the recorder; go to page 4 to perform Auto Set Up.
3
EN
pg. 51).
button on the
