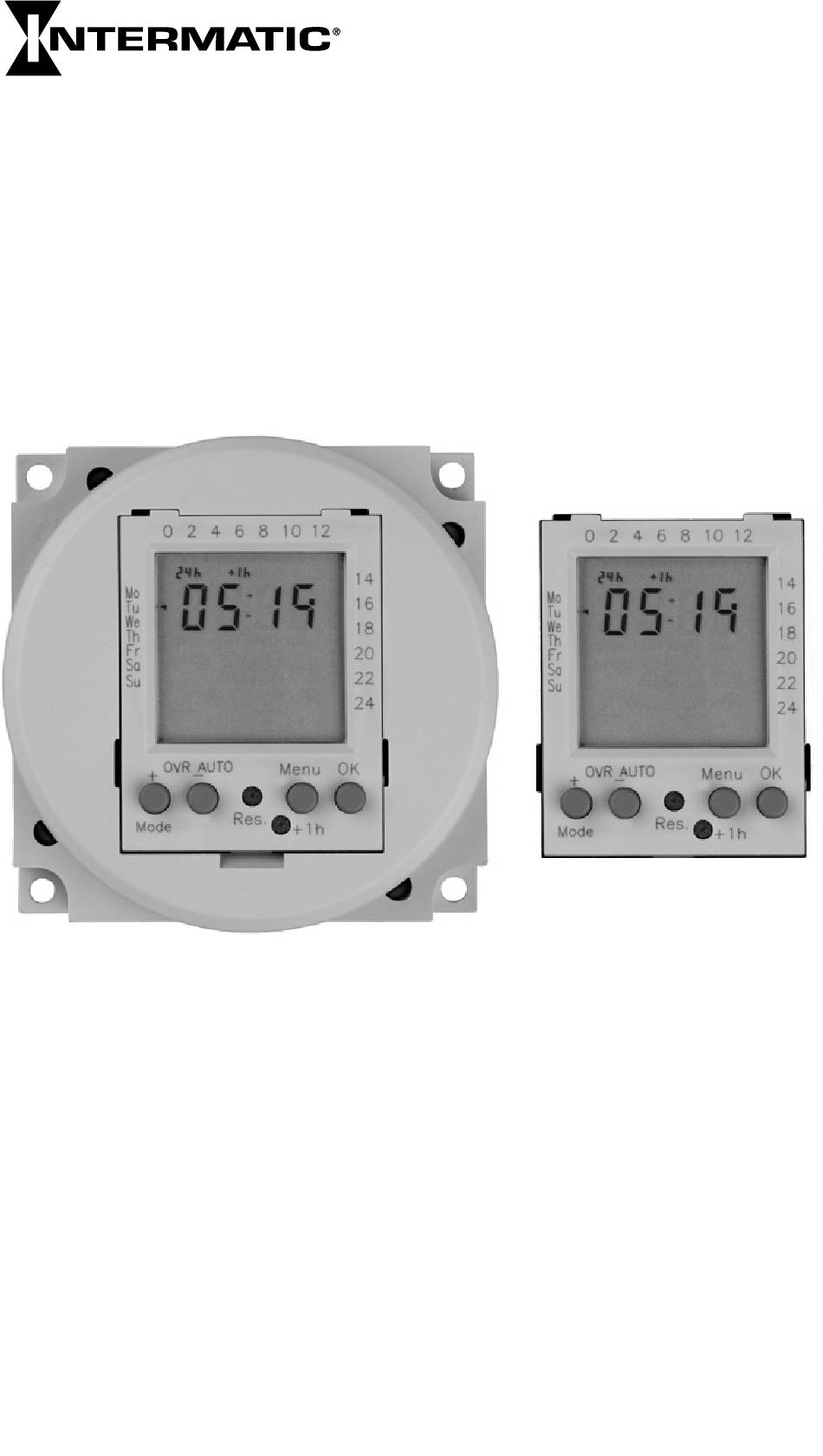

- Page 1 Instruction Manual 20 memories time switches...
- Page 3 page Safety precautions ..............2 Program structure ..............3 Symbols, keys ................5 reset Menu Setting the timer ................ 6 Prog Setting 24h or am/pm clock, time and weekday .....7 Prog. Pre-set programs ............... 9 Selecting pre-set programs P01 to P03 ........10 prog User defined programs ..............
- Page 4 Safety precautions · The connection and installation of electrical devices may only be carried out by a qualified electrician. · Interventions in and changes to the device result in the voiding of the warranty claim. · Observe your national regulations and the respective safety provisions.
- Page 5 Press Reset Button First installation setting Review/adjust Menu Set time: Format 24h or am/pm 24h blinking, using +/- to select, then OK Set time: Hour Hour blinking, using +/- to select, then OK Set time: Minute Minute blinking, using +/- to select, then OK Set time: Day Monday blinking, using +/- to select, then OK Note:...
- Page 6 Set switching ON time: Hour Hour blinking, using +/- to select, then OK Set switching ON time: Minute Minutes blinking, using +/- to select, then OK Set switching ON time: Days Mo-Su blinking, using +/- to select, then OK Set switching OFF time: Hour Hour blinking, using +/- to select, then OK Set switching OFF time: Minute Minutes blinking, using +/- to select, then OK/Menu...
- Page 7 reset : Overview of daily switching program : Setting of 24h or am/pm : Summer/winter clock changes : Weekday display : Switching status display ON/OFF OVR AUTO Menu Res. : Adjustment keys: By pressing the key longer than 2 sec. you can adjust the timer in steps of 5 units Res.
- Page 8 Menu Prog Setting of this programmable timer is depending of the user preference to use pre-set programs or defining own programming. Using Pre-set programs (first time installation) Using Reset key you can adjust the following values: OVR AUTO Menu OK 24h or am/pm: see pg 6 Res.
- Page 9 Sequence to follow after selecting programming by pre-set programs or Menu mode. Set display format 24h or am/pm OVR AUTO Menu OK Res. Mode Select 24h or am/pm (+/- ) and con - firm with OK. Set hour OVR AUTO Menu OK Res.
- Page 10 Set minutes OVR AUTO Menu OK Res. Mode Select minutes (+/- ) and confirm with OK. Set week day OVR AUTO Menu OK Res. Mode Select week day (+/- ) and confirm with OK.
- Page 11 Prog. P01: Mo - Su, 1 x ON/OFF Programs P01-03 The switching on and off times for programs P01 to P03 are preset (pre). The user can change these pro- grams. P01: Mo - Su, 2 x ON/OFF Individual program, P-- Under the menu option P-- you have the option of creating a user-defined program.
- Page 12 prog Sequence to follow after setting time in the Reset mode. OVR AUTO Menu OK Res. Mode Select pre-set program (+/- ). OVR AUTO Menu OK Res. Mode Once selected the program desired there are following options: Menu : terminate programming OK: Going through pre-set programs to modify selection (any program ON or OFF can be modified by using...
- Page 13 prog Sequence to follow after setting time and week day while running Menu mode or adding programs to the pre-set P01 to P03. Select program ON OVR AUTO Menu OK Res. Mode and confirm with OK. Set hour ON OVR AUTO Menu OK Res.
- Page 14 prog Set week day ON OVR AUTO Menu OK Res. Mode Select week day (+/- ) and confirm with OK. Possible week blocks and individual days...
- Page 15 prog Set hour OFF OVR AUTO Menu OK Res. Mode Select hour (+/- ) and confirm with OK. Set minutes OFF OVR AUTO Menu OK Res. Mode Select minutes (+/- ) and confirm with OK. Set week day OFF OVR AUTO Menu OK Res.
- Page 16 prog Shift Should the OFF command be the following day of ON command then select '' + ''key then select Menu or OK. Example: Mo-Fr Mo-Fr 20:00 p.m. - 03:00 a.m. ON 20:00 p.m. - 03:00 a.m. ON 03:00 a.m. - 20:00 p.m. OFF Tu-Sa 03:00 a.m.
- Page 17 OVR AUTO Menu OK Res. Mode Select Menu , then select OK key until getting onto the ON time of the program you want to delete. OVR AUTO Menu OK Res. Mode Select '' - -'' with (+/- ) key and con - firm with OK.
- Page 18 OVR AUTO Menu OK Res. Mode The +1h key is for the change to daylight savings time. · By pressing the +1h key 1 hour is added to the current time. · +1h is shown on the display. · By pressing +1h again 1 hour is subtracted from the current time.
- Page 19 Mode OVR AUTO Menu OK Res. Mode The '' + ''key serves to change over between automatic, AUTO to over- ride (OVR) ON and override (OVR) OFF (CH1). OVR AUTO OVR AUTO...
-
Page 20: Warranty
Warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased or (b) completing a warranty claim online at www.intermatic. com. This warranty is made by: Intermatic Incorporated, 1950 Innovation Way, Suite 300, Libertyville, IL 60048. For additional product or warranty information go to: http:// www.Intermatic.com or call 815-675-7000.
