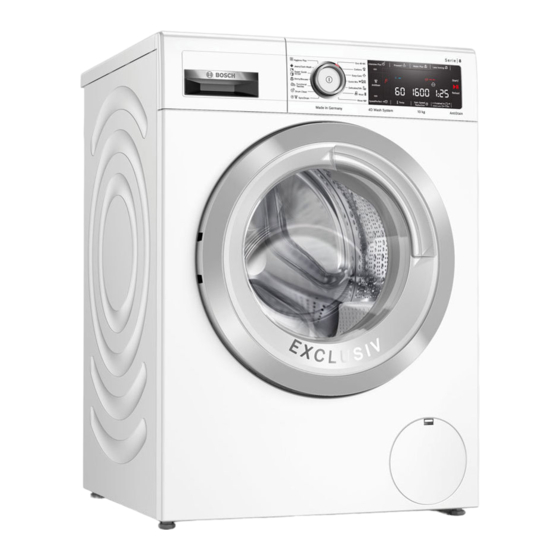

- Page 1 Washing machine WAX32M01BY [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 6 Before using for the first time .. 20 1.1 General information.... 4 6.1 Starting an empty washing cycle ........ 20 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 7 Display ........ 21 1.4 Safe installation ...... - Page 3 13.13 Unloading the laundry .. 32 13.14 Switching off the appli- ance........ 32 14 Childproof lock...... 33 14.1 Activating the childproof lock ........ 33 14.2 Deactivating the childproof lock ........ 33 15 Basic settings...... 34 15.1 Overview of basic settings .. 34 15.2 Changing the basic set- tings........
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
-
Page 7: Safe Use
Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with cleaning agents that con- tain solvents may cause an explosion in the appliance.
-
Page 9: Safe Cleaning And Maintenance
Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be ATTENTION! able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Reduce the washing temperature for ▶ spray residue or other residues im- lightly and normally soiled laundry. mediately if they come into contact a At lower temperatures, the appli- with the appliance. ance consumes less energy. -
Page 12: Installation And Connection
en Installation and connection Replace the accessories in ques- ▶ 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 29 Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order. As a result, water stains may ATTENTION! remain in the appliance. - Page 13 Installation and connection en If the appliance is tilted at an angle 4.4 Removing the transit greater than 40°, residual water may bolts leak out of the appliance and cause material damage. The appliance is secured for trans- Tilt the appliance carefully. portation using transit bolts on the ▶...
-
Page 14: Removing The Transport Struts
en Installation and connection Remove the power cable from the Push the 4 cover caps downwards. holder. Note: To install the transport locks to Remove the 4 sleeves. transport the appliance, perform these steps again in the reverse or- der. 4.5 Removing the transport struts Unscrew and remove the screws in the vertical transport struts using a... -
Page 15: Connecting The Appliance
Installation and connection en Remove the transport struts. 4.6 Connecting the appliance Connecting the water inlet hose WARNING Risk of electric shock! The appliance contains live parts. Touching live parts is dangerous. Do not immerse the electrical ▶ AquaStop valve in water. Connect the water inlet hose to a tap (26.4 mm = 3/4"). -
Page 16: Aligning The Appliance
en Installation and connection To align the appliance, turn the ap- Siphon Secure the con- pliance feet. Check that the appli- nection point with ance is level using a spirit level. a (24–40 mm) hose clamp. Sink Fix and secure the water outlet hose with an el- bow. - Page 17 Installation and connection en The connection details of the appli- ance can be found under Tech- nical data → Page 52. Check the mains plug is inserted properly.
-
Page 18: Detergent Drawer
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Maintenance flap for the drain Transit bolts → Page 13 pump → Page 36 Water inlet hose → Page 15... -
Page 19: Control Panel
Familiarising yourself with your appliance en Measuring aid for liquid deter- gent → "Inserting the measuring aid for liquid detergent", Page 30 Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 20: Before Using For The First Time
en first time Start the first wash cycle or press first time 6 Before using for the to switch off the appliance. → "Basic operation", Page 30 first time Prepare the appliance for use. first time 6.1 Starting an empty wash- ing cycle Your appliance was inspected thor- oughly before leaving the factory. - Page 21 Display en 7 Display The display shows the current settings, options or relevant information. Display Designation More information 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. Programme end → "Buttons", Page 23 time 10.0 Recommended The maximum load capacity for the selec- load...
- Page 22 en Display Display Designation More information End of pro- Programme status gramme Childproof lock ¡ lights up: The childproof lock is activ- ated. ¡ flashes: The childproof lock is activated and the appliance has been operated. → "Deactivating the childproof lock", Page 33 Blood The stain type is activated.
-
Page 23: Buttons
Buttons en 8 Buttons The selection of programme settings depends on the programme that is set. Button Selection More information Start/Reload ¡ Start Start, cancel or pause the pro- gramme. ¡ Cancel ¡ Pause SpeedPerfect ¡ Activate Activate or deactivate a shorter pro- gramme duration. - Page 24 en Buttons Button Selection More information Prewash ¡ Activate Activate or deactivate prewash, e.g. for washing heavily soiled laundry. ¡ Deactivate Extra Rinse ¡ Activate Activate or deactivate an additional rinse cycle. ¡ Deactivate Recommended for particularly sensit- ive skin or in regions with very soft water.
-
Page 25: Programmes
Programmes en 9 Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. load (kg) Cottons Wash hard-wearing items made from cotton, linen 10.0 or blended fabrics. Also suitable as a short programme for normally soiled laundry when you activate SpeedPerfect ... - Page 26 en Programmes Programme Description Max. load (kg) ¡ Max. 1600 rpm Delicates/Silk Wash delicate, washable items made from silk, vis- cose and synthetic fabrics. Use a detergent that is suitable for delicates or silk. Note: Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag. Programme setting: ¡...
- Page 27 Programmes en Programme Description Max. load (kg) Shirts/ Wash non-iron shirts and blouses made from cot- Blouses ton, linen, or synthetic or blended fabrics. Tip: In order to avoid creasing in your laundry, you can activate Less Ironing . The laundry is only given a short spin and can be removed while still dripping wet.
-
Page 28: Laundry
en Programmes Programme Description Max. load (kg) Do not use fabric softener. Do not use liquid detergent or detergent that is in- tended for woollens or delicates. Super Wash items made from cotton, or synthetic or blen- Quick 15'/30' ded fabrics. -
Page 29: Preparing The Laundry
Accessories en 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 50. Order number Water inlet hose exten- Extend the water inlet WMZ2381 sion hose for cold water or AquaStop (approx. -
Page 30: Detergents And Care
en Detergents and care products Turn the programme selector and 12 Detergents and care set the required programme. → "Programmes", Page 25 products If required, adjust the programme The manufacturer's instructions for settings. use and dosage can be found on the → "Adjusting the programme set- packaging. -
Page 31: For Liquid Detergent
operation en Press down on the insert and re- Slide the measuring aid forwards. move the detergent drawer. Fold the measuring aid down and Insert the measuring aid. click it into place. Insert the detergent drawer. Push in the detergent drawer. 13.6 Use the measuring aid 13.7 Adding detergent and for liquid detergent... -
Page 32: Starting The Programme
en operation 13.8 Starting the programme 13.11 Cancelling the pro- gramme Requirement: A programme is set. → "Setting a programme", Page 30 Press Start/Reload Press Start/Reload Open the door. ▶ a The drum rotates and load detec- The appliance door remains tion takes place. This can take up locked for safety reasons if the to 2 minutes, after which water temperature and water levels are... -
Page 33: Childproof Lock
Childproof lock en Wipe the rubber gasket dry and re- So that the programme currently move any foreign objects. running is not cancelled, the pro- gramme selector must be set to the initial programme. goes out in the display. Leave the appliance door and de- tergent drawer open so that resid- ual water can evaporate. -
Page 34: Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of basic settings Basic setting Programme posi- Value Description tion End signal 0 (off) Set the volume of 1 (quiet) the signal at the 2 (medium) end of the pro- 3 (loud) -
Page 35: Changing The Basic Set- Tings
Programme counter en 15.2 Changing the basic set- 17 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. ciently for a long time, it is important to clean and maintain it carefully. 17.1 Cleaning the drum CAUTION Risk of injury! Permanently washing at low temper-... -
Page 36: Cleaning The Drain Pump
en Cleaning and servicing Pull out the insert upwards. Clean the opening for the deter- gent drawer. Clean the detergent drawer and in- sert with water and a brush, and Push in the detergent drawer. then dry them. 17.3 Cleaning the drain pump Clean the drain pump regularly, at least once a year, as well as in the event of faults, e.g. - Page 37 Cleaning and servicing en Slide a sufficiently large container CAUTION - Risk of scalding! under the opening. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 38 en Cleaning and servicing Ensure that both impellers can Cleaning the drain pump turn. Requirement: The drain pump is empty. → Page 36 Since water may remain in the drain pump, unscrew the pump cap carefully. The filter insert in the pump ‒ housing may become stuck due to coarse particles of dirt.
-
Page 39: Cleaning The Intake Opening In The Rubber Gasket
Cleaning and servicing en Insert and close the service flap. Remove any blockages from the intake opening. 17.4 Cleaning the intake Note: Do not use any sharp or poin- opening in the rubber ted objects. gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening. -
Page 40: Troubleshooting
en Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 41 Troubleshooting en Fault Cause and troubleshooting "E:30 / -80" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 42 en Troubleshooting Fault Cause and troubleshooting "E:30 / -10" and/or If the error message is displayed again, call cus- tomer service. → "Customer Service", Page 50 "E:35 / -10" There is water in the base trough. Turn off the water tap. ▶ Call the after-sales service. ▶...
- Page 43 Troubleshooting en Fault Cause and troubleshooting The appliance is not The mains plug of the power cord is not plugged in. working. Connect the appliance to the power supply. ▶ The circuit breaker in the fuse box has tripped. Check the circuit breaker in the fuse box. ▶...
- Page 44 en Troubleshooting Fault Cause and troubleshooting The water is not drain- Drain pump is blocked. ing. → "Cleaning the drain pump", Page 36 ▶ is activated. Continue the programme by selecting Spin or ▶ Drain and pressing Start/Reload → "Resuming the programme when the programme status is Rinse Hold", Page 32 The water outlet hose is connected too high.
- Page 45 Troubleshooting en Fault Cause and troubleshooting The spin cycle runs The unbalanced load detection system eliminates an several times. imbalance by repeatedly redistributing the laundry. Not a fault – no action required. ▶ Note: When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Heavy foam build-up Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 47 Troubleshooting en Fault Cause and troubleshooting Loud noises during Secure the appliance feet. ▶ the spin cycle. → "Aligning the appliance", Page 16 Transit bolts have not been removed. → "Removing the transit bolts", Page 13. ▶ Banging noises, rat- Foreign bodies have got into the drain pump. tling in the drain → "Cleaning the drain pump", Page 36 ▶...
- Page 48 en Troubleshooting Fault Cause and troubleshooting The spin result is not Note: Where possible, mix large and small items in satisfactory. The laun- the drum. Different sized items of laundry distribute dry is too wet/too themselves better during the spin cycle. damp. Start the ...
-
Page 49: Emergency Release
Transportation, storage and disposal en 18.1 Emergency release 19.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 36 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 50: Disposing Of Old Appliance
en Customer Service 19.4 Disposing of old appli- 20 Customer Service ance Function-relevant genuine spare parts Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health! -
Page 51: Aqua-Stop Guarantee
Customer Service en 20.2 AQUA-STOP guarantee In addition to warranty claims against the seller under the purchase agree- ment and in addition to our manufac- turer's warranty, we offer compensa- tion under the following conditions. ¡ If our Aqua-Stop system is defect- ive and causes water damage, we will make good the damage for private users. - Page 52 en Consumption values 21 Consumption values The following information is provided in accordance with the EU Ecodesign Regulation. The values given for programs other than the Eco 40-60 are indicat- ive only and were determined in accordance with the applicable standard EN60456. Programme Load Pro- Energy...
-
Page 53: Technical Data
Technical data en Appliance depth 63.2 cm Length of the wa- 150 cm with door closed ter inlet hose Appliance depth 106.3 cm Length of the wa- 150 cm with door open ter outlet hose Weight 72.3 kg Length of the 160 cm power cord Maximum load 10.0 kg This product contains light sources Mains voltage... - Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
